| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_072T01_9000002272_15399cztM0_level2.evt | modeM0/AS1G08_072T01_9000002272_15399cztM0_level2_quad_clean.evt |
| Size (bytes) | 721,082,880 | 87,076,800 |
| Size | 687.7 MB | 83.0 MB |
| Events in quadrant A | 3,323,714 | 593,191 |
| Events in quadrant B | 3,910,778 | 593,512 |
| Events in quadrant C | 3,428,397 | 593,717 |
| Events in quadrant D | 10,752,582 | 419,430 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13948 | 3 |
| B | 0 | 15664 | 2 |
| C | 0 | 14251 | 2 |
| D | 0 | 36321 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6255 | 92 | 1.470823% |
| B | 6255 | 199 | 3.181455% |
| C | 6255 | 76 | 1.215028% |
| D | 6255 | 2966 | 47.418066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7501 | 6256 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7501 | 6256 | 103 | 103 | 1.37% | 1.65% |  |
| C | 7501 | 6256 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7501 | 6256 | 2525 | 2525 | 33.66% | 40.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 44709 | 257.76 | 847 | 833 | 170.2 |
| A | 12 | 96 | 9957 | 53.6 | 847 | 833 | 170.2 |
| A | 14 | 238 | 9920 | 53.38 | 847 | 833 | 170.2 |
| B | 10 | 16 | 281564 | 1801.06 | 834 | 817 | 155.9 |
| B | 0 | 197 | 131603 | 839.02 | 834 | 817 | 155.9 |
| B | 4 | 48 | 83991 | 533.58 | 834 | 817 | 155.9 |
| C | 3 | 233 | 213836 | 1155.51 | 812 | 818 | 184.4 |
| C | 7 | 247 | 26606 | 139.89 | 812 | 818 | 184.4 |
| C | 10 | 22 | 17400 | 89.95 | 812 | 818 | 184.4 |
| D | 13 | 122 | 7091016 | 44206.24 | 663 | 646 | 160.4 |
| D | 5 | 222 | 380056 | 2365.5 | 663 | 646 | 160.4 |
| D | 9 | 68 | 279706 | 1739.85 | 663 | 646 | 160.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

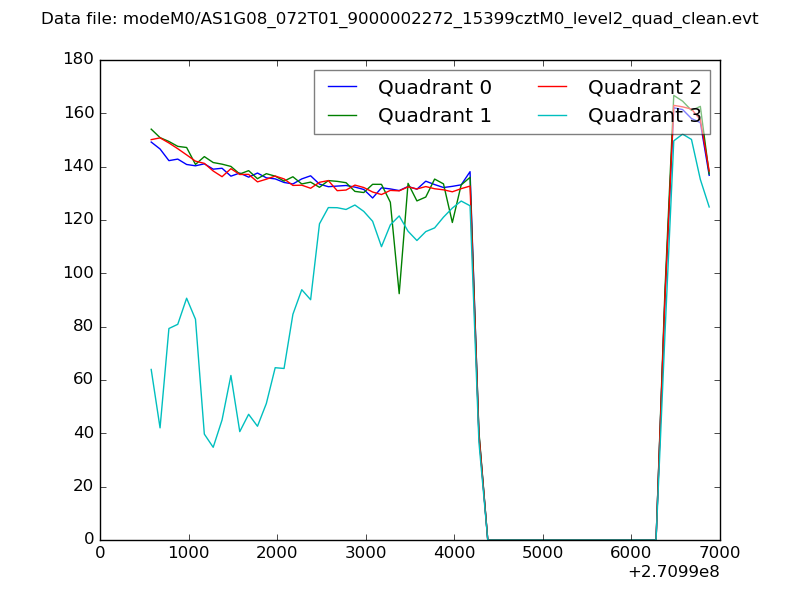

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

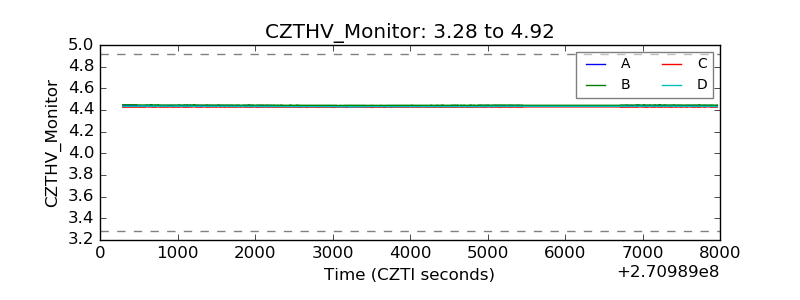

| CZT HV Monitor |  |

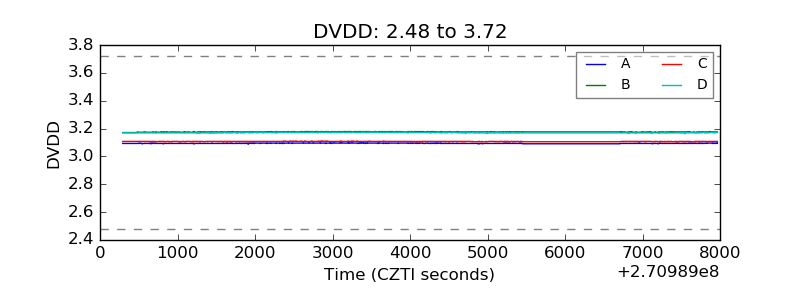

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

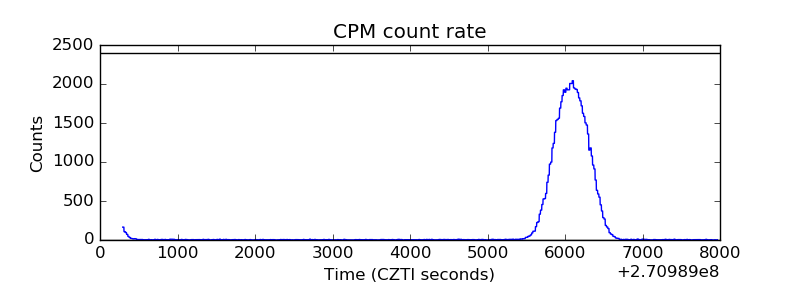

| _CPM_Rate |  |

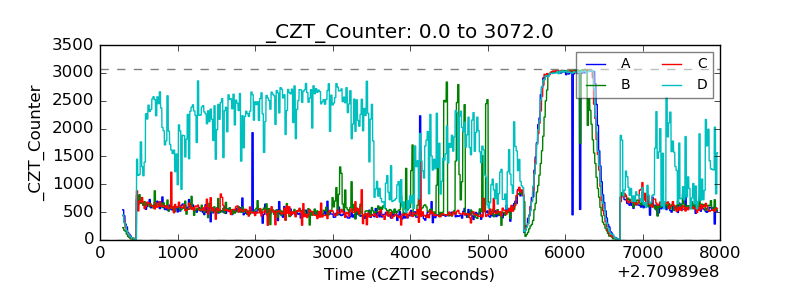

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

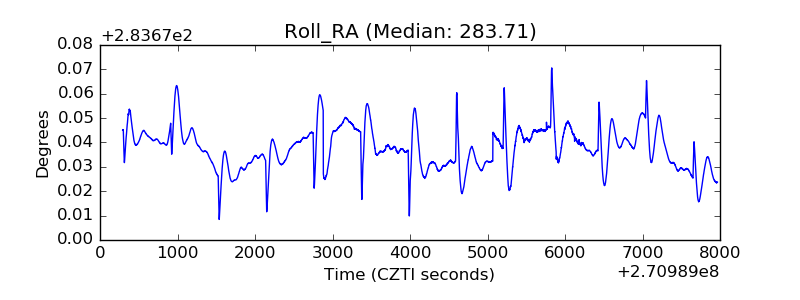

| _Roll_RA |  |
| Veto Counter |  |
