| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_072T01_9000002272_15404cztM0_level2.evt | modeM0/AS1G08_072T01_9000002272_15404cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,914,560 | 99,570,240 |
| Size | 517.8 MB | 95.0 MB |
| Events in quadrant A | 3,452,799 | 637,465 |
| Events in quadrant B | 3,759,530 | 648,317 |
| Events in quadrant C | 3,891,186 | 634,296 |
| Events in quadrant D | 4,851,226 | 595,016 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15131 | 3 |
| B | 0 | 15711 | 2 |
| C | 0 | 16308 | 2 |
| D | 0 | 19280 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7184 | 62 | 0.863029% |
| B | 7184 | 103 | 1.433742% |
| C | 7184 | 129 | 1.795657% |
| D | 7184 | 354 | 4.927617% |

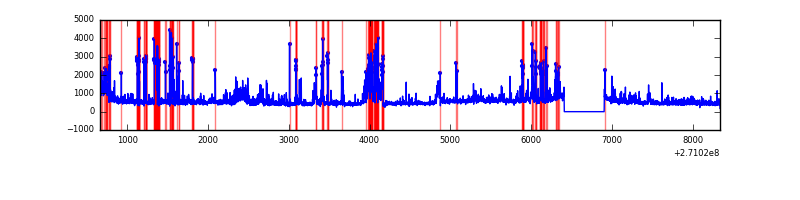

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

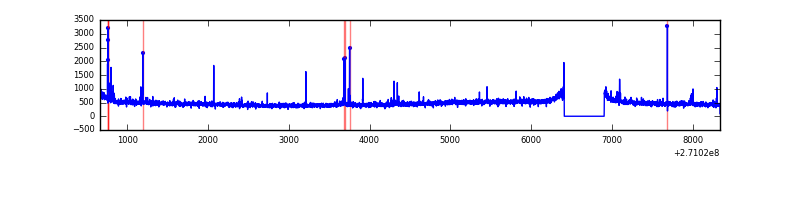

| A | 7680 | 7186 | 8 | 8 | 0.10% | 0.11% |  |

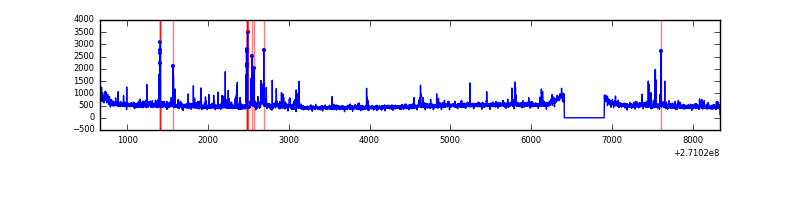

| B | 7680 | 7186 | 15 | 15 | 0.20% | 0.21% |  |

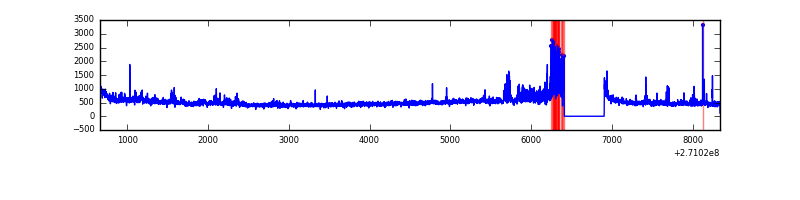

| C | 7680 | 7185 | 36 | 36 | 0.47% | 0.50% |  |
| D | 7680 | 7186 | 247 | 247 | 3.22% | 3.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 43808 | 242.03 | 866 | 850 | 177.5 |
| A | 12 | 96 | 43710 | 241.47 | 866 | 850 | 177.5 |
| A | 14 | 238 | 14303 | 75.79 | 866 | 850 | 177.5 |
| B | 10 | 16 | 132149 | 785.24 | 868 | 846 | 167.2 |
| B | 3 | 209 | 63332 | 373.69 | 868 | 846 | 167.2 |
| B | 0 | 229 | 34751 | 202.76 | 868 | 846 | 167.2 |
| C | 3 | 233 | 447183 | 2330.64 | 830 | 834 | 191.5 |
| C | 7 | 247 | 189405 | 984.63 | 830 | 834 | 191.5 |
| C | 14 | 234 | 16405 | 81.3 | 830 | 834 | 191.5 |
| D | 2 | 33 | 568109 | 2808.21 | 822 | 796 | 202.0 |
| D | 1 | 52 | 355625 | 1756.41 | 822 | 796 | 202.0 |
| D | 13 | 122 | 320256 | 1581.33 | 822 | 796 | 202.0 |

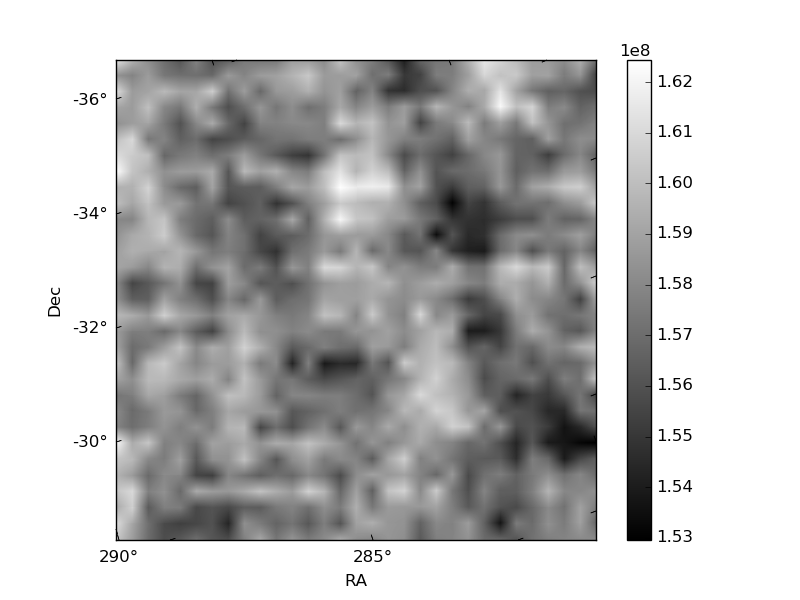

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

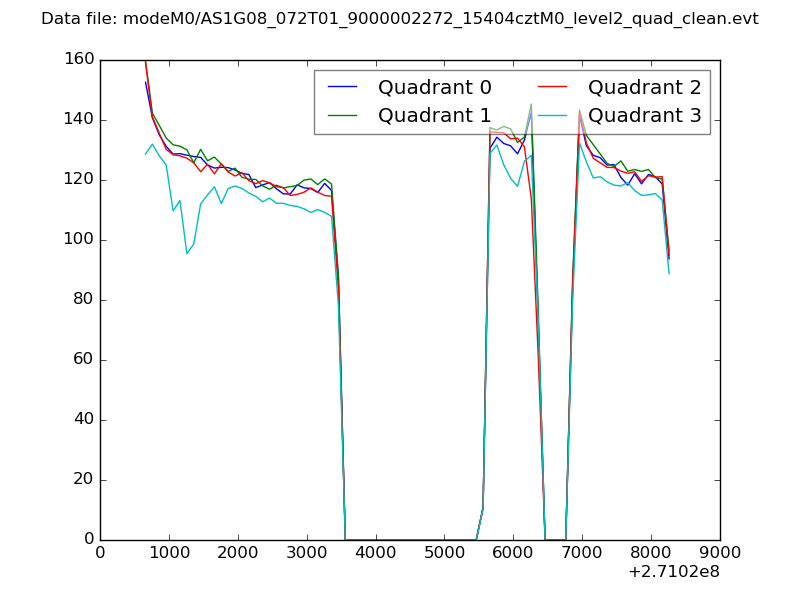

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

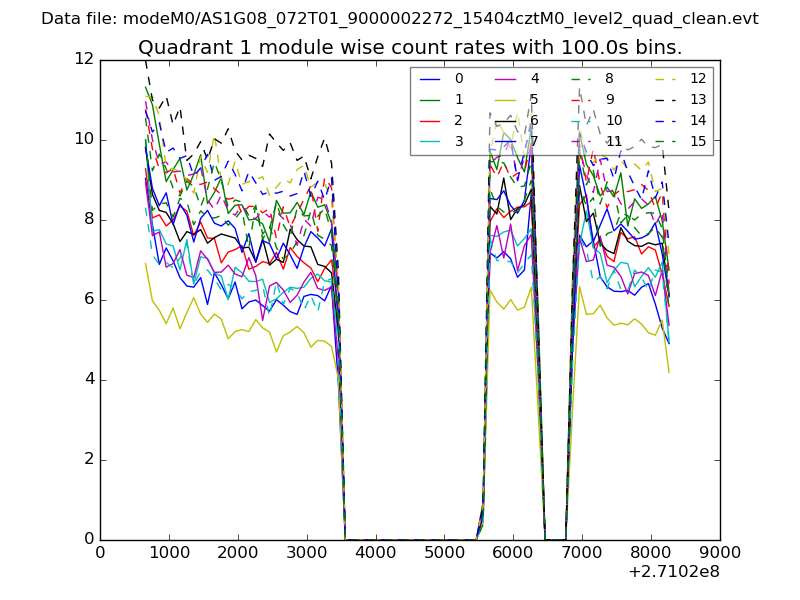

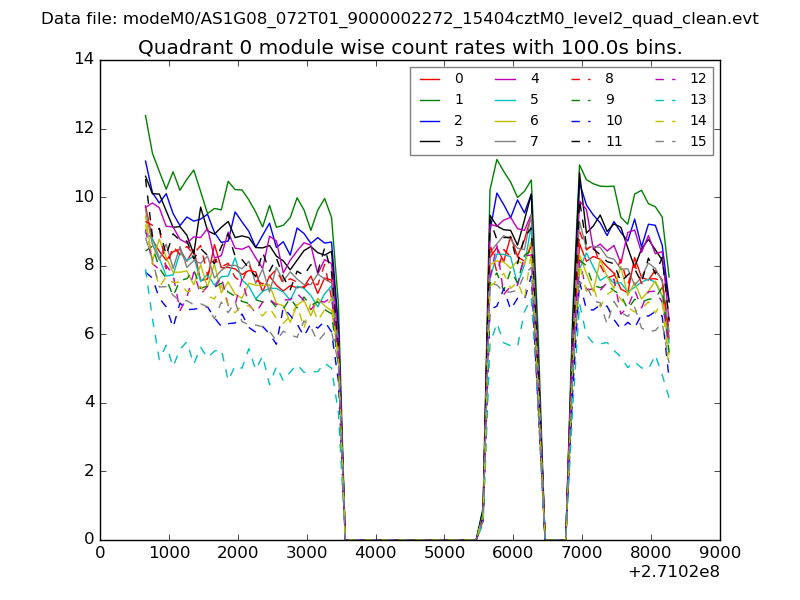

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

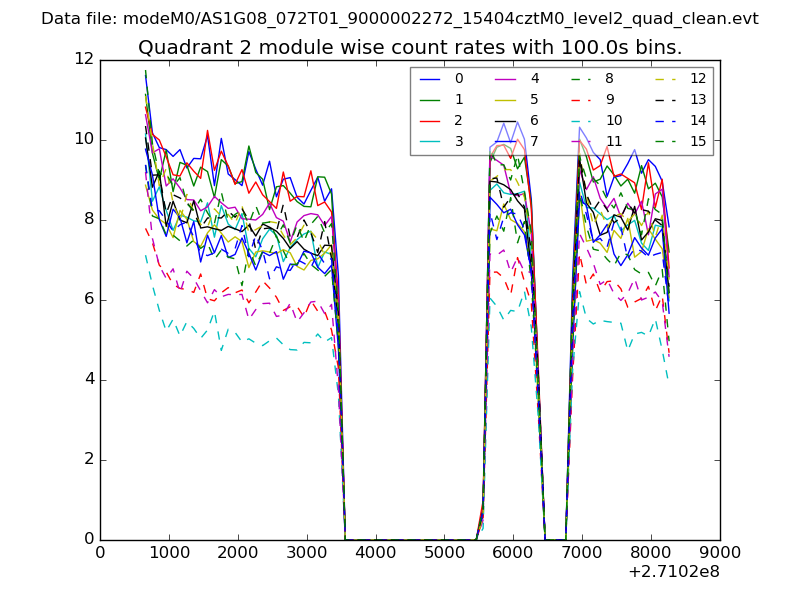

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

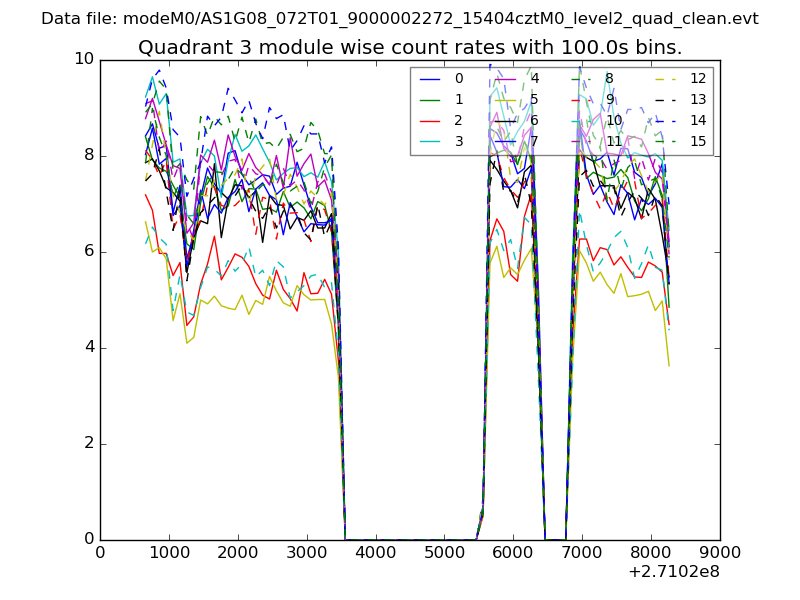

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

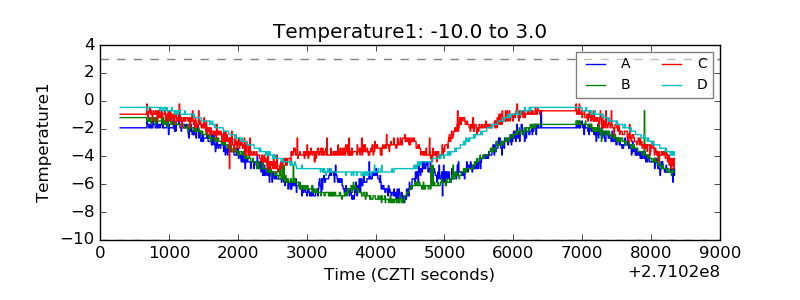

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

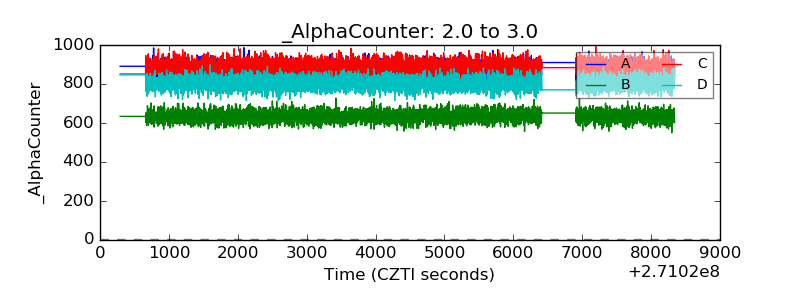

| Alpha Counter |  |

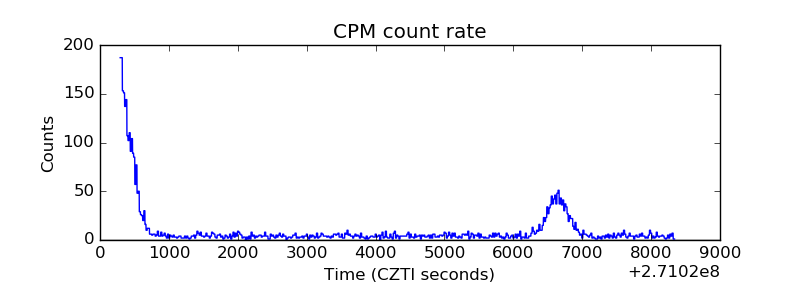

| _CPM_Rate |  |

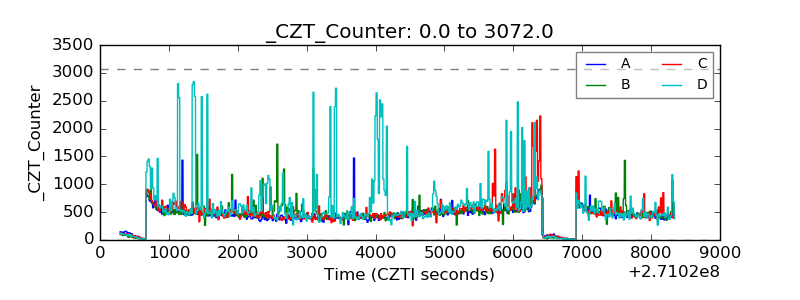

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

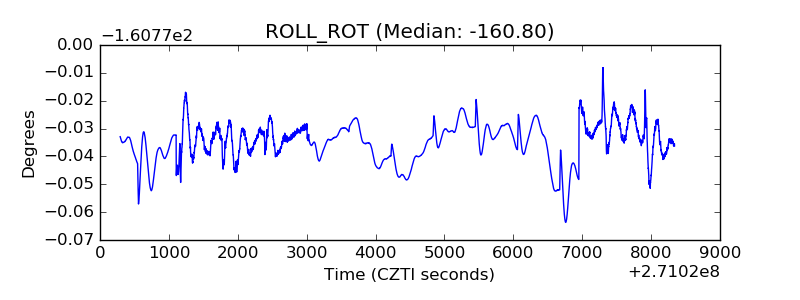

| _ROLL_ROT |  |

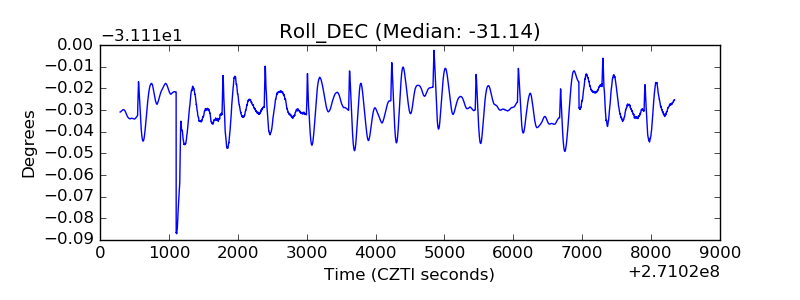

| _Roll_DEC |  |

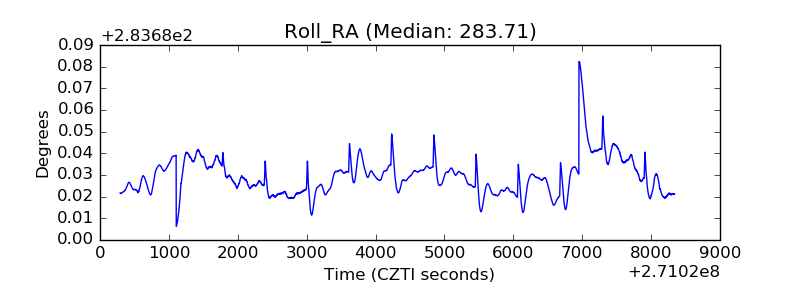

| _Roll_RA |  |

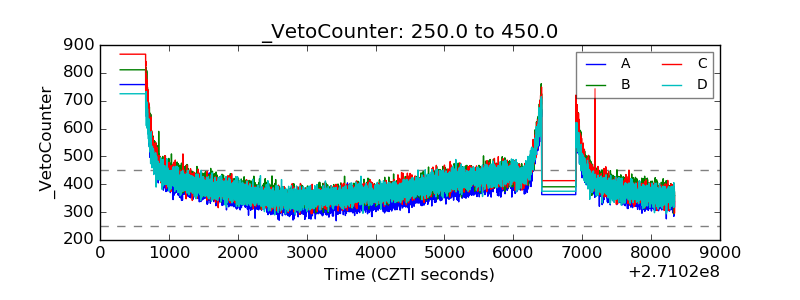

| Veto Counter |  |
