| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_072T01_9000002272_15409cztM0_level2.evt | modeM0/AS1G08_072T01_9000002272_15409cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,764,757,440 | 215,919,360 |
| Size | 1.6 GB | 205.9 MB |
| Events in quadrant A | 10,281,541 | 1,340,415 |
| Events in quadrant B | 9,295,265 | 1,410,697 |
| Events in quadrant C | 9,952,172 | 1,389,651 |
| Events in quadrant D | 22,655,053 | 1,106,156 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43208 | 5 |
| B | 0 | 39650 | 4 |
| C | 0 | 41327 | 4 |
| D | 0 | 80495 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18732 | 681 | 3.635490% |
| B | 18732 | 156 | 0.832799% |
| C | 18732 | 136 | 0.726030% |
| D | 18732 | 4157 | 22.191971% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

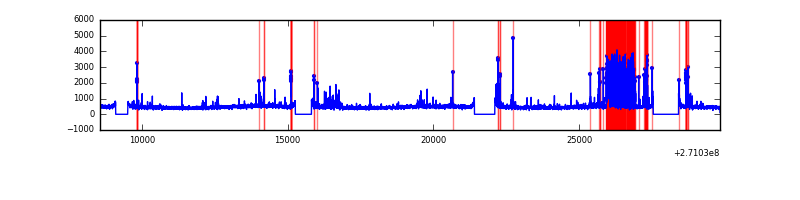

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21273 | 18737 | 447 | 447 | 2.10% | 2.39% |  |
| B | 21273 | 18737 | 24 | 24 | 0.11% | 0.13% |  |
| C | 21273 | 18737 | 32 | 32 | 0.15% | 0.17% |  |
| D | 21273 | 18737 | 3884 | 3884 | 18.26% | 20.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1215479 | 2769.73 | 2165 | 2123 | 438.1 |
| A | 14 | 237 | 463983 | 1054.29 | 2165 | 2123 | 438.1 |
| A | 9 | 143 | 119257 | 267.38 | 2165 | 2123 | 438.1 |
| B | 4 | 173 | 134733 | 316.44 | 2212 | 2157 | 419.0 |
| B | 0 | 197 | 122632 | 287.56 | 2212 | 2157 | 419.0 |
| B | 3 | 209 | 88849 | 206.92 | 2212 | 2157 | 419.0 |
| C | 3 | 233 | 1362721 | 2737.42 | 2138 | 2143 | 497.0 |
| C | 7 | 247 | 197297 | 392.64 | 2138 | 2143 | 497.0 |
| C | 9 | 54 | 31701 | 59.47 | 2138 | 2143 | 497.0 |
| D | 9 | 68 | 8506104 | 17968.58 | 1938 | 1881 | 473.3 |
| D | 13 | 122 | 5595235 | 11818.2 | 1938 | 1881 | 473.3 |
| D | 5 | 222 | 468563 | 986.05 | 1938 | 1881 | 473.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

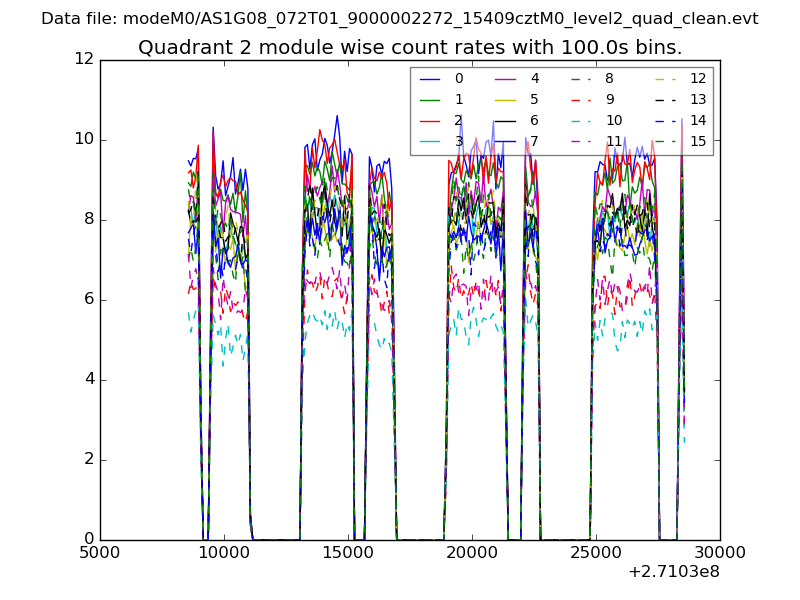

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

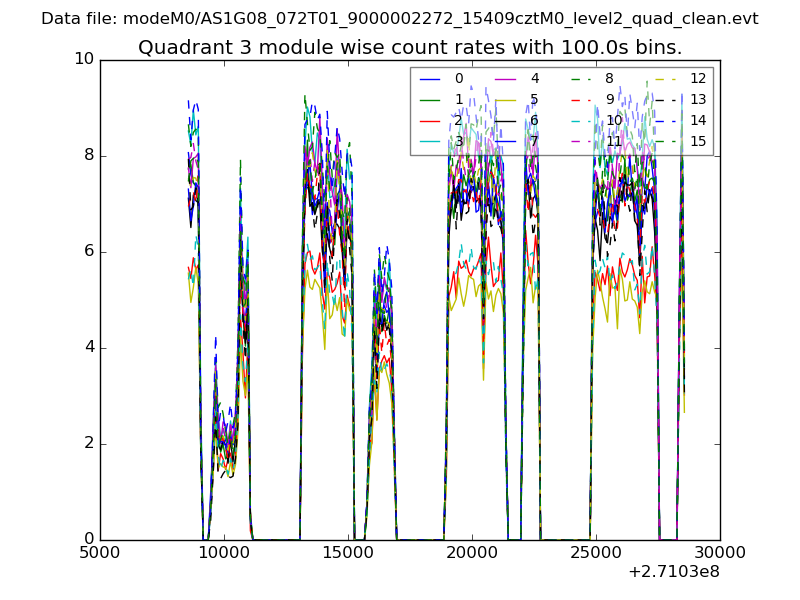

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

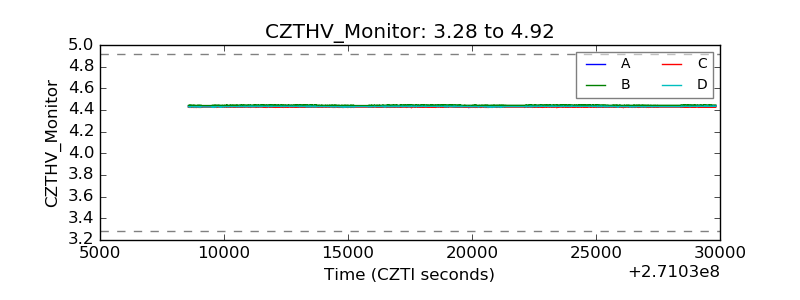

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

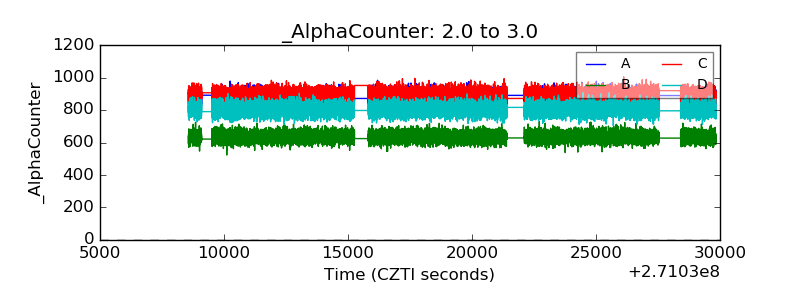

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

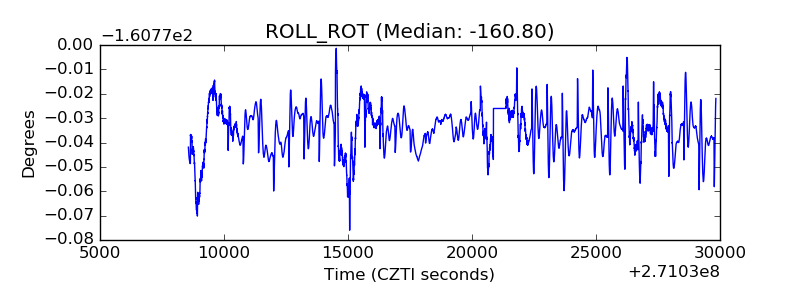

| _ROLL_ROT |  |

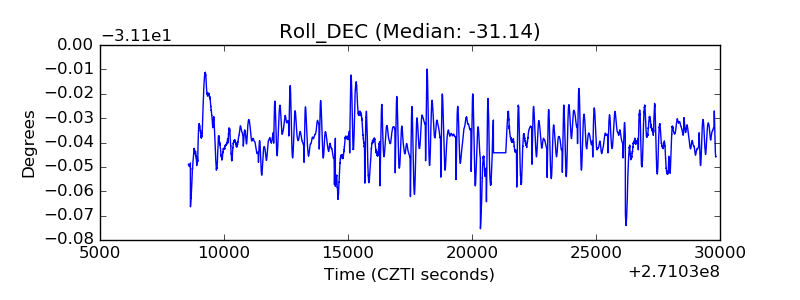

| _Roll_DEC |  |
| _Roll_RA |  |

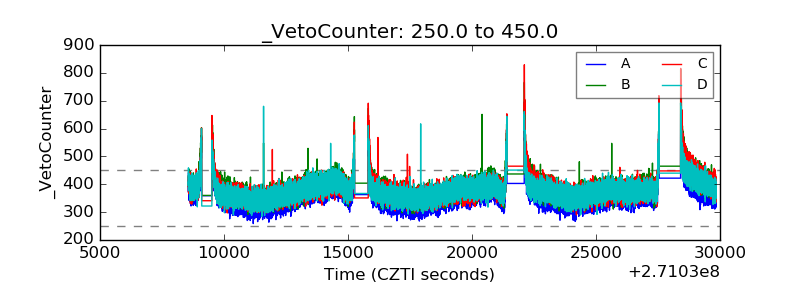

| Veto Counter |  |
