| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_076T01_9000002274_15413cztM0_level2.evt | modeM0/AS1T02_076T01_9000002274_15413cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,630,720 | 108,452,160 |
| Size | 489.8 MB | 103.4 MB |
| Events in quadrant A | 3,645,772 | 723,536 |
| Events in quadrant B | 3,295,093 | 732,314 |
| Events in quadrant C | 3,487,146 | 722,500 |
| Events in quadrant D | 4,715,726 | 682,210 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14720 | 2 |
| B | 0 | 13622 | 1 |
| C | 0 | 14227 | 1 |
| D | 0 | 18366 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6072 | 220 | 3.623188% |
| B | 6072 | 68 | 1.119895% |
| C | 6072 | 77 | 1.268116% |
| D | 6072 | 184 | 3.030303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

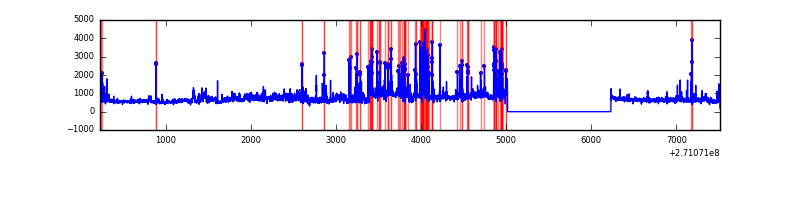

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7288 | 6073 | 97 | 97 | 1.33% | 1.60% |  |
| B | 7288 | 6073 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7288 | 6073 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7288 | 6073 | 120 | 120 | 1.65% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 359371 | 2270.92 | 791 | 777 | 157.9 |
| A | 14 | 237 | 191389 | 1207.12 | 791 | 777 | 157.9 |
| A | 12 | 96 | 27975 | 172.24 | 791 | 777 | 157.9 |
| B | 0 | 190 | 48212 | 322.71 | 790 | 773 | 147.0 |
| B | 0 | 197 | 28794 | 190.62 | 790 | 773 | 147.0 |
| B | 0 | 189 | 27848 | 184.18 | 790 | 773 | 147.0 |
| C | 3 | 233 | 424281 | 2423.58 | 768 | 774 | 174.7 |
| C | 7 | 247 | 31724 | 177.12 | 768 | 774 | 174.7 |
| C | 10 | 22 | 29096 | 162.08 | 768 | 774 | 174.7 |
| D | 13 | 122 | 737121 | 3998.36 | 767 | 747 | 184.2 |
| D | 9 | 68 | 495218 | 2684.88 | 767 | 747 | 184.2 |
| D | 1 | 52 | 312362 | 1692.01 | 767 | 747 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

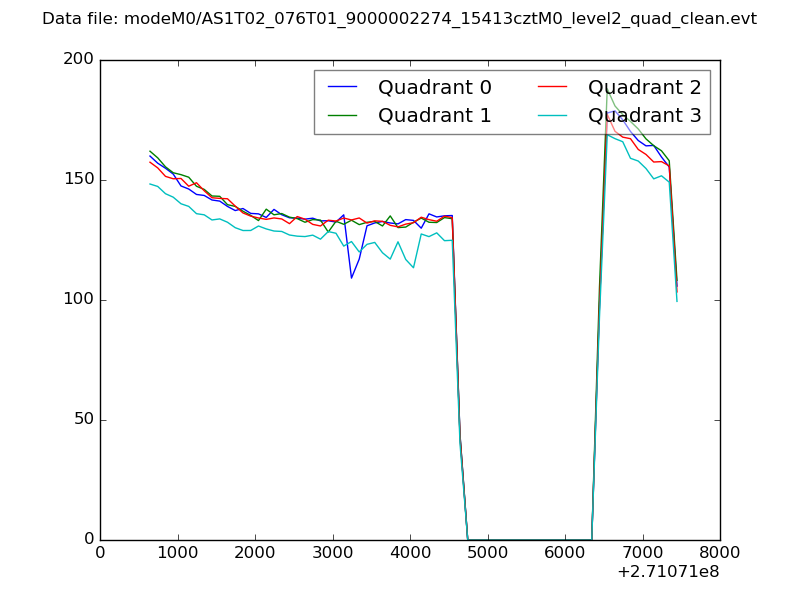

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

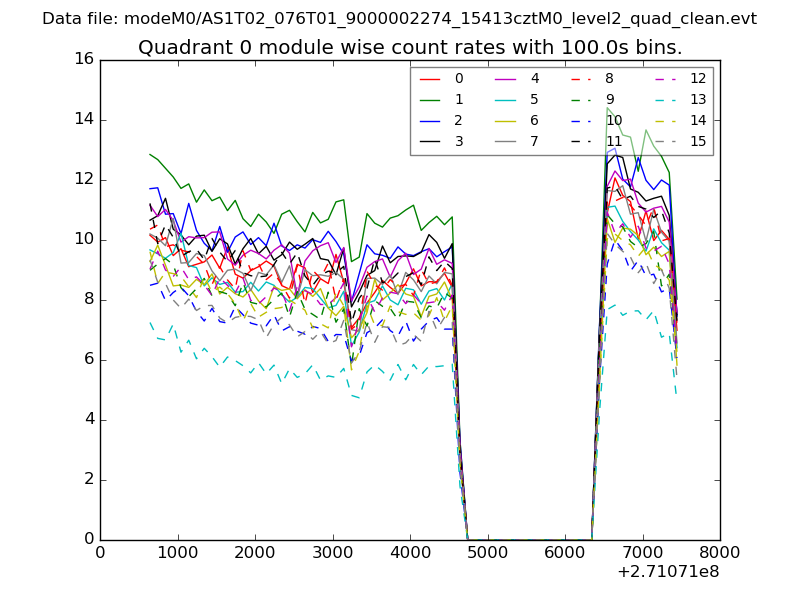

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

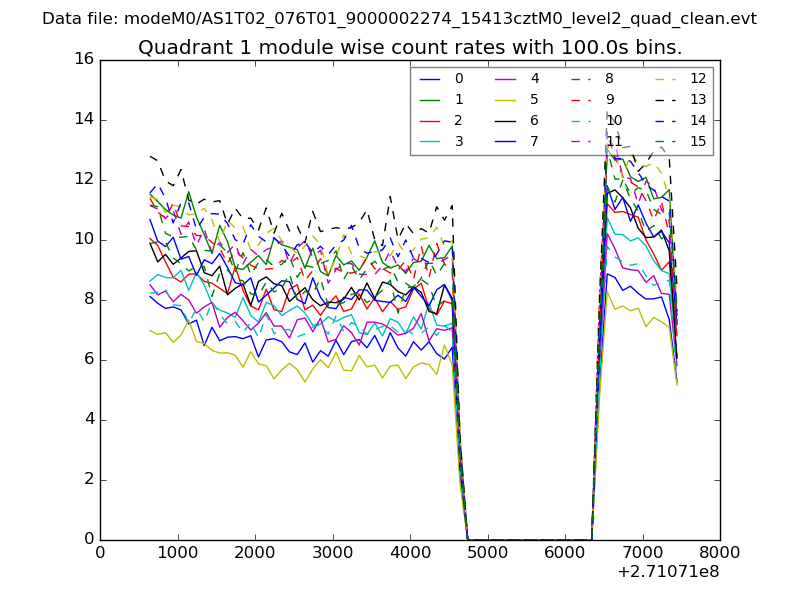

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

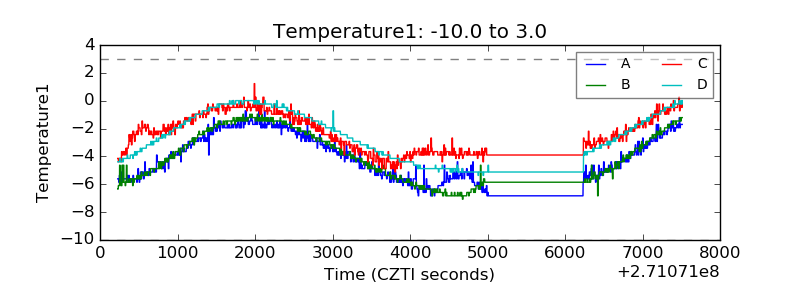

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

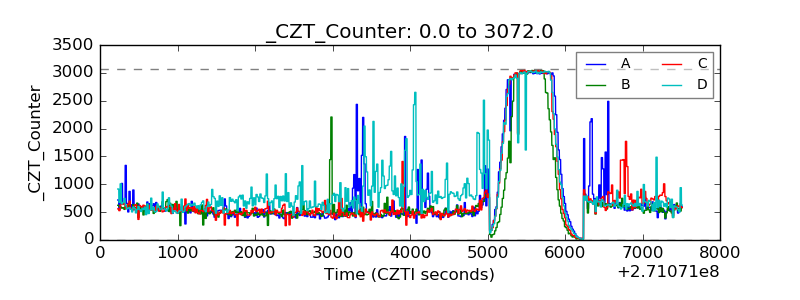

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

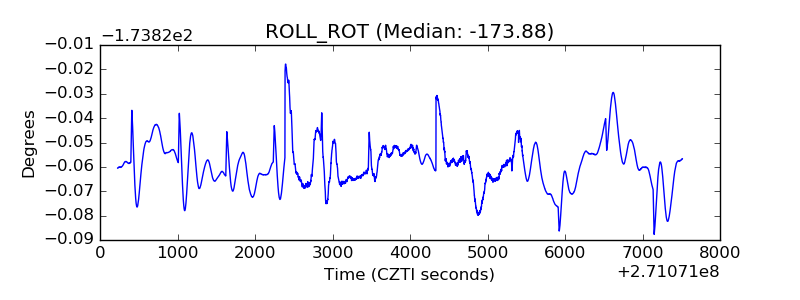

| _ROLL_ROT |  |
| _Roll_DEC |  |

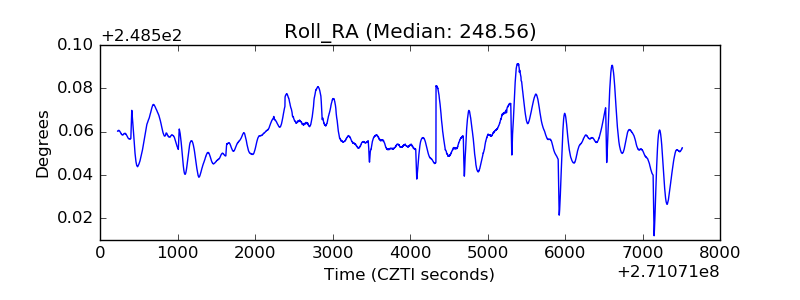

| _Roll_RA |  |
| Veto Counter |  |
