| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_080T01_9000002276_15427cztM0_level2.evt | modeM0/AS1T02_080T01_9000002276_15427cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,280,320 | 71,945,280 |
| Size | 475.2 MB | 68.6 MB |
| Events in quadrant A | 3,433,966 | 431,835 |
| Events in quadrant B | 3,326,688 | 443,197 |
| Events in quadrant C | 4,274,318 | 438,818 |
| Events in quadrant D | 3,624,023 | 420,529 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14232 | 0 |
| B | 0 | 13845 | 0 |
| C | 0 | 17052 | 0 |
| D | 0 | 14941 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6367 | 105 | 1.649128% |
| B | 6367 | 82 | 1.287891% |
| C | 6367 | 86 | 1.350715% |
| D | 6367 | 101 | 1.586304% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

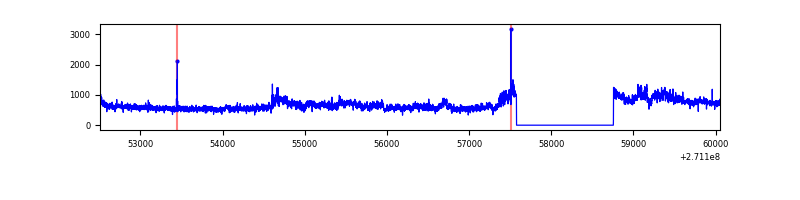

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6367 | 21 | 21 | 0.28% | 0.33% |  |
| B | 7547 | 6367 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7547 | 6367 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7547 | 6367 | 52 | 52 | 0.69% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 127817 | 768.96 | 829 | 813 | 165.2 |
| A | 14 | 237 | 63712 | 380.83 | 829 | 813 | 165.2 |
| A | 15 | 69 | 32937 | 194.5 | 829 | 813 | 165.2 |
| B | 0 | 189 | 38320 | 239.39 | 831 | 811 | 156.7 |
| B | 4 | 142 | 17779 | 108.29 | 831 | 811 | 156.7 |
| B | 12 | 111 | 17672 | 107.61 | 831 | 811 | 156.7 |
| C | 3 | 233 | 1100865 | 5967.3 | 808 | 812 | 184.3 |
| C | 3 | 232 | 7341 | 35.42 | 808 | 812 | 184.3 |
| C | 14 | 225 | 7179 | 34.54 | 808 | 812 | 184.3 |
| D | 13 | 122 | 310009 | 1586.47 | 809 | 785 | 194.9 |
| D | 5 | 222 | 82824 | 420.9 | 809 | 785 | 194.9 |
| D | 10 | 70 | 66611 | 337.72 | 809 | 785 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

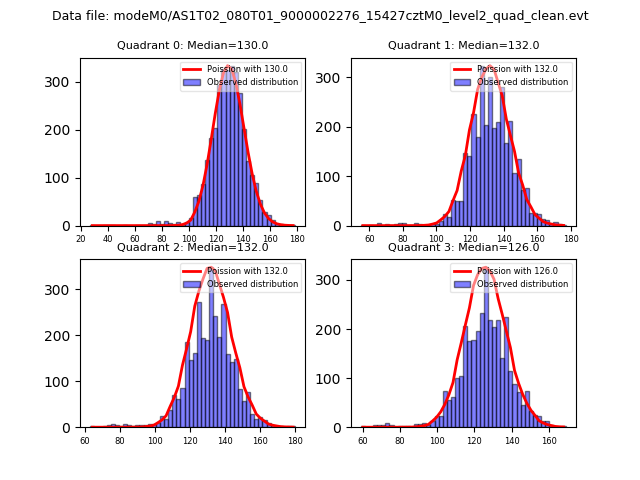

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

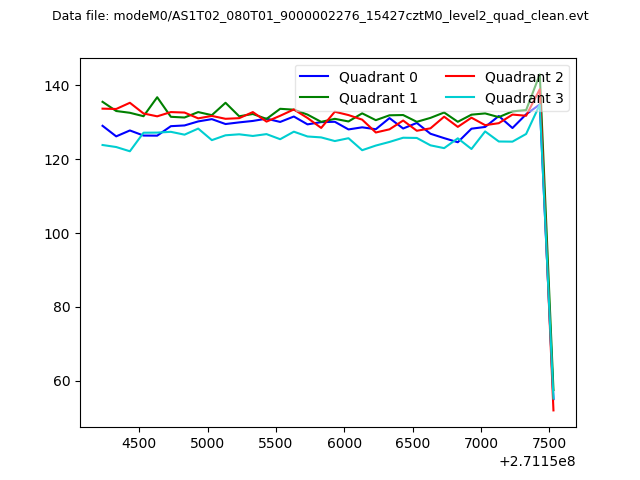

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

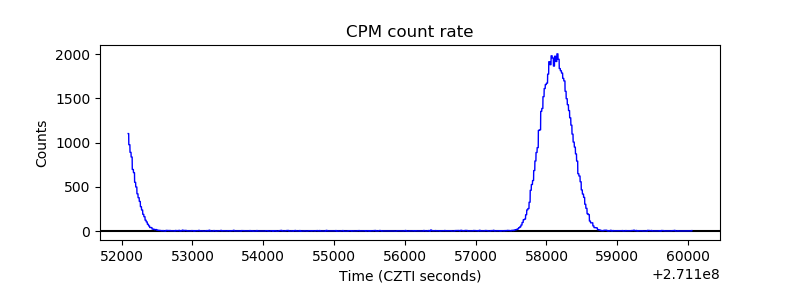

| _CPM_Rate |  |

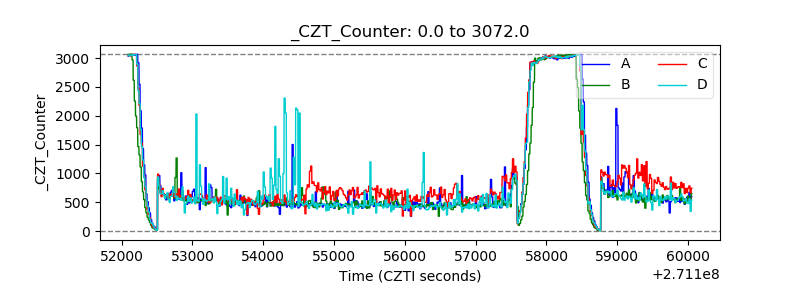

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

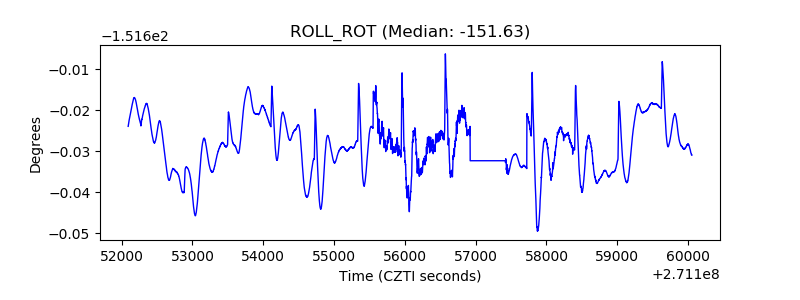

| _ROLL_ROT |  |
| _Roll_DEC |  |

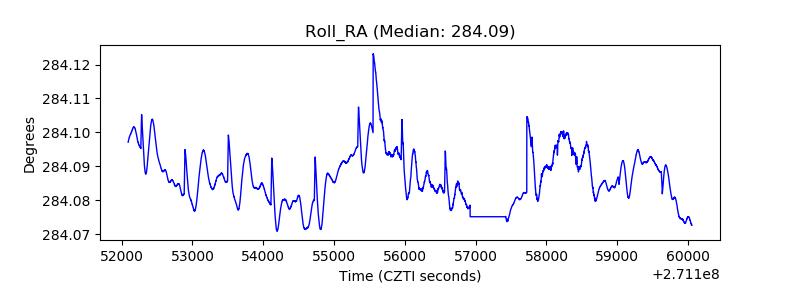

| _Roll_RA |  |

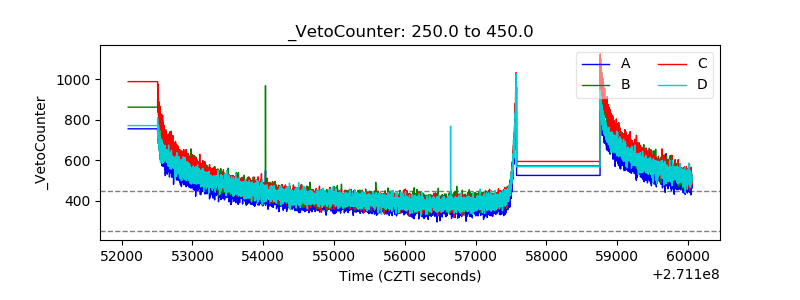

| Veto Counter |  |
