| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_080T01_9000002276_15429cztM0_level2.evt | modeM0/AS1T02_080T01_9000002276_15429cztM0_level2_quad_clean.evt |
| Size (bytes) | 757,497,600 | 97,712,640 |
| Size | 722.4 MB | 93.2 MB |
| Events in quadrant A | 3,539,764 | 672,643 |
| Events in quadrant B | 3,431,639 | 683,618 |
| Events in quadrant C | 4,222,284 | 669,304 |
| Events in quadrant D | 11,324,236 | 495,432 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14635 | 0 |
| B | 0 | 14179 | 0 |
| C | 0 | 17298 | 0 |
| D | 0 | 37997 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 152 | 2.425403% |
| B | 6267 | 118 | 1.882879% |
| C | 6267 | 150 | 2.393490% |
| D | 6267 | 3213 | 51.268550% |

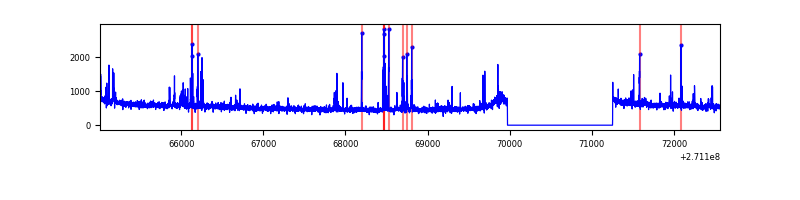

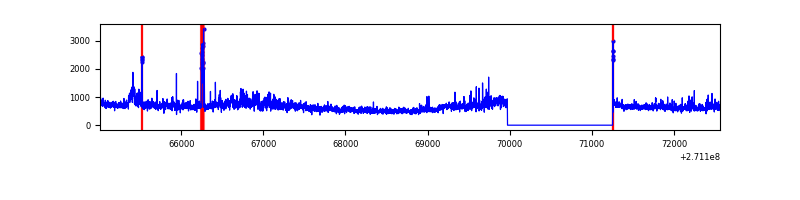

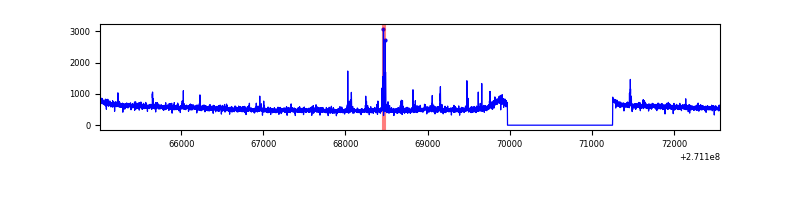

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7547 | 6267 | 13 | 13 | 0.17% | 0.21% |  |
| B | 7547 | 6267 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7547 | 6267 | 27 | 27 | 0.36% | 0.43% |  |

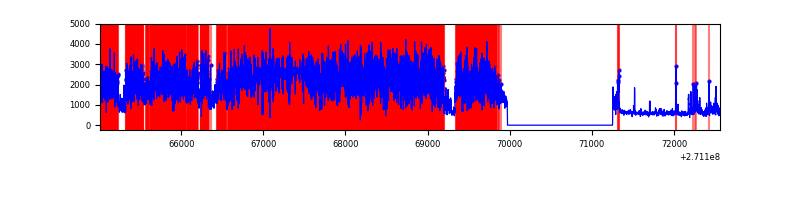

| D | 7547 | 6267 | 2794 | 2794 | 37.02% | 44.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 131330 | 757.12 | 865 | 849 | 172.3 |
| A | 14 | 237 | 61536 | 352.14 | 865 | 849 | 172.3 |
| A | 9 | 143 | 22995 | 128.5 | 865 | 849 | 172.3 |
| B | 0 | 189 | 21287 | 128.07 | 859 | 842 | 159.6 |
| B | 0 | 197 | 21253 | 127.86 | 859 | 842 | 159.6 |
| B | 12 | 111 | 17573 | 104.81 | 859 | 842 | 159.6 |
| C | 3 | 233 | 900275 | 4801.57 | 830 | 836 | 187.3 |
| C | 7 | 247 | 70285 | 370.75 | 830 | 836 | 187.3 |
| C | 14 | 234 | 16796 | 85.2 | 830 | 836 | 187.3 |
| D | 5 | 222 | 8244696 | 48541.26 | 706 | 686 | 169.8 |
| D | 13 | 122 | 210898 | 1237.74 | 706 | 686 | 169.8 |
| D | 2 | 33 | 69824 | 407.09 | 706 | 686 | 169.8 |

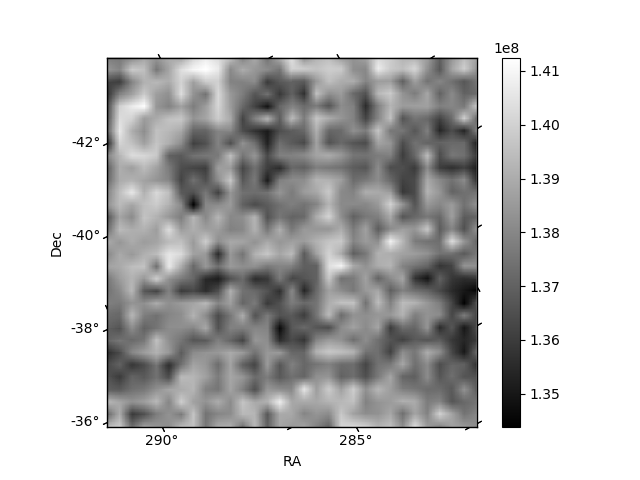

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

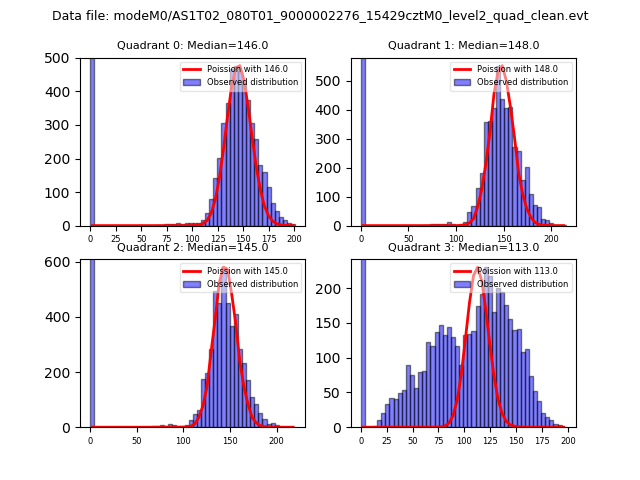

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

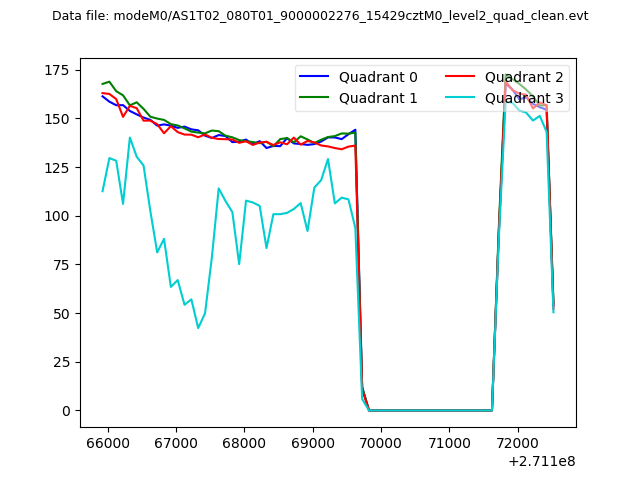

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

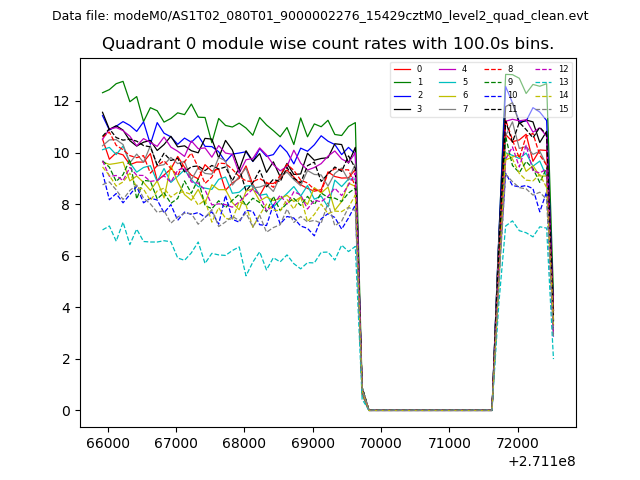

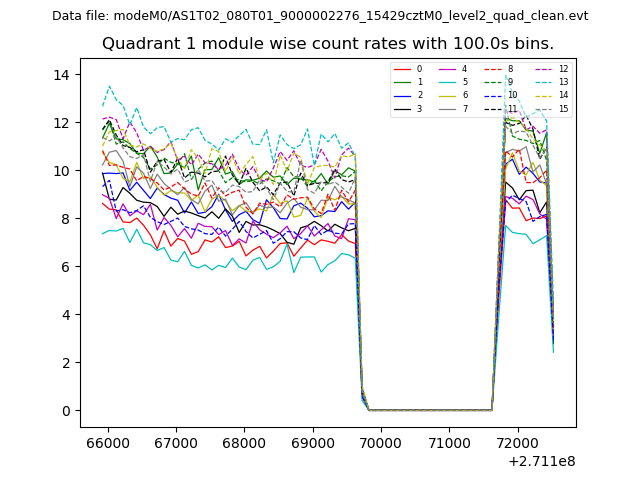

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

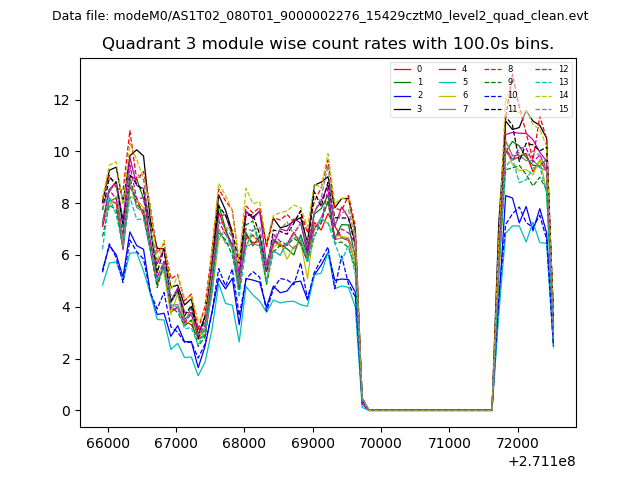

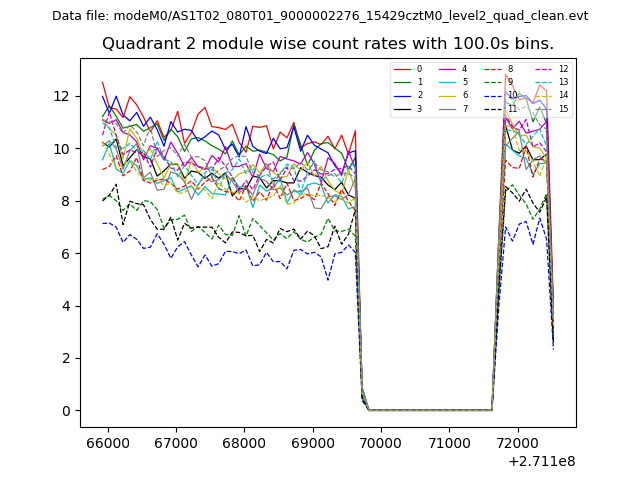

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

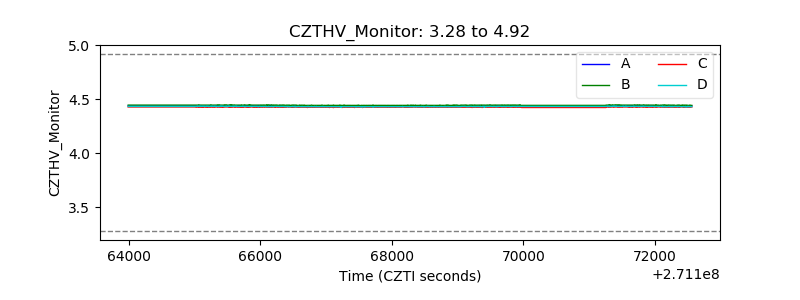

| CZT HV Monitor |  |

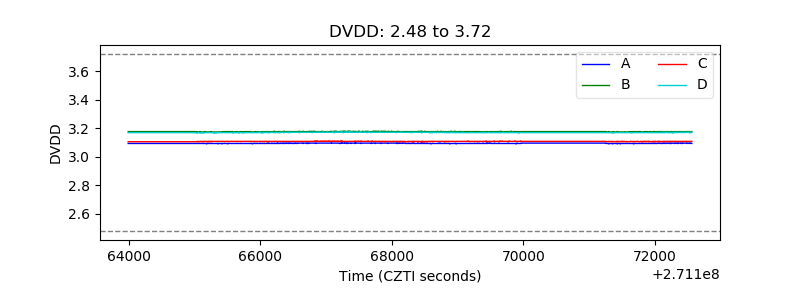

| D_VDD |  |

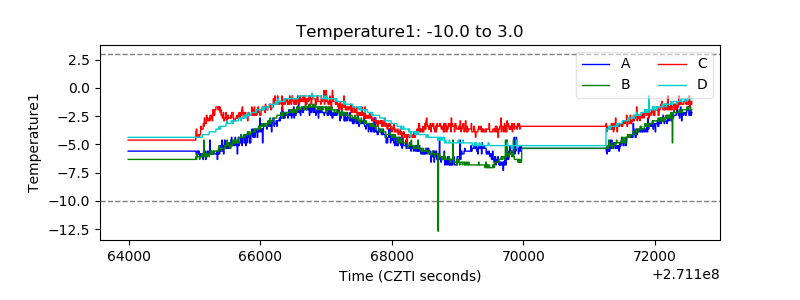

| Temperature 1 |  |

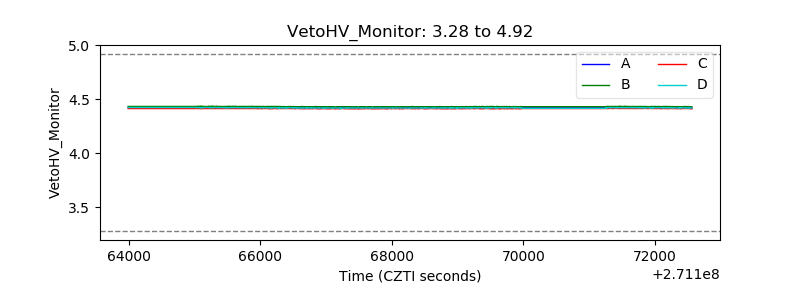

| Veto HV Monitor |  |
| Veto LLD |  |

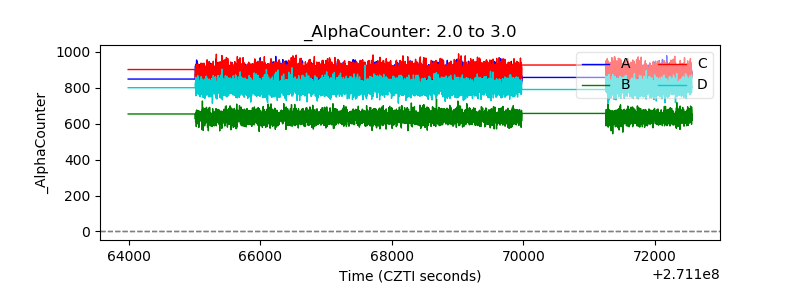

| Alpha Counter |  |

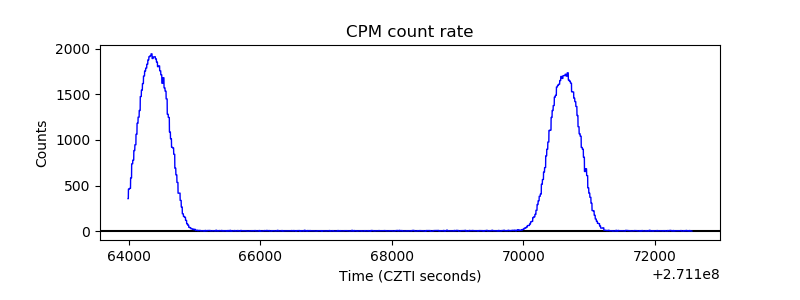

| _CPM_Rate |  |

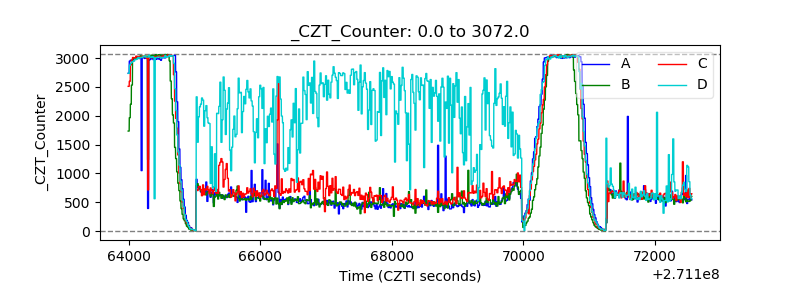

| CZT Counter |  |

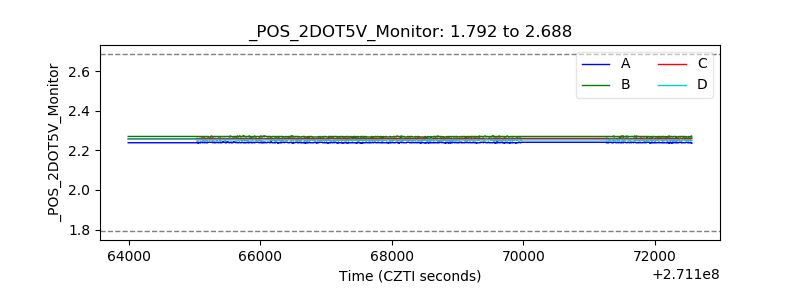

| +2.5 Volts monitor |  |

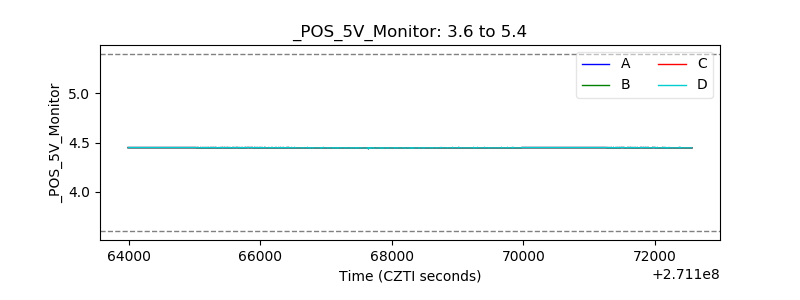

| +5 Volts monitor |  |

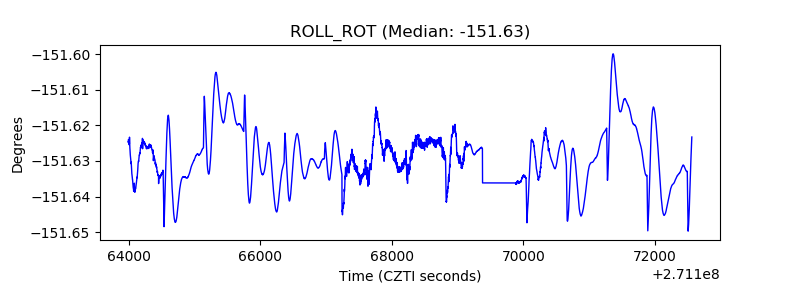

| _ROLL_ROT |  |
| _Roll_DEC |  |

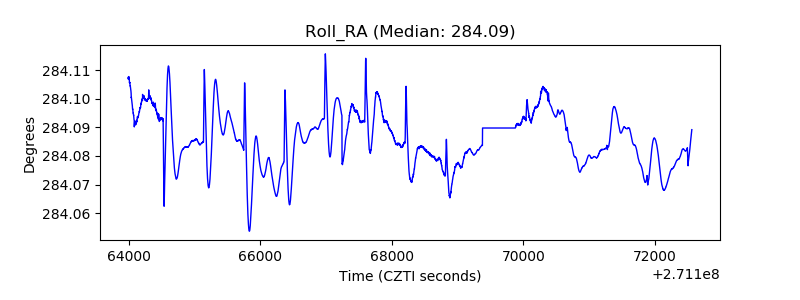

| _Roll_RA |  |

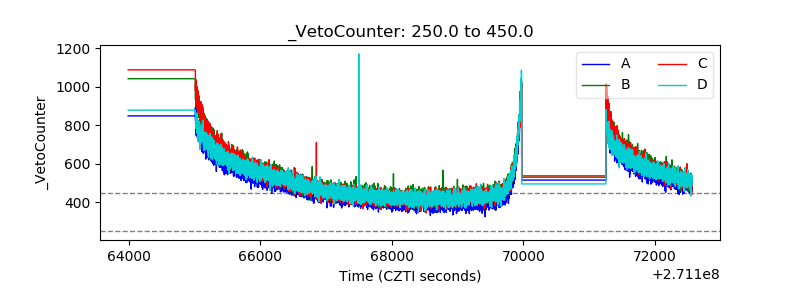

| Veto Counter |  |
