| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_080T01_9000002276_15432cztM0_level2.evt | modeM0/AS1T02_080T01_9000002276_15432cztM0_level2_quad_clean.evt |
| Size (bytes) | 637,441,920 | 100,368,000 |
| Size | 607.9 MB | 95.7 MB |
| Events in quadrant A | 3,488,990 | 656,313 |
| Events in quadrant B | 3,688,617 | 665,779 |
| Events in quadrant C | 4,405,325 | 650,366 |
| Events in quadrant D | 7,253,531 | 584,166 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14872 | 0 |
| B | 0 | 15337 | 0 |
| C | 0 | 17761 | 0 |
| D | 0 | 26326 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6925 | 87 | 1.256318% |
| B | 6925 | 102 | 1.472924% |
| C | 6925 | 105 | 1.516245% |
| D | 6925 | 776 | 11.205776% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7770 | 6926 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7770 | 6926 | 15 | 15 | 0.19% | 0.22% |  |
| C | 7770 | 6926 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7770 | 6925 | 695 | 695 | 8.94% | 10.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 133926 | 774.41 | 847 | 829 | 171.9 |
| A | 14 | 237 | 60857 | 349.26 | 847 | 829 | 171.9 |
| A | 9 | 143 | 26974 | 152.12 | 847 | 829 | 171.9 |
| B | 4 | 142 | 192184 | 1184.79 | 845 | 825 | 161.5 |
| B | 0 | 197 | 48846 | 297.32 | 845 | 825 | 161.5 |
| B | 0 | 189 | 44622 | 271.17 | 845 | 825 | 161.5 |
| C | 3 | 233 | 1099097 | 5906.53 | 810 | 816 | 185.9 |
| C | 7 | 247 | 96831 | 516.37 | 810 | 816 | 185.9 |
| C | 10 | 22 | 23220 | 120.49 | 810 | 816 | 185.9 |
| D | 1 | 52 | 3410408 | 17645.28 | 788 | 764 | 193.2 |
| D | 13 | 122 | 433921 | 2241.64 | 788 | 764 | 193.2 |
| D | 5 | 222 | 236459 | 1219.75 | 788 | 764 | 193.2 |

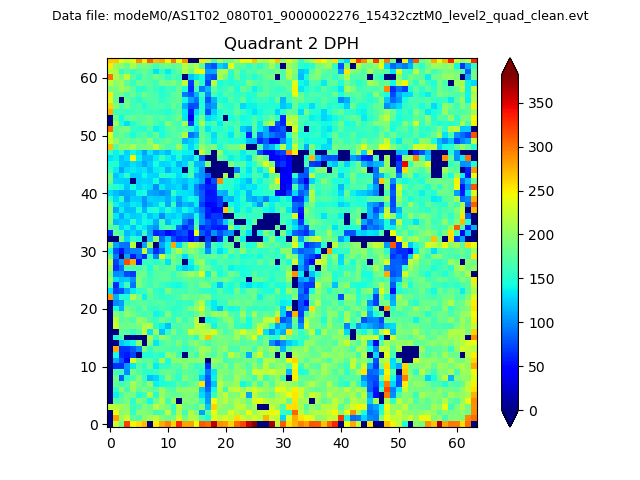

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

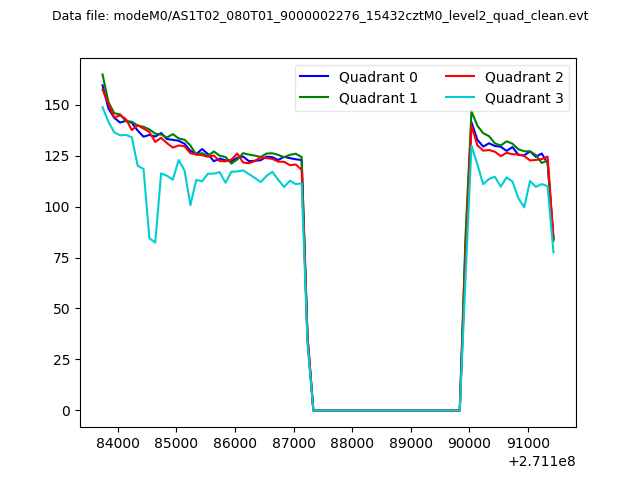

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

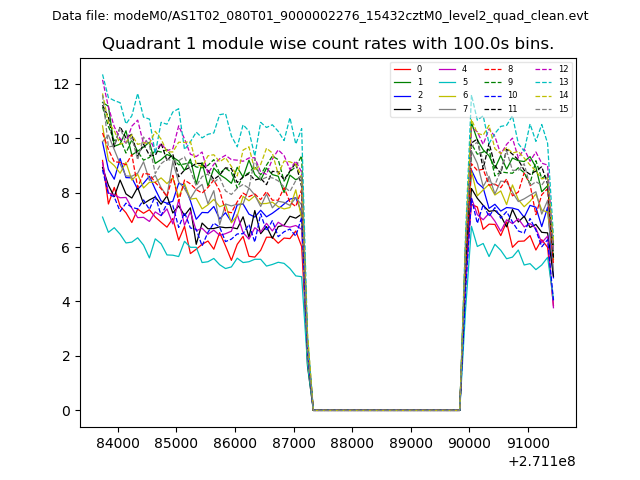

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

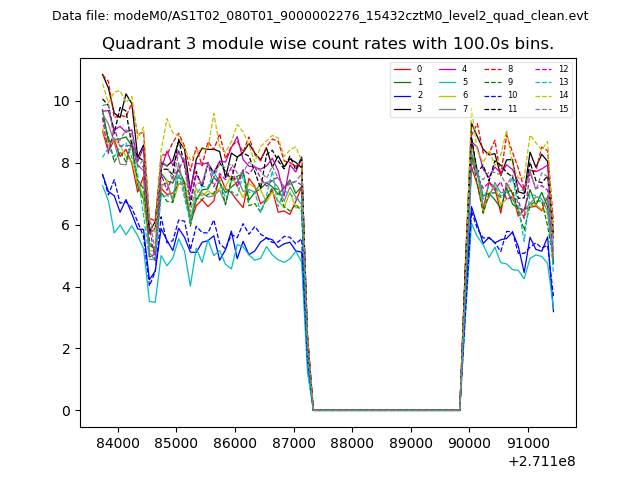

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

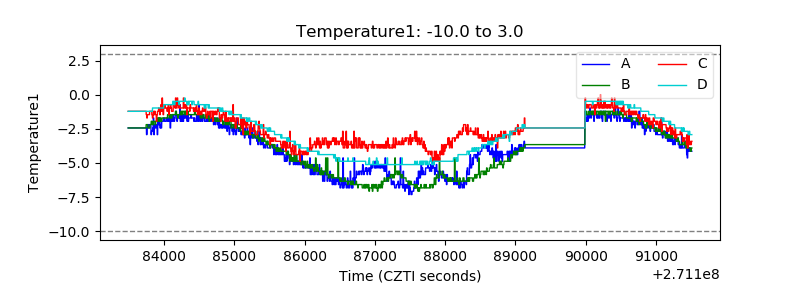

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

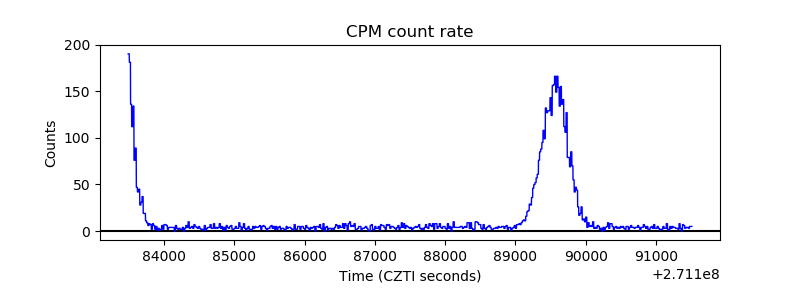

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

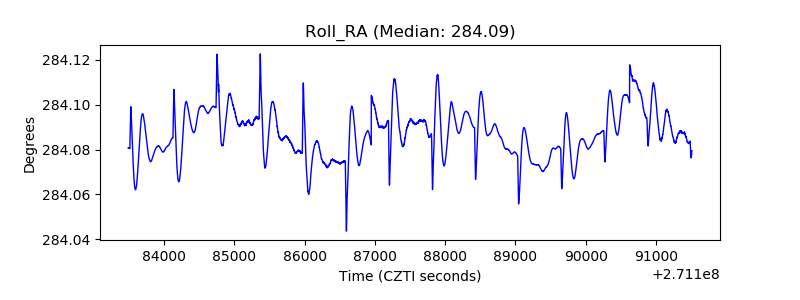

| _Roll_RA |  |

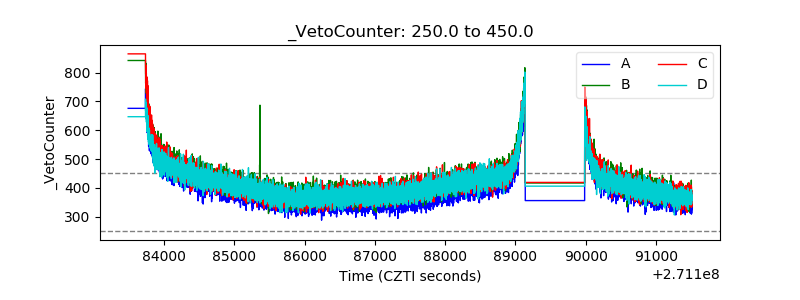

| Veto Counter |  |
