| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_080T01_9000002276_15435cztM0_level2.evt | modeM0/AS1T02_080T01_9000002276_15435cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,770,880 | 116,130,240 |
| Size | 564.4 MB | 110.8 MB |
| Events in quadrant A | 4,187,995 | 740,875 |
| Events in quadrant B | 3,973,413 | 760,626 |
| Events in quadrant C | 4,125,199 | 748,058 |
| Events in quadrant D | 5,086,826 | 705,227 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17961 | 0 |
| B | 0 | 17072 | 0 |
| C | 0 | 17576 | 0 |
| D | 0 | 20759 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8090 | 96 | 1.186650% |
| B | 8090 | 54 | 0.667491% |
| C | 8090 | 23 | 0.284302% |
| D | 8090 | 170 | 2.101360% |

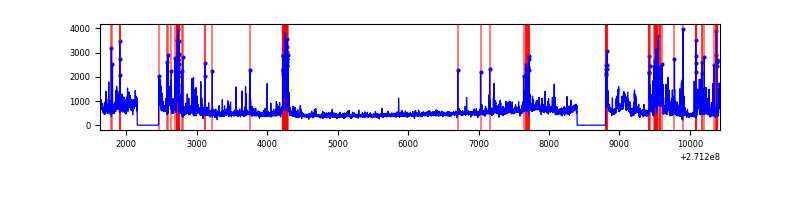

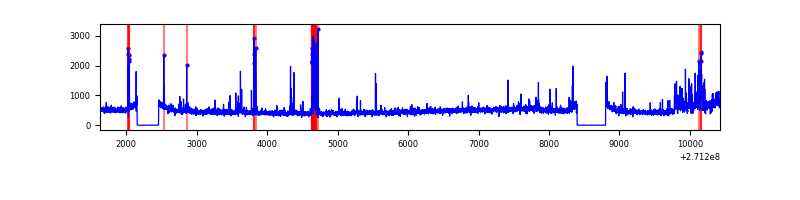

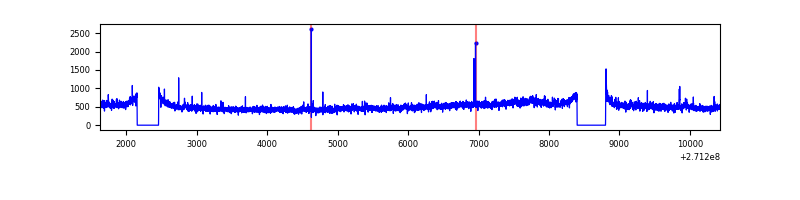

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

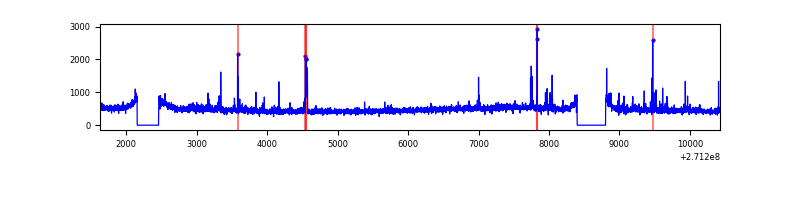

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8800 | 8092 | 47 | 47 | 0.53% | 0.58% |  |
| B | 8800 | 8092 | 7 | 7 | 0.08% | 0.09% |  |
| C | 8800 | 8092 | 2 | 2 | 0.02% | 0.02% |  |
| D | 8800 | 8092 | 131 | 131 | 1.49% | 1.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 249 | 228383 | 1173.89 | 950 | 929 | 193.8 |
| A | 14 | 238 | 149872 | 768.7 | 950 | 929 | 193.8 |
| A | 14 | 237 | 63928 | 325.14 | 950 | 929 | 193.8 |
| B | 3 | 209 | 54105 | 289.46 | 959 | 933 | 183.7 |
| B | 0 | 197 | 28974 | 152.65 | 959 | 933 | 183.7 |
| B | 0 | 219 | 28969 | 152.62 | 959 | 933 | 183.7 |
| C | 3 | 233 | 505607 | 2361.26 | 921 | 926 | 213.7 |
| C | 7 | 247 | 12414 | 53.75 | 921 | 926 | 213.7 |
| C | 14 | 234 | 8862 | 37.13 | 921 | 926 | 213.7 |
| D | 1 | 52 | 840292 | 3747.95 | 914 | 884 | 224.0 |
| D | 13 | 122 | 317540 | 1413.87 | 914 | 884 | 224.0 |
| D | 2 | 33 | 171181 | 760.37 | 914 | 884 | 224.0 |

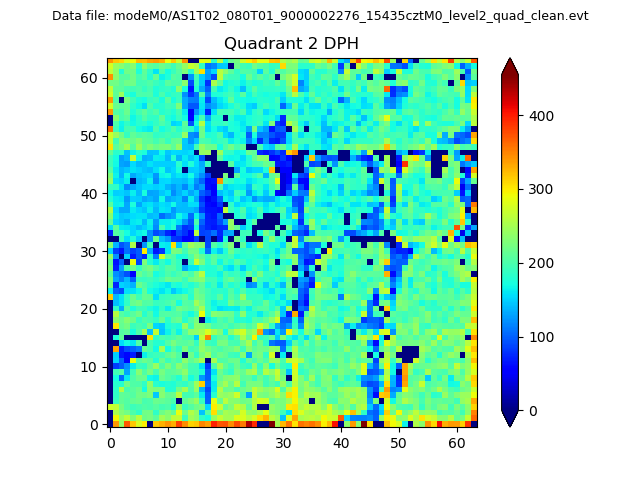

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

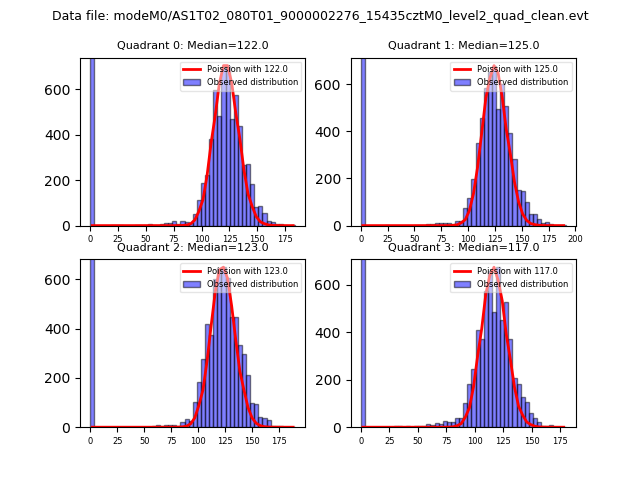

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

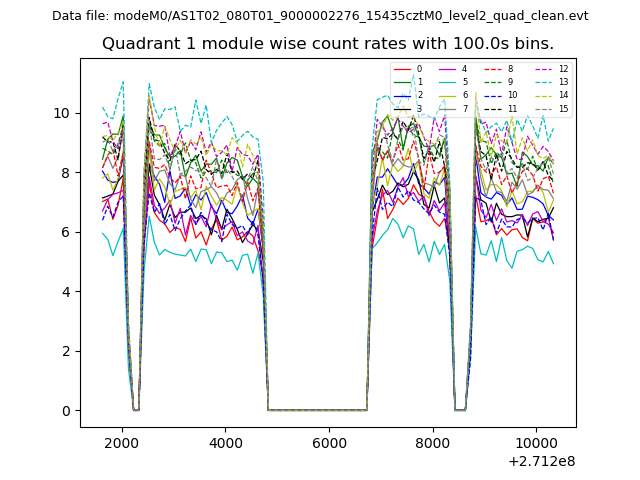

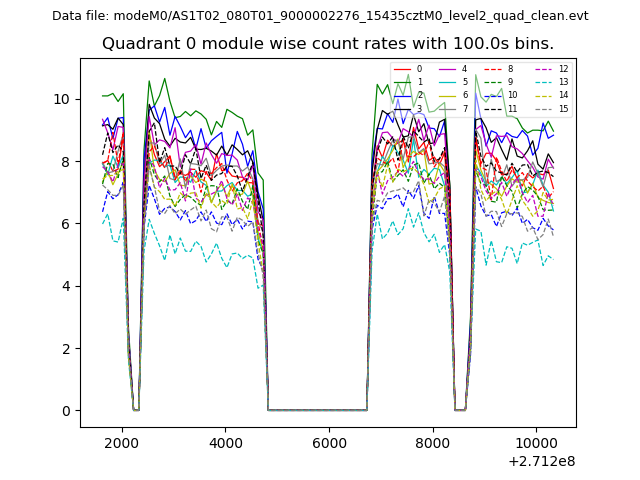

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

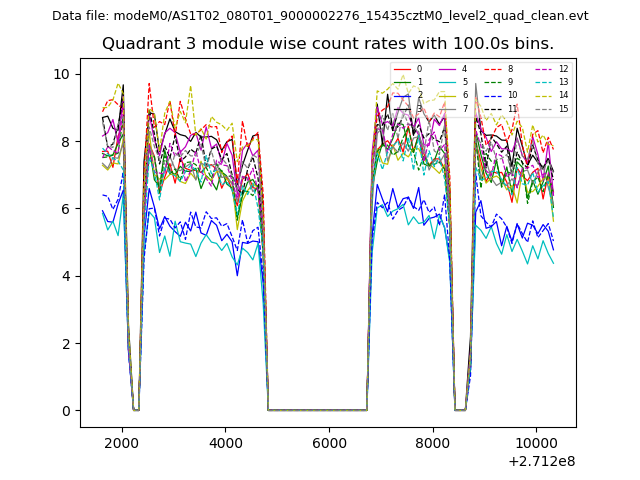

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

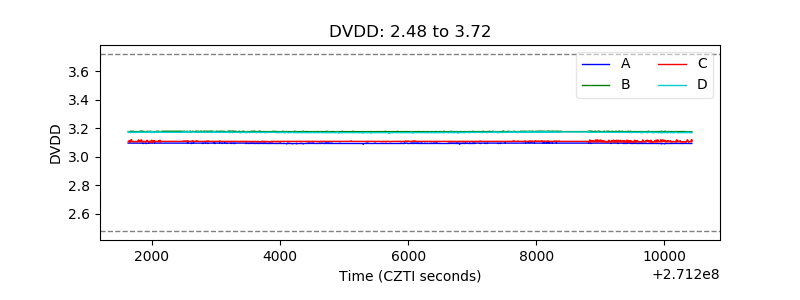

| D_VDD |  |

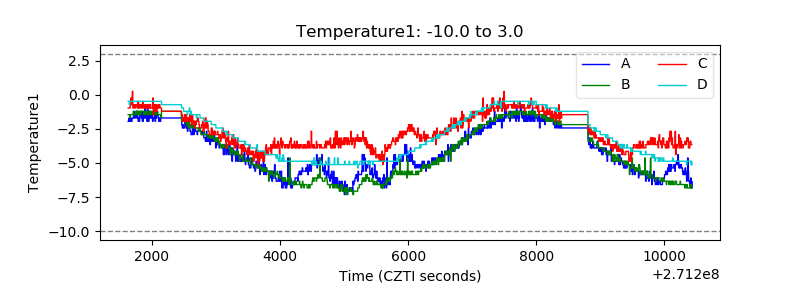

| Temperature 1 |  |

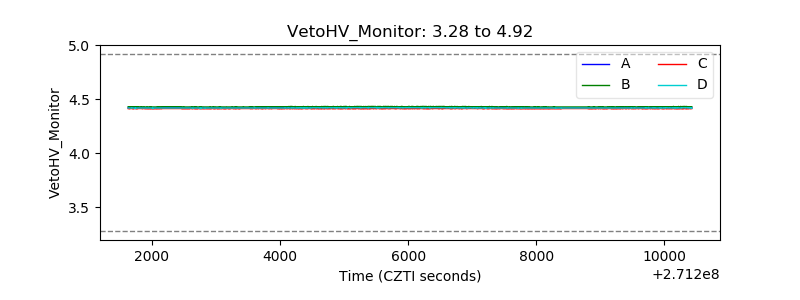

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

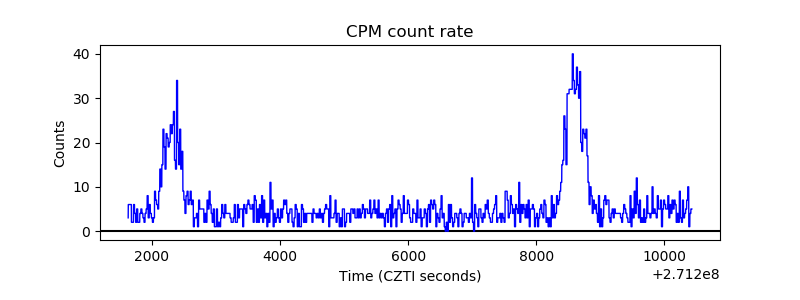

| _CPM_Rate |  |

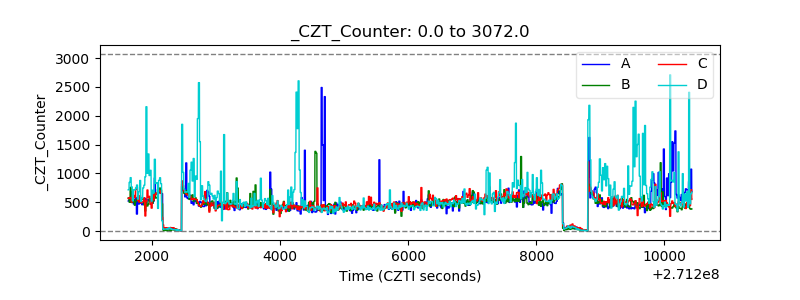

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

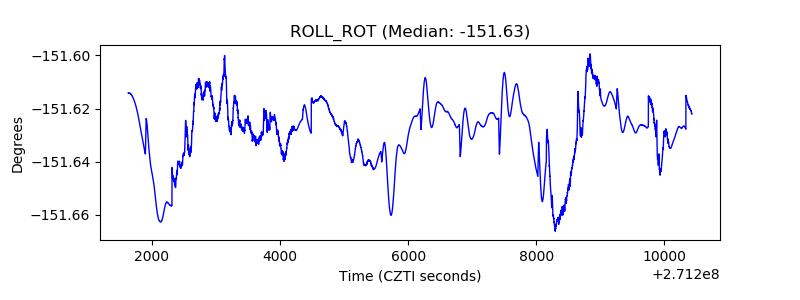

| _ROLL_ROT |  |

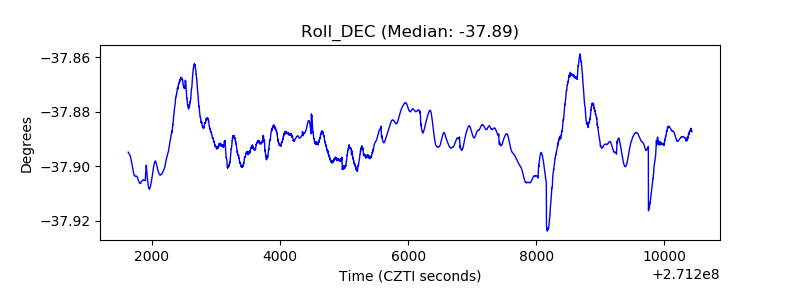

| _Roll_DEC |  |

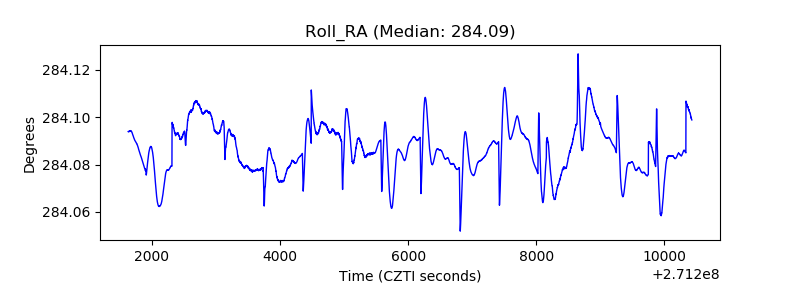

| _Roll_RA |  |

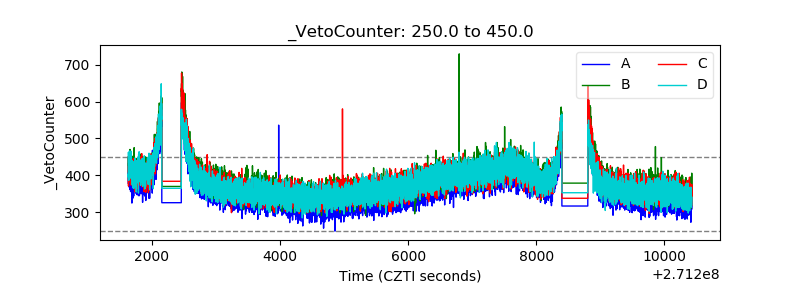

| Veto Counter |  |
