| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_080T01_9000002276_15442cztM0_level2.evt | modeM0/AS1T02_080T01_9000002276_15442cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,930,560 | 74,079,360 |
| Size | 528.3 MB | 70.6 MB |
| Events in quadrant A | 3,491,758 | 457,263 |
| Events in quadrant B | 3,383,331 | 468,297 |
| Events in quadrant C | 3,623,738 | 469,642 |
| Events in quadrant D | 5,848,193 | 405,898 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14407 | 0 |
| B | 0 | 13976 | 0 |
| C | 0 | 14804 | 0 |
| D | 0 | 21630 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6331 | 103 | 1.626915% |
| B | 6331 | 83 | 1.311009% |
| C | 6331 | 61 | 0.963513% |
| D | 6331 | 805 | 12.715211% |

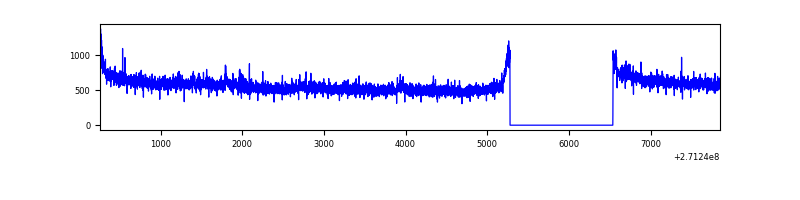

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6332 | 17 | 17 | 0.22% | 0.27% |  |
| B | 7591 | 6332 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7591 | 6332 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7591 | 6331 | 717 | 717 | 9.45% | 11.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 160069 | 947.24 | 845 | 830 | 168.1 |
| A | 14 | 237 | 58219 | 341.38 | 845 | 830 | 168.1 |
| A | 9 | 143 | 23358 | 134.01 | 845 | 830 | 168.1 |
| B | 0 | 189 | 36765 | 229.8 | 847 | 830 | 156.4 |
| B | 12 | 111 | 17897 | 109.14 | 847 | 830 | 156.4 |
| B | 11 | 111 | 15026 | 90.78 | 847 | 830 | 156.4 |
| C | 3 | 233 | 373265 | 1995.38 | 824 | 832 | 186.6 |
| C | 7 | 247 | 29088 | 151.39 | 824 | 832 | 186.6 |
| C | 13 | 61 | 5723 | 26.2 | 824 | 832 | 186.6 |
| D | 1 | 52 | 2514239 | 13099.8 | 799 | 777 | 191.9 |
| D | 10 | 70 | 122208 | 632.88 | 799 | 777 | 191.9 |
| D | 12 | 221 | 47440 | 243.2 | 799 | 777 | 191.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

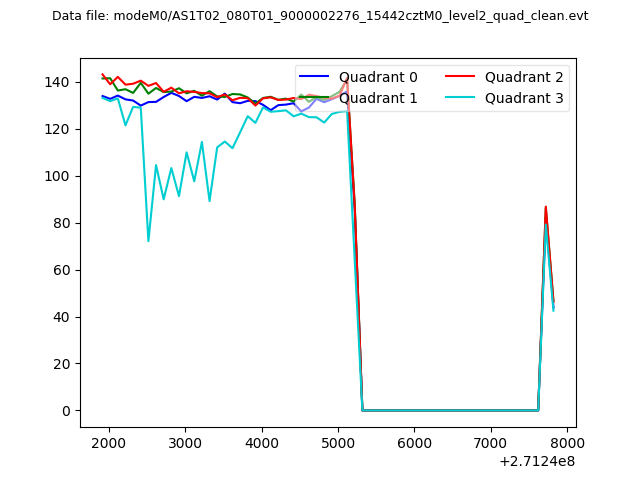

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

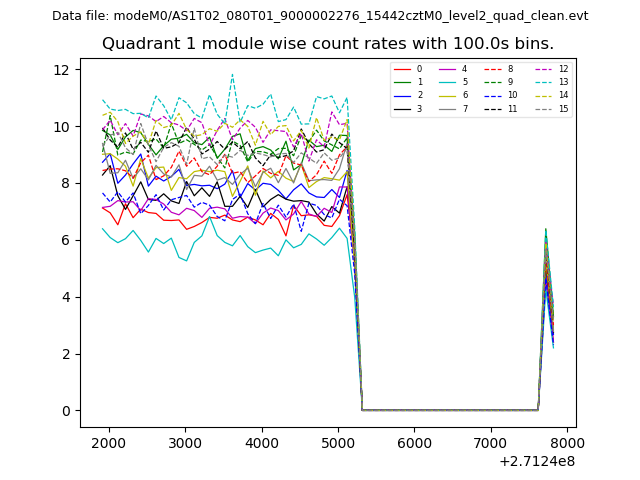

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

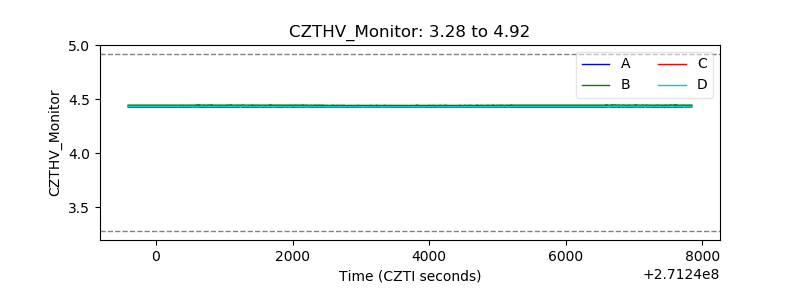

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

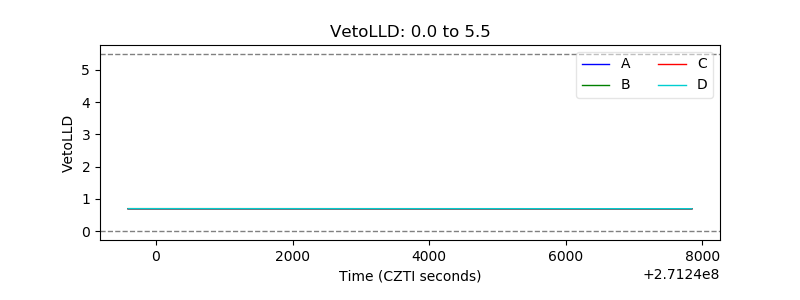

| Veto LLD |  |

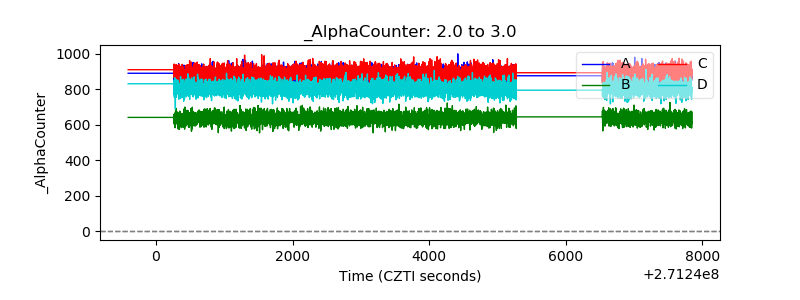

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

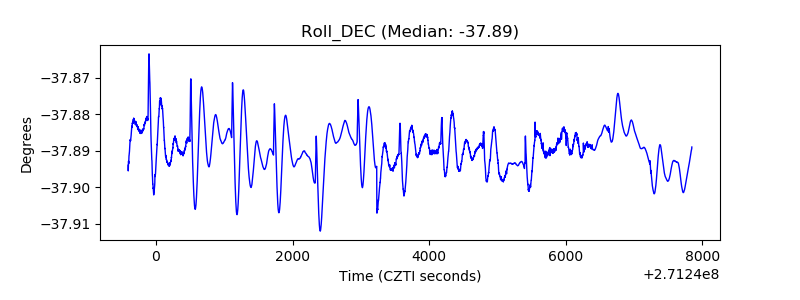

| _Roll_DEC |  |
| _Roll_RA |  |

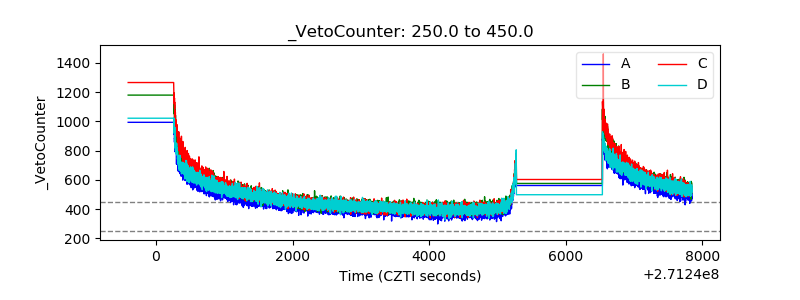

| Veto Counter |  |
