| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_033T01_9000002278_15446cztM0_level2.evt | modeM0/AS1G08_033T01_9000002278_15446cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,160,320 | 95,169,600 |
| Size | 443.6 MB | 90.8 MB |
| Events in quadrant A | 3,597,484 | 615,440 |
| Events in quadrant B | 3,099,137 | 627,444 |
| Events in quadrant C | 3,232,671 | 614,300 |
| Events in quadrant D | 3,733,244 | 588,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14839 | 2 |
| B | 0 | 13165 | 1 |
| C | 0 | 13449 | 1 |
| D | 0 | 15354 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6251 | 197 | 3.151496% |
| B | 6251 | 63 | 1.007839% |
| C | 6251 | 42 | 0.671892% |
| D | 6251 | 194 | 3.103503% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

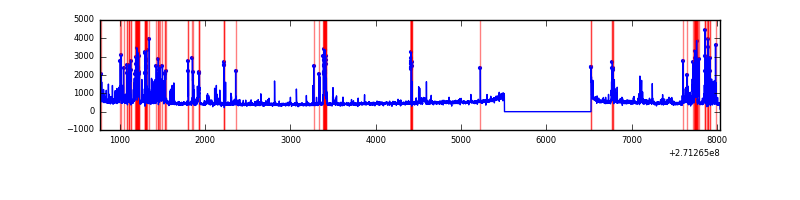

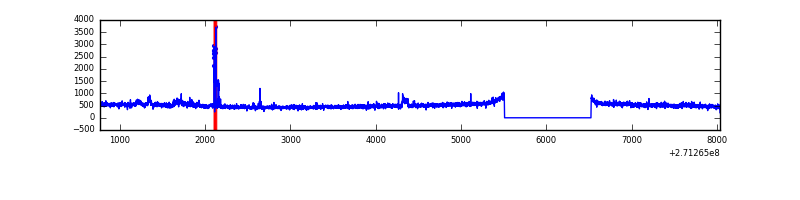

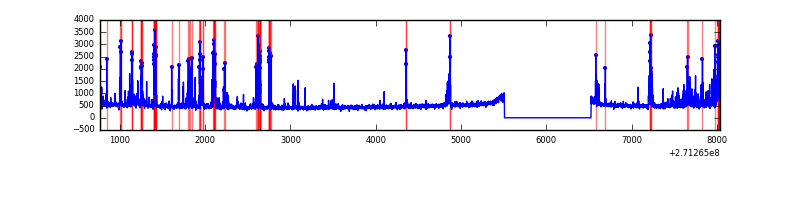

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7267 | 6253 | 98 | 98 | 1.35% | 1.57% |  |
| B | 7267 | 6253 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7267 | 6253 | 14 | 14 | 0.19% | 0.22% |  |
| D | 7267 | 6253 | 137 | 137 | 1.89% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 280614 | 1846.36 | 748 | 732 | 151.6 |
| A | 4 | 2 | 140091 | 919.34 | 748 | 732 | 151.6 |
| A | 13 | 248 | 122767 | 805.06 | 748 | 732 | 151.6 |
| B | 4 | 142 | 32279 | 221.96 | 753 | 736 | 142.1 |
| B | 0 | 229 | 20355 | 138.06 | 753 | 736 | 142.1 |
| B | 0 | 189 | 20142 | 136.56 | 753 | 736 | 142.1 |
| C | 3 | 233 | 408249 | 2466.26 | 721 | 724 | 165.2 |
| C | 7 | 247 | 8617 | 47.77 | 721 | 724 | 165.2 |
| C | 13 | 61 | 5282 | 27.58 | 721 | 724 | 165.2 |
| D | 5 | 222 | 546277 | 3111.94 | 720 | 699 | 175.3 |
| D | 12 | 221 | 136180 | 772.77 | 720 | 699 | 175.3 |
| D | 2 | 33 | 103684 | 587.42 | 720 | 699 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

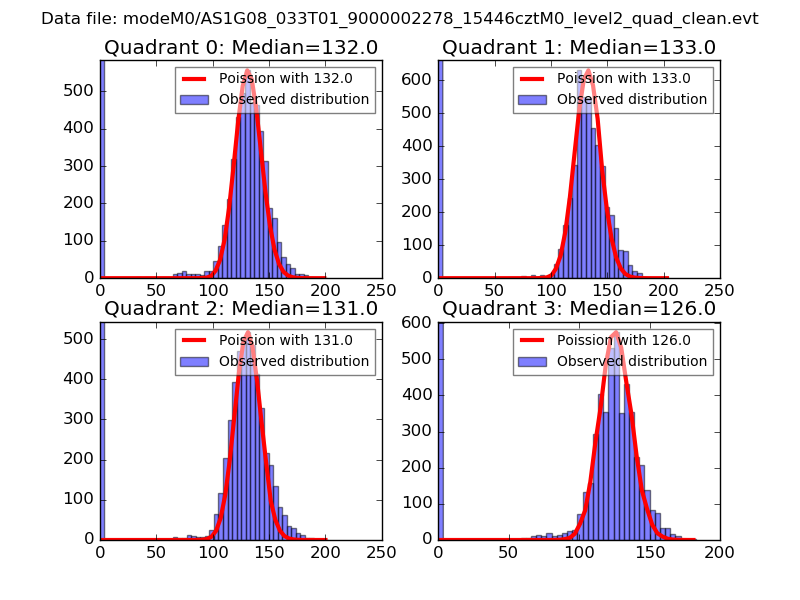

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

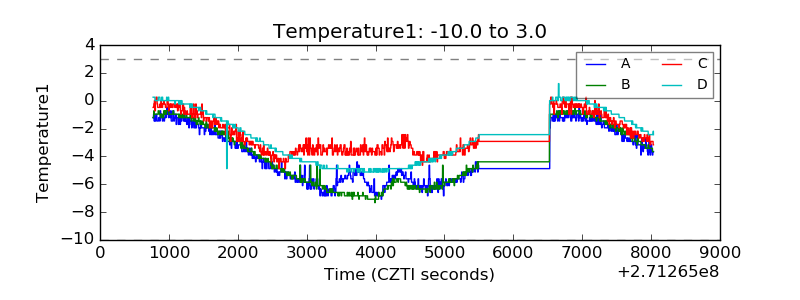

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

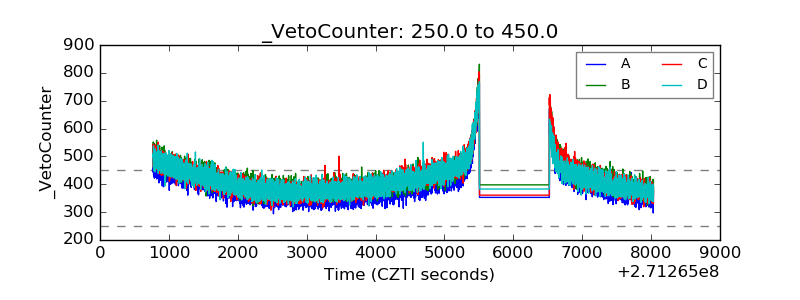

| Veto Counter |  |
