| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_033T01_9000002278_15447cztM0_level2.evt | modeM0/AS1G08_033T01_9000002278_15447cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,457,920 | 102,136,320 |
| Size | 463.9 MB | 97.4 MB |
| Events in quadrant A | 3,659,147 | 659,281 |
| Events in quadrant B | 3,512,153 | 666,301 |
| Events in quadrant C | 3,503,306 | 662,417 |
| Events in quadrant D | 3,600,126 | 635,438 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15370 | 2 |
| B | 0 | 14775 | 1 |
| C | 0 | 14673 | 1 |
| D | 0 | 15364 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 122 | 1.809552% |
| B | 6742 | 86 | 1.275586% |
| C | 6742 | 20 | 0.296648% |
| D | 6742 | 108 | 1.601899% |

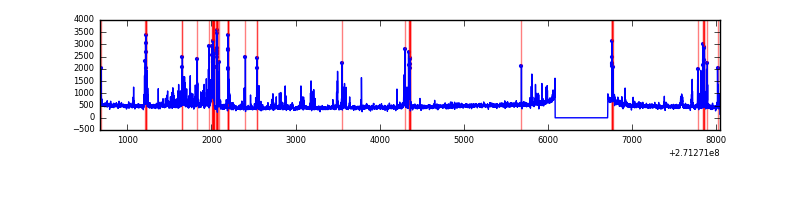

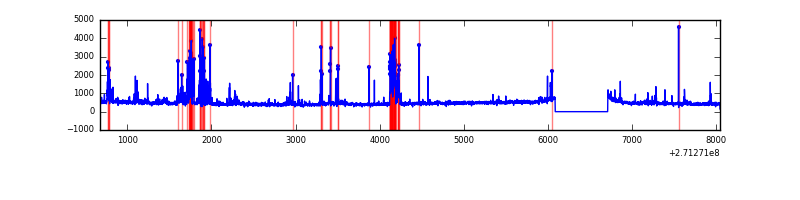

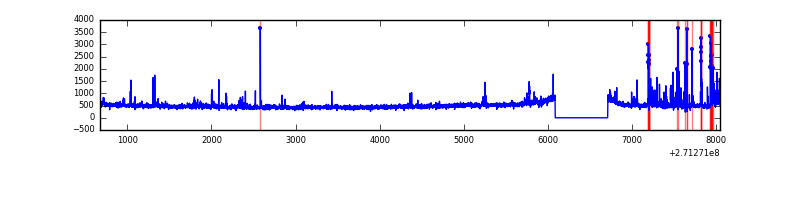

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 6744 | 62 | 62 | 0.84% | 0.92% |  |
| B | 7368 | 6744 | 32 | 32 | 0.43% | 0.47% |  |
| C | 7368 | 6744 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7368 | 6744 | 95 | 95 | 1.29% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 212870 | 1294.72 | 798 | 780 | 163.8 |
| A | 14 | 238 | 195947 | 1191.41 | 798 | 780 | 163.8 |
| A | 13 | 248 | 69362 | 418.66 | 798 | 780 | 163.8 |
| B | 10 | 245 | 98221 | 638.67 | 799 | 780 | 152.6 |
| B | 7 | 220 | 87231 | 566.64 | 799 | 780 | 152.6 |
| B | 0 | 189 | 41391 | 266.18 | 799 | 780 | 152.6 |
| C | 3 | 233 | 499588 | 2809.77 | 767 | 770 | 177.5 |
| C | 13 | 61 | 5711 | 27.83 | 767 | 770 | 177.5 |
| C | 10 | 22 | 4067 | 18.57 | 767 | 770 | 177.5 |
| D | 5 | 222 | 228986 | 1225.09 | 767 | 746 | 186.3 |
| D | 2 | 33 | 192407 | 1028.75 | 767 | 746 | 186.3 |
| D | 12 | 221 | 105327 | 561.35 | 767 | 746 | 186.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

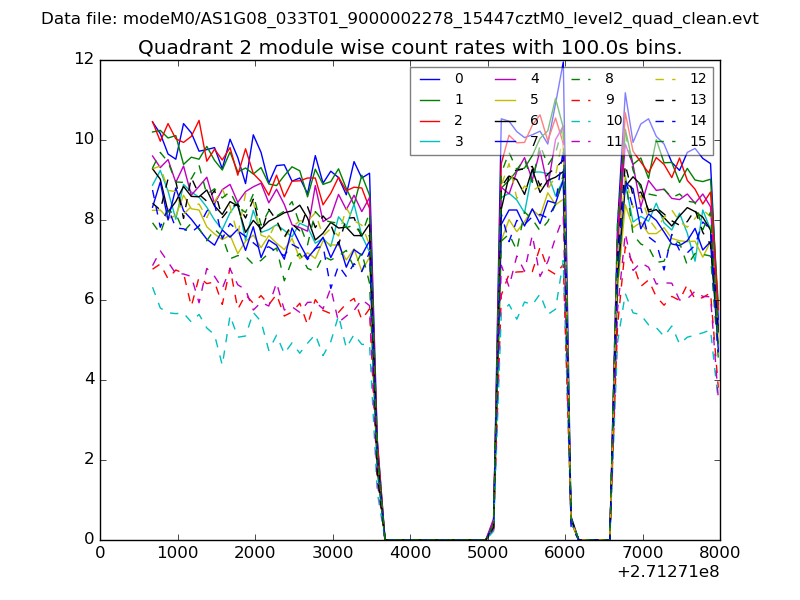

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

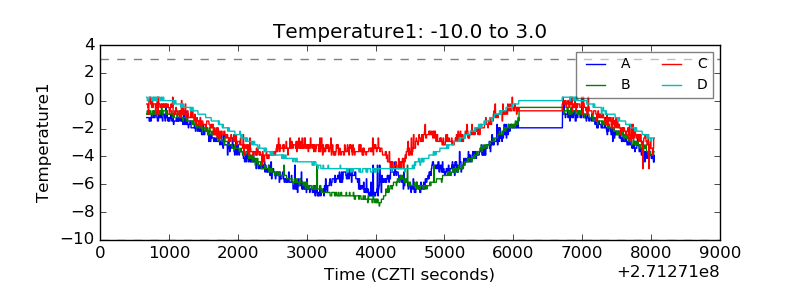

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

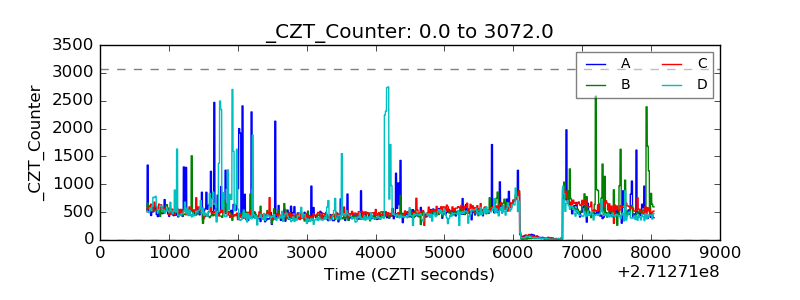

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

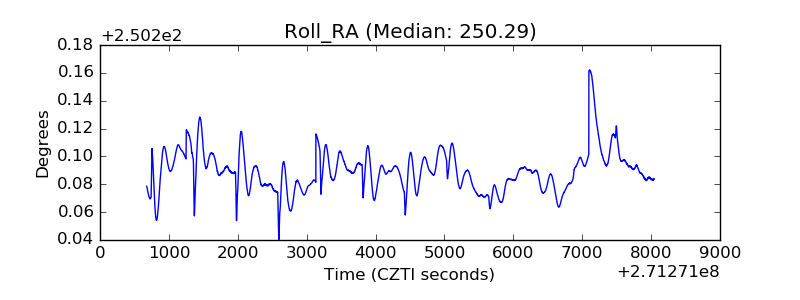

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

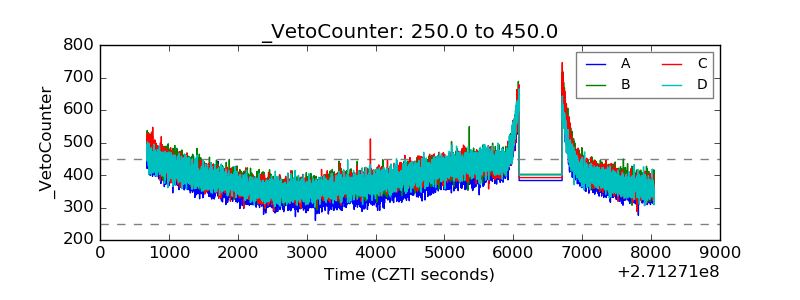

| Veto Counter |  |
