| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_033T01_9000002278_15448cztM0_level2.evt | modeM0/AS1G08_033T01_9000002278_15448cztM0_level2_quad_clean.evt |
| Size (bytes) | 131,639,040 | 31,959,360 |
| Size | 125.5 MB | 30.5 MB |
| Events in quadrant A | 945,895 | 210,788 |
| Events in quadrant B | 1,151,415 | 212,103 |
| Events in quadrant C | 973,472 | 213,523 |
| Events in quadrant D | 798,740 | 207,112 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3928 | 1 |
| B | 0 | 4474 | 1 |
| C | 0 | 4001 | 1 |
| D | 0 | 3594 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1684 | 62 | 3.681710% |
| B | 1684 | 74 | 4.394299% |
| C | 1684 | 12 | 0.712589% |
| D | 1684 | 10 | 0.593824% |

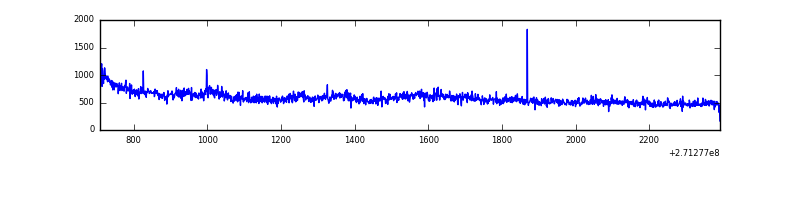

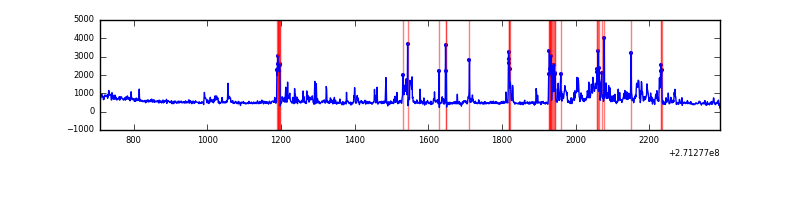

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1685 | 1685 | 26 | 26 | 1.54% | 1.54% |  |
| B | 1685 | 1685 | 41 | 41 | 2.43% | 2.43% |  |
| C | 1685 | 1685 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1685 | 1685 | 2 | 2 | 0.12% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 93746 | 2220.16 | 199 | 195 | 42.1 |
| A | 14 | 237 | 36136 | 852.96 | 199 | 195 | 42.1 |
| A | 13 | 248 | 28263 | 666.11 | 199 | 195 | 42.1 |
| B | 4 | 142 | 129857 | 3251.27 | 198 | 194 | 39.9 |
| B | 10 | 245 | 110045 | 2754.49 | 198 | 194 | 39.9 |
| B | 7 | 220 | 83360 | 2085.37 | 198 | 194 | 39.9 |
| C | 3 | 233 | 231044 | 5116.61 | 189 | 189 | 45.1 |
| C | 9 | 54 | 2827 | 58.47 | 189 | 189 | 45.1 |
| C | 14 | 234 | 1500 | 29.06 | 189 | 189 | 45.1 |
| D | 7 | 38 | 16284 | 331.87 | 191 | 185 | 48.5 |
| D | 12 | 2 | 9695 | 196.04 | 191 | 185 | 48.5 |
| D | 5 | 222 | 9686 | 195.85 | 191 | 185 | 48.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

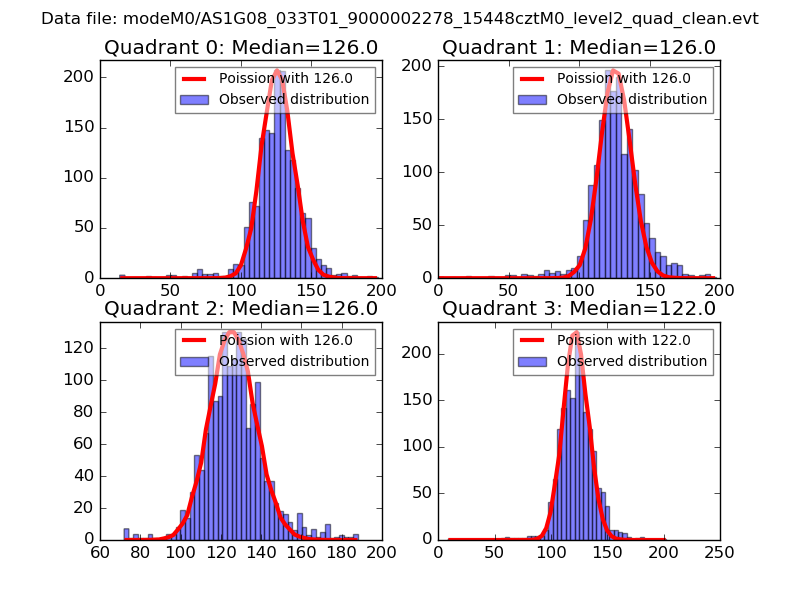

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

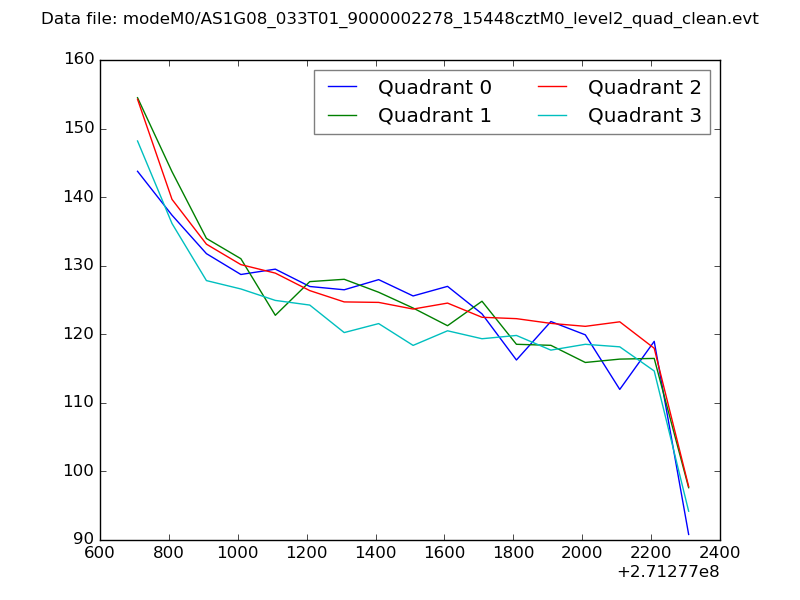

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

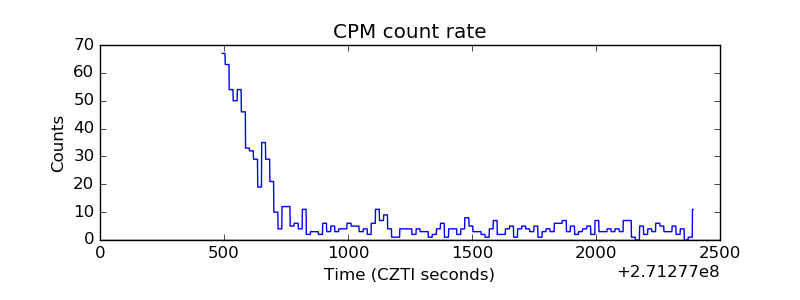

| _CPM_Rate |  |

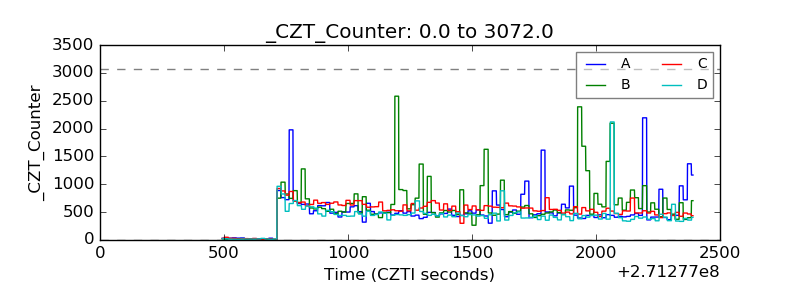

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

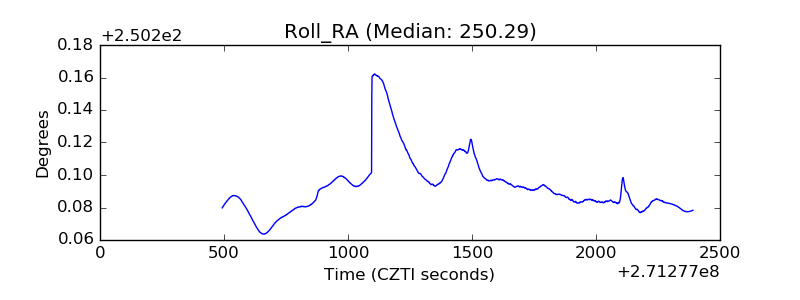

| _Roll_RA |  |

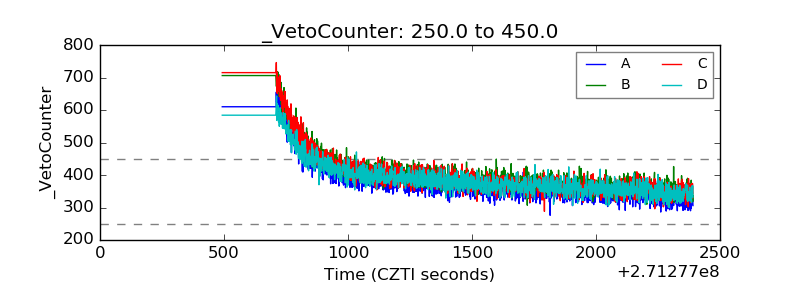

| Veto Counter |  |
