| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002284_15460cztM0_level2.evt | modeM0/AS1A04_203T01_9000002284_15460cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,093,120 | 75,450,240 |
| Size | 475.0 MB | 72.0 MB |
| Events in quadrant A | 3,752,817 | 464,167 |
| Events in quadrant B | 3,507,142 | 467,097 |
| Events in quadrant C | 3,657,900 | 461,275 |
| Events in quadrant D | 3,733,589 | 446,560 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15205 | 4 |
| B | 0 | 14382 | 2 |
| C | 0 | 14855 | 2 |
| D | 0 | 15280 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6391 | 165 | 2.581756% |
| B | 6391 | 103 | 1.611641% |
| C | 6391 | 72 | 1.126584% |
| D | 6391 | 177 | 2.769520% |

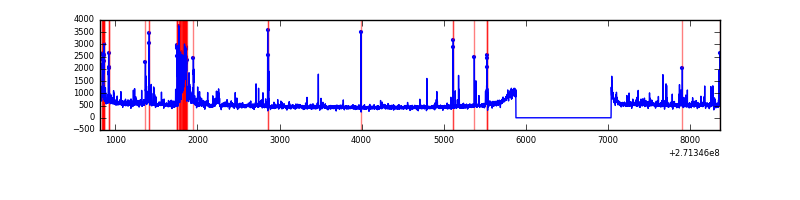

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6394 | 31 | 31 | 0.41% | 0.48% |  |
| B | 7553 | 6394 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7553 | 6394 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 6394 | 75 | 75 | 0.99% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 304989 | 1773.07 | 850 | 834 | 171.5 |
| A | 14 | 237 | 109357 | 632.63 | 850 | 834 | 171.5 |
| A | 12 | 96 | 35895 | 204.39 | 850 | 834 | 171.5 |
| B | 0 | 230 | 55634 | 341.45 | 848 | 829 | 160.5 |
| B | 0 | 197 | 36612 | 222.94 | 848 | 829 | 160.5 |
| B | 0 | 229 | 32708 | 198.61 | 848 | 829 | 160.5 |
| C | 3 | 233 | 413951 | 2181.1 | 827 | 834 | 189.4 |
| C | 9 | 54 | 11873 | 58.28 | 827 | 834 | 189.4 |
| C | 0 | 207 | 6925 | 32.16 | 827 | 834 | 189.4 |
| D | 5 | 222 | 234863 | 1159.81 | 830 | 809 | 201.8 |
| D | 2 | 33 | 93848 | 461.04 | 830 | 809 | 201.8 |
| D | 1 | 52 | 90364 | 443.77 | 830 | 809 | 201.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

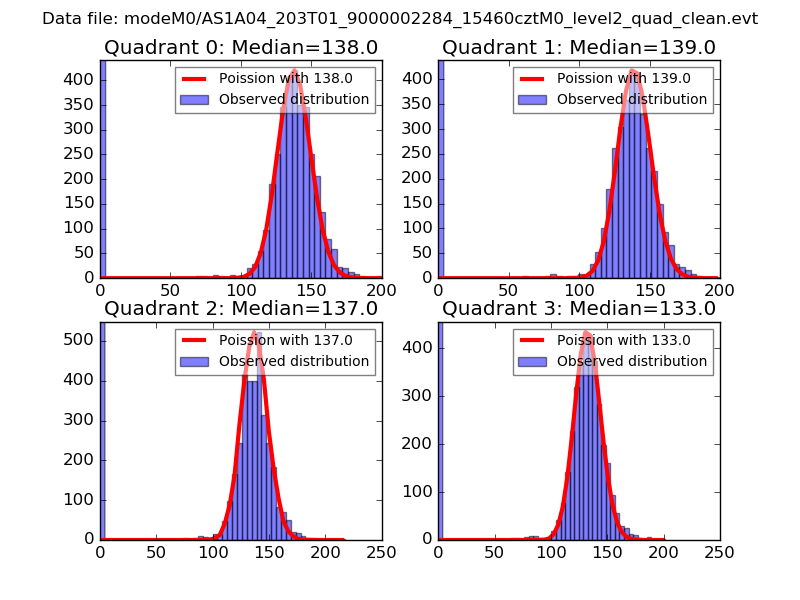

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

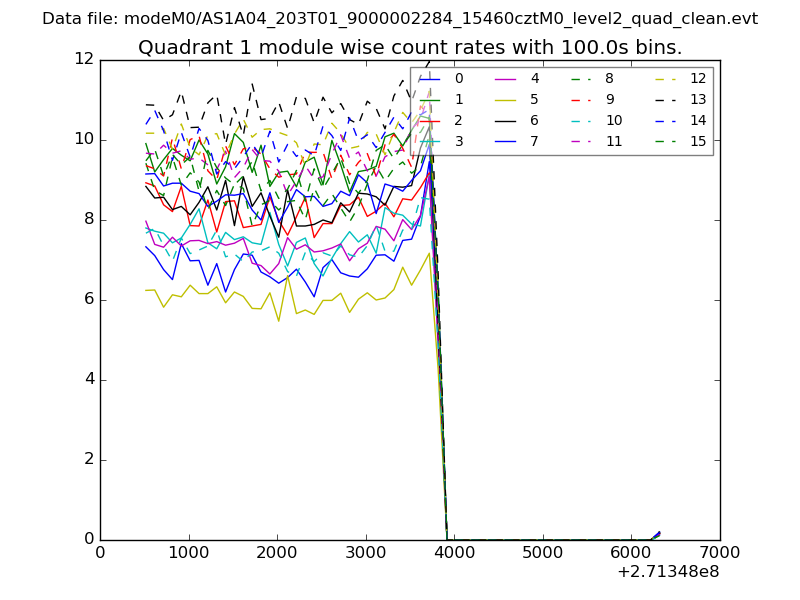

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

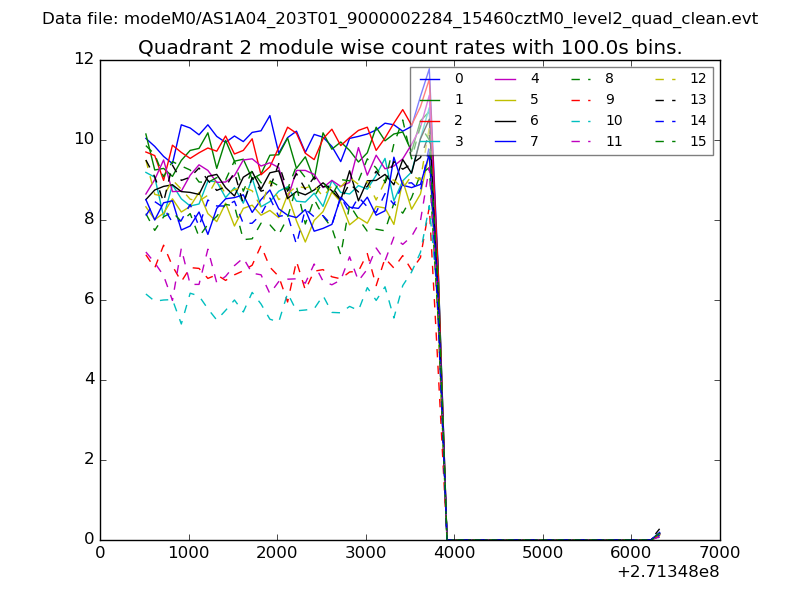

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

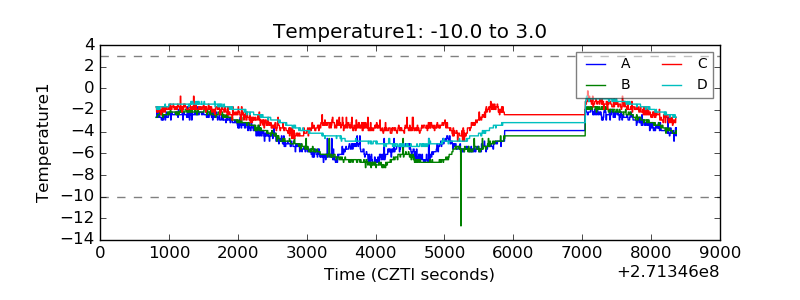

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

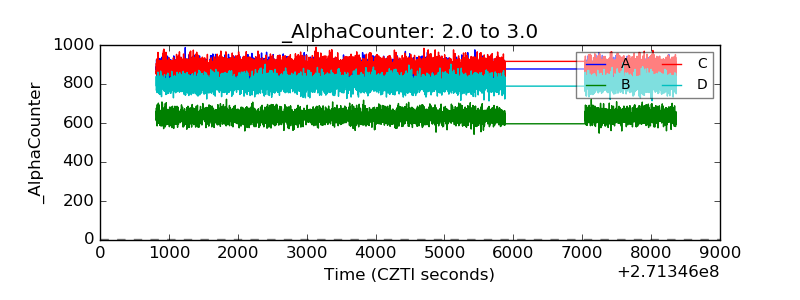

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

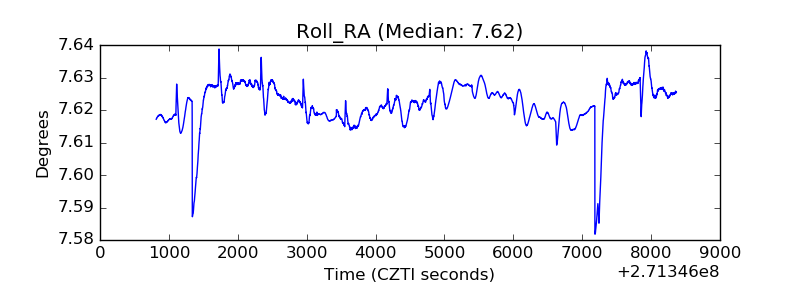

| _Roll_RA |  |

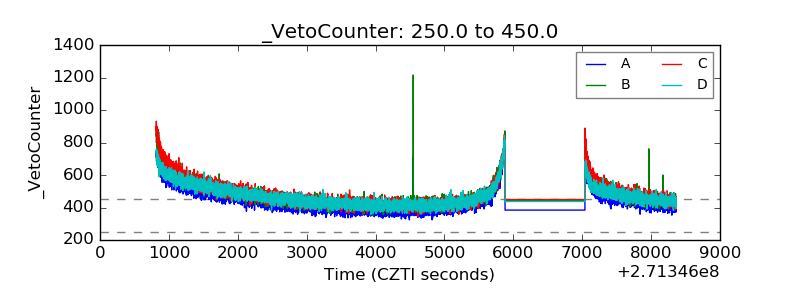

| Veto Counter |  |
