| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002284_15463cztM0_level2.evt | modeM0/AS1A04_203T01_9000002284_15463cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,624,000 | 95,621,760 |
| Size | 538.5 MB | 91.2 MB |
| Events in quadrant A | 3,805,152 | 594,194 |
| Events in quadrant B | 4,000,347 | 598,298 |
| Events in quadrant C | 4,114,973 | 588,333 |
| Events in quadrant D | 4,644,226 | 566,562 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16531 | 3 |
| B | 0 | 17014 | 2 |
| C | 0 | 17088 | 2 |
| D | 0 | 19251 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7887 | 56 | 0.710029% |
| B | 7887 | 79 | 1.001648% |
| C | 7887 | 70 | 0.887536% |
| D | 7887 | 182 | 2.307595% |

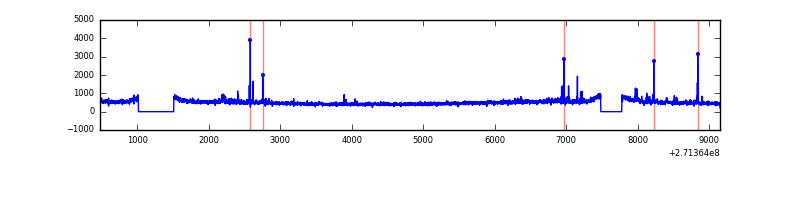

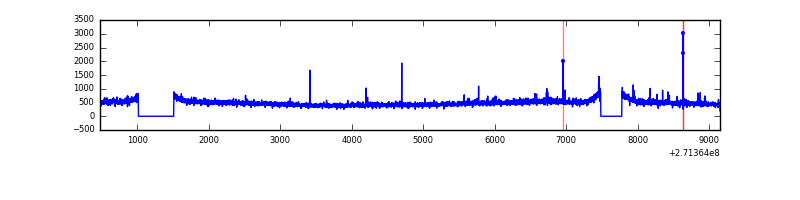

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8678 | 7890 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8678 | 7890 | 5 | 5 | 0.06% | 0.06% |  |
| C | 8678 | 7890 | 5 | 5 | 0.06% | 0.06% |  |
| D | 8678 | 7890 | 102 | 102 | 1.18% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 26755 | 129.57 | 975 | 952 | 199.1 |
| A | 12 | 96 | 10625 | 48.57 | 975 | 952 | 199.1 |
| A | 7 | 16 | 9629 | 43.57 | 975 | 952 | 199.1 |
| B | 0 | 189 | 38991 | 200.69 | 976 | 951 | 189.5 |
| B | 0 | 230 | 34661 | 177.85 | 976 | 951 | 189.5 |
| B | 3 | 209 | 32924 | 168.69 | 976 | 951 | 189.5 |
| C | 3 | 233 | 358190 | 1618.45 | 946 | 952 | 220.7 |
| C | 14 | 234 | 20283 | 87.58 | 946 | 952 | 220.7 |
| C | 1 | 5 | 19448 | 83.8 | 946 | 952 | 220.7 |
| D | 1 | 52 | 831490 | 3554.61 | 943 | 915 | 233.7 |
| D | 5 | 222 | 75702 | 320.07 | 943 | 915 | 233.7 |
| D | 7 | 38 | 58357 | 245.83 | 943 | 915 | 233.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

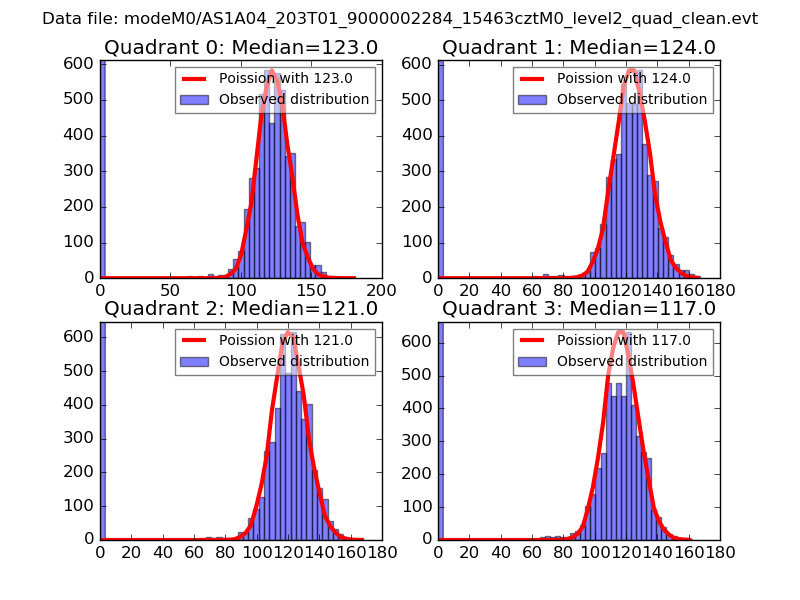

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

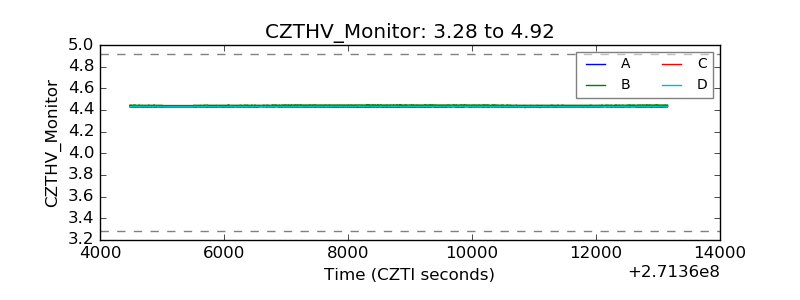

| CZT HV Monitor |  |

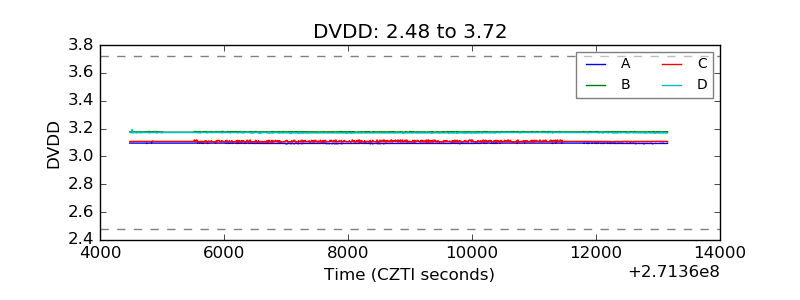

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

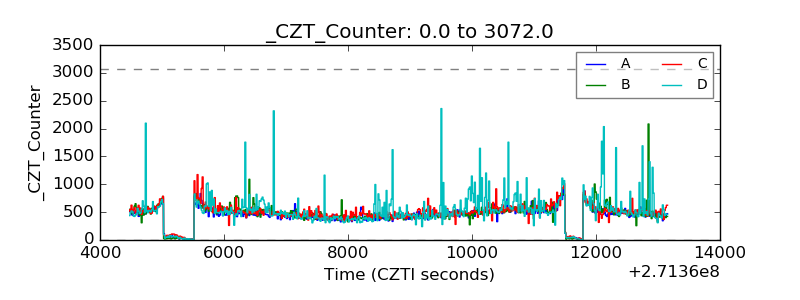

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

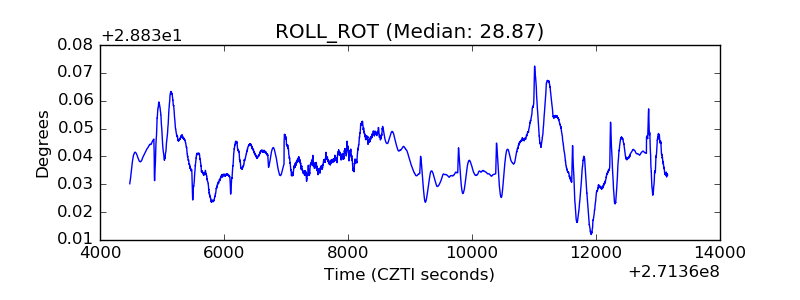

| _ROLL_ROT |  |
| _Roll_DEC |  |

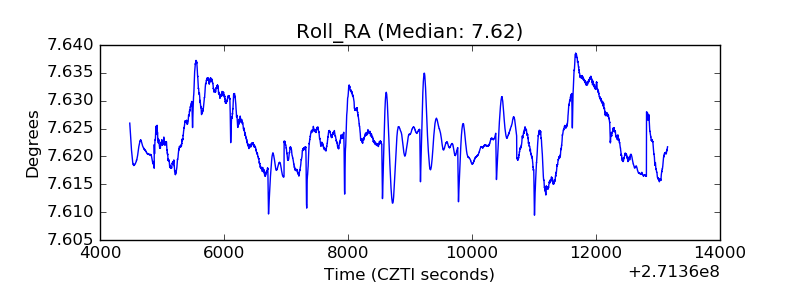

| _Roll_RA |  |
| Veto Counter |  |
