| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002284_15464cztM0_level2.evt | modeM0/AS1A04_203T01_9000002284_15464cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,460,160 | 97,626,240 |
| Size | 516.4 MB | 93.1 MB |
| Events in quadrant A | 3,563,383 | 617,323 |
| Events in quadrant B | 3,713,005 | 623,346 |
| Events in quadrant C | 3,947,184 | 612,335 |
| Events in quadrant D | 4,668,536 | 584,399 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15657 | 3 |
| B | 0 | 15951 | 2 |
| C | 0 | 16922 | 2 |
| D | 0 | 19073 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7463 | 62 | 0.830765% |
| B | 7463 | 91 | 1.219349% |
| C | 7463 | 69 | 0.924561% |
| D | 7463 | 222 | 2.974675% |

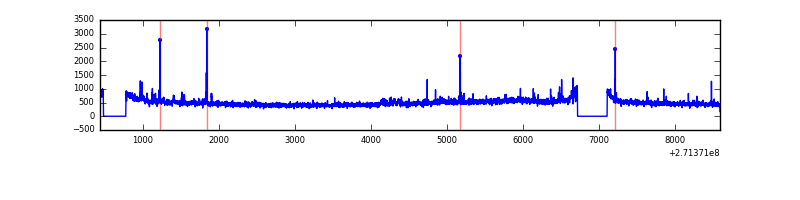

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8149 | 7466 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8149 | 7466 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8149 | 7466 | 6 | 6 | 0.07% | 0.08% |  |
| D | 8149 | 7466 | 115 | 115 | 1.41% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 47954 | 254.21 | 903 | 883 | 185.2 |
| A | 12 | 96 | 31500 | 165.35 | 903 | 883 | 185.2 |
| A | 7 | 16 | 9310 | 45.51 | 903 | 883 | 185.2 |
| B | 0 | 189 | 47722 | 263.78 | 909 | 884 | 177.6 |
| B | 0 | 230 | 27360 | 149.1 | 909 | 884 | 177.6 |
| B | 12 | 111 | 20923 | 112.85 | 909 | 884 | 177.6 |
| C | 3 | 233 | 479242 | 2306.52 | 881 | 886 | 207.4 |
| C | 14 | 234 | 16053 | 73.13 | 881 | 886 | 207.4 |
| C | 14 | 225 | 12285 | 54.96 | 881 | 886 | 207.4 |
| D | 1 | 52 | 1035105 | 4767.43 | 873 | 846 | 216.9 |
| D | 2 | 33 | 94409 | 431.28 | 873 | 846 | 216.9 |
| D | 7 | 38 | 74935 | 341.51 | 873 | 846 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

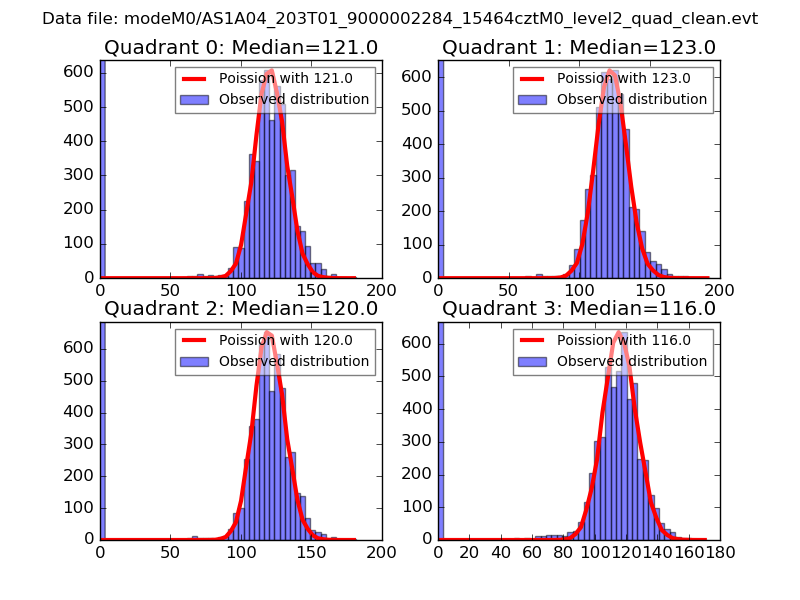

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

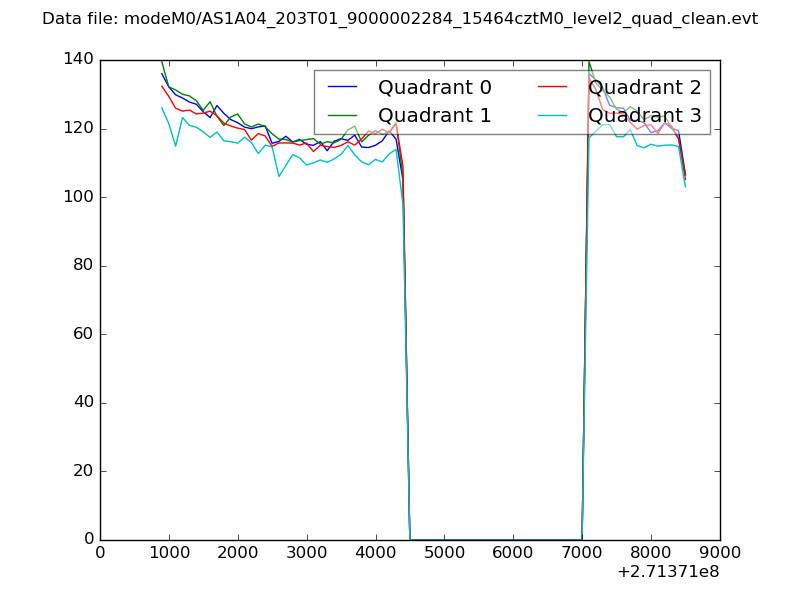

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

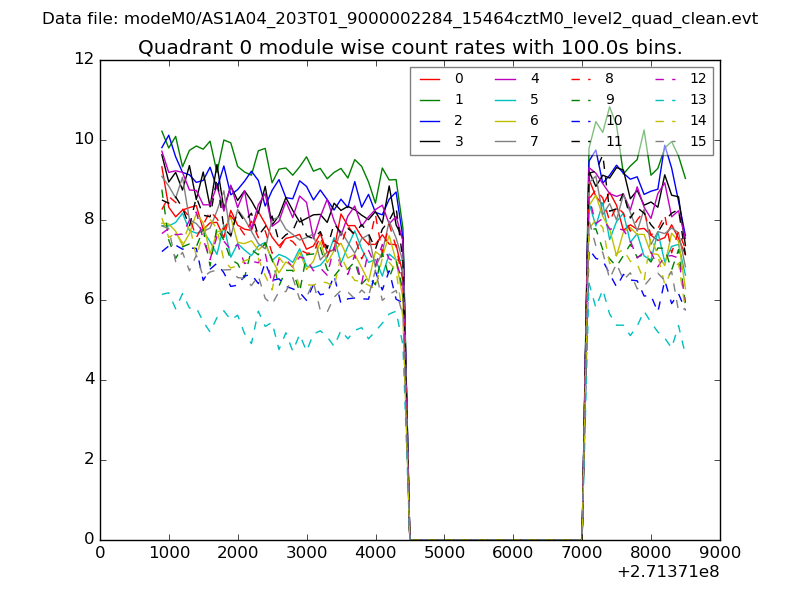

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

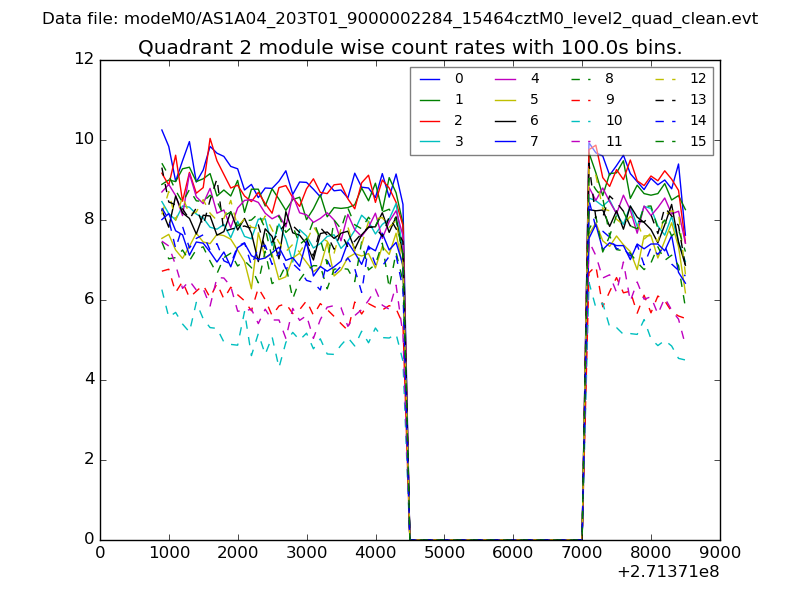

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

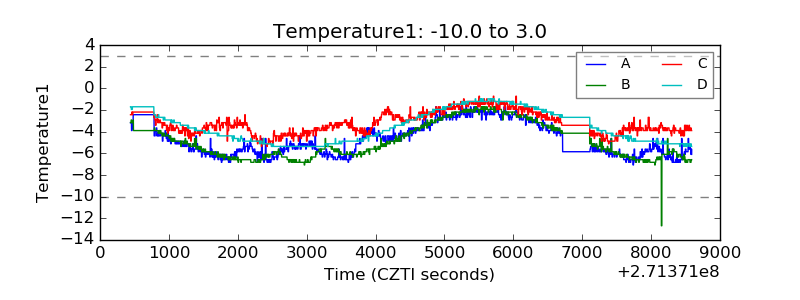

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

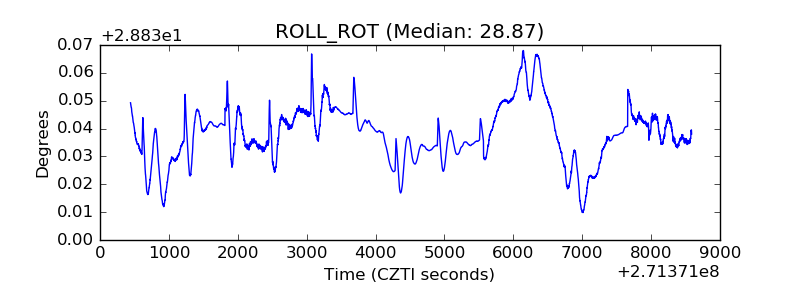

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

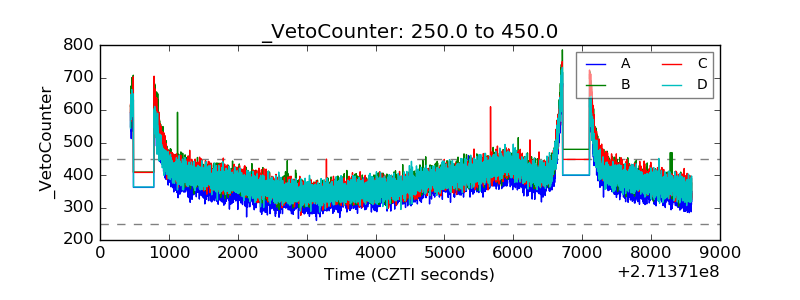

| Veto Counter |  |
