| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_203T01_9000002284_15475cztM0_level2.evt | modeM0/AS1A04_203T01_9000002284_15475cztM0_level2_quad_clean.evt |
| Size (bytes) | 187,678,080 | 19,212,480 |
| Size | 179.0 MB | 18.3 MB |
| Events in quadrant A | 1,233,514 | 105,321 |
| Events in quadrant B | 1,335,651 | 104,454 |
| Events in quadrant C | 1,237,017 | 100,323 |
| Events in quadrant D | 1,713,158 | 98,935 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5031 | 1 |
| B | 0 | 5341 | 1 |
| C | 0 | 5006 | 1 |
| D | 0 | 6742 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2389 | 9 | 0.376727% |
| B | 2389 | 23 | 0.962746% |
| C | 2389 | 14 | 0.586019% |
| D | 2389 | 62 | 2.595228% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

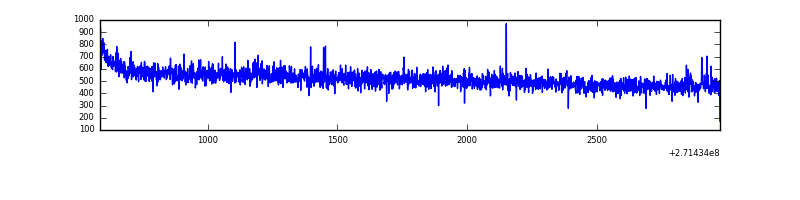

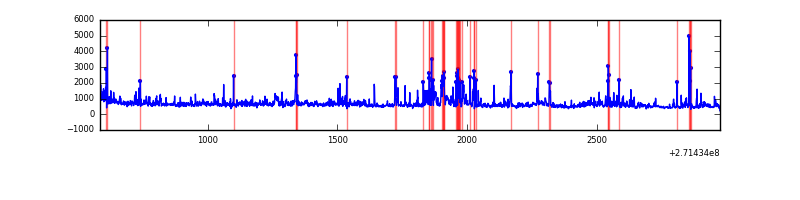

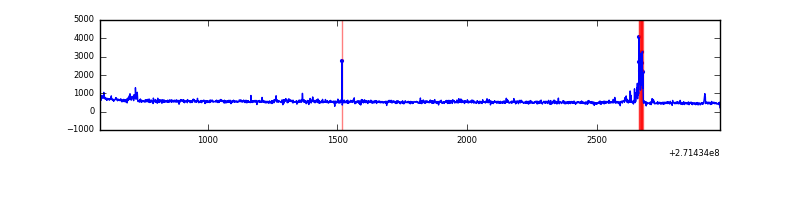

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2390 | 2390 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2390 | 2390 | 12 | 12 | 0.50% | 0.50% |  |
| C | 2390 | 2390 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2390 | 2390 | 47 | 47 | 1.97% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 4680 | 66.38 | 319 | 313 | 65.8 |
| A | 0 | 226 | 2868 | 38.84 | 319 | 313 | 65.8 |
| A | 12 | 194 | 2454 | 32.54 | 319 | 313 | 65.8 |
| B | 4 | 48 | 45966 | 754.57 | 315 | 309 | 60.5 |
| B | 3 | 209 | 17842 | 289.77 | 315 | 309 | 60.5 |
| B | 0 | 230 | 17344 | 281.53 | 315 | 309 | 60.5 |
| C | 14 | 238 | 48238 | 666.87 | 303 | 305 | 71.9 |
| C | 3 | 233 | 2741 | 33.89 | 303 | 305 | 71.9 |
| C | 9 | 54 | 2201 | 26.38 | 303 | 305 | 71.9 |
| D | 1 | 52 | 352298 | 4611.87 | 306 | 297 | 76.3 |
| D | 7 | 38 | 65047 | 848.35 | 306 | 297 | 76.3 |
| D | 13 | 172 | 61537 | 802.36 | 306 | 297 | 76.3 |

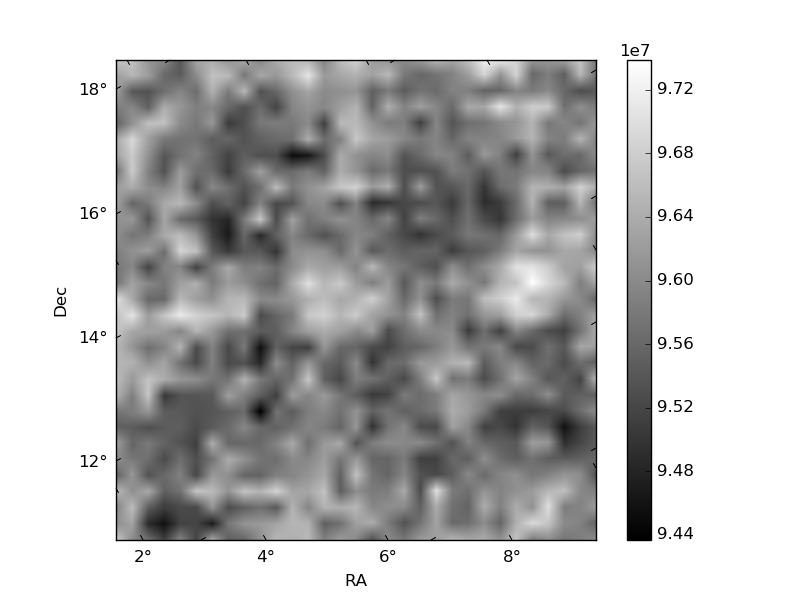

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

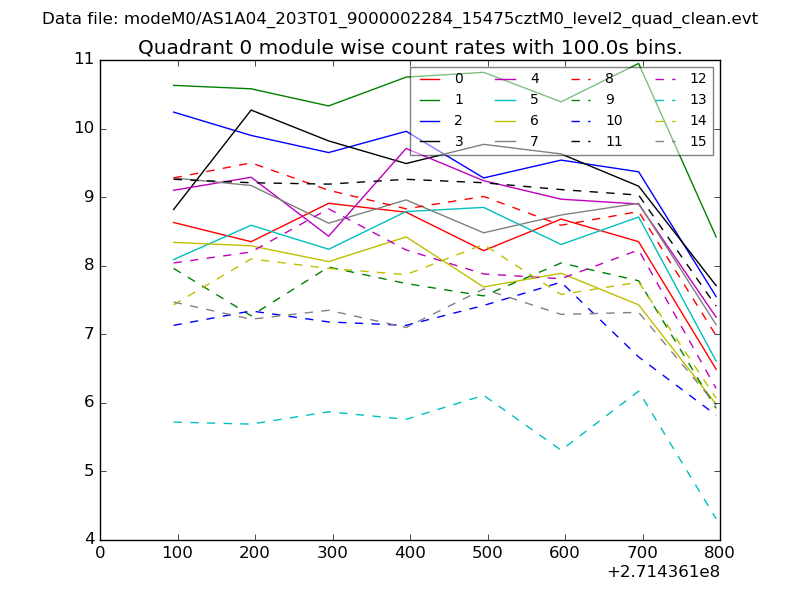

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

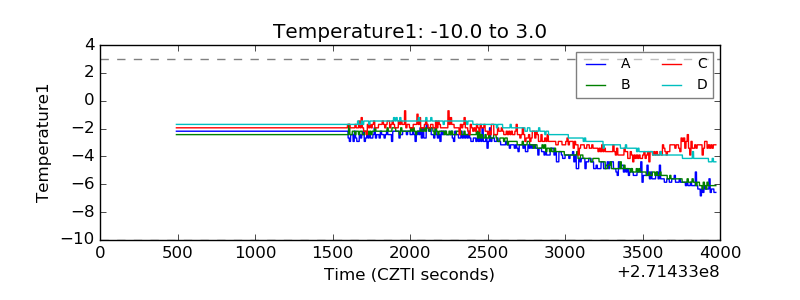

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

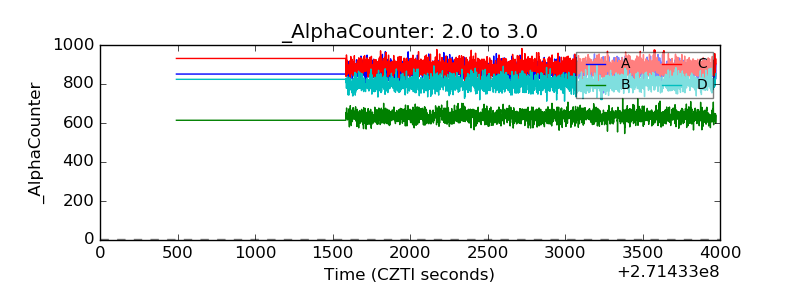

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

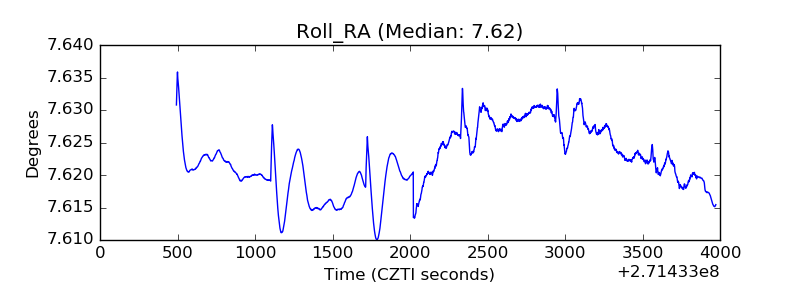

| _Roll_RA |  |
| Veto Counter |  |
