| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_077T01_9000002282_15457cztM0_level2.evt | modeM0/AS1T02_077T01_9000002282_15457cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,218,240 | 107,991,360 |
| Size | 421.7 MB | 103.0 MB |
| Events in quadrant A | 3,515,722 | 718,801 |
| Events in quadrant B | 3,188,874 | 731,495 |
| Events in quadrant C | 3,118,244 | 720,889 |
| Events in quadrant D | 3,171,765 | 690,025 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14256 | 2 |
| B | 0 | 13111 | 1 |
| C | 0 | 12972 | 1 |
| D | 0 | 13066 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5857 | 110 | 1.878095% |
| B | 5857 | 48 | 0.819532% |
| C | 5857 | 30 | 0.512208% |
| D | 5857 | 60 | 1.024415% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7163 | 5859 | 29 | 29 | 0.40% | 0.49% |  |
| B | 7163 | 5859 | 5 | 5 | 0.07% | 0.09% |  |
| C | 7163 | 5859 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7163 | 5859 | 23 | 23 | 0.32% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 312533 | 2004.21 | 785 | 772 | 155.6 |
| A | 14 | 237 | 127292 | 813.36 | 785 | 772 | 155.6 |
| A | 9 | 143 | 30194 | 189.14 | 785 | 772 | 155.6 |
| B | 0 | 189 | 35523 | 242.48 | 778 | 763 | 143.4 |
| B | 0 | 197 | 33807 | 230.51 | 778 | 763 | 143.4 |
| B | 15 | 201 | 20161 | 135.32 | 778 | 763 | 143.4 |
| C | 3 | 233 | 166339 | 974.13 | 755 | 761 | 170.0 |
| C | 13 | 61 | 5368 | 27.1 | 755 | 761 | 170.0 |
| C | 10 | 22 | 4931 | 24.53 | 755 | 761 | 170.0 |
| D | 7 | 38 | 71551 | 385.12 | 765 | 744 | 183.9 |
| D | 1 | 52 | 61448 | 330.17 | 765 | 744 | 183.9 |
| D | 5 | 222 | 35265 | 187.76 | 765 | 744 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

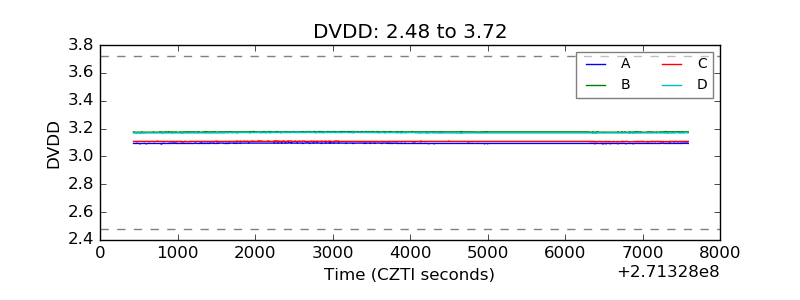

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

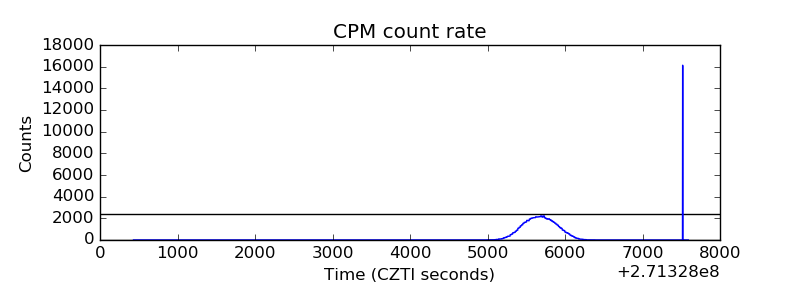

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

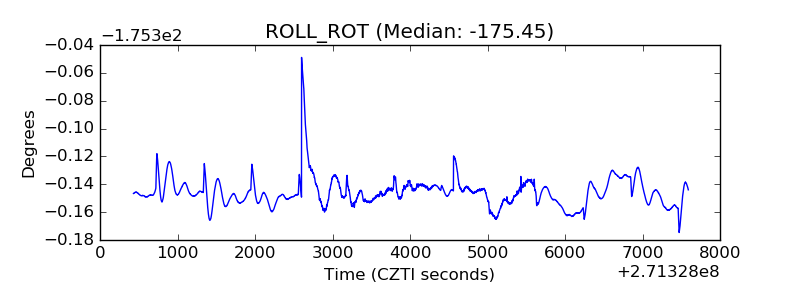

| _ROLL_ROT |  |

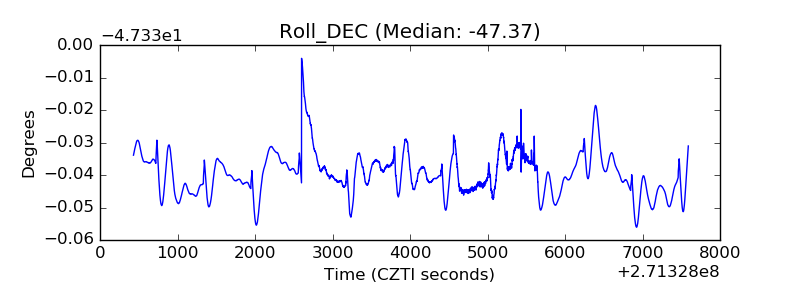

| _Roll_DEC |  |

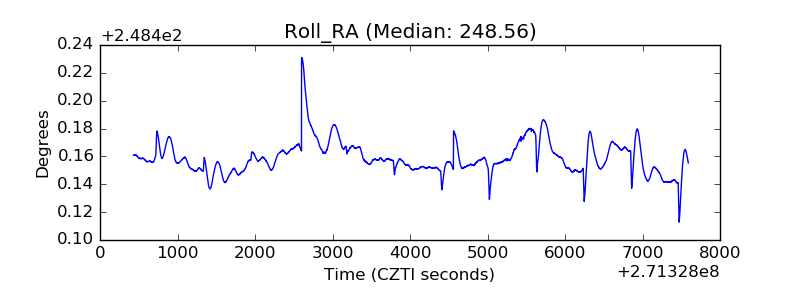

| _Roll_RA |  |
| Veto Counter |  |
