| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_082T01_9000002286_15479cztM0_level2.evt | modeM0/AS1T02_082T01_9000002286_15479cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,217,280 | 114,364,800 |
| Size | 547.6 MB | 109.1 MB |
| Events in quadrant A | 3,884,820 | 747,563 |
| Events in quadrant B | 5,293,383 | 728,541 |
| Events in quadrant C | 3,729,239 | 729,760 |
| Events in quadrant D | 3,953,392 | 715,111 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16934 | 3 |
| B | 0 | 20930 | 2 |
| C | 0 | 16095 | 2 |
| D | 0 | 17206 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7810 | 79 | 1.011524% |
| B | 7810 | 564 | 7.221511% |
| C | 7810 | 95 | 1.216389% |
| D | 7810 | 88 | 1.126761% |

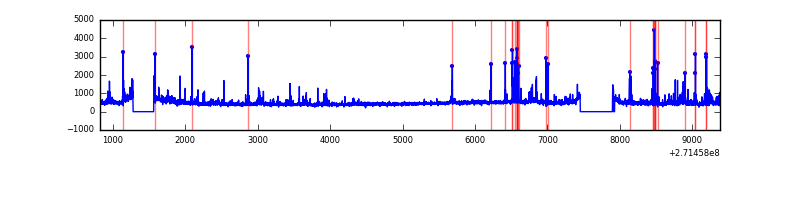

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8556 | 7814 | 16 | 16 | 0.19% | 0.20% |  |
| B | 8556 | 7814 | 316 | 316 | 3.69% | 4.04% |  |
| C | 8556 | 7814 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8556 | 7814 | 32 | 32 | 0.37% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 179991 | 957.93 | 923 | 903 | 187.0 |
| A | 14 | 237 | 96462 | 511.14 | 923 | 903 | 187.0 |
| A | 9 | 143 | 37106 | 193.65 | 923 | 903 | 187.0 |
| B | 10 | 245 | 1474745 | 8539.72 | 903 | 880 | 172.6 |
| B | 0 | 197 | 72189 | 413.17 | 903 | 880 | 172.6 |
| B | 3 | 209 | 52618 | 299.78 | 903 | 880 | 172.6 |
| C | 3 | 233 | 163962 | 793.55 | 878 | 883 | 205.5 |
| C | 14 | 238 | 134556 | 650.46 | 878 | 883 | 205.5 |
| C | 13 | 61 | 6499 | 27.33 | 878 | 883 | 205.5 |
| D | 1 | 52 | 254347 | 1161.66 | 890 | 862 | 218.2 |
| D | 5 | 222 | 89248 | 405.05 | 890 | 862 | 218.2 |
| D | 7 | 38 | 69301 | 313.64 | 890 | 862 | 218.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

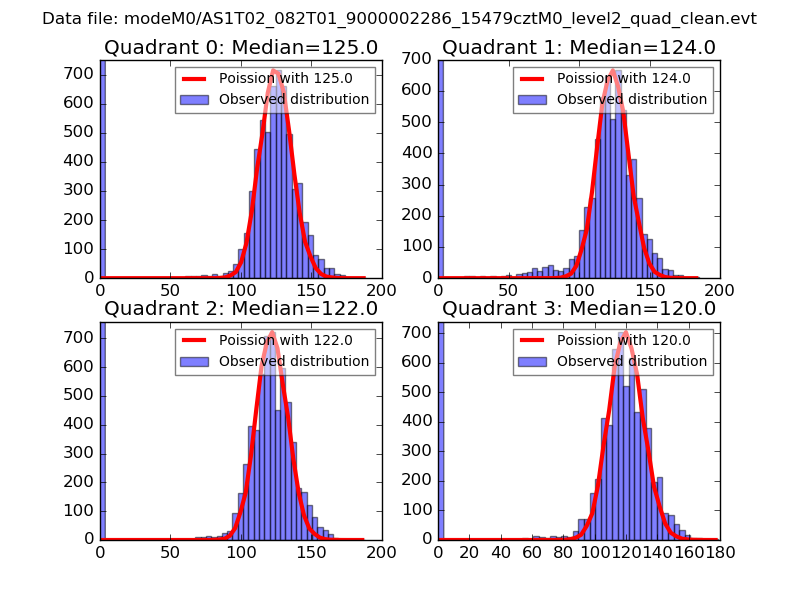

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

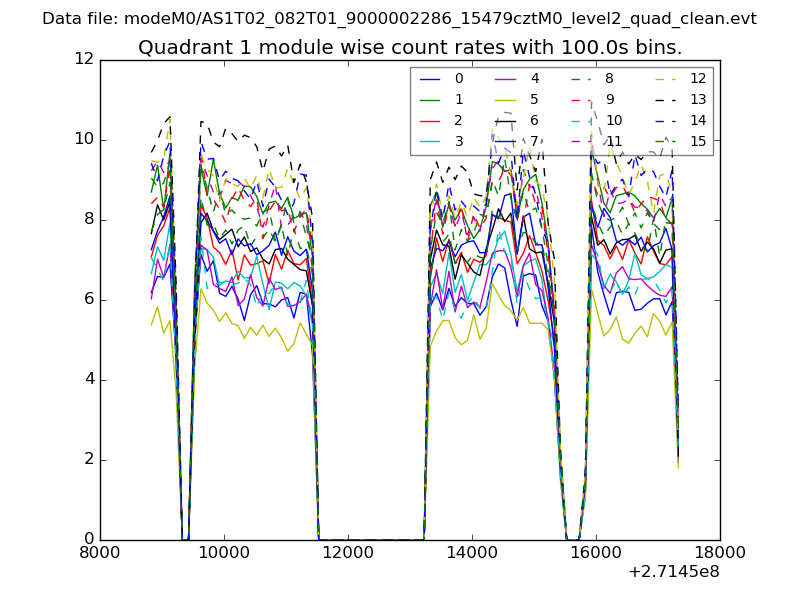

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

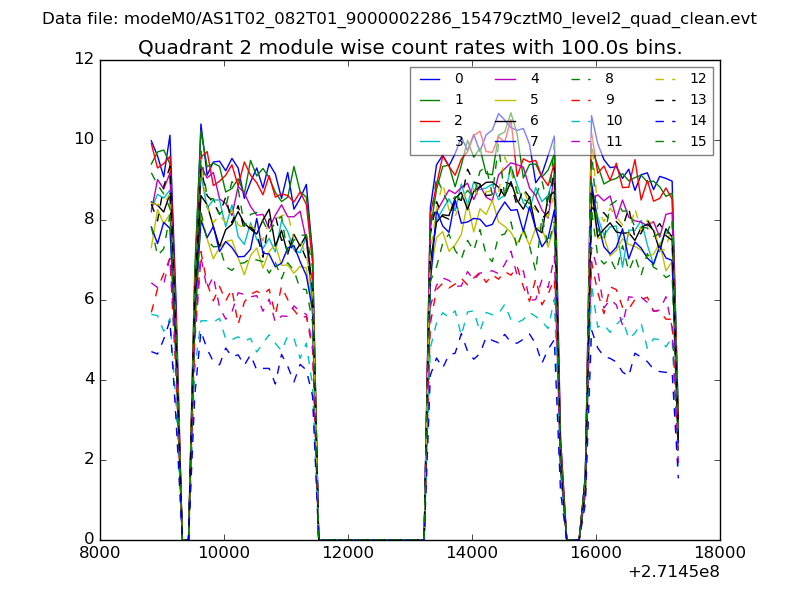

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

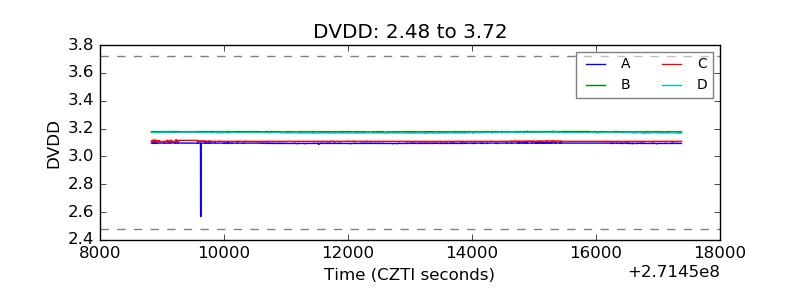

| D_VDD |  |

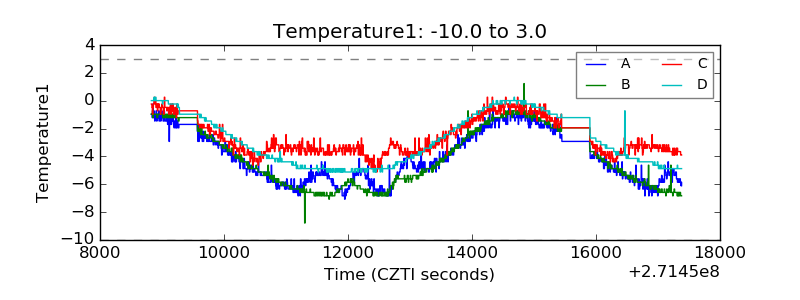

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

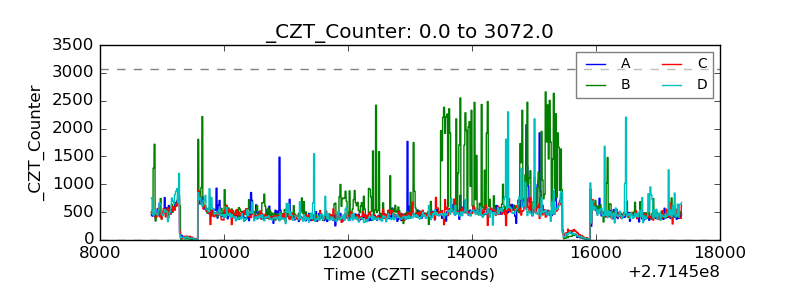

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

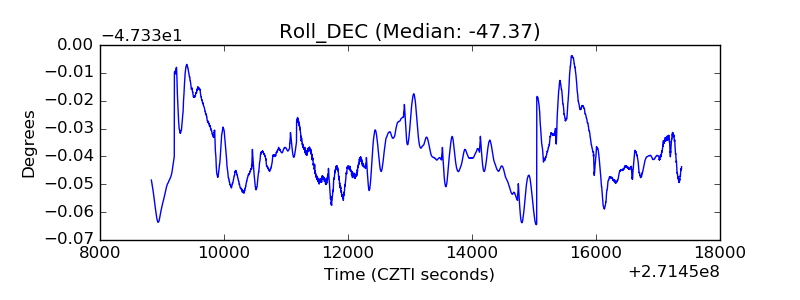

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
