| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_082T01_9000002286_15481cztM0_level2.evt | modeM0/AS1T02_082T01_9000002286_15481cztM0_level2_quad_clean.evt |
| Size (bytes) | 948,628,800 | 159,310,080 |
| Size | 904.7 MB | 151.9 MB |
| Events in quadrant A | 7,866,152 | 993,298 |
| Events in quadrant B | 6,395,367 | 1,018,752 |
| Events in quadrant C | 6,741,672 | 985,847 |
| Events in quadrant D | 6,879,939 | 961,664 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31716 | 4 |
| B | 0 | 27228 | 3 |
| C | 0 | 27961 | 3 |
| D | 0 | 29254 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 252 | 0 |
| B | 0 | 252 | 0 |
| C | 0 | 252 | 0 |
| D | 0 | 252 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12521 | 633 | 5.055507% |
| B | 12521 | 135 | 1.078189% |
| C | 12521 | 184 | 1.469531% |
| D | 12521 | 207 | 1.653223% |

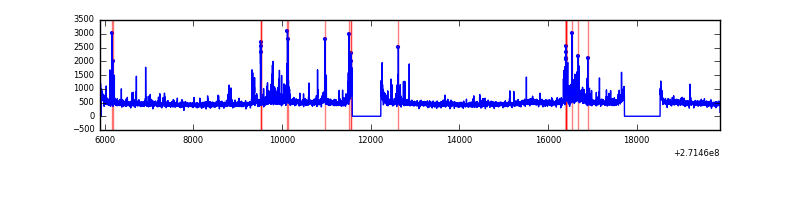

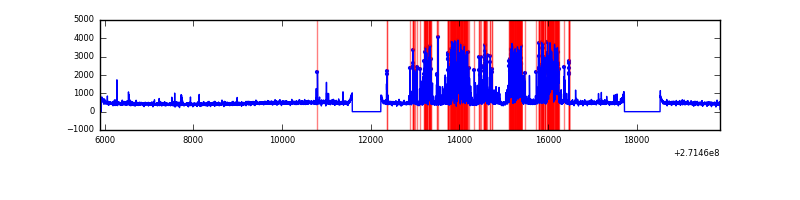

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13987 | 12525 | 451 | 451 | 3.22% | 3.60% |  |
| B | 13987 | 12525 | 20 | 20 | 0.14% | 0.16% |  |
| C | 13987 | 12524 | 9 | 9 | 0.06% | 0.07% |  |
| D | 13987 | 12525 | 137 | 137 | 0.98% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2223305 | 7594.9 | 1446 | 1412 | 292.6 |
| A | 9 | 143 | 29546 | 96.17 | 1446 | 1412 | 292.6 |
| A | 7 | 16 | 25849 | 83.53 | 1446 | 1412 | 292.6 |
| B | 10 | 245 | 204046 | 725.0 | 1468 | 1431 | 279.5 |
| B | 4 | 142 | 151843 | 538.21 | 1468 | 1431 | 279.5 |
| B | 0 | 197 | 56508 | 197.08 | 1468 | 1431 | 279.5 |
| C | 3 | 233 | 1040926 | 3191.8 | 1400 | 1405 | 325.7 |
| C | 14 | 238 | 214587 | 654.57 | 1400 | 1405 | 325.7 |
| C | 10 | 22 | 16022 | 44.88 | 1400 | 1405 | 325.7 |
| D | 1 | 52 | 809719 | 2337.9 | 1415 | 1370 | 345.8 |
| D | 5 | 222 | 169337 | 485.79 | 1415 | 1370 | 345.8 |
| D | 12 | 221 | 144700 | 414.54 | 1415 | 1370 | 345.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

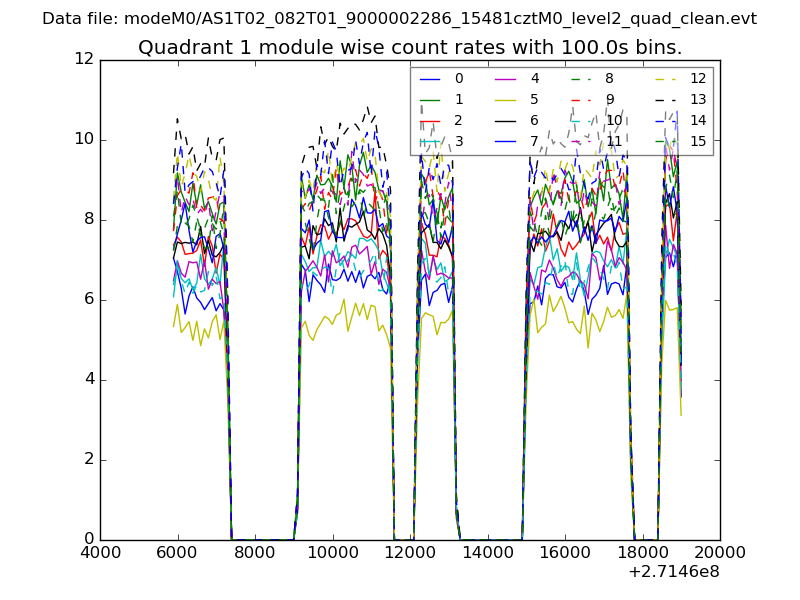

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

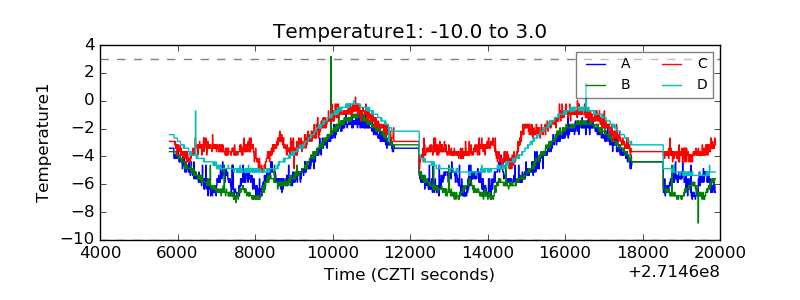

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

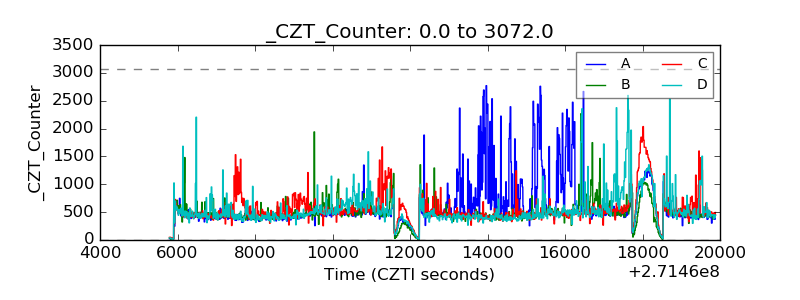

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

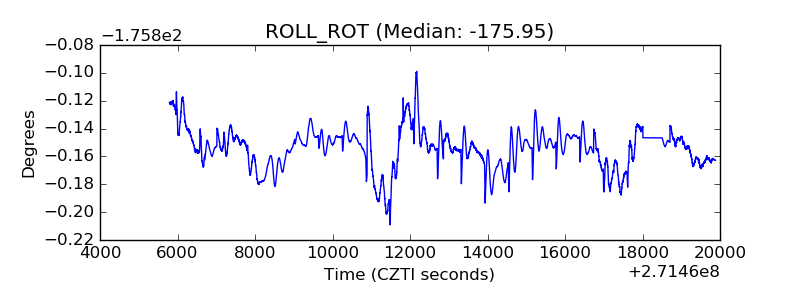

| _ROLL_ROT |  |

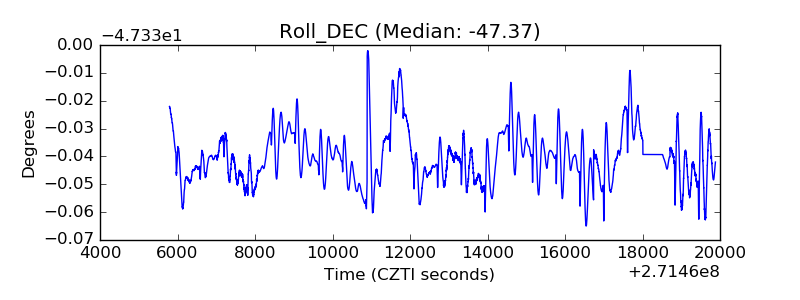

| _Roll_DEC |  |

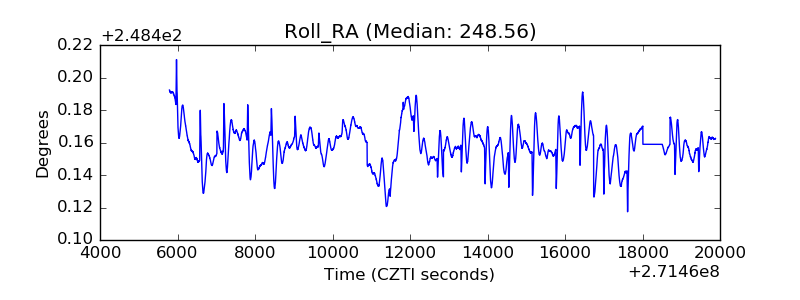

| _Roll_RA |  |
| Veto Counter |  |
