| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_039T01_9000002292_15493cztM0_level2.evt | modeM0/AS1G08_039T01_9000002292_15493cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,943,360 | 67,354,560 |
| Size | 389.0 MB | 64.2 MB |
| Events in quadrant A | 3,363,032 | 414,041 |
| Events in quadrant B | 2,876,543 | 429,902 |
| Events in quadrant C | 2,767,867 | 409,110 |
| Events in quadrant D | 2,974,758 | 403,031 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13566 | 2 |
| B | 0 | 11960 | 1 |
| C | 0 | 11626 | 1 |
| D | 0 | 12615 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5474 | 207 | 3.781513% |
| B | 5474 | 35 | 0.639386% |
| C | 5474 | 38 | 0.694191% |
| D | 5474 | 59 | 1.077822% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5880 | 5476 | 125 | 125 | 2.13% | 2.28% |  |
| B | 5880 | 5476 | 16 | 16 | 0.27% | 0.29% |  |
| C | 5880 | 5476 | 5 | 5 | 0.09% | 0.09% |  |
| D | 5880 | 5476 | 45 | 45 | 0.77% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 484859 | 3626.29 | 647 | 632 | 133.5 |
| A | 14 | 238 | 310702 | 2322.06 | 647 | 632 | 133.5 |
| A | 4 | 2 | 50691 | 374.88 | 647 | 632 | 133.5 |
| B | 10 | 245 | 173822 | 1385.05 | 655 | 638 | 125.0 |
| B | 0 | 197 | 21680 | 168.28 | 655 | 638 | 125.0 |
| B | 0 | 229 | 21042 | 163.18 | 655 | 638 | 125.0 |
| C | 3 | 233 | 184517 | 1255.3 | 624 | 627 | 146.5 |
| C | 14 | 238 | 95683 | 648.88 | 624 | 627 | 146.5 |
| C | 9 | 54 | 44697 | 300.84 | 624 | 627 | 146.5 |
| D | 5 | 222 | 255727 | 1641.23 | 632 | 614 | 155.4 |
| D | 1 | 52 | 144055 | 922.8 | 632 | 614 | 155.4 |
| D | 10 | 70 | 50800 | 322.86 | 632 | 614 | 155.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

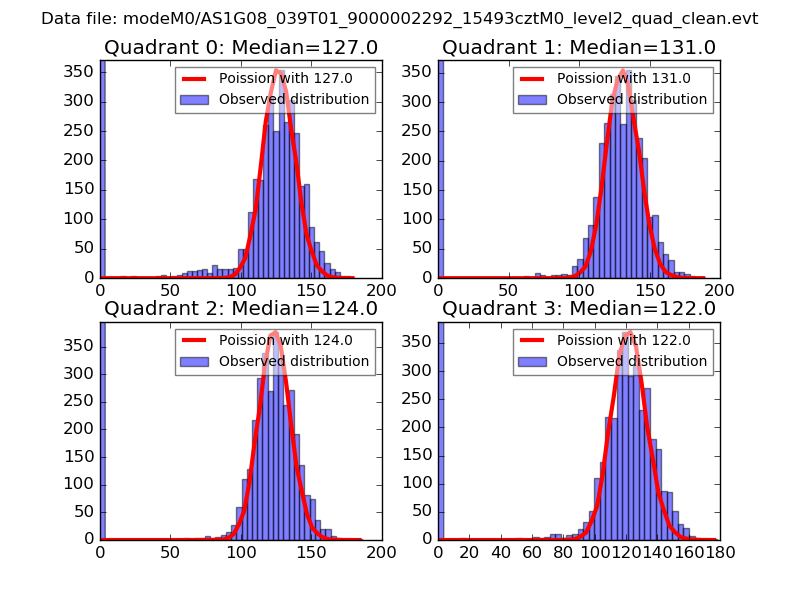

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

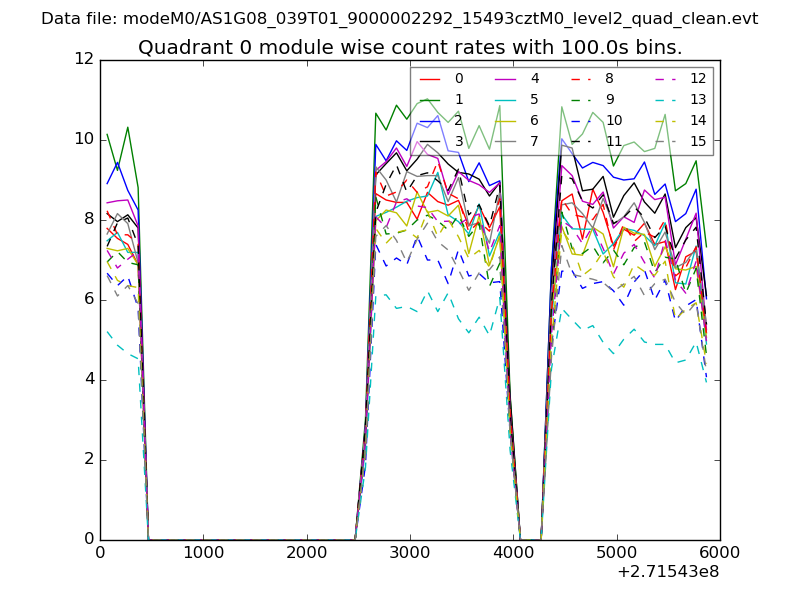

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

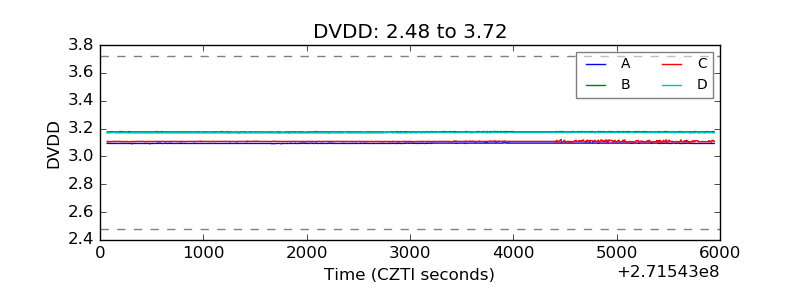

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

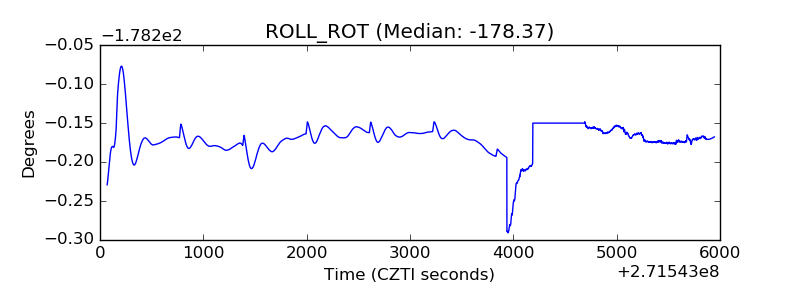

| _ROLL_ROT |  |

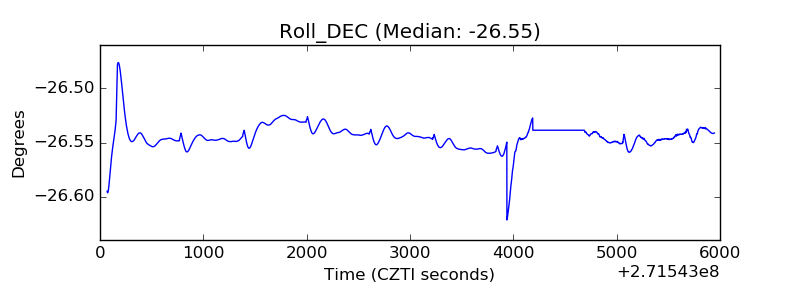

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
