| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_043T01_9000002288_15484cztM0_level2.evt | modeM0/AS1G08_043T01_9000002288_15484cztM0_level2_quad_clean.evt |
| Size (bytes) | 254,007,360 | 51,707,520 |
| Size | 242.2 MB | 49.3 MB |
| Events in quadrant A | 1,721,066 | 333,873 |
| Events in quadrant B | 1,809,183 | 336,378 |
| Events in quadrant C | 1,784,221 | 328,187 |
| Events in quadrant D | 2,140,467 | 320,903 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7327 | 2 |
| B | 0 | 7523 | 1 |
| C | 0 | 7559 | 1 |
| D | 0 | 8586 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3472 | 53 | 1.526498% |
| B | 3472 | 54 | 1.555300% |
| C | 3472 | 77 | 2.217742% |
| D | 3472 | 95 | 2.736175% |

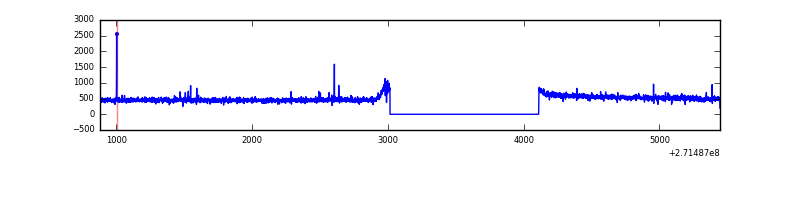

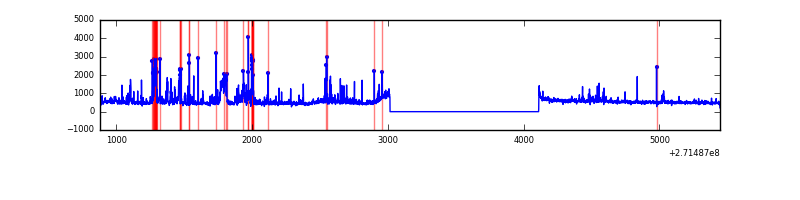

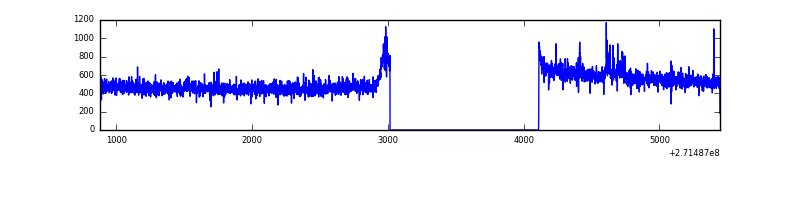

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4568 | 3473 | 1 | 1 | 0.02% | 0.03% |  |
| B | 4568 | 3473 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4568 | 3473 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4568 | 3473 | 49 | 49 | 1.07% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 13681 | 145.19 | 443 | 432 | 91.3 |
| A | 0 | 226 | 4071 | 39.88 | 443 | 432 | 91.3 |
| A | 13 | 248 | 3389 | 32.41 | 443 | 432 | 91.3 |
| B | 4 | 216 | 17271 | 200.13 | 441 | 431 | 84.1 |
| B | 0 | 189 | 16109 | 186.32 | 441 | 431 | 84.1 |
| B | 0 | 228 | 11306 | 129.24 | 441 | 431 | 84.1 |
| C | 14 | 238 | 65423 | 652.3 | 424 | 426 | 99.6 |
| C | 3 | 233 | 45730 | 454.66 | 424 | 426 | 99.6 |
| C | 9 | 54 | 18059 | 176.96 | 424 | 426 | 99.6 |
| D | 1 | 52 | 237688 | 2259.35 | 429 | 416 | 105.0 |
| D | 7 | 38 | 195172 | 1854.5 | 429 | 416 | 105.0 |
| D | 5 | 222 | 26181 | 245.34 | 429 | 416 | 105.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

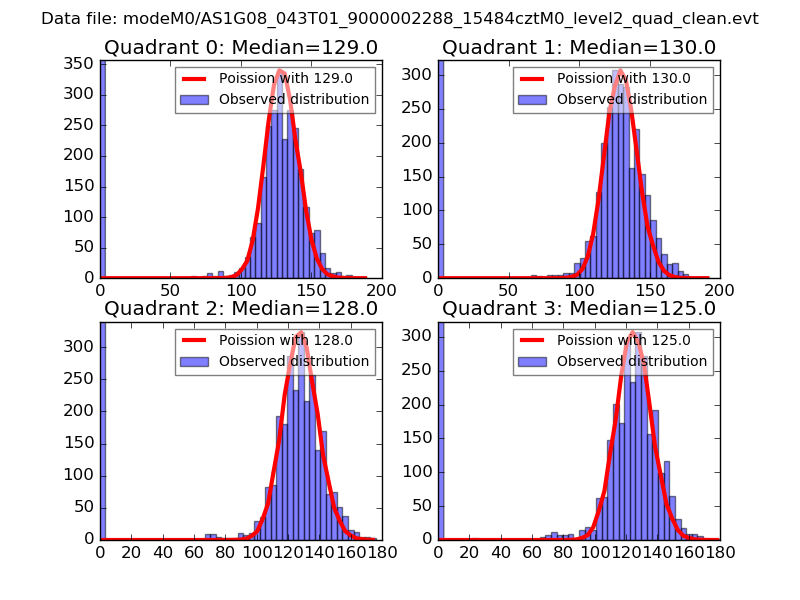

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

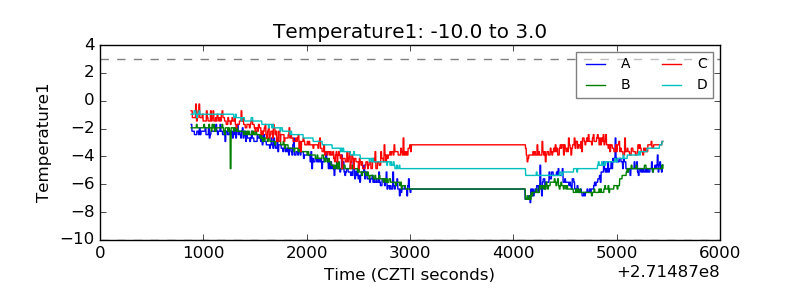

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

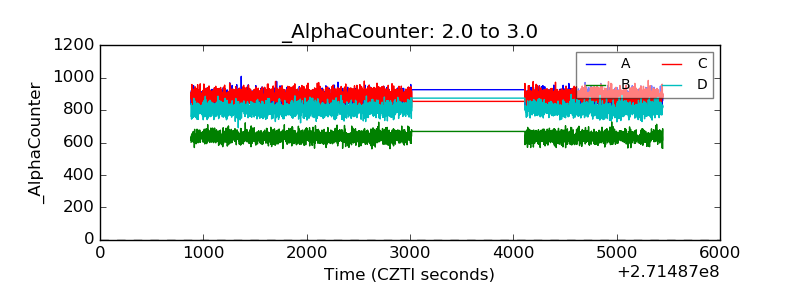

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
