| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_043T01_9000002288_15488cztM0_level2.evt | modeM0/AS1G08_043T01_9000002288_15488cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,219,200 | 106,571,520 |
| Size | 398.8 MB | 101.6 MB |
| Events in quadrant A | 2,858,523 | 726,667 |
| Events in quadrant B | 3,148,492 | 722,657 |
| Events in quadrant C | 2,931,719 | 696,677 |
| Events in quadrant D | 3,339,167 | 682,792 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11981 | 1 |
| B | 0 | 12758 | 0 |
| C | 0 | 12054 | 0 |
| D | 0 | 13645 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5706 | 92 | 1.612338% |
| B | 5706 | 114 | 1.997897% |
| C | 5706 | 100 | 1.752541% |
| D | 5706 | 181 | 3.172100% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7007 | 5708 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7007 | 5708 | 18 | 18 | 0.26% | 0.32% |  |
| C | 7007 | 5708 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7006 | 5707 | 100 | 100 | 1.43% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 10003 | 63.37 | 734 | 720 | 146.5 |
| A | 15 | 249 | 7442 | 45.88 | 734 | 720 | 146.5 |
| A | 14 | 238 | 7256 | 44.62 | 734 | 720 | 146.5 |
| B | 4 | 142 | 70956 | 527.98 | 720 | 705 | 133.1 |
| B | 0 | 189 | 50586 | 374.89 | 720 | 705 | 133.1 |
| B | 7 | 220 | 43559 | 322.08 | 720 | 705 | 133.1 |
| C | 3 | 233 | 136781 | 858.67 | 687 | 690 | 158.5 |
| C | 14 | 238 | 109993 | 689.65 | 687 | 690 | 158.5 |
| C | 13 | 61 | 4920 | 26.69 | 687 | 690 | 158.5 |
| D | 5 | 222 | 376037 | 2211.51 | 703 | 683 | 169.7 |
| D | 1 | 52 | 69523 | 405.59 | 703 | 683 | 169.7 |
| D | 7 | 38 | 52863 | 307.43 | 703 | 683 | 169.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

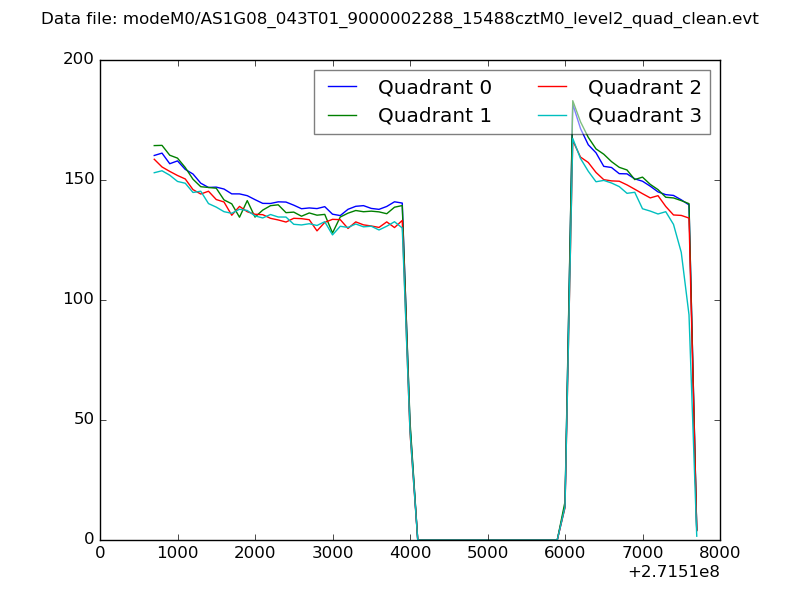

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

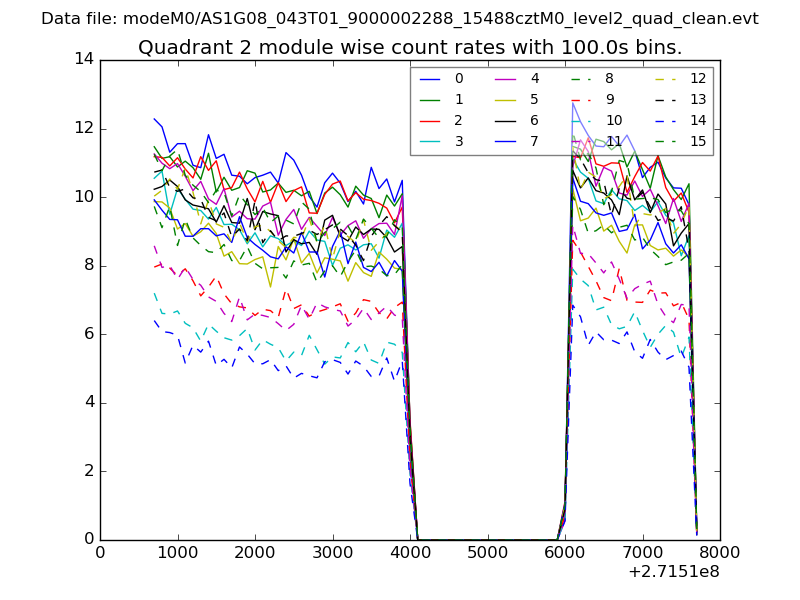

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

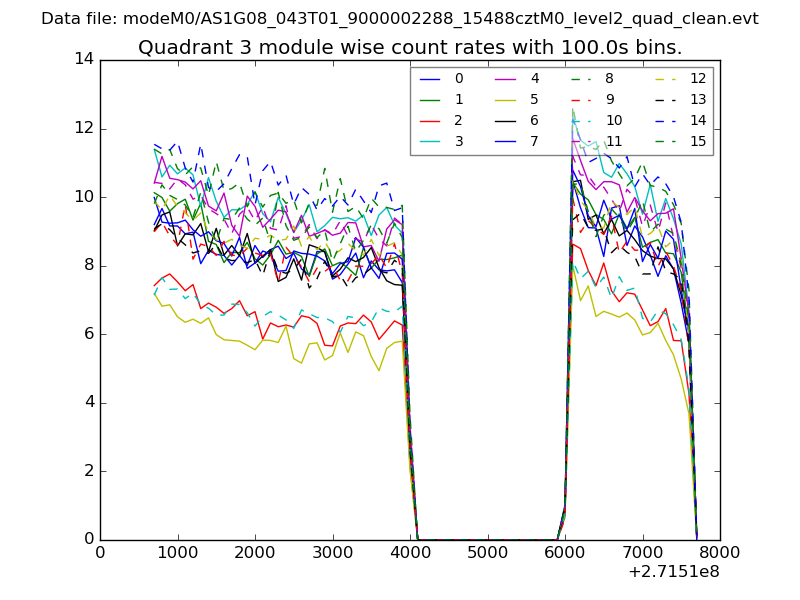

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

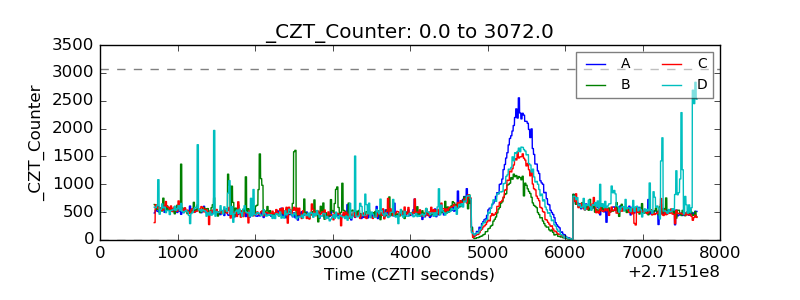

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

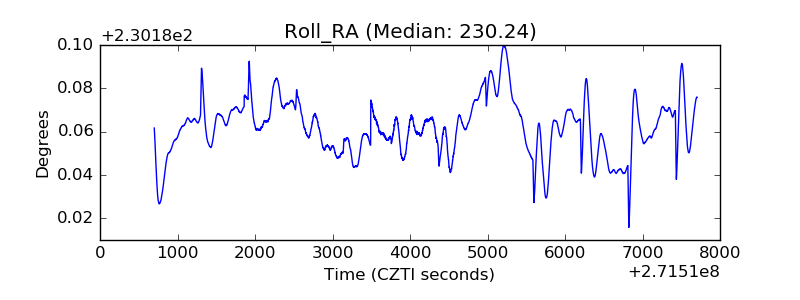

| _Roll_RA |  |

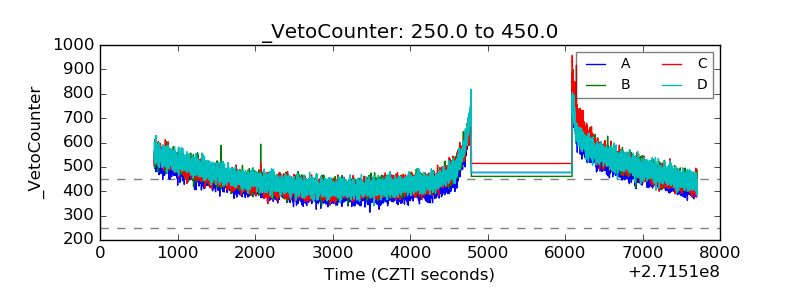

| Veto Counter |  |
