| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_078T01_9000002294_15500cztM0_level2.evt | modeM0/AS1T02_078T01_9000002294_15500cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,740,480 | 85,308,480 |
| Size | 476.6 MB | 81.4 MB |
| Events in quadrant A | 3,998,828 | 533,798 |
| Events in quadrant B | 3,437,015 | 551,445 |
| Events in quadrant C | 3,608,883 | 536,961 |
| Events in quadrant D | 3,664,787 | 523,643 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15934 | 3 |
| B | 0 | 14133 | 2 |
| C | 0 | 15017 | 2 |
| D | 0 | 14917 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6264 | 253 | 4.038953% |
| B | 6264 | 101 | 1.612388% |
| C | 6264 | 159 | 2.538314% |
| D | 6264 | 134 | 2.139208% |

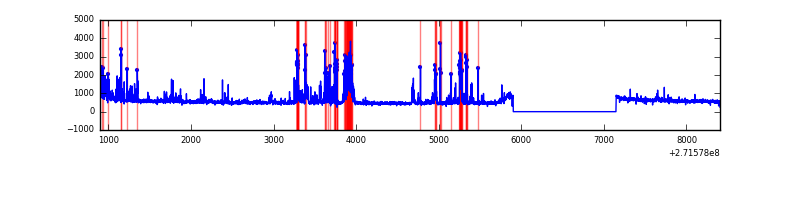

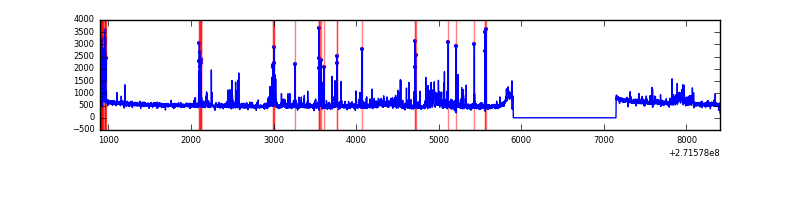

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6265 | 105 | 105 | 1.40% | 1.68% |  |
| B | 7510 | 6265 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7510 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7510 | 6265 | 51 | 51 | 0.68% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 601962 | 3624.72 | 839 | 827 | 165.8 |
| A | 14 | 237 | 86419 | 516.1 | 839 | 827 | 165.8 |
| A | 0 | 253 | 61926 | 368.41 | 839 | 827 | 165.8 |
| B | 0 | 189 | 31562 | 197.93 | 842 | 824 | 155.3 |
| B | 3 | 209 | 27236 | 170.07 | 842 | 824 | 155.3 |
| B | 4 | 142 | 19460 | 120.0 | 842 | 824 | 155.3 |
| C | 3 | 233 | 279465 | 1507.23 | 814 | 821 | 184.9 |
| C | 14 | 238 | 130828 | 703.23 | 814 | 821 | 184.9 |
| C | 0 | 207 | 10137 | 50.39 | 814 | 821 | 184.9 |
| D | 1 | 52 | 152497 | 765.51 | 825 | 803 | 198.2 |
| D | 5 | 222 | 148743 | 746.56 | 825 | 803 | 198.2 |
| D | 10 | 70 | 84067 | 420.18 | 825 | 803 | 198.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

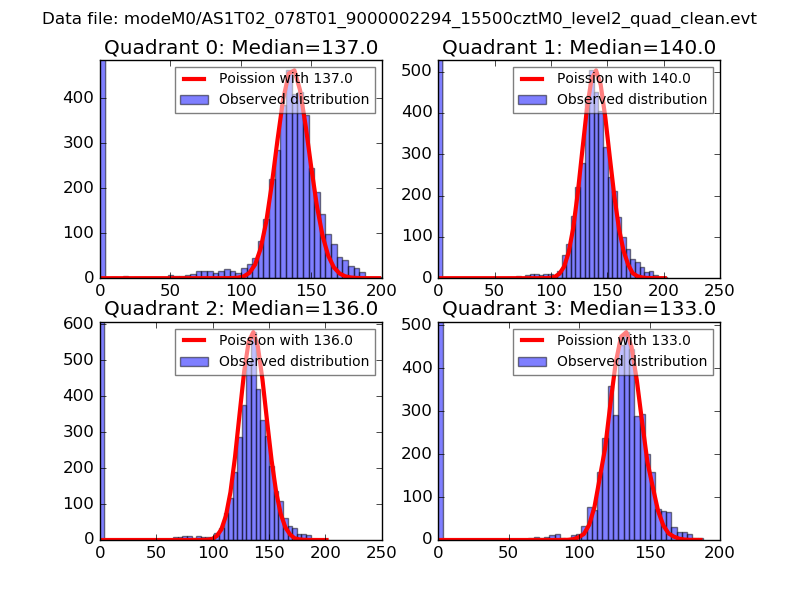

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

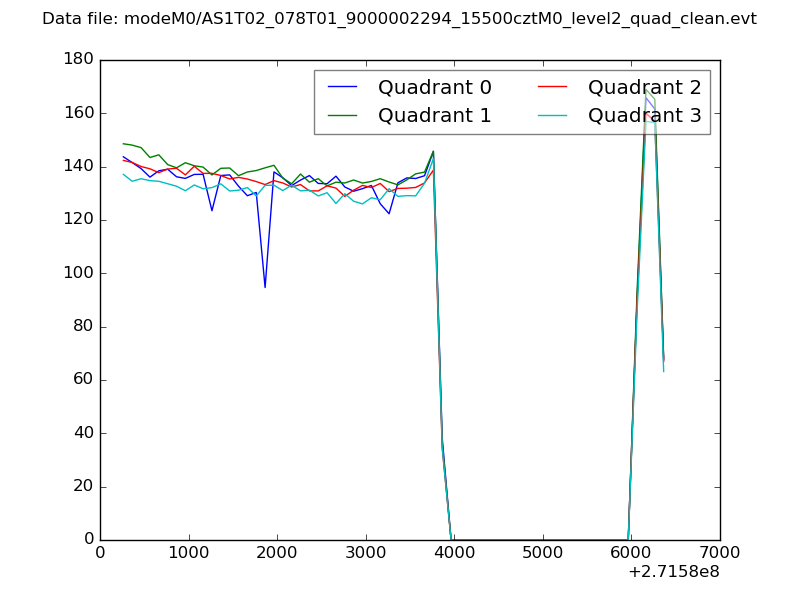

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

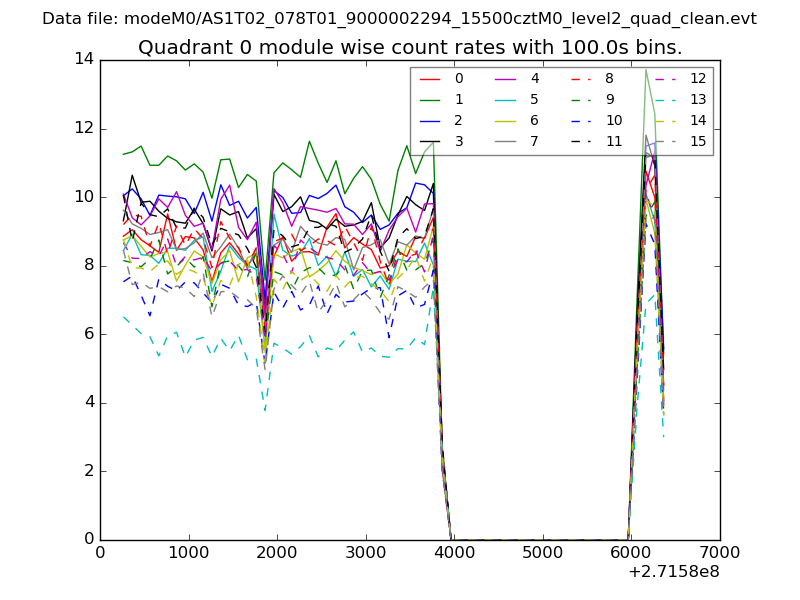

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
