| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_085T01_9000002296_15501cztM0_level2.evt | modeM0/AS1T02_085T01_9000002296_15501cztM0_level2_quad_clean.evt |
| Size (bytes) | 143,683,200 | 36,504,000 |
| Size | 137.0 MB | 34.8 MB |
| Events in quadrant A | 979,887 | 252,767 |
| Events in quadrant B | 1,039,100 | 252,824 |
| Events in quadrant C | 1,006,935 | 239,892 |
| Events in quadrant D | 1,210,708 | 237,878 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3966 | 2 |
| B | 0 | 4179 | 1 |
| C | 0 | 4152 | 1 |
| D | 0 | 4870 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1653 | 9 | 0.544465% |
| B | 1653 | 29 | 1.754386% |
| C | 1653 | 18 | 1.088929% |
| D | 1653 | 23 | 1.391410% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

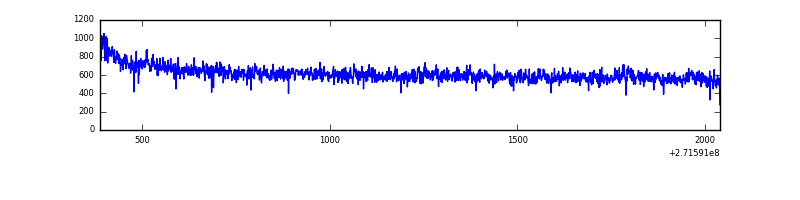

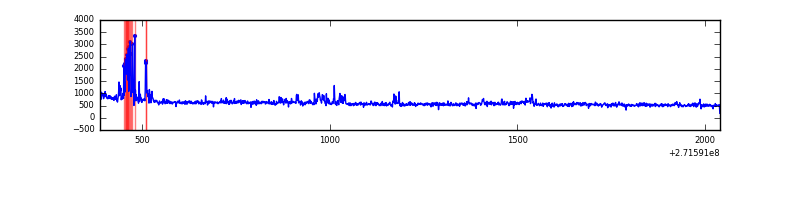

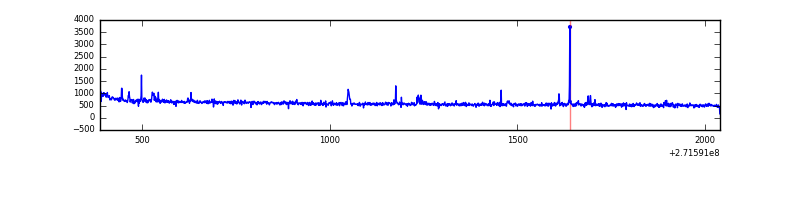

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1654 | 1654 | 1 | 1 | 0.06% | 0.06% |  |
| B | 1654 | 1654 | 15 | 15 | 0.91% | 0.91% |  |
| C | 1654 | 1654 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1654 | 1654 | 22 | 22 | 1.33% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 20613 | 411.83 | 244 | 240 | 49.5 |
| A | 14 | 237 | 12105 | 239.85 | 244 | 240 | 49.5 |
| A | 0 | 253 | 5286 | 102.0 | 244 | 240 | 49.5 |
| B | 15 | 222 | 56182 | 1233.12 | 237 | 232 | 45.4 |
| B | 10 | 245 | 22251 | 485.29 | 237 | 232 | 45.4 |
| B | 0 | 189 | 17748 | 386.05 | 237 | 232 | 45.4 |
| C | 3 | 233 | 63623 | 1180.09 | 230 | 232 | 53.7 |
| C | 14 | 238 | 36855 | 681.78 | 230 | 232 | 53.7 |
| C | 8 | 128 | 4799 | 85.02 | 230 | 232 | 53.7 |
| D | 5 | 222 | 206423 | 3510.92 | 240 | 233 | 58.7 |
| D | 1 | 52 | 62330 | 1057.36 | 240 | 233 | 58.7 |
| D | 10 | 70 | 31728 | 536.28 | 240 | 233 | 58.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

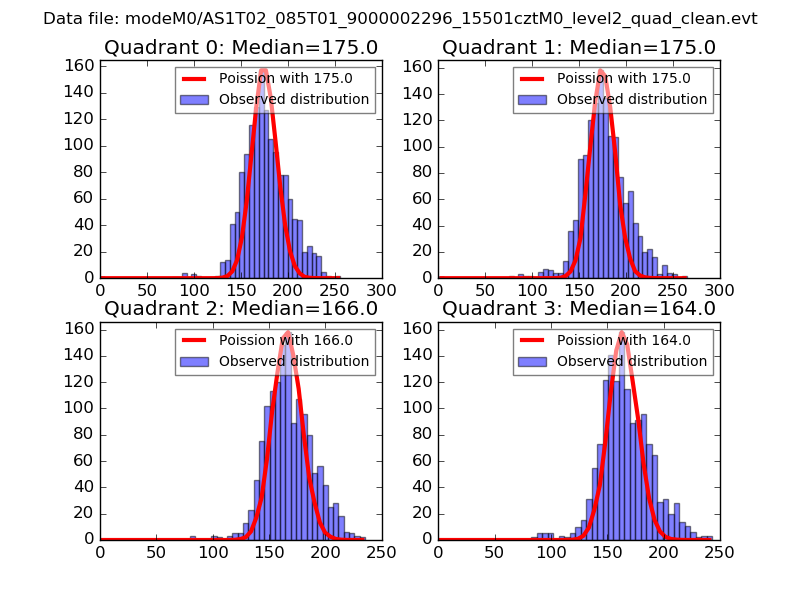

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

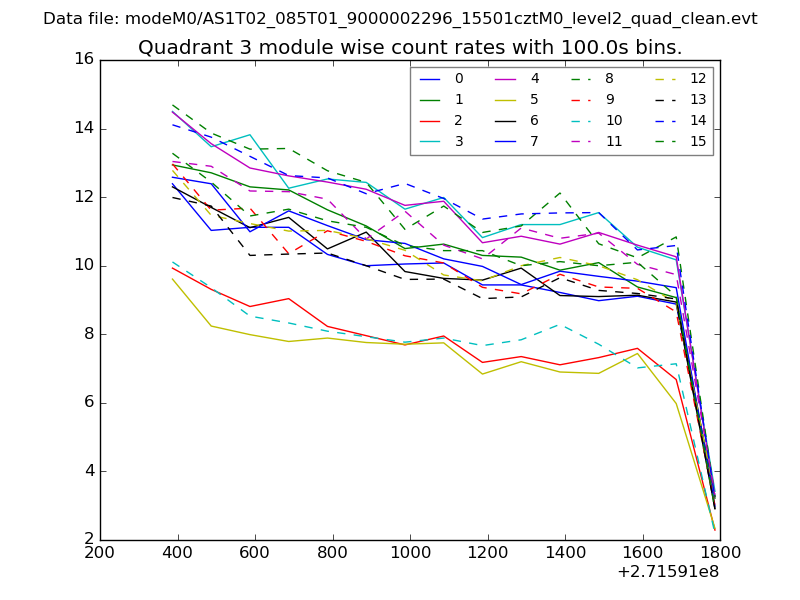

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

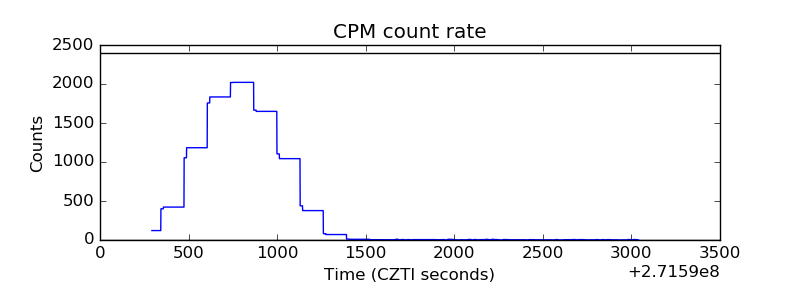

| _CPM_Rate |  |

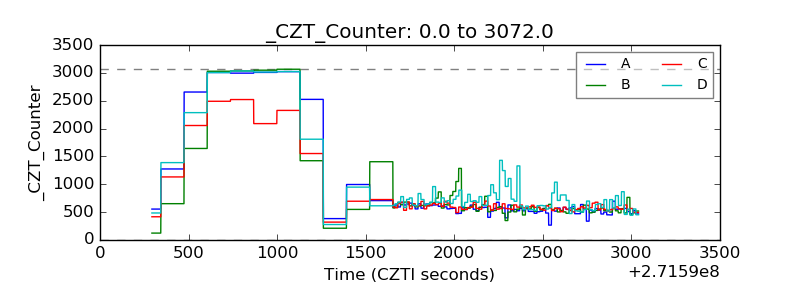

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

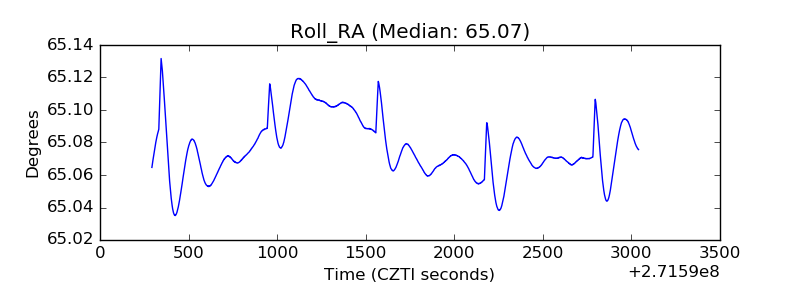

| _Roll_RA |  |
| Veto Counter |  |
