| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_085T01_9000002296_15507cztM0_level2.evt | modeM0/AS1T02_085T01_9000002296_15507cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,630,400 | 88,571,520 |
| Size | 580.4 MB | 84.5 MB |
| Events in quadrant A | 3,695,460 | 550,425 |
| Events in quadrant B | 3,778,989 | 555,323 |
| Events in quadrant C | 3,985,410 | 534,370 |
| Events in quadrant D | 6,463,645 | 519,110 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15927 | 3 |
| B | 0 | 16071 | 2 |
| C | 0 | 16281 | 2 |
| D | 0 | 24348 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7516 | 78 | 1.037786% |
| B | 7516 | 104 | 1.383715% |
| C | 7516 | 121 | 1.609899% |
| D | 7516 | 442 | 5.880788% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 7519 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7782 | 7519 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7782 | 7519 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7782 | 7519 | 319 | 319 | 4.10% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 162315 | 890.77 | 899 | 879 | 181.2 |
| A | 9 | 143 | 24733 | 131.62 | 899 | 879 | 181.2 |
| A | 14 | 237 | 18734 | 98.52 | 899 | 879 | 181.2 |
| B | 0 | 189 | 63353 | 364.97 | 896 | 871 | 171.2 |
| B | 4 | 190 | 51108 | 293.44 | 896 | 871 | 171.2 |
| B | 0 | 190 | 30377 | 172.35 | 896 | 871 | 171.2 |
| C | 3 | 233 | 466039 | 2338.14 | 856 | 862 | 199.0 |
| C | 14 | 238 | 132457 | 661.44 | 856 | 862 | 199.0 |
| C | 7 | 247 | 23539 | 113.98 | 856 | 862 | 199.0 |
| D | 1 | 52 | 2827161 | 13351.11 | 858 | 829 | 211.7 |
| D | 5 | 222 | 171944 | 808.32 | 858 | 829 | 211.7 |
| D | 10 | 70 | 137277 | 644.55 | 858 | 829 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

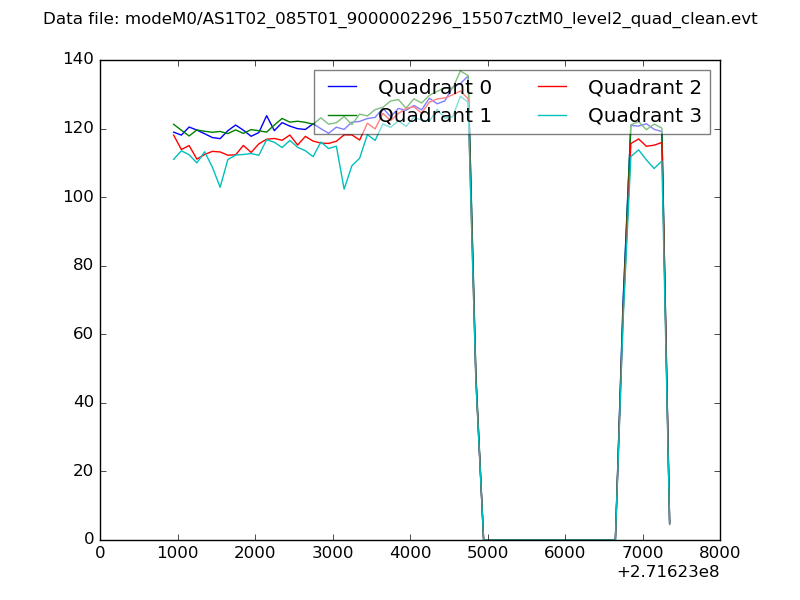

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

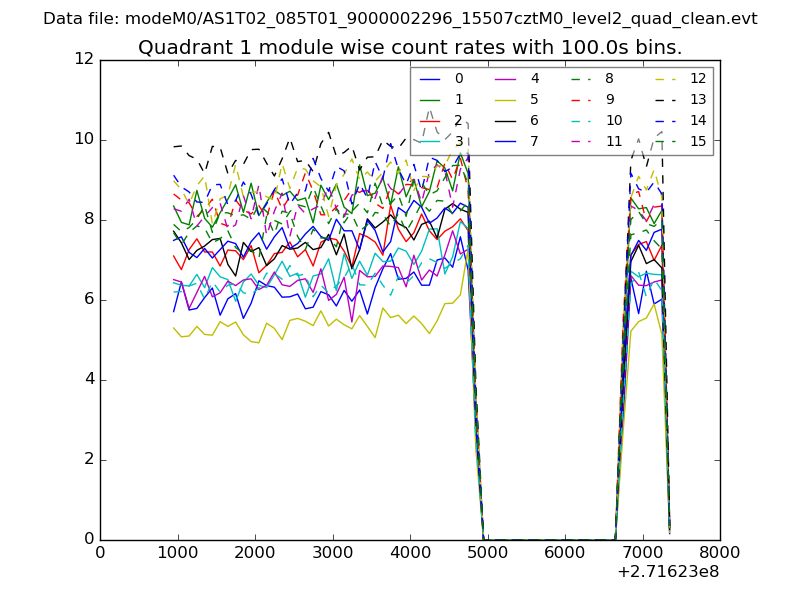

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

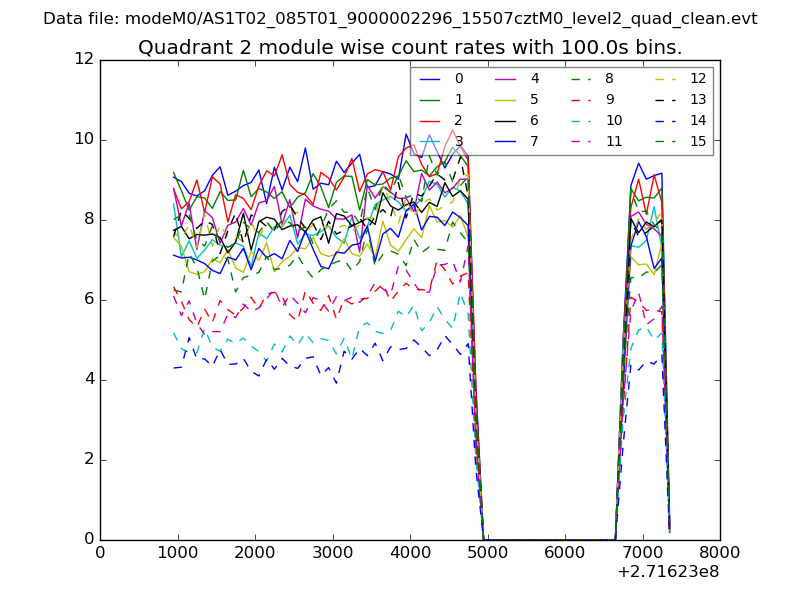

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

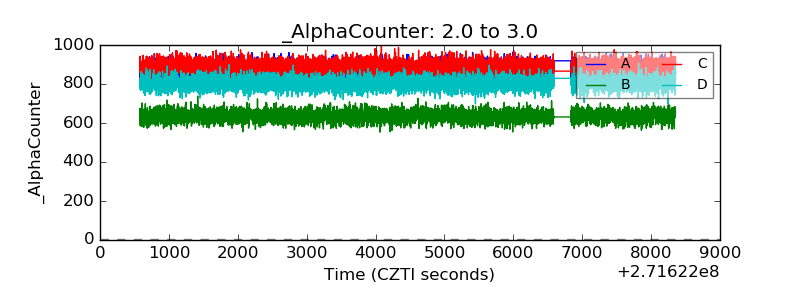

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

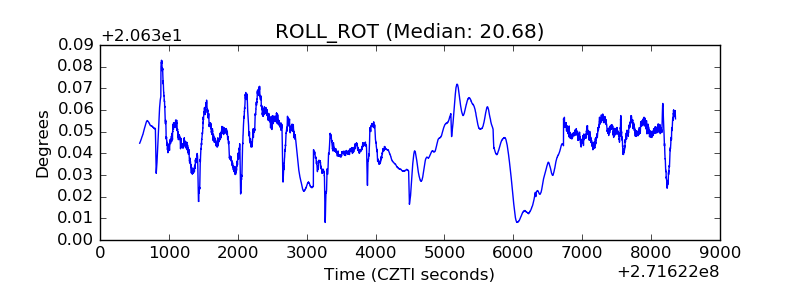

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

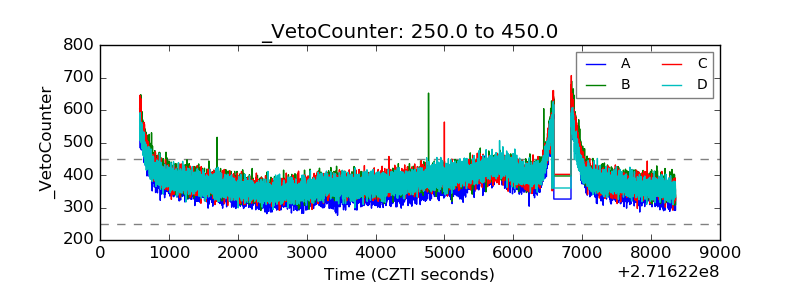

| Veto Counter |  |
