| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_085T01_9000002296_15515cztM0_level2.evt | modeM0/AS1T02_085T01_9000002296_15515cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,966,400 | 105,822,720 |
| Size | 466.3 MB | 100.9 MB |
| Events in quadrant A | 3,731,338 | 697,896 |
| Events in quadrant B | 3,336,843 | 708,095 |
| Events in quadrant C | 3,636,741 | 680,763 |
| Events in quadrant D | 3,672,063 | 674,453 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14959 | 2 |
| B | 0 | 13650 | 1 |
| C | 0 | 14728 | 1 |
| D | 0 | 14797 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6363 | 161 | 2.530253% |
| B | 6363 | 41 | 0.644350% |
| C | 6363 | 83 | 1.304416% |
| D | 6363 | 85 | 1.335848% |

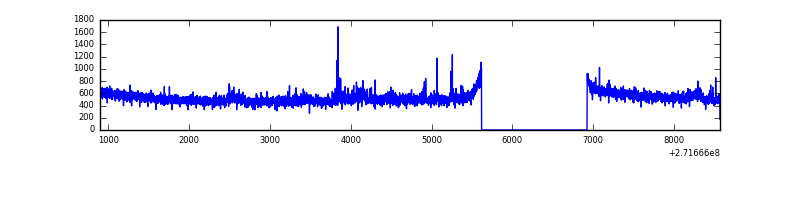

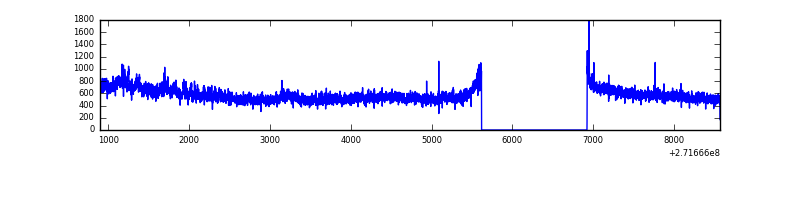

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6365 | 79 | 79 | 1.03% | 1.24% |  |
| B | 7669 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7669 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7669 | 6365 | 47 | 47 | 0.61% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 312089 | 1856.77 | 840 | 821 | 167.6 |
| A | 0 | 253 | 97224 | 575.06 | 840 | 821 | 167.6 |
| A | 14 | 237 | 70433 | 415.25 | 840 | 821 | 167.6 |
| B | 0 | 189 | 49214 | 310.1 | 832 | 813 | 156.1 |
| B | 12 | 111 | 17043 | 103.98 | 832 | 813 | 156.1 |
| B | 11 | 111 | 14848 | 89.92 | 832 | 813 | 156.1 |
| C | 3 | 233 | 333512 | 1790.48 | 810 | 818 | 185.8 |
| C | 14 | 238 | 125566 | 671.37 | 810 | 818 | 185.8 |
| C | 13 | 61 | 5729 | 26.43 | 810 | 818 | 185.8 |
| D | 5 | 222 | 407137 | 2026.61 | 833 | 810 | 200.5 |
| D | 1 | 52 | 38652 | 188.74 | 833 | 810 | 200.5 |
| D | 5 | 51 | 30769 | 149.42 | 833 | 810 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

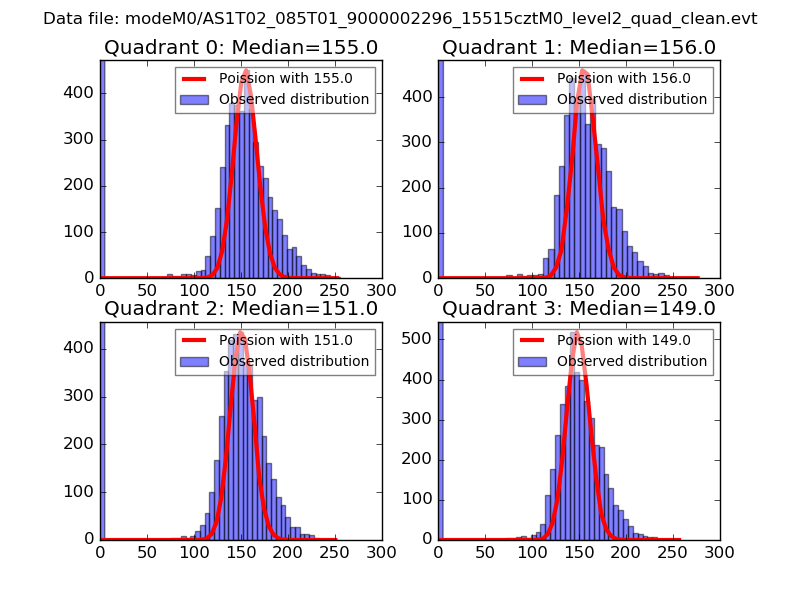

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

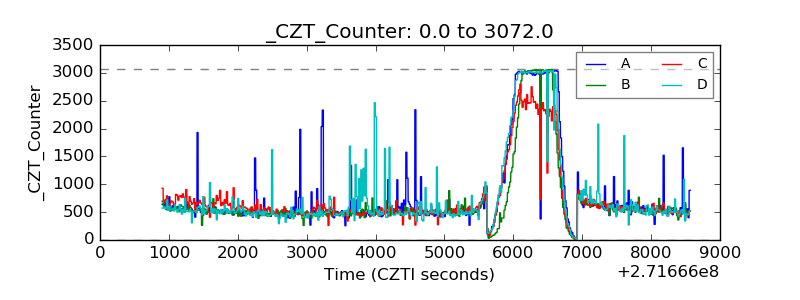

| CZT Counter |  |

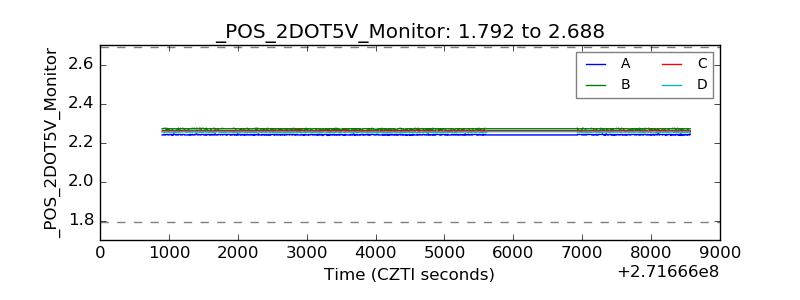

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

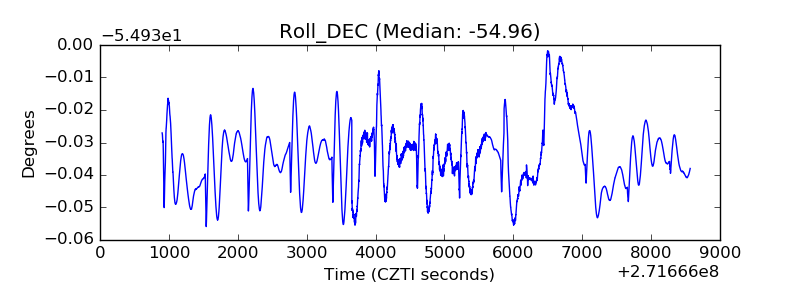

| _Roll_DEC |  |
| _Roll_RA |  |

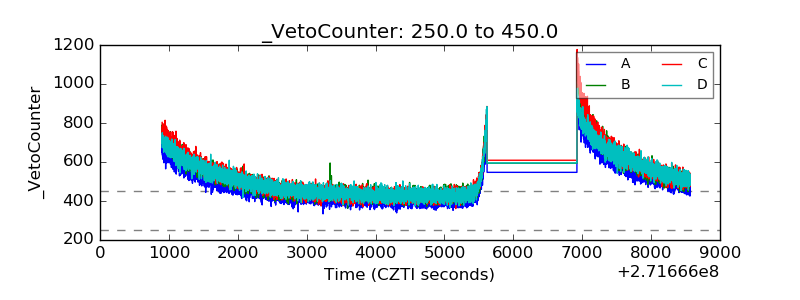

| Veto Counter |  |
