| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_085T01_9000002296_15517cztM0_level2.evt | modeM0/AS1T02_085T01_9000002296_15517cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,896,960 | 78,842,880 |
| Size | 488.2 MB | 75.2 MB |
| Events in quadrant A | 3,660,968 | 509,315 |
| Events in quadrant B | 3,169,736 | 515,719 |
| Events in quadrant C | 3,244,063 | 490,104 |
| Events in quadrant D | 5,022,775 | 454,969 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14424 | 2 |
| B | 0 | 12868 | 1 |
| C | 0 | 13324 | 1 |
| D | 0 | 18625 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5977 | 255 | 4.266354% |
| B | 5977 | 65 | 1.087502% |
| C | 5977 | 80 | 1.338464% |
| D | 5977 | 940 | 15.726953% |

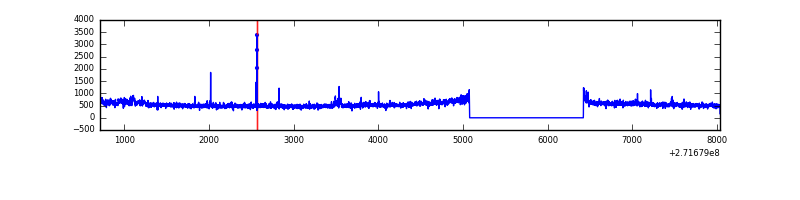

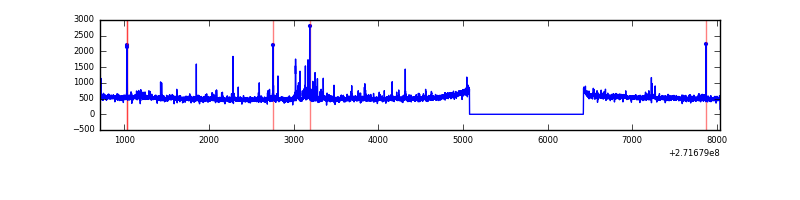

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7323 | 5978 | 144 | 144 | 1.97% | 2.41% |  |
| B | 7323 | 5979 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7323 | 5979 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7323 | 5979 | 704 | 704 | 9.61% | 11.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 493859 | 3171.24 | 777 | 763 | 155.5 |
| A | 14 | 238 | 139626 | 893.06 | 777 | 763 | 155.5 |
| A | 14 | 237 | 34124 | 214.55 | 777 | 763 | 155.5 |
| B | 0 | 189 | 37310 | 254.7 | 771 | 752 | 143.5 |
| B | 15 | 201 | 23695 | 159.84 | 771 | 752 | 143.5 |
| B | 12 | 111 | 15792 | 104.78 | 771 | 752 | 143.5 |
| C | 3 | 233 | 201526 | 1176.7 | 739 | 745 | 170.6 |
| C | 14 | 238 | 116121 | 676.17 | 739 | 745 | 170.6 |
| C | 0 | 207 | 42936 | 247.26 | 739 | 745 | 170.6 |
| D | 12 | 221 | 1905266 | 11426.43 | 690 | 669 | 166.7 |
| D | 1 | 52 | 294307 | 1761.65 | 690 | 669 | 166.7 |
| D | 7 | 38 | 64986 | 385.86 | 690 | 669 | 166.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

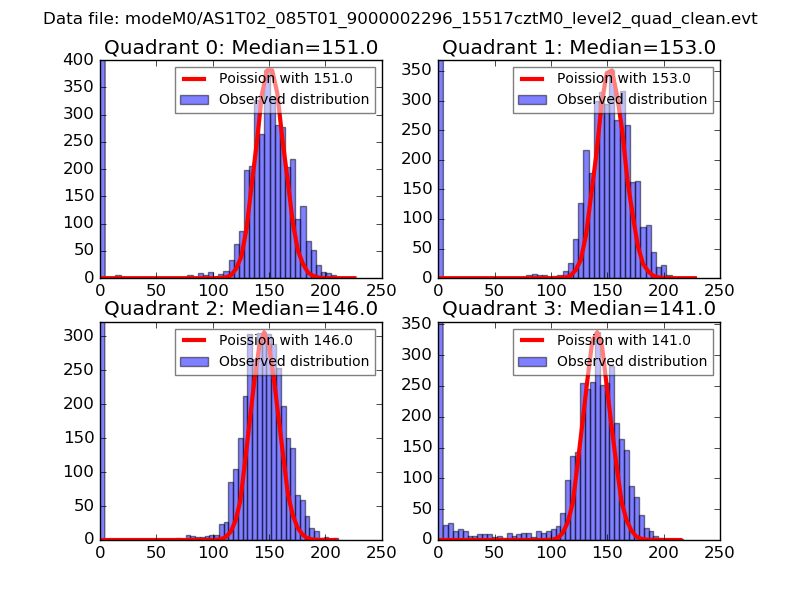

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

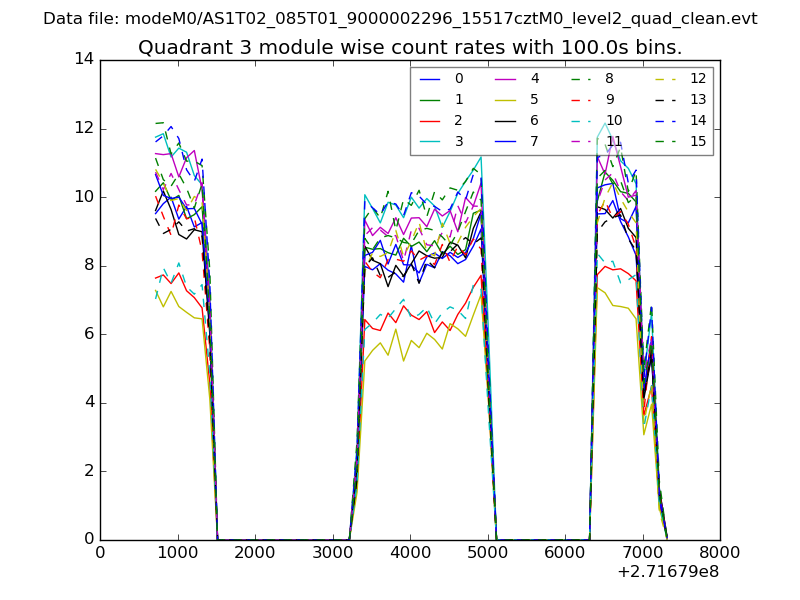

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

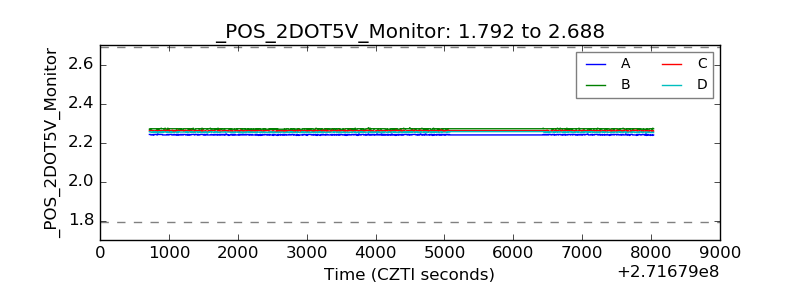

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

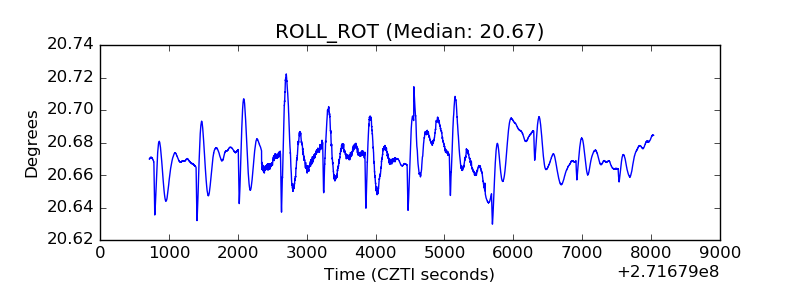

| _ROLL_ROT |  |

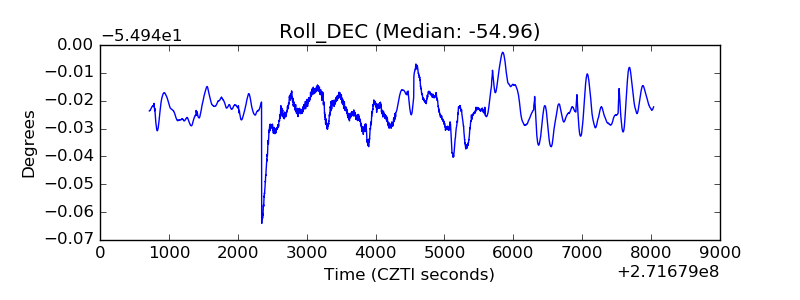

| _Roll_DEC |  |

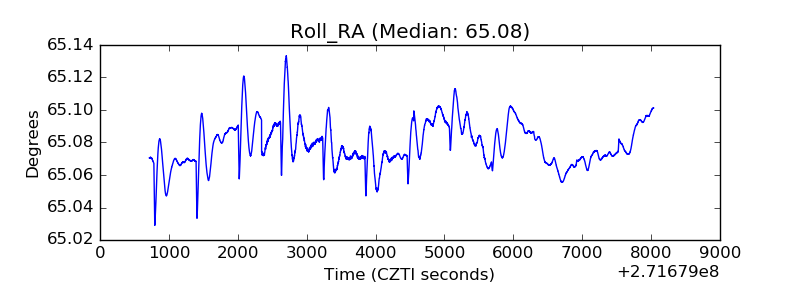

| _Roll_RA |  |
| Veto Counter |  |
