| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_085T01_9000002296_15519cztM0_level2.evt | modeM0/AS1T02_085T01_9000002296_15519cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,952,640 | 78,615,360 |
| Size | 465.3 MB | 75.0 MB |
| Events in quadrant A | 3,889,116 | 479,946 |
| Events in quadrant B | 3,469,195 | 486,165 |
| Events in quadrant C | 3,489,182 | 468,512 |
| Events in quadrant D | 3,465,097 | 468,758 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15798 | 2 |
| B | 0 | 14510 | 1 |
| C | 0 | 14451 | 1 |
| D | 0 | 14756 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6849 | 209 | 3.051540% |
| B | 6849 | 106 | 1.547671% |
| C | 6849 | 117 | 1.708279% |
| D | 6849 | 69 | 1.007446% |

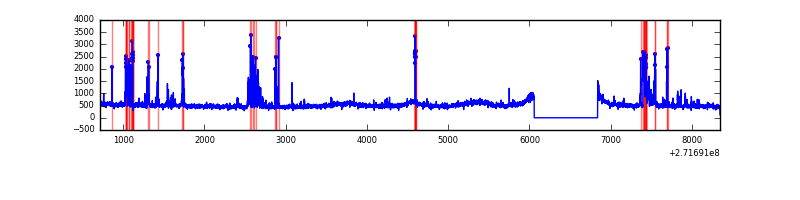

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6850 | 60 | 60 | 0.79% | 0.88% |  |
| B | 7630 | 6850 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7630 | 6851 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7630 | 6850 | 11 | 11 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 290702 | 1731.72 | 836 | 819 | 167.4 |
| A | 0 | 253 | 250999 | 1494.54 | 836 | 819 | 167.4 |
| A | 14 | 237 | 129044 | 766.0 | 836 | 819 | 167.4 |
| B | 0 | 189 | 40417 | 252.3 | 837 | 817 | 157.0 |
| B | 15 | 201 | 25014 | 154.16 | 837 | 817 | 157.0 |
| B | 0 | 213 | 20633 | 126.25 | 837 | 817 | 157.0 |
| C | 3 | 233 | 208255 | 1114.73 | 804 | 808 | 186.1 |
| C | 14 | 238 | 125296 | 668.94 | 804 | 808 | 186.1 |
| C | 0 | 207 | 6255 | 29.27 | 804 | 808 | 186.1 |
| D | 5 | 222 | 199289 | 988.03 | 827 | 801 | 200.9 |
| D | 7 | 38 | 43342 | 211.76 | 827 | 801 | 200.9 |
| D | 1 | 52 | 34104 | 165.77 | 827 | 801 | 200.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

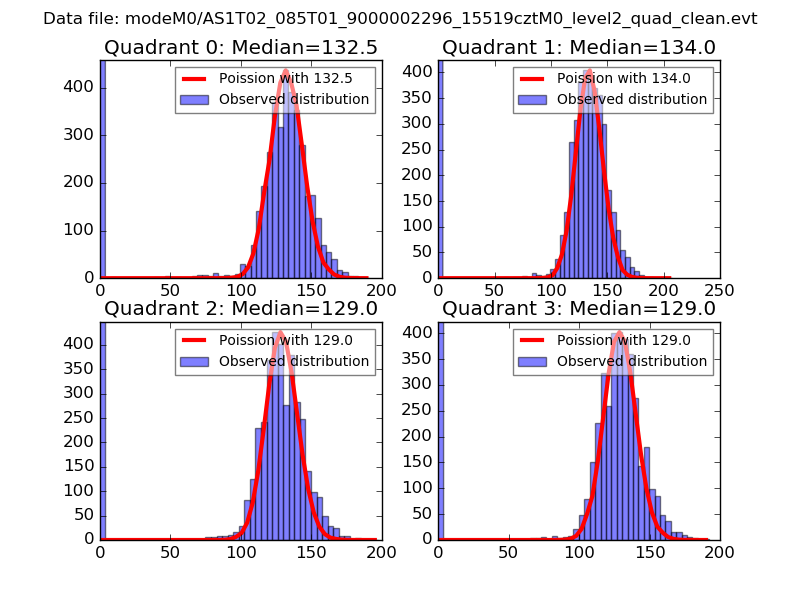

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

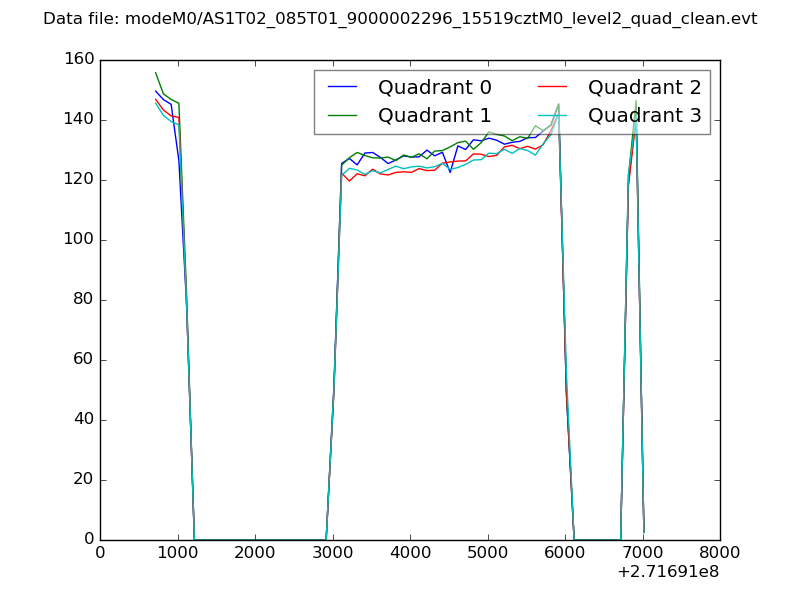

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

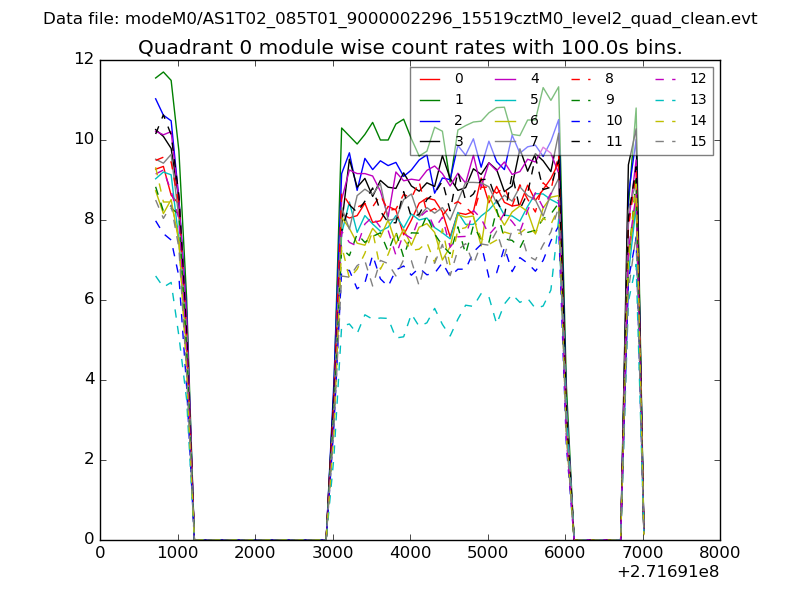

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

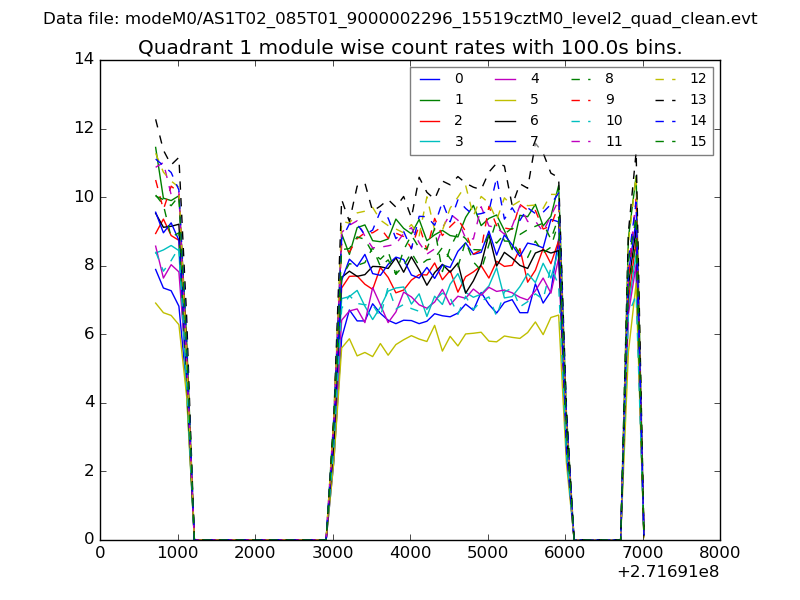

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

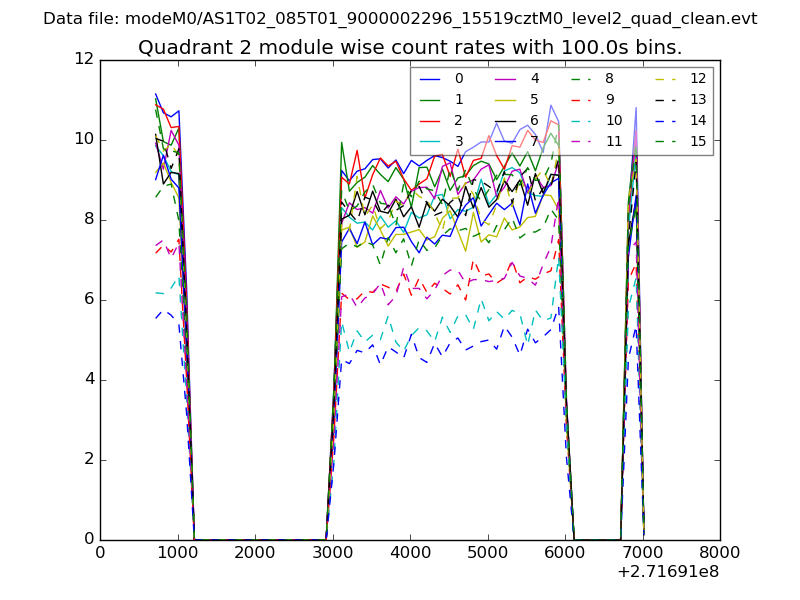

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

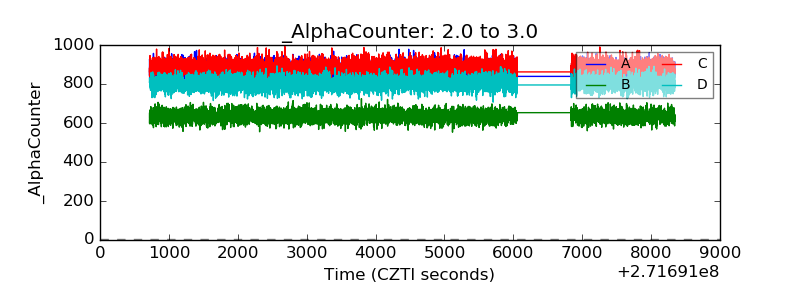

| Alpha Counter |  |
| _CPM_Rate |  |

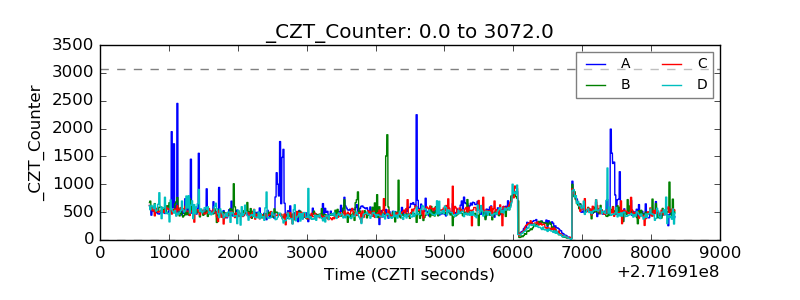

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
