| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_058T09_9000002300_15526cztM0_level2.evt | modeM0/AS1G08_058T09_9000002300_15526cztM0_level2_quad_clean.evt |
| Size (bytes) | 141,897,600 | 40,440,960 |
| Size | 135.3 MB | 38.6 MB |
| Events in quadrant A | 1,018,381 | 277,155 |
| Events in quadrant B | 1,076,283 | 279,330 |
| Events in quadrant C | 1,010,822 | 263,283 |
| Events in quadrant D | 1,055,756 | 261,720 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4158 | 2 |
| B | 0 | 4382 | 1 |
| C | 0 | 4148 | 1 |
| D | 0 | 4379 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1969 | 29 | 1.472829% |
| B | 1969 | 50 | 2.539360% |
| C | 1969 | 37 | 1.879126% |
| D | 1969 | 44 | 2.234637% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2990 | 1971 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2990 | 1971 | 2 | 2 | 0.07% | 0.10% |  |
| C | 2990 | 1971 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2990 | 1971 | 7 | 7 | 0.23% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 16958 | 314.86 | 257 | 253 | 53.1 |
| A | 9 | 143 | 7603 | 138.54 | 257 | 253 | 53.1 |
| A | 14 | 238 | 4059 | 71.74 | 257 | 253 | 53.1 |
| B | 4 | 173 | 17838 | 340.8 | 259 | 252 | 51.6 |
| B | 15 | 222 | 10816 | 204.72 | 259 | 252 | 51.6 |
| B | 4 | 216 | 7901 | 148.23 | 259 | 252 | 51.6 |
| C | 14 | 238 | 37890 | 630.53 | 247 | 248 | 59.7 |
| C | 3 | 233 | 8128 | 132.0 | 247 | 248 | 59.7 |
| C | 13 | 61 | 1730 | 24.82 | 247 | 248 | 59.7 |
| D | 12 | 221 | 56008 | 889.65 | 251 | 243 | 62.7 |
| D | 7 | 38 | 19683 | 310.14 | 251 | 243 | 62.7 |
| D | 5 | 222 | 12439 | 194.57 | 251 | 243 | 62.7 |

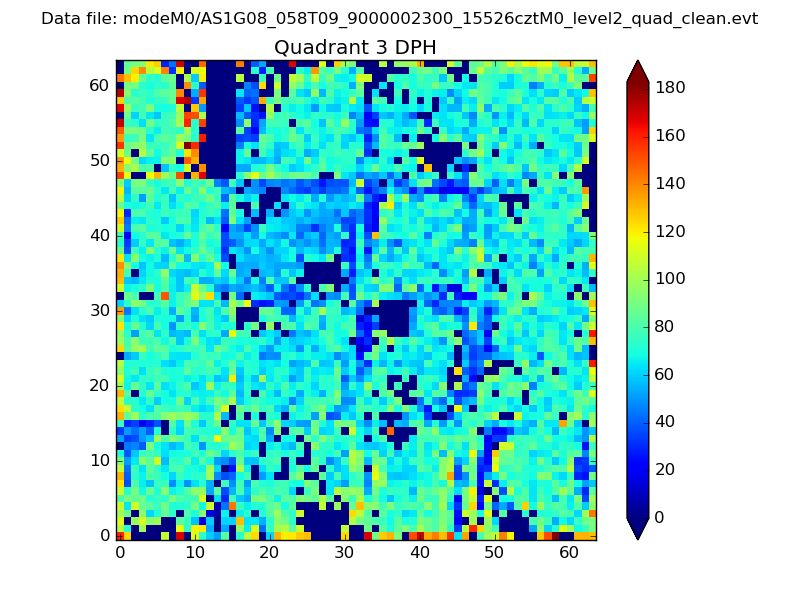

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

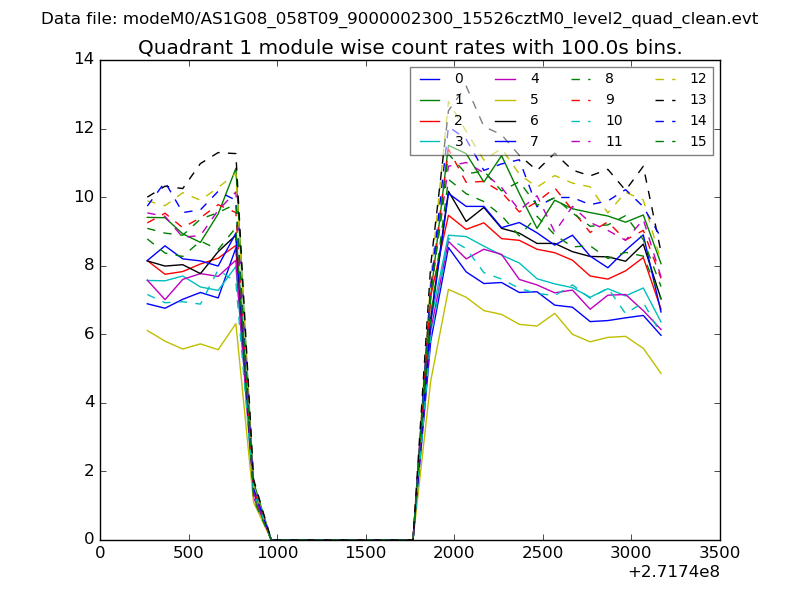

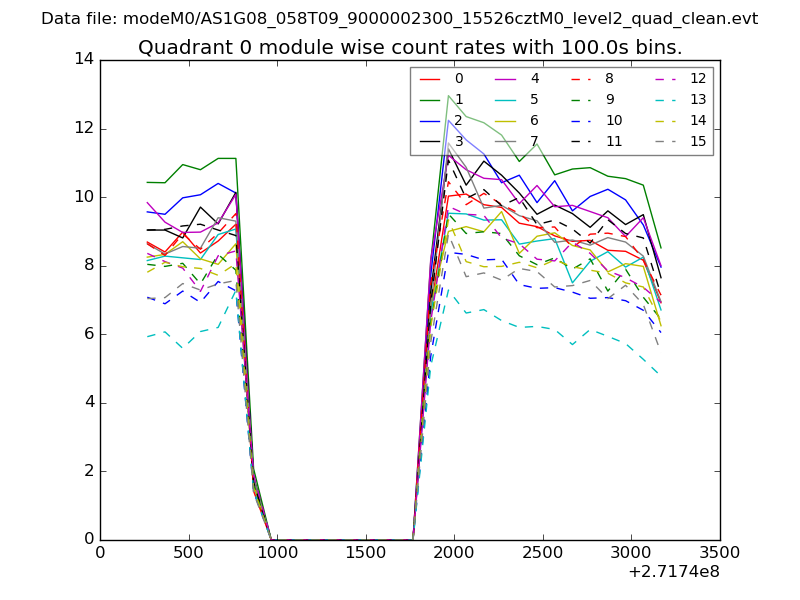

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

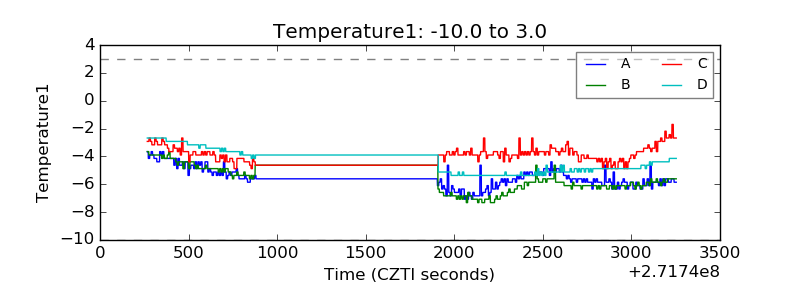

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

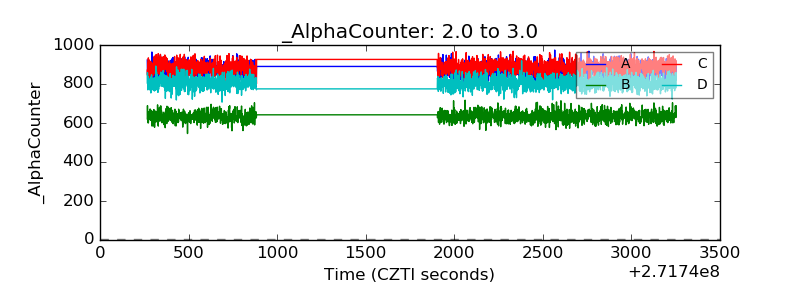

| Alpha Counter |  |
| _CPM_Rate |  |

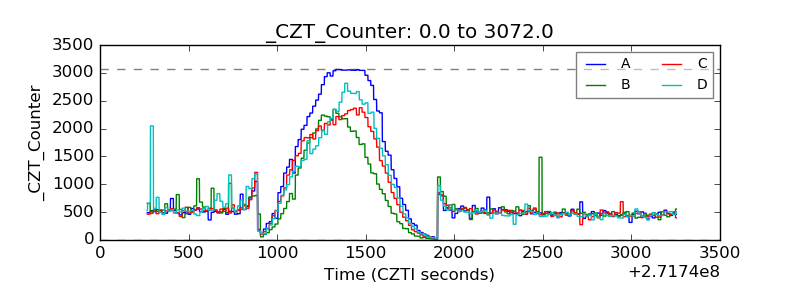

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

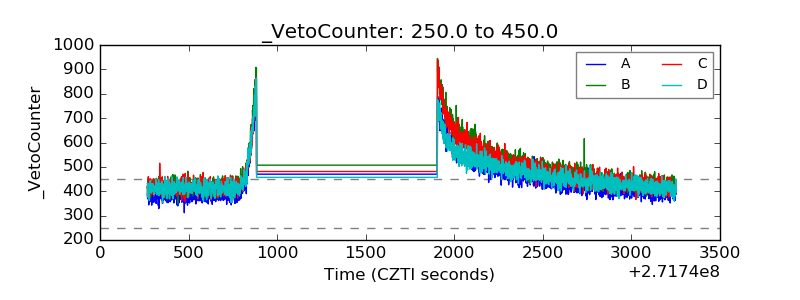

| Veto Counter |  |
