| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_058T09_9000002300_15531cztM0_level2.evt | modeM0/AS1G08_058T09_9000002300_15531cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,310,080 | 72,432,000 |
| Size | 469.5 MB | 69.1 MB |
| Events in quadrant A | 3,735,858 | 449,701 |
| Events in quadrant B | 3,602,086 | 452,227 |
| Events in quadrant C | 3,473,061 | 426,281 |
| Events in quadrant D | 3,670,581 | 424,538 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14940 | 3 |
| B | 0 | 14478 | 2 |
| C | 0 | 13883 | 2 |
| D | 0 | 14791 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 138 | 2.186312% |
| B | 6312 | 99 | 1.568441% |
| C | 6312 | 90 | 1.425856% |
| D | 6312 | 83 | 1.314956% |

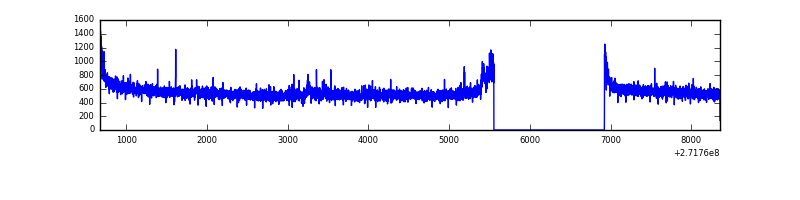

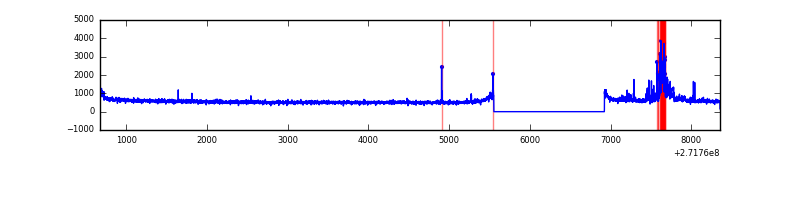

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7683 | 6314 | 45 | 45 | 0.59% | 0.71% |  |
| B | 7683 | 6314 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7683 | 6314 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7683 | 6314 | 37 | 37 | 0.48% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 257424 | 1453.44 | 888 | 872 | 176.5 |
| A | 14 | 237 | 30159 | 165.92 | 888 | 872 | 176.5 |
| A | 0 | 253 | 29729 | 163.48 | 888 | 872 | 176.5 |
| B | 15 | 201 | 35315 | 209.1 | 875 | 856 | 164.8 |
| B | 0 | 229 | 30049 | 177.15 | 875 | 856 | 164.8 |
| B | 4 | 190 | 23026 | 134.53 | 875 | 856 | 164.8 |
| C | 14 | 238 | 133097 | 689.49 | 833 | 839 | 191.8 |
| C | 3 | 233 | 77829 | 401.37 | 833 | 839 | 191.8 |
| C | 7 | 247 | 11674 | 56.48 | 833 | 839 | 191.8 |
| D | 5 | 222 | 174607 | 848.47 | 857 | 836 | 204.8 |
| D | 12 | 221 | 111265 | 539.19 | 857 | 836 | 204.8 |
| D | 7 | 207 | 66035 | 318.35 | 857 | 836 | 204.8 |

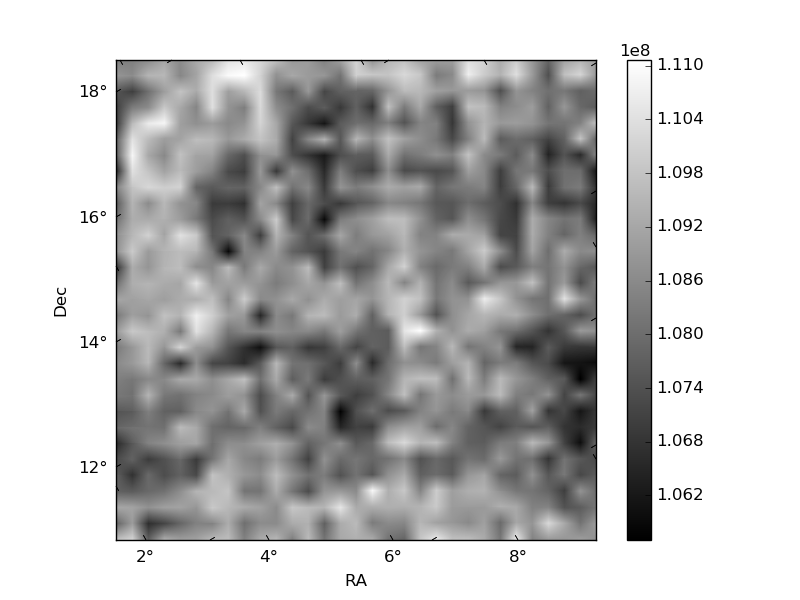

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

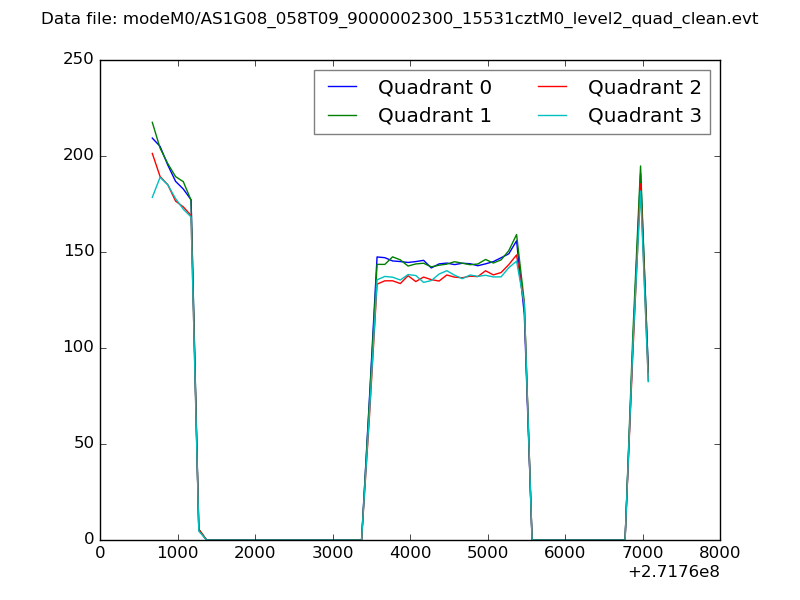

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

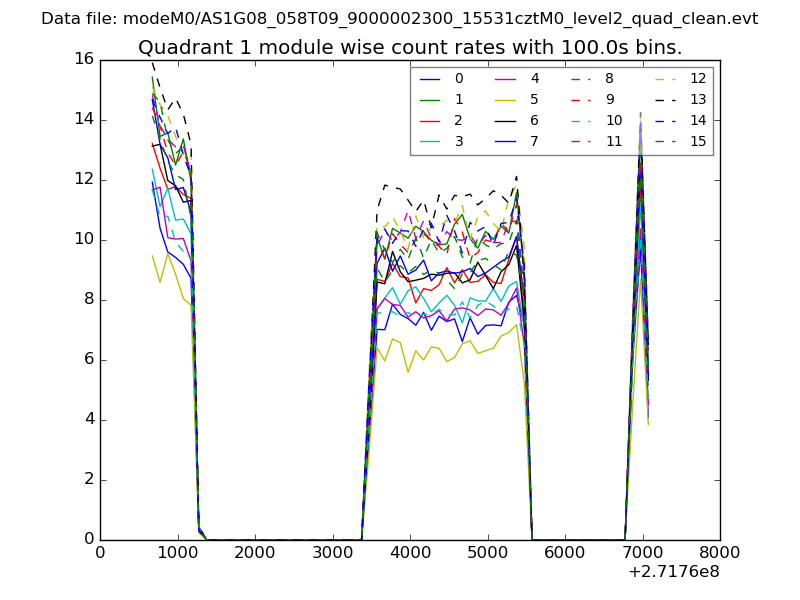

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

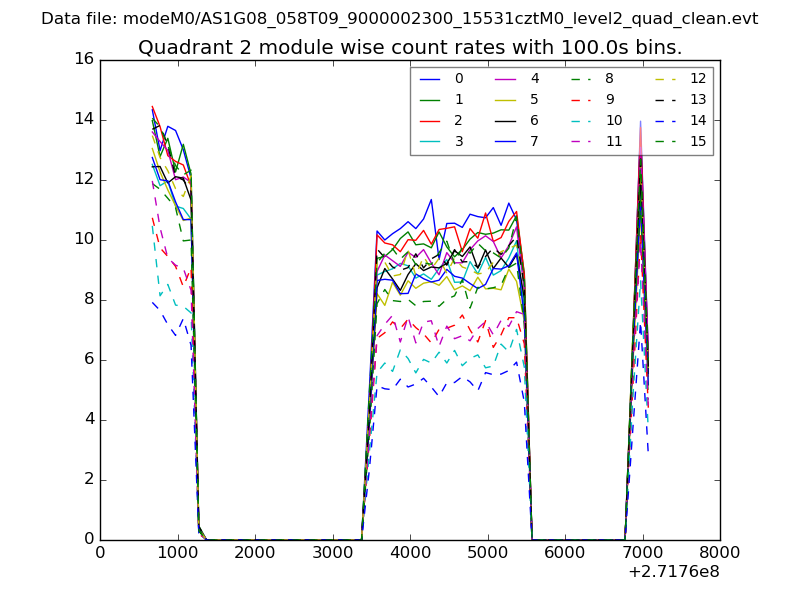

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

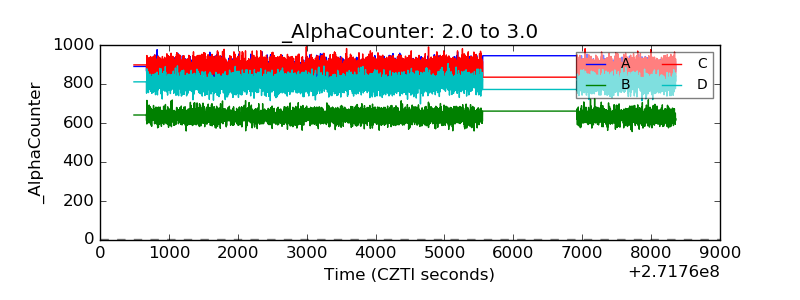

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

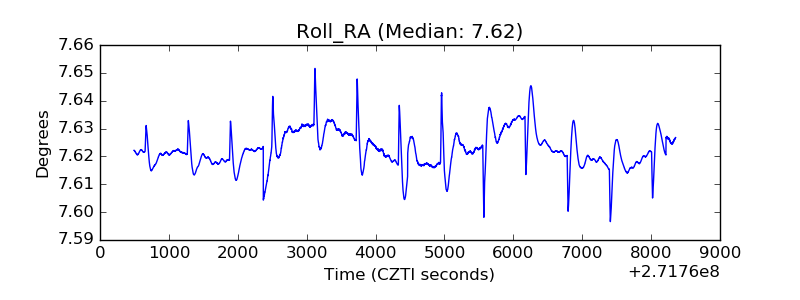

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
