| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_058T09_9000002300_15534cztM0_level2.evt | modeM0/AS1G08_058T09_9000002300_15534cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,265,600 | 80,199,360 |
| Size | 522.9 MB | 76.5 MB |
| Events in quadrant A | 3,578,669 | 499,024 |
| Events in quadrant B | 3,926,401 | 501,088 |
| Events in quadrant C | 3,601,180 | 479,423 |
| Events in quadrant D | 5,012,438 | 450,863 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15070 | 3 |
| B | 0 | 16100 | 2 |
| C | 0 | 15081 | 2 |
| D | 0 | 19696 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7161 | 129 | 1.801424% |
| B | 7161 | 240 | 3.351487% |
| C | 7161 | 164 | 2.290183% |
| D | 7161 | 670 | 9.356235% |

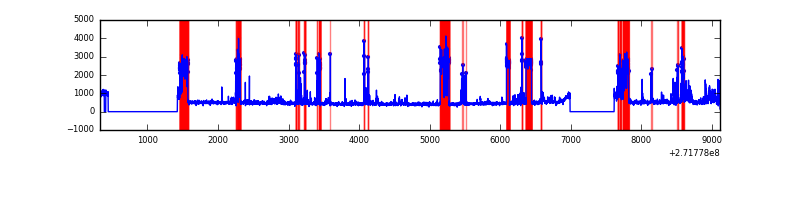

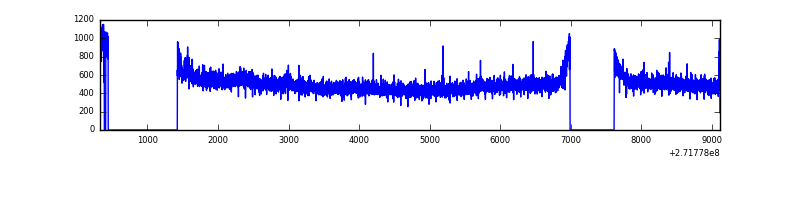

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8787 | 7164 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8787 | 7164 | 46 | 46 | 0.52% | 0.64% |  |
| C | 8787 | 7164 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8787 | 7164 | 508 | 508 | 5.78% | 7.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 45769 | 242.97 | 906 | 886 | 184.7 |
| A | 15 | 157 | 32305 | 170.08 | 906 | 886 | 184.7 |
| A | 7 | 16 | 15512 | 79.18 | 906 | 886 | 184.7 |
| B | 4 | 142 | 208637 | 1196.43 | 896 | 873 | 173.7 |
| B | 15 | 222 | 51266 | 290.19 | 896 | 873 | 173.7 |
| B | 0 | 197 | 44504 | 251.25 | 896 | 873 | 173.7 |
| C | 14 | 238 | 131559 | 642.8 | 860 | 866 | 203.3 |
| C | 3 | 233 | 93162 | 453.95 | 860 | 866 | 203.3 |
| C | 0 | 207 | 6357 | 27.01 | 860 | 866 | 203.3 |
| D | 1 | 52 | 1379654 | 6633.34 | 844 | 820 | 207.9 |
| D | 2 | 33 | 209090 | 1001.95 | 844 | 820 | 207.9 |
| D | 5 | 222 | 107805 | 514.69 | 844 | 820 | 207.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

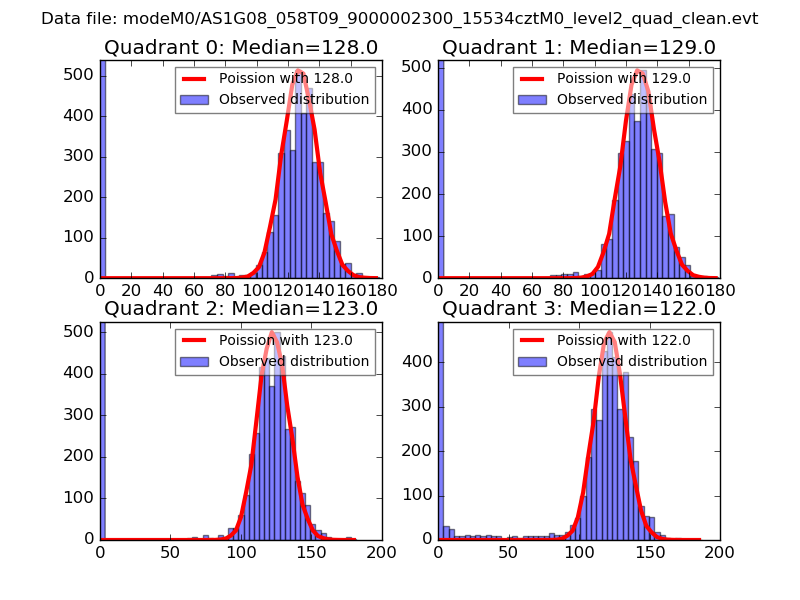

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

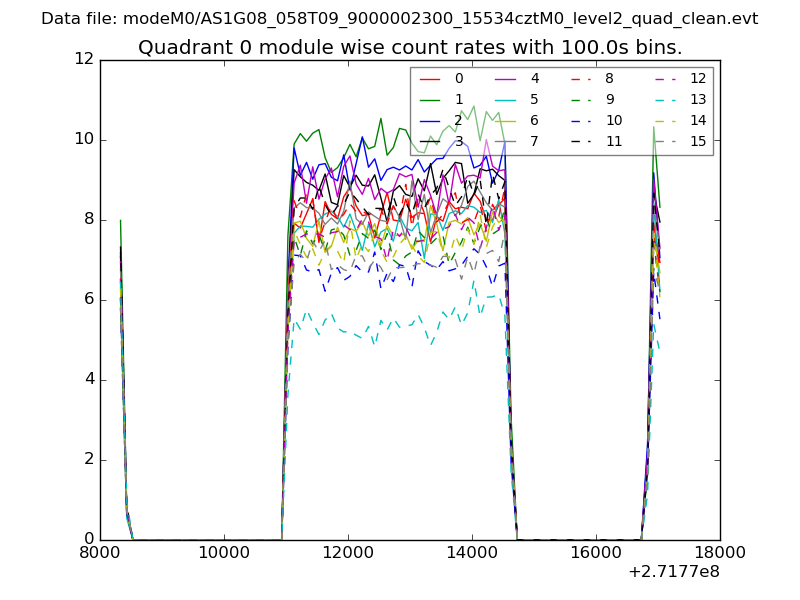

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

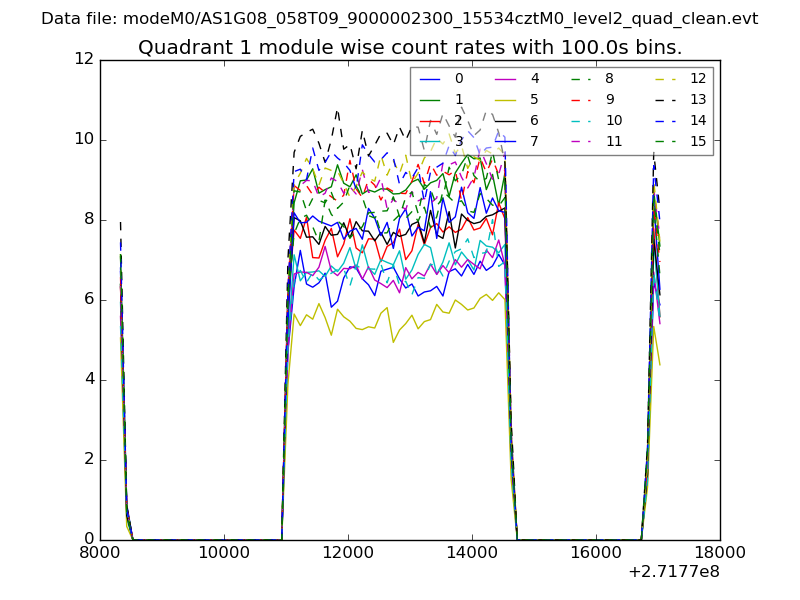

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

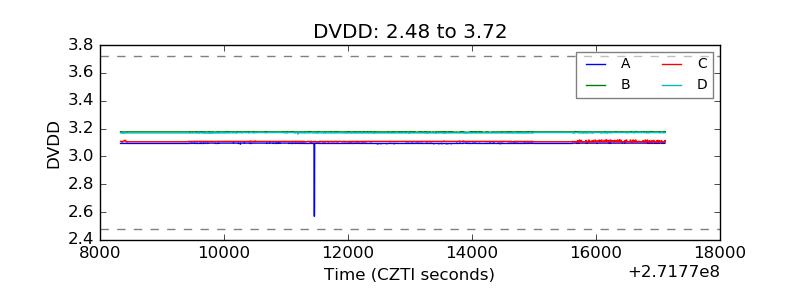

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

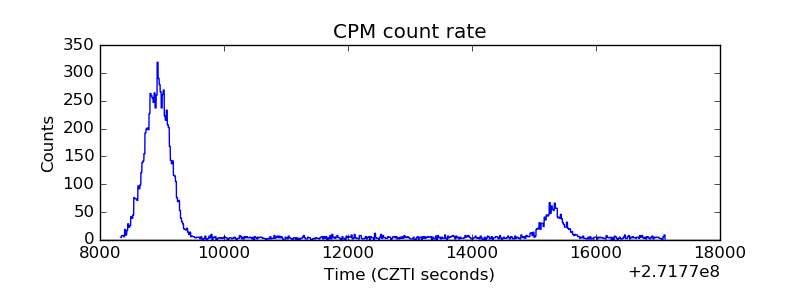

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
