| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_030T01_9000002302_15557cztM0_level2.evt | modeM0/AS1G08_030T01_9000002302_15557cztM0_level2_quad_clean.evt |
| Size (bytes) | 242,755,200 | 35,683,200 |
| Size | 231.5 MB | 34.0 MB |
| Events in quadrant A | 1,660,679 | 212,972 |
| Events in quadrant B | 1,709,867 | 215,925 |
| Events in quadrant C | 1,684,325 | 201,900 |
| Events in quadrant D | 2,050,642 | 194,279 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7310 | 1 |
| B | 0 | 7363 | 1 |
| C | 0 | 7346 | 1 |
| D | 0 | 8589 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3598 | 2 | 0.055586% |
| B | 3598 | 6 | 0.166759% |
| C | 3598 | 12 | 0.333519% |
| D | 3598 | 97 | 2.695942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3599 | 3599 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3599 | 3599 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3599 | 3599 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3599 | 3599 | 88 | 88 | 2.45% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 4839 | 50.4 | 431 | 422 | 87.6 |
| A | 0 | 226 | 3812 | 38.68 | 431 | 422 | 87.6 |
| A | 12 | 194 | 3021 | 29.65 | 431 | 422 | 87.6 |
| B | 0 | 214 | 12916 | 150.12 | 430 | 420 | 83.2 |
| B | 4 | 173 | 10844 | 125.23 | 430 | 420 | 83.2 |
| B | 12 | 111 | 9806 | 112.76 | 430 | 420 | 83.2 |
| C | 14 | 238 | 64201 | 659.72 | 407 | 409 | 96.7 |
| C | 10 | 22 | 12676 | 126.86 | 407 | 409 | 96.7 |
| C | 7 | 247 | 9809 | 97.21 | 407 | 409 | 96.7 |
| D | 1 | 52 | 487717 | 4475.66 | 402 | 393 | 108.9 |
| D | 7 | 223 | 13826 | 123.37 | 402 | 393 | 108.9 |
| D | 2 | 234 | 11563 | 102.59 | 402 | 393 | 108.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

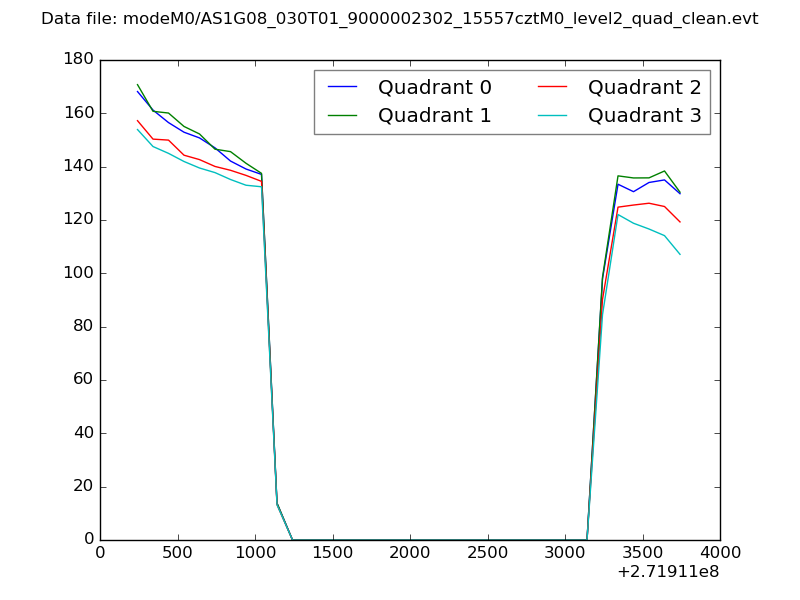

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

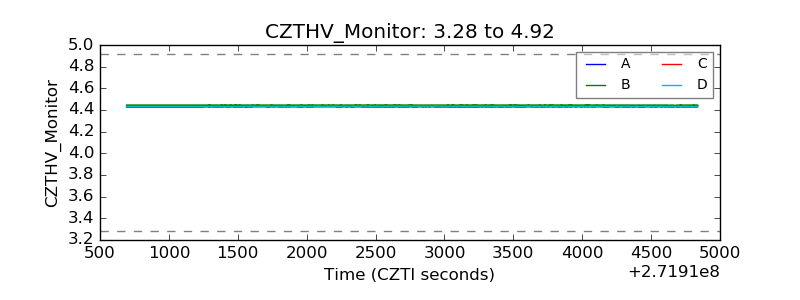

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

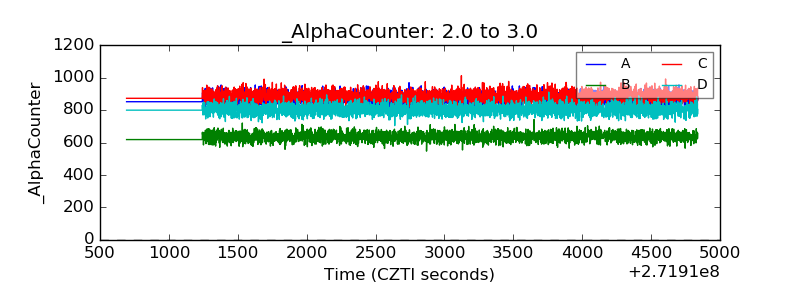

| Alpha Counter |  |

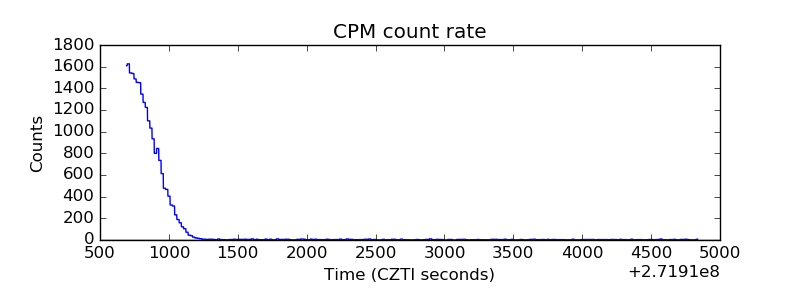

| _CPM_Rate |  |

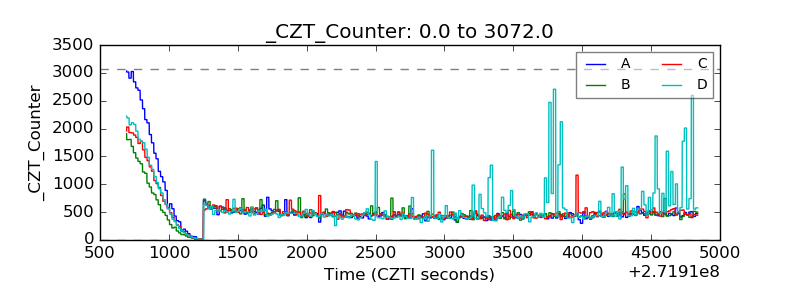

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

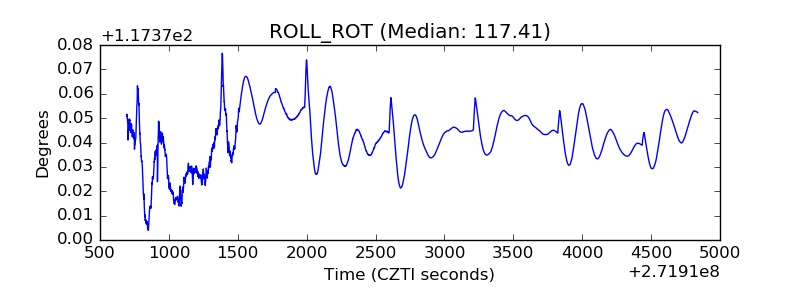

| _ROLL_ROT |  |

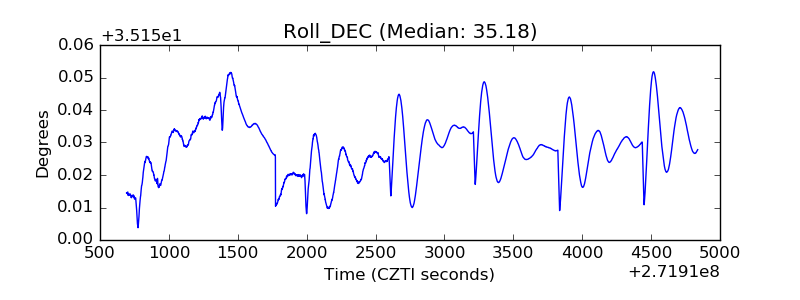

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
