| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002308_15574cztM0_level2.evt | modeM0/AS1A04_198T01_9000002308_15574cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,874,240 | 102,902,400 |
| Size | 449.1 MB | 98.1 MB |
| Events in quadrant A | 3,340,797 | 677,940 |
| Events in quadrant B | 3,519,411 | 682,229 |
| Events in quadrant C | 3,434,244 | 655,451 |
| Events in quadrant D | 3,529,671 | 652,431 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13606 | 2 |
| B | 0 | 14218 | 1 |
| C | 0 | 13953 | 1 |
| D | 0 | 14268 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6422 | 40 | 0.622859% |
| B | 6422 | 74 | 1.152289% |
| C | 6422 | 80 | 1.245718% |
| D | 6422 | 101 | 1.572719% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7788 | 6424 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7788 | 6424 | 18 | 18 | 0.23% | 0.28% |  |
| C | 7788 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7788 | 6424 | 61 | 61 | 0.78% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8097 | 41.81 | 869 | 854 | 173.3 |
| A | 12 | 194 | 6673 | 33.59 | 869 | 854 | 173.3 |
| A | 3 | 137 | 5242 | 25.33 | 869 | 854 | 173.3 |
| B | 3 | 64 | 104980 | 655.91 | 852 | 832 | 158.8 |
| B | 4 | 173 | 25742 | 156.88 | 852 | 832 | 158.8 |
| B | 0 | 213 | 21054 | 127.35 | 852 | 832 | 158.8 |
| C | 14 | 238 | 129231 | 668.27 | 833 | 839 | 192.1 |
| C | 3 | 233 | 47023 | 240.39 | 833 | 839 | 192.1 |
| C | 0 | 207 | 8100 | 37.79 | 833 | 839 | 192.1 |
| D | 5 | 222 | 146249 | 648.79 | 844 | 829 | 224.1 |
| D | 7 | 223 | 52714 | 231.48 | 844 | 829 | 224.1 |
| D | 1 | 52 | 31843 | 138.37 | 844 | 829 | 224.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

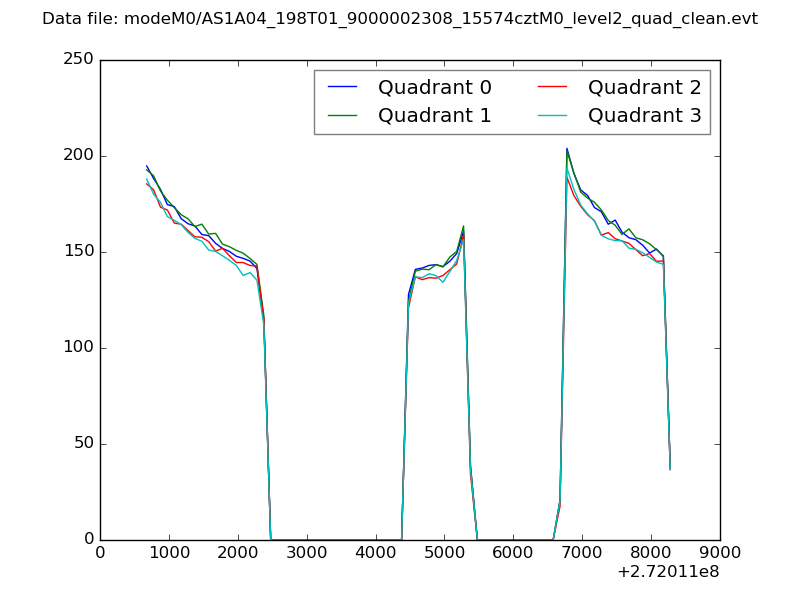

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

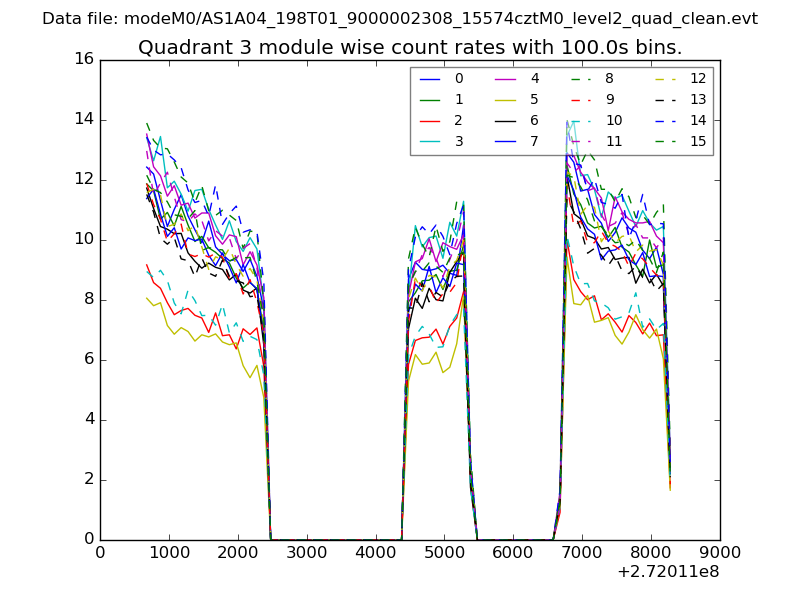

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

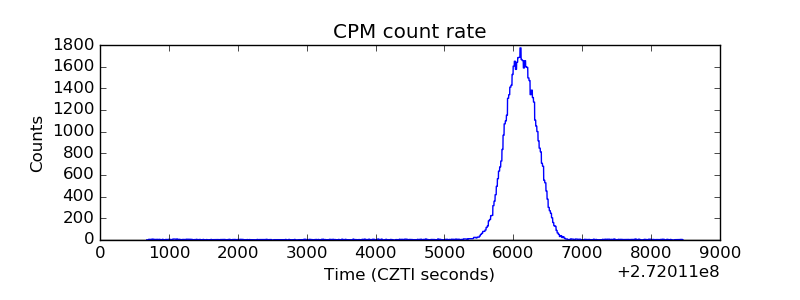

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

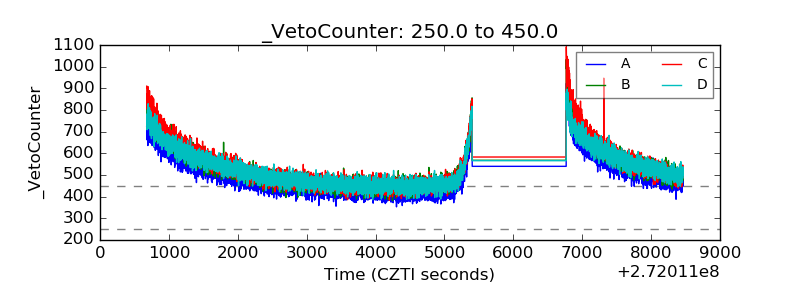

| Veto Counter |  |
