| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000002308_15578cztM0_level2.evt | modeM0/AS1A04_198T01_9000002308_15578cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,077,440 | 81,858,240 |
| Size | 571.3 MB | 78.1 MB |
| Events in quadrant A | 3,590,740 | 500,753 |
| Events in quadrant B | 4,053,508 | 501,371 |
| Events in quadrant C | 3,699,943 | 486,282 |
| Events in quadrant D | 6,297,794 | 475,909 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15492 | 3 |
| B | 0 | 16753 | 2 |
| C | 0 | 15634 | 2 |
| D | 0 | 23549 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7393 | 171 | 2.312999% |
| B | 7393 | 309 | 4.179629% |
| C | 7393 | 167 | 2.258894% |
| D | 7393 | 909 | 12.295415% |

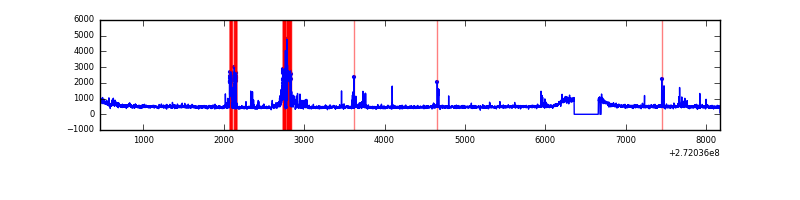

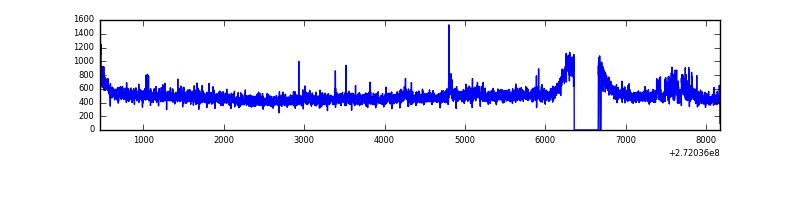

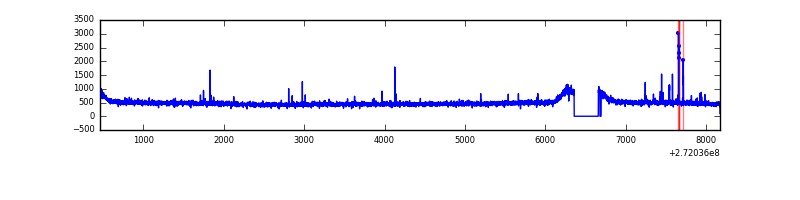

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7709 | 7395 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7709 | 7395 | 100 | 100 | 1.30% | 1.35% |  |
| C | 7709 | 7394 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7709 | 7395 | 807 | 807 | 10.47% | 10.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 34546 | 180.39 | 919 | 897 | 186.5 |
| A | 3 | 80 | 8557 | 41.06 | 919 | 897 | 186.5 |
| A | 0 | 226 | 8424 | 40.35 | 919 | 897 | 186.5 |
| B | 3 | 64 | 325991 | 1874.65 | 901 | 879 | 173.4 |
| B | 4 | 173 | 49488 | 280.29 | 901 | 879 | 173.4 |
| B | 0 | 189 | 48706 | 275.78 | 901 | 879 | 173.4 |
| C | 14 | 238 | 132829 | 639.36 | 877 | 880 | 206.4 |
| C | 3 | 233 | 131123 | 631.09 | 877 | 880 | 206.4 |
| C | 0 | 207 | 11347 | 50.72 | 877 | 880 | 206.4 |
| D | 12 | 110 | 2535919 | 11988.63 | 868 | 843 | 211.5 |
| D | 1 | 52 | 256340 | 1208.27 | 868 | 843 | 211.5 |
| D | 10 | 70 | 76721 | 358.83 | 868 | 843 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

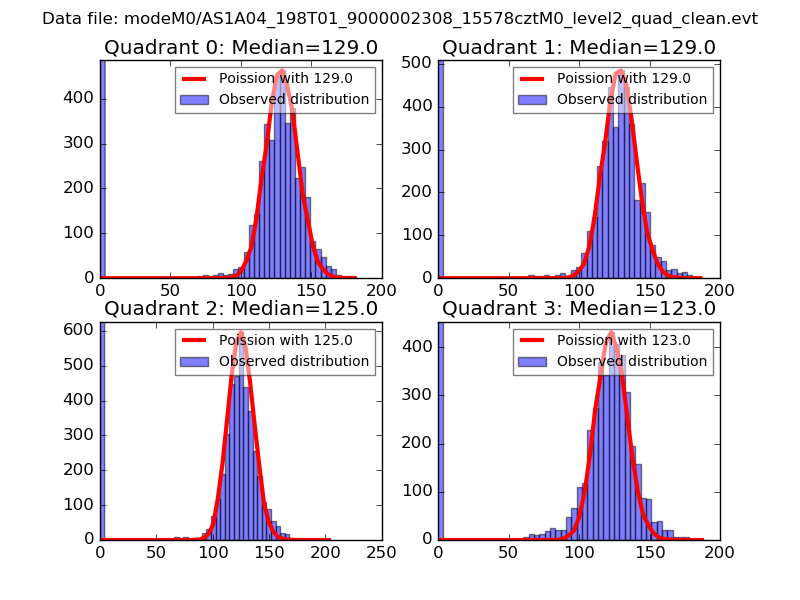

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

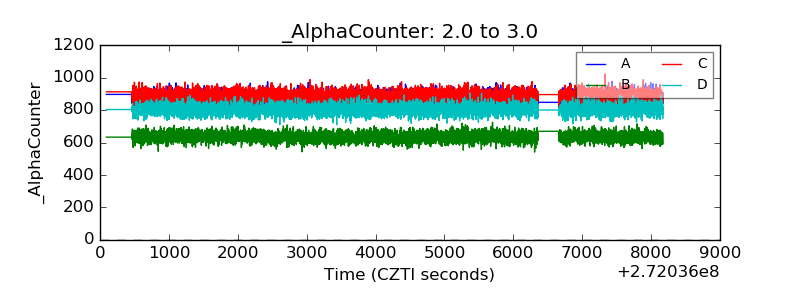

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

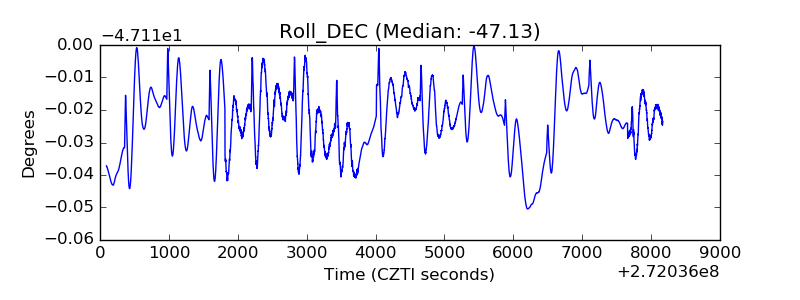

| _Roll_DEC |  |
| _Roll_RA |  |

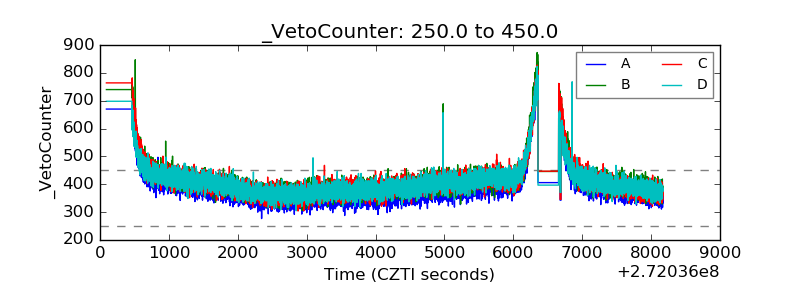

| Veto Counter |  |
