| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_083T01_9000002304_15559cztM0_level2.evt | modeM0/AS1T02_083T01_9000002304_15559cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,353,600 | 85,694,400 |
| Size | 473.4 MB | 81.7 MB |
| Events in quadrant A | 3,320,176 | 544,970 |
| Events in quadrant B | 3,448,648 | 550,750 |
| Events in quadrant C | 3,461,508 | 536,917 |
| Events in quadrant D | 4,382,184 | 530,939 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13651 | 3 |
| B | 0 | 14091 | 2 |
| C | 0 | 14314 | 2 |
| D | 0 | 16904 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6180 | 84 | 1.359223% |
| B | 6180 | 104 | 1.682848% |
| C | 6180 | 146 | 2.362460% |
| D | 6180 | 572 | 9.255663% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6181 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7526 | 6181 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7526 | 6181 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7526 | 6181 | 478 | 478 | 6.35% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 10068 | 54.56 | 860 | 846 | 169.0 |
| A | 0 | 226 | 7672 | 40.39 | 860 | 846 | 169.0 |
| A | 12 | 194 | 6444 | 33.12 | 860 | 846 | 169.0 |
| B | 3 | 64 | 34950 | 215.91 | 854 | 837 | 158.0 |
| B | 4 | 48 | 33480 | 206.61 | 854 | 837 | 158.0 |
| B | 12 | 111 | 17540 | 105.72 | 854 | 837 | 158.0 |
| C | 14 | 238 | 133601 | 708.38 | 826 | 835 | 187.4 |
| C | 3 | 233 | 83543 | 441.29 | 826 | 835 | 187.4 |
| C | 10 | 22 | 12131 | 60.27 | 826 | 835 | 187.4 |
| D | 1 | 52 | 1247632 | 6033.41 | 796 | 776 | 206.7 |
| D | 13 | 172 | 64711 | 309.38 | 796 | 776 | 206.7 |
| D | 12 | 110 | 20564 | 95.75 | 796 | 776 | 206.7 |

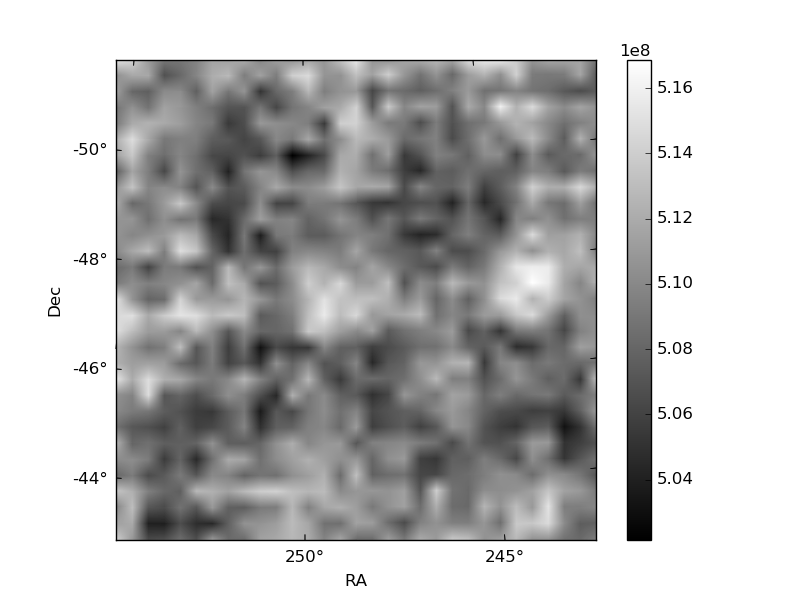

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

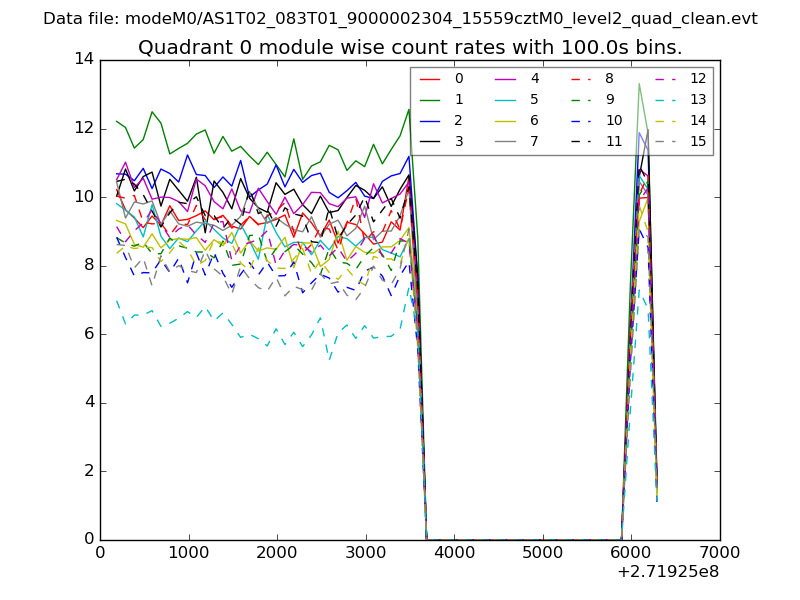

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

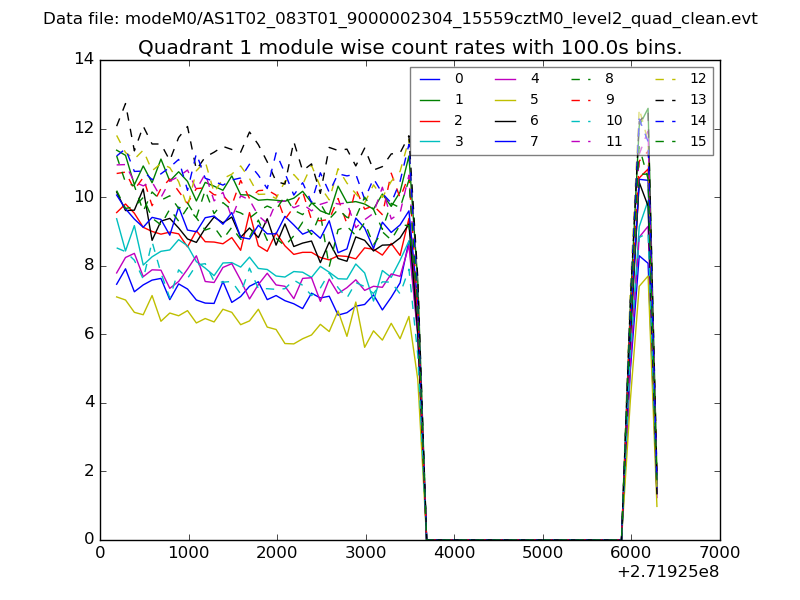

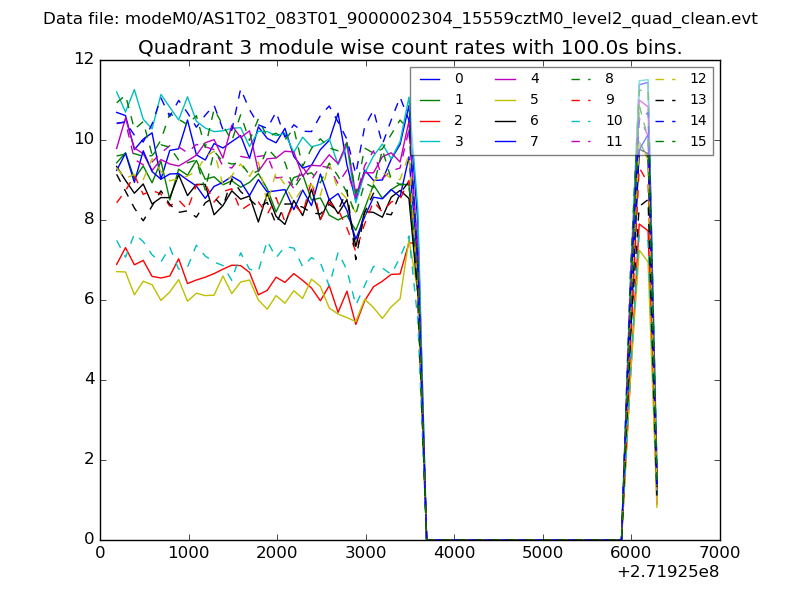

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

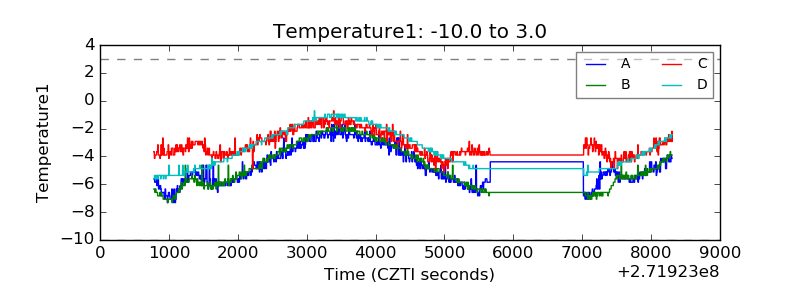

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

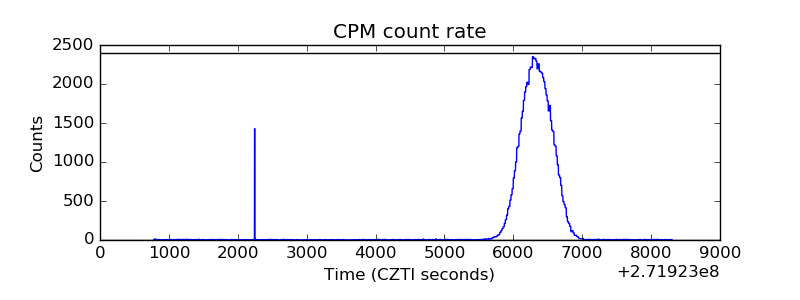

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

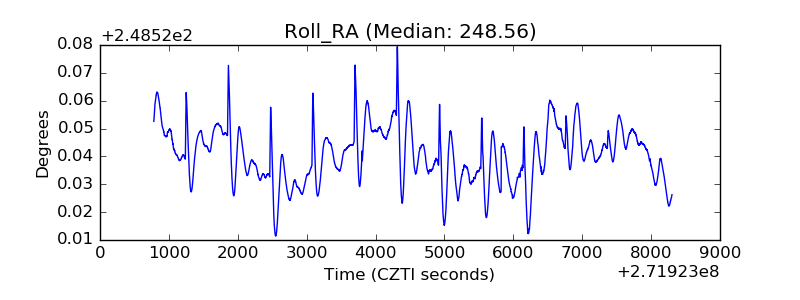

| _Roll_RA |  |

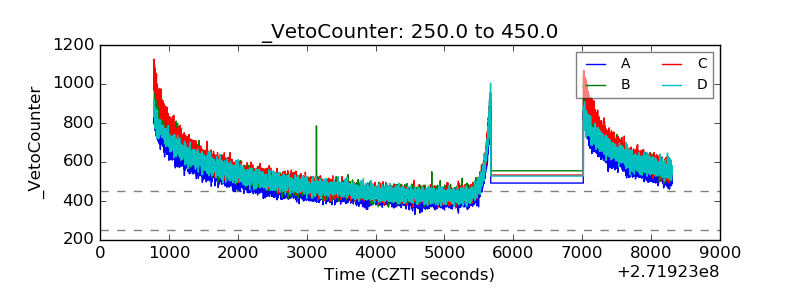

| Veto Counter |  |
