| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T02_9000002310_15584cztM0_level2.evt | modeM0/AS1A04_037T02_9000002310_15584cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,772,480 | 97,205,760 |
| Size | 437.5 MB | 92.7 MB |
| Events in quadrant A | 3,666,641 | 620,518 |
| Events in quadrant B | 3,225,697 | 640,485 |
| Events in quadrant C | 3,374,573 | 619,735 |
| Events in quadrant D | 3,179,079 | 603,310 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14969 | 3 |
| B | 0 | 13760 | 2 |
| C | 0 | 13945 | 2 |
| D | 0 | 13866 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6594 | 57 | 0.864422% |
| B | 6594 | 38 | 0.576281% |
| C | 6594 | 58 | 0.879588% |
| D | 6594 | 48 | 0.727934% |

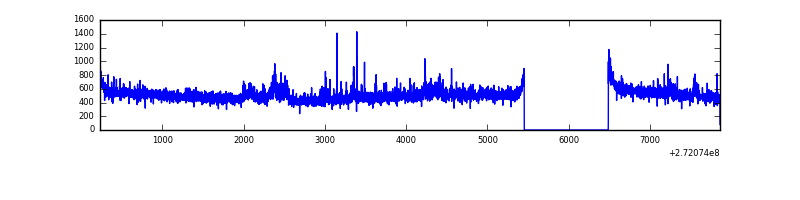

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6596 | 21 | 21 | 0.28% | 0.32% |  |
| B | 7630 | 6596 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7630 | 6596 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7630 | 6596 | 20 | 20 | 0.26% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 542772 | 3303.91 | 804 | 788 | 164.0 |
| A | 15 | 69 | 24603 | 145.17 | 804 | 788 | 164.0 |
| A | 0 | 226 | 6991 | 37.81 | 804 | 788 | 164.0 |
| B | 4 | 48 | 22518 | 138.83 | 810 | 789 | 156.5 |
| B | 12 | 111 | 18067 | 110.39 | 810 | 789 | 156.5 |
| B | 11 | 111 | 15355 | 93.06 | 810 | 789 | 156.5 |
| C | 3 | 233 | 146387 | 789.85 | 788 | 795 | 184.3 |
| C | 14 | 238 | 121355 | 654.05 | 788 | 795 | 184.3 |
| C | 10 | 22 | 15391 | 79.18 | 788 | 795 | 184.3 |
| D | 10 | 70 | 41964 | 213.32 | 791 | 768 | 193.1 |
| D | 2 | 234 | 29975 | 151.24 | 791 | 768 | 193.1 |
| D | 15 | 0 | 25027 | 125.62 | 791 | 768 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

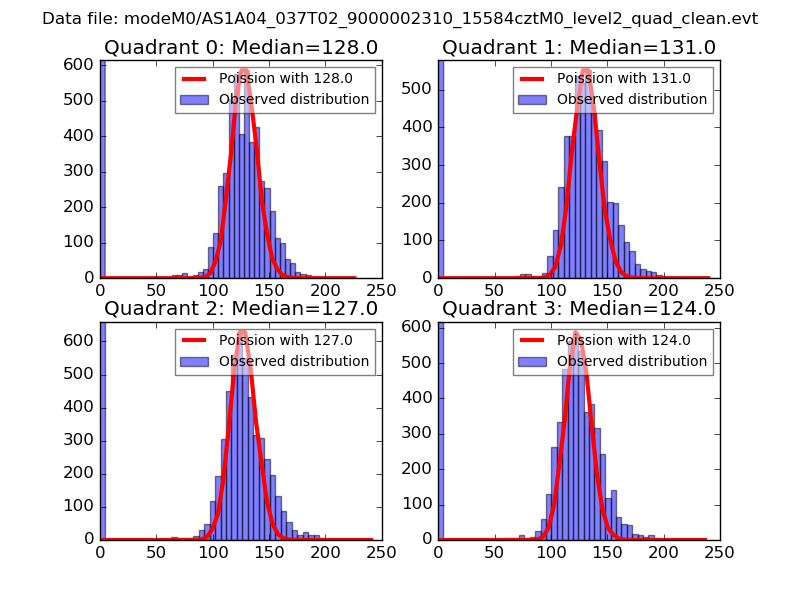

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

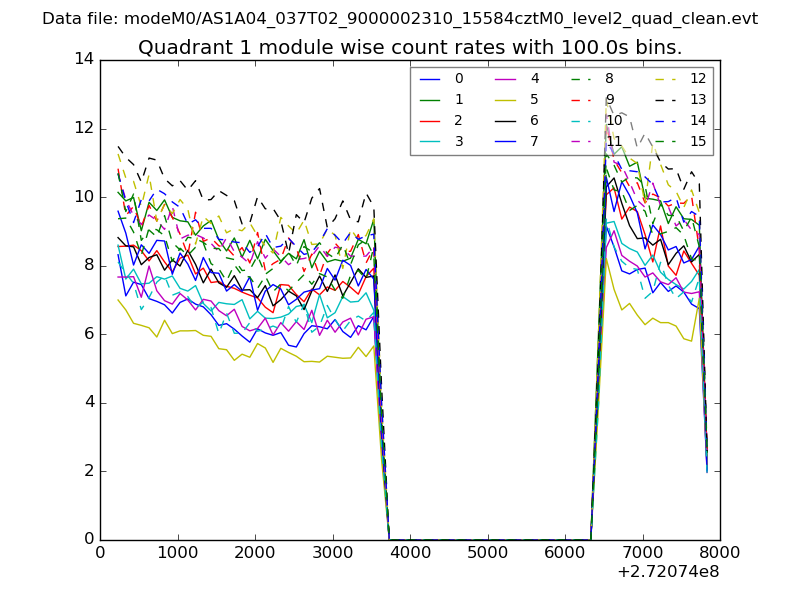

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

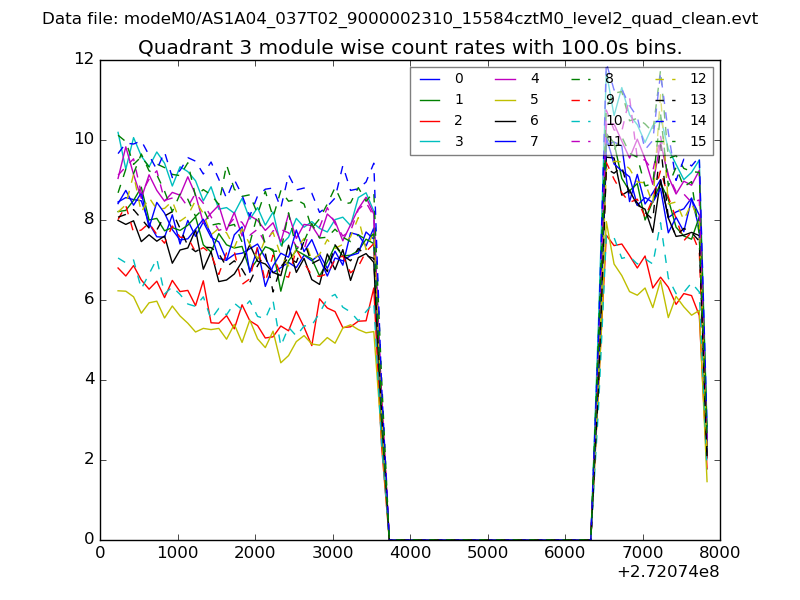

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

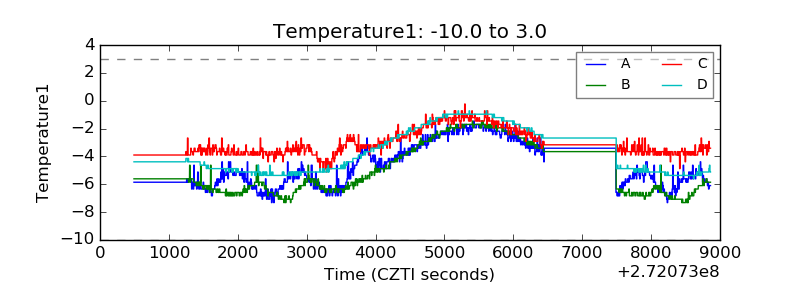

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

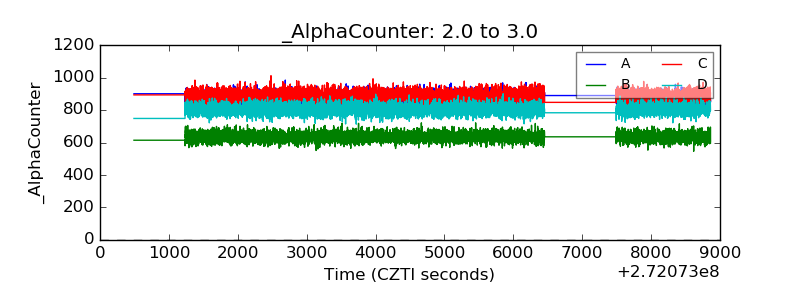

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

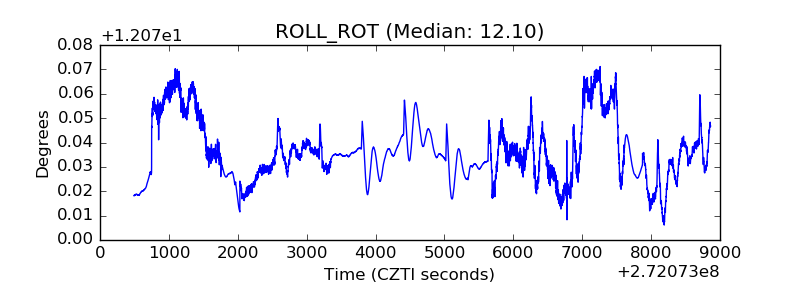

| _ROLL_ROT |  |
| _Roll_DEC |  |

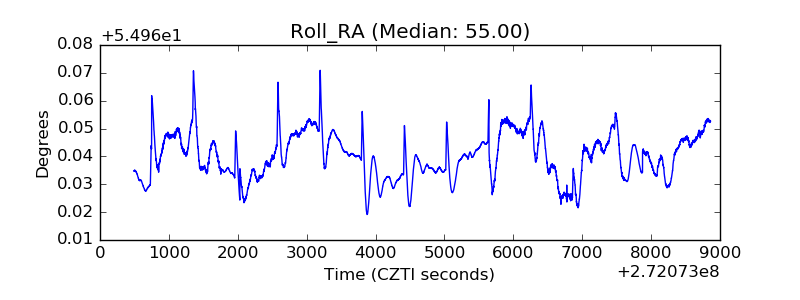

| _Roll_RA |  |
| Veto Counter |  |
