| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T01_9000002312_15601cztM0_level2.evt | modeM0/AS1A04_037T01_9000002312_15601cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,569,600 | 92,476,800 |
| Size | 422.1 MB | 88.2 MB |
| Events in quadrant A | 3,377,101 | 591,384 |
| Events in quadrant B | 3,224,226 | 609,467 |
| Events in quadrant C | 3,225,956 | 589,379 |
| Events in quadrant D | 3,148,837 | 571,696 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13810 | 3 |
| B | 0 | 13435 | 2 |
| C | 0 | 13428 | 2 |
| D | 0 | 13422 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6284 | 66 | 1.050286% |
| B | 6284 | 44 | 0.700191% |
| C | 6284 | 55 | 0.875239% |
| D | 6284 | 51 | 0.811585% |

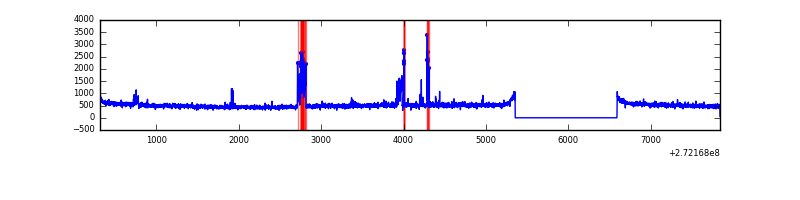

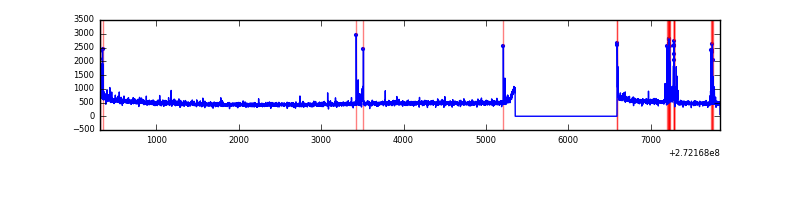

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7520 | 6285 | 36 | 36 | 0.48% | 0.57% |  |
| B | 7520 | 6285 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7520 | 6285 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7520 | 6286 | 28 | 28 | 0.37% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 243386 | 1520.47 | 796 | 780 | 159.6 |
| A | 4 | 2 | 55586 | 343.48 | 796 | 780 | 159.6 |
| A | 15 | 157 | 12612 | 74.15 | 796 | 780 | 159.6 |
| B | 0 | 214 | 50979 | 333.58 | 798 | 777 | 150.5 |
| B | 4 | 48 | 17905 | 113.81 | 798 | 777 | 150.5 |
| B | 12 | 111 | 16940 | 107.4 | 798 | 777 | 150.5 |
| C | 14 | 238 | 121723 | 665.49 | 780 | 789 | 181.7 |
| C | 3 | 233 | 54048 | 293.08 | 780 | 789 | 181.7 |
| C | 13 | 61 | 5519 | 26.03 | 780 | 789 | 181.7 |
| D | 10 | 70 | 112852 | 583.45 | 788 | 767 | 192.1 |
| D | 12 | 222 | 26952 | 136.3 | 788 | 767 | 192.1 |
| D | 2 | 234 | 26231 | 132.55 | 788 | 767 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

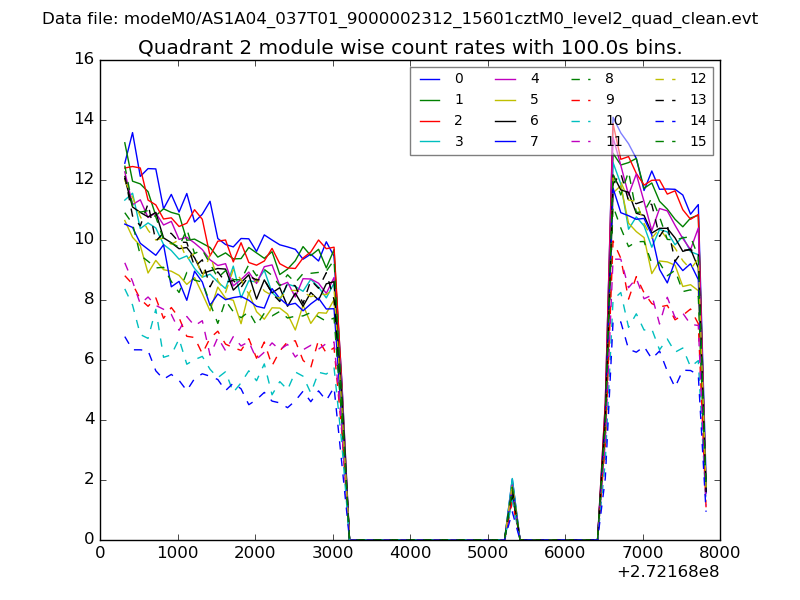

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

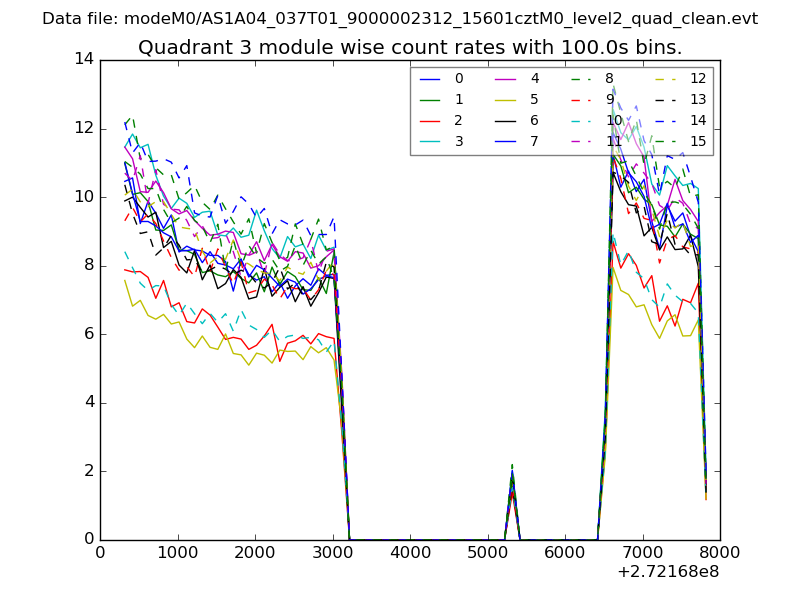

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

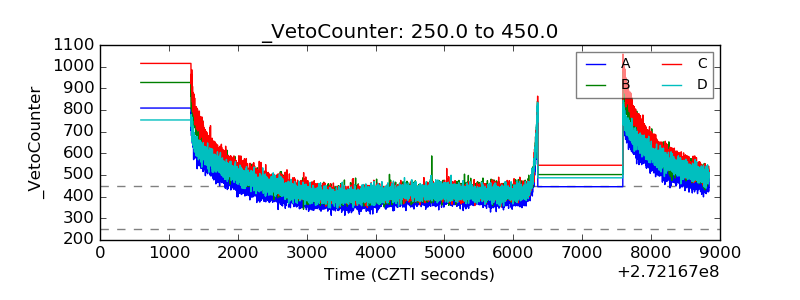

| Veto HV Monitor |  |
| Veto LLD |  |

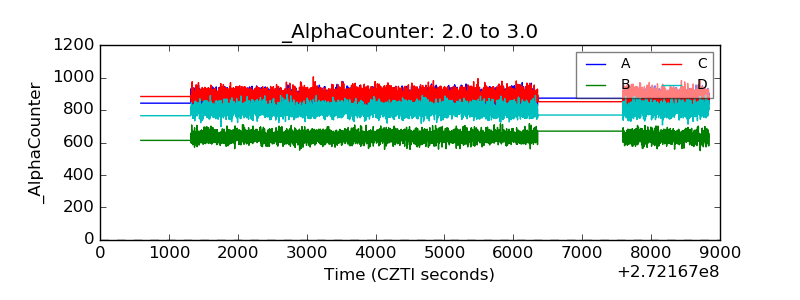

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

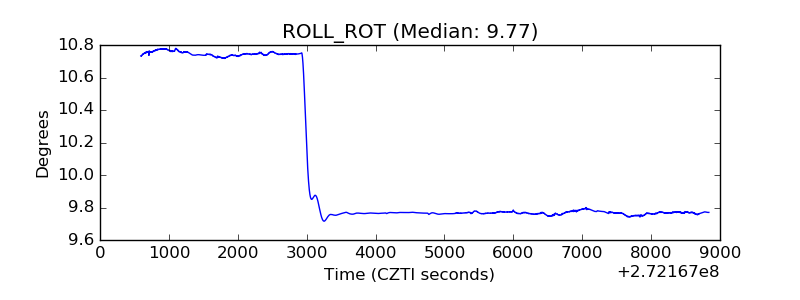

| _ROLL_ROT |  |
| _Roll_DEC |  |

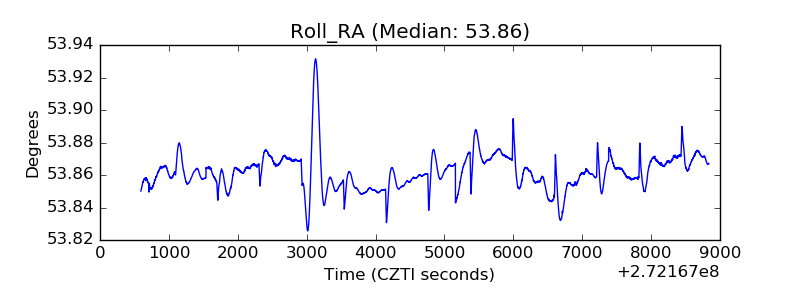

| _Roll_RA |  |
| Veto Counter |  |
