| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_086T01_9000002316_15629cztM0_level2.evt | modeM0/AS1T02_086T01_9000002316_15629cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,082,240 | 97,188,480 |
| Size | 456.9 MB | 92.7 MB |
| Events in quadrant A | 3,376,780 | 615,124 |
| Events in quadrant B | 3,622,868 | 624,771 |
| Events in quadrant C | 3,744,796 | 609,450 |
| Events in quadrant D | 3,281,808 | 599,144 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14654 | 3 |
| B | 0 | 15184 | 2 |
| C | 0 | 15538 | 2 |
| D | 0 | 14689 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7105 | 43 | 0.605208% |
| B | 7105 | 67 | 0.942998% |
| C | 7105 | 51 | 0.717804% |
| D | 7105 | 27 | 0.380014% |

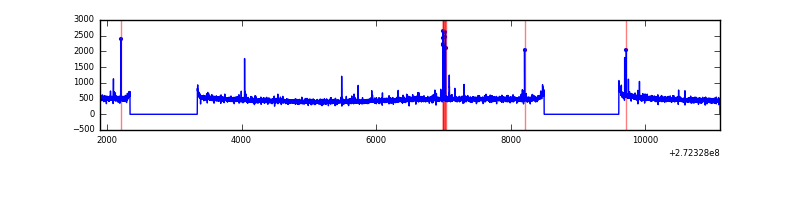

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9216 | 7106 | 11 | 11 | 0.12% | 0.15% |  |
| B | 9216 | 7107 | 13 | 13 | 0.14% | 0.18% |  |
| C | 9216 | 7107 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9216 | 7106 | 7 | 7 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 40760 | 231.96 | 854 | 838 | 172.1 |
| A | 4 | 2 | 17057 | 94.24 | 854 | 838 | 172.1 |
| A | 3 | 80 | 15710 | 86.41 | 854 | 838 | 172.1 |
| B | 4 | 251 | 164107 | 1012.46 | 860 | 840 | 161.3 |
| B | 5 | 65 | 40527 | 246.11 | 860 | 840 | 161.3 |
| B | 0 | 189 | 21888 | 130.52 | 860 | 840 | 161.3 |
| C | 3 | 233 | 357755 | 1848.49 | 828 | 833 | 193.1 |
| C | 14 | 238 | 129411 | 665.9 | 828 | 833 | 193.1 |
| C | 7 | 247 | 26139 | 131.06 | 828 | 833 | 193.1 |
| D | 10 | 70 | 32177 | 154.84 | 835 | 812 | 202.6 |
| D | 2 | 234 | 30064 | 144.41 | 835 | 812 | 202.6 |
| D | 15 | 0 | 19523 | 92.37 | 835 | 812 | 202.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

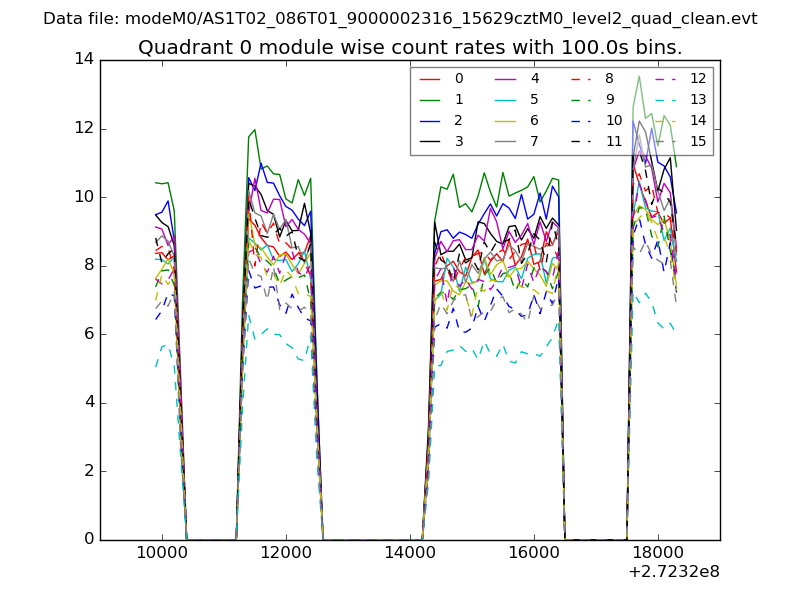

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

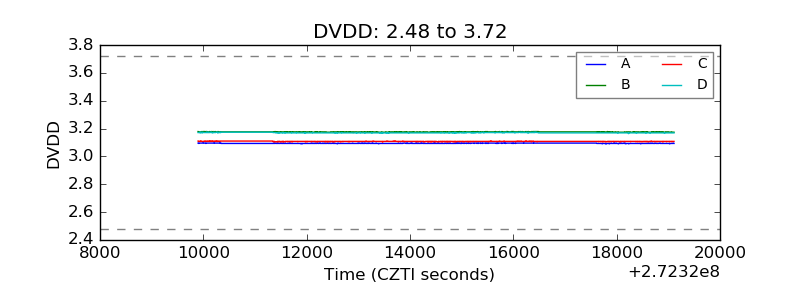

| D_VDD |  |

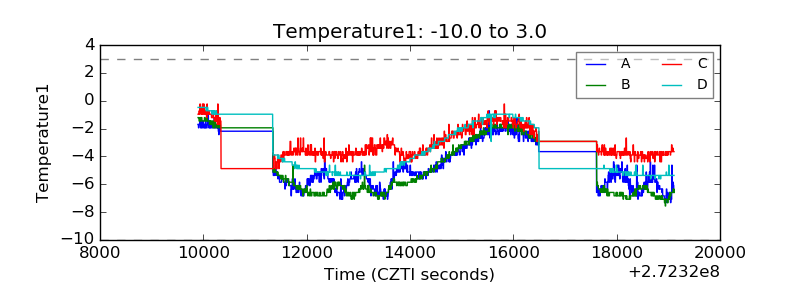

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

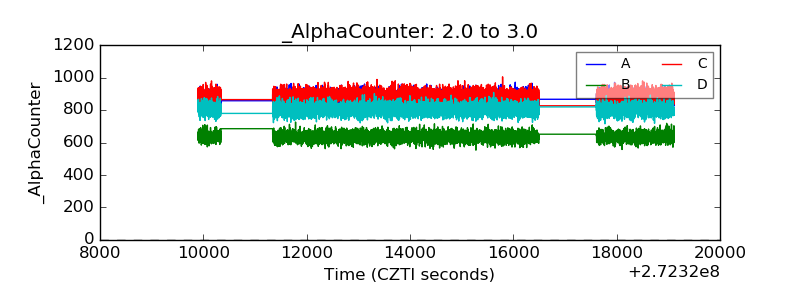

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

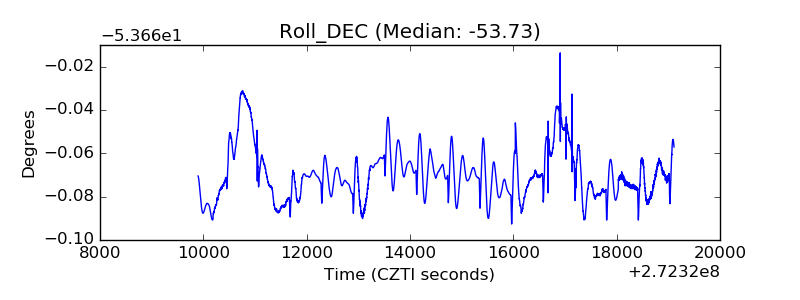

| _Roll_DEC |  |

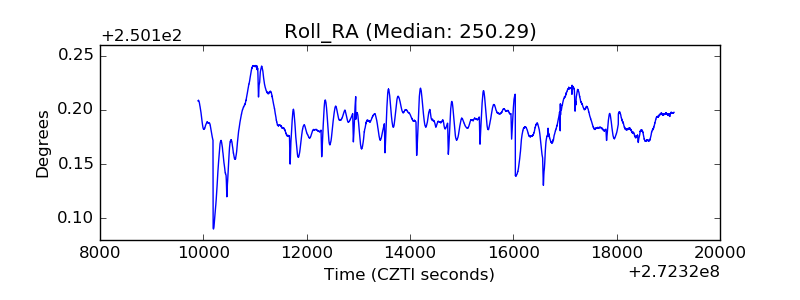

| _Roll_RA |  |
| Veto Counter |  |
