| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_086T01_9000002316_15638cztM0_level2.evt | modeM0/AS1T02_086T01_9000002316_15638cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,968,640 | 105,883,200 |
| Size | 467.3 MB | 101.0 MB |
| Events in quadrant A | 3,397,938 | 681,377 |
| Events in quadrant B | 3,465,911 | 690,221 |
| Events in quadrant C | 3,554,434 | 671,774 |
| Events in quadrant D | 3,919,487 | 650,023 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15085 | 2 |
| B | 0 | 15133 | 1 |
| C | 0 | 15242 | 1 |
| D | 0 | 16816 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7372 | 38 | 0.515464% |
| B | 7372 | 37 | 0.501899% |
| C | 7372 | 71 | 0.963104% |
| D | 7372 | 164 | 2.224634% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 7373 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7768 | 7373 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7768 | 7374 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7767 | 7372 | 116 | 116 | 1.49% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 15932 | 85.7 | 869 | 851 | 176.0 |
| A | 3 | 80 | 13002 | 69.05 | 869 | 851 | 176.0 |
| A | 15 | 223 | 11257 | 59.14 | 869 | 851 | 176.0 |
| B | 0 | 219 | 21033 | 121.02 | 866 | 843 | 166.8 |
| B | 12 | 111 | 18577 | 106.3 | 866 | 843 | 166.8 |
| B | 0 | 189 | 18158 | 103.78 | 866 | 843 | 166.8 |
| C | 3 | 233 | 175598 | 901.41 | 829 | 835 | 193.9 |
| C | 14 | 238 | 129045 | 661.3 | 829 | 835 | 193.9 |
| C | 0 | 207 | 14964 | 72.88 | 829 | 835 | 193.9 |
| D | 1 | 52 | 505617 | 2480.75 | 832 | 806 | 203.5 |
| D | 12 | 110 | 94829 | 462.05 | 832 | 806 | 203.5 |
| D | 4 | 239 | 53408 | 258.5 | 832 | 806 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

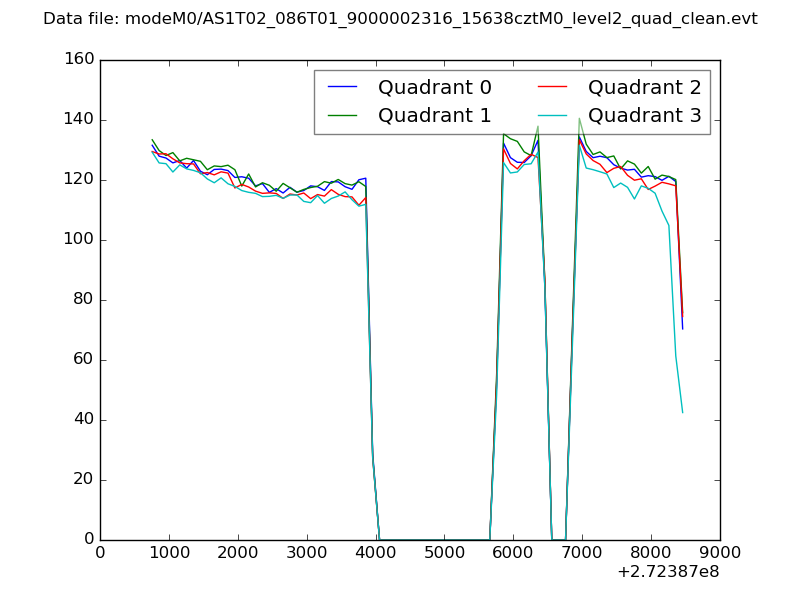

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

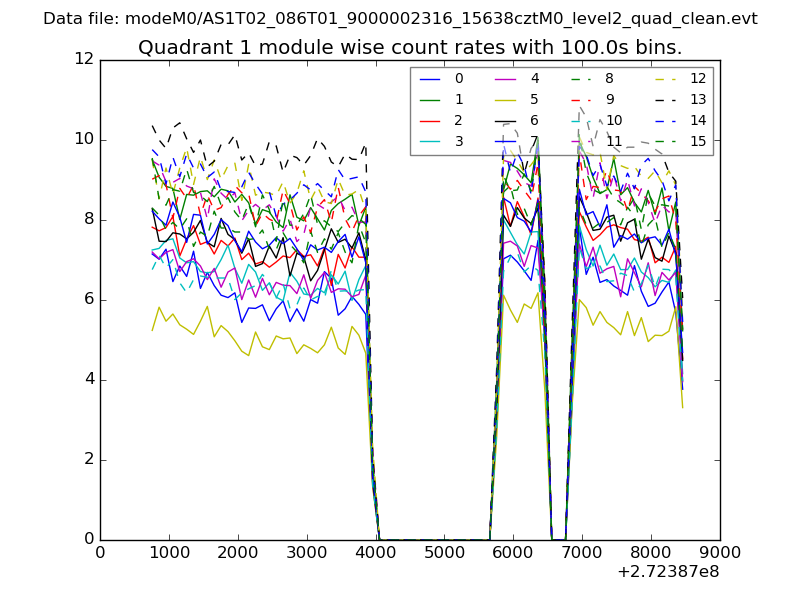

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

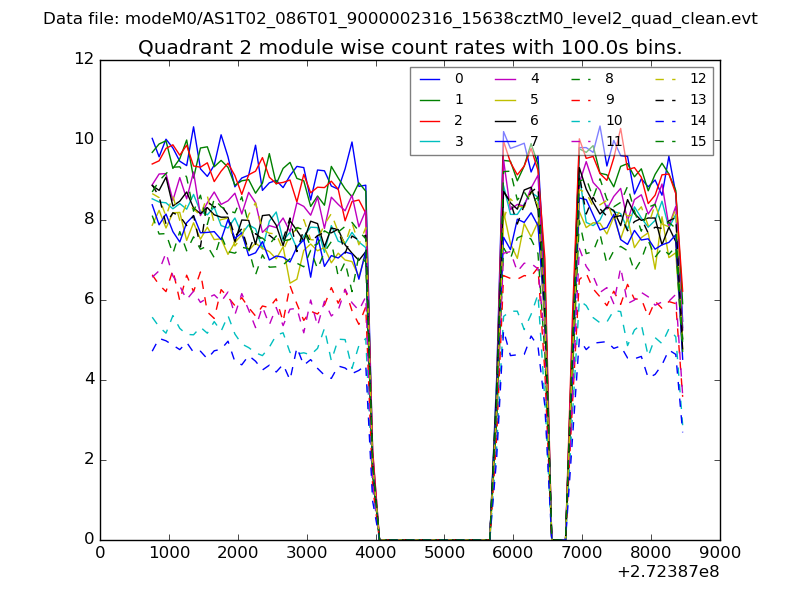

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

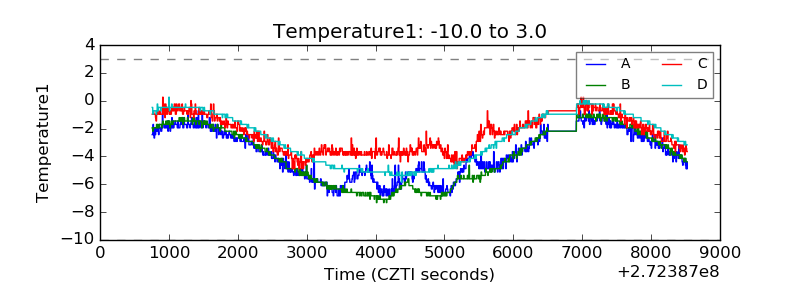

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

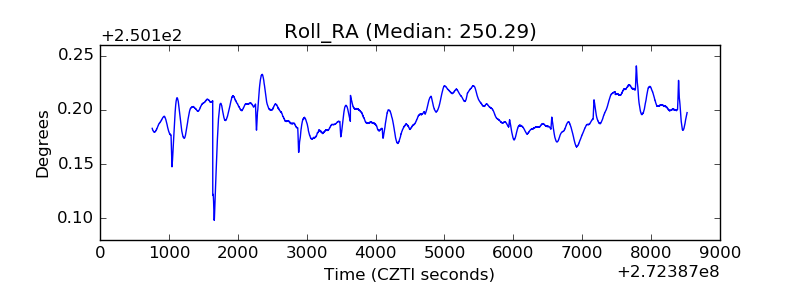

| _Roll_RA |  |

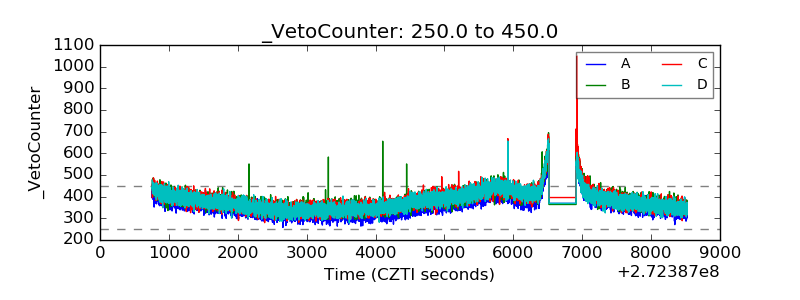

| Veto Counter |  |
