| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_086T01_9000002316_15649cztM0_level2.evt | modeM0/AS1T02_086T01_9000002316_15649cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,575,040 | 99,002,880 |
| Size | 461.2 MB | 94.4 MB |
| Events in quadrant A | 3,232,781 | 640,799 |
| Events in quadrant B | 3,309,118 | 648,447 |
| Events in quadrant C | 3,325,341 | 635,989 |
| Events in quadrant D | 4,324,988 | 608,286 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13738 | 3 |
| B | 0 | 13851 | 2 |
| C | 0 | 13881 | 2 |
| D | 0 | 17079 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6670 | 94 | 1.409295% |
| B | 6670 | 121 | 1.814093% |
| C | 6670 | 147 | 2.203898% |
| D | 6670 | 301 | 4.512744% |

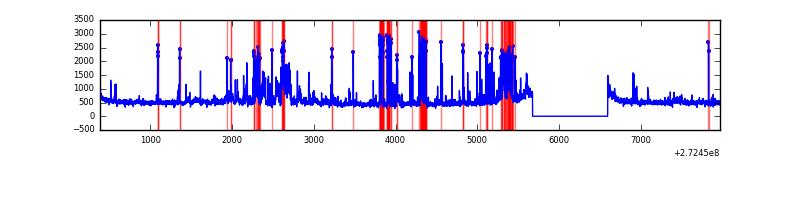

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6671 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7591 | 6671 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7591 | 6671 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7590 | 6670 | 188 | 188 | 2.48% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 13141 | 74.0 | 831 | 816 | 166.6 |
| A | 13 | 248 | 8732 | 47.53 | 831 | 816 | 166.6 |
| A | 9 | 143 | 7747 | 41.61 | 831 | 816 | 166.6 |
| B | 0 | 189 | 21284 | 129.85 | 826 | 804 | 157.7 |
| B | 12 | 111 | 17858 | 108.12 | 826 | 804 | 157.7 |
| B | 11 | 111 | 15388 | 92.46 | 826 | 804 | 157.7 |
| C | 14 | 238 | 125820 | 680.17 | 799 | 804 | 183.8 |
| C | 3 | 233 | 80526 | 433.74 | 799 | 804 | 183.8 |
| C | 13 | 61 | 5592 | 26.05 | 799 | 804 | 183.8 |
| D | 1 | 52 | 872510 | 4457.68 | 803 | 777 | 195.6 |
| D | 4 | 95 | 236589 | 1205.84 | 803 | 777 | 195.6 |
| D | 15 | 145 | 41477 | 208.12 | 803 | 777 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

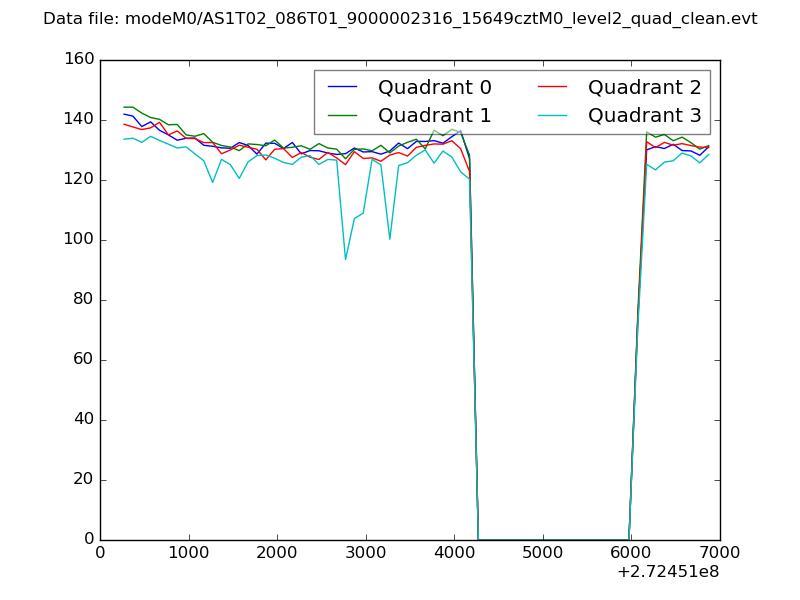

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

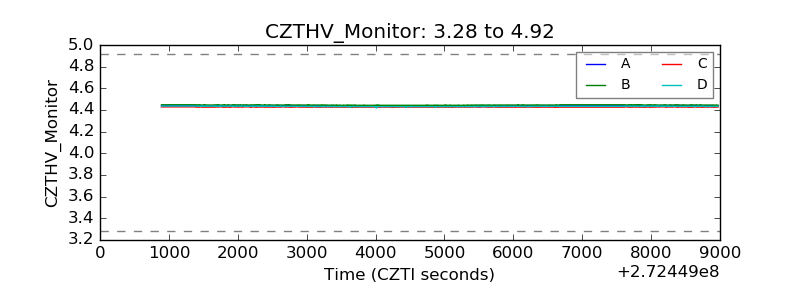

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

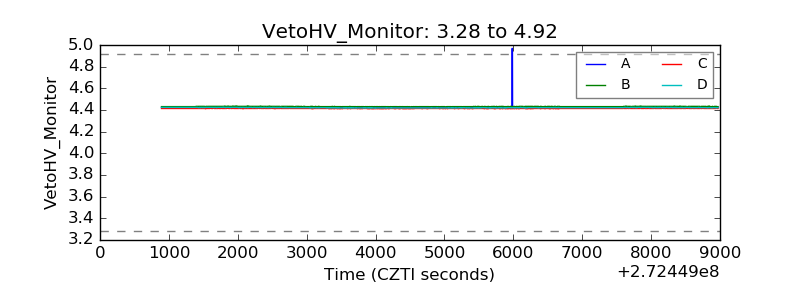

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

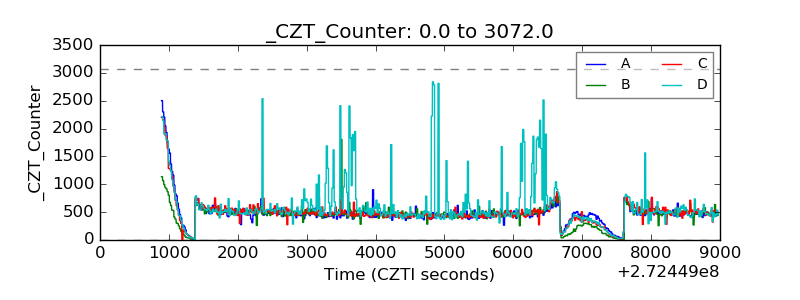

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

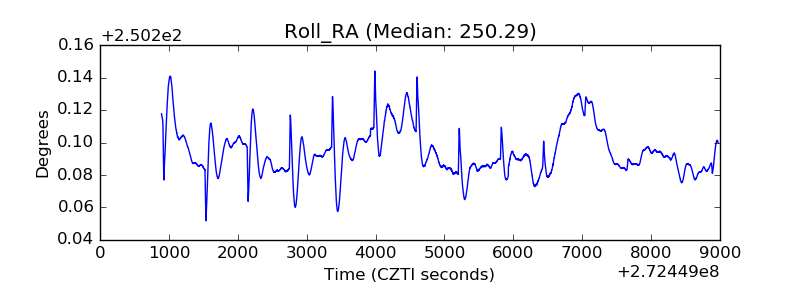

| _Roll_RA |  |

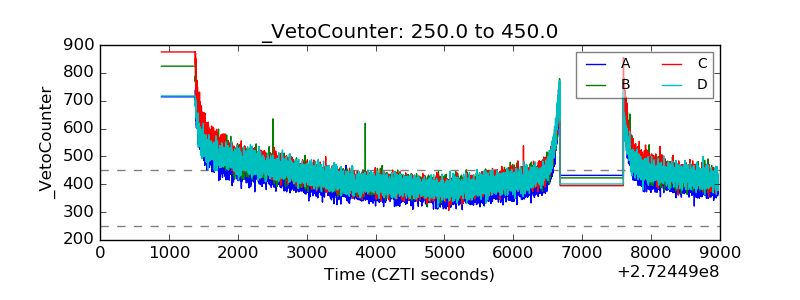

| Veto Counter |  |
