| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_086T01_9000002316_15655cztM0_level2.evt | modeM0/AS1T02_086T01_9000002316_15655cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,219,098,240 | 206,130,240 |
| Size | 1.1 GB | 196.6 MB |
| Events in quadrant A | 7,763,682 | 1,311,831 |
| Events in quadrant B | 7,945,434 | 1,327,277 |
| Events in quadrant C | 7,611,993 | 1,294,836 |
| Events in quadrant D | 12,500,851 | 1,187,525 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 328 | 0 |
| B | 0 | 328 | 0 |
| C | 0 | 328 | 0 |
| D | 0 | 328 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34277 | 2 |
| B | 0 | 34250 | 2 |
| C | 0 | 33229 | 2 |
| D | 0 | 48511 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16255 | 192 | 1.181175% |
| B | 16255 | 59 | 0.362965% |
| C | 16255 | 107 | 0.658259% |
| D | 16255 | 1568 | 9.646263% |

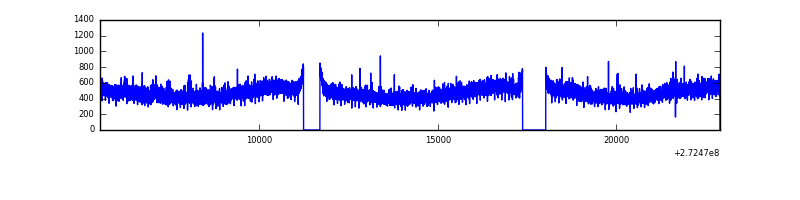

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17366 | 16256 | 115 | 115 | 0.66% | 0.71% |  |
| B | 17366 | 16258 | 1 | 1 | 0.01% | 0.01% |  |
| C | 17366 | 16258 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17366 | 16258 | 1631 | 1631 | 9.39% | 10.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 225147 | 588.99 | 1878 | 1835 | 379.1 |
| A | 13 | 248 | 216180 | 565.34 | 1878 | 1835 | 379.1 |
| A | 15 | 249 | 79891 | 205.88 | 1878 | 1835 | 379.1 |
| B | 4 | 216 | 131185 | 357.23 | 1893 | 1848 | 362.1 |
| B | 0 | 189 | 113457 | 308.27 | 1893 | 1848 | 362.1 |
| B | 4 | 173 | 49039 | 130.34 | 1893 | 1848 | 362.1 |
| C | 14 | 238 | 283601 | 668.78 | 1811 | 1822 | 421.3 |
| C | 3 | 233 | 176241 | 413.97 | 1811 | 1822 | 421.3 |
| C | 7 | 247 | 69428 | 160.46 | 1811 | 1822 | 421.3 |
| D | 1 | 52 | 5495381 | 12661.11 | 1771 | 1718 | 433.9 |
| D | 12 | 110 | 80653 | 181.92 | 1771 | 1718 | 433.9 |
| D | 2 | 234 | 66839 | 150.08 | 1771 | 1718 | 433.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

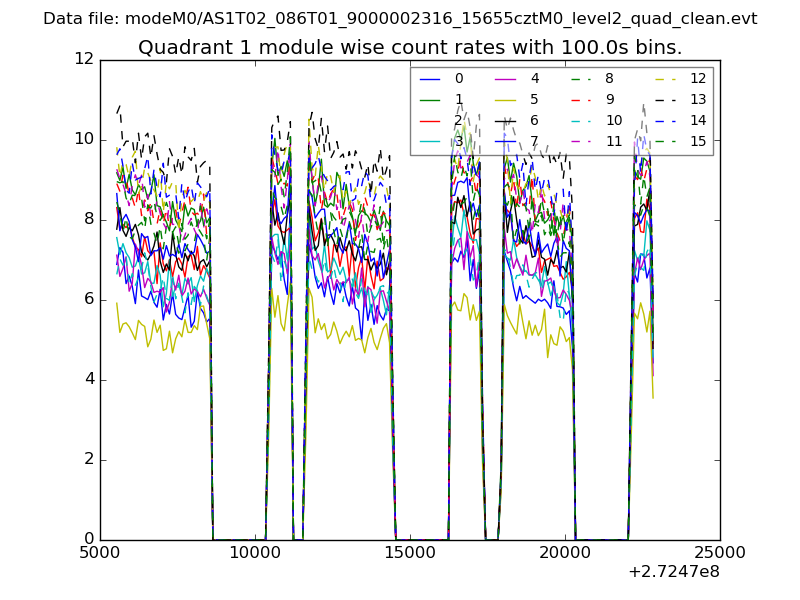

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

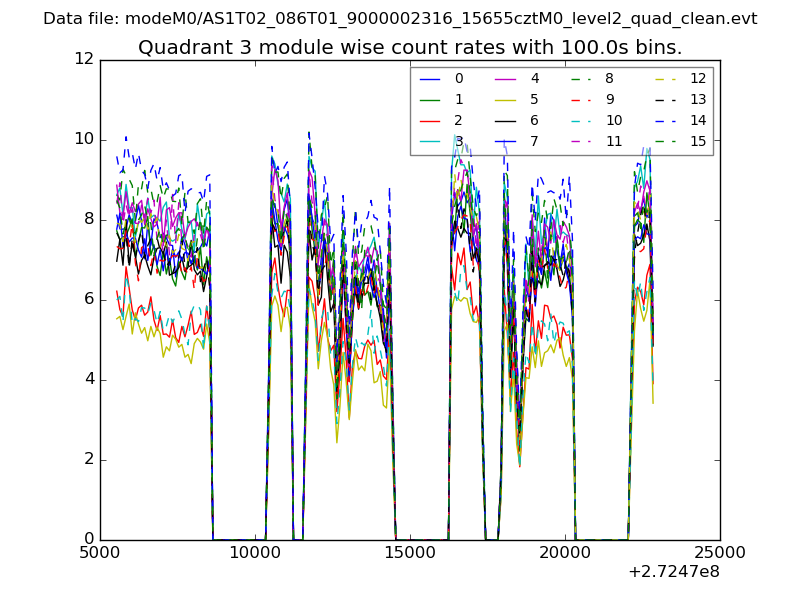

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

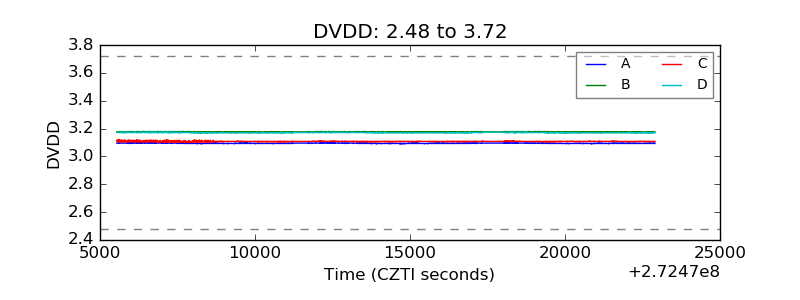

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

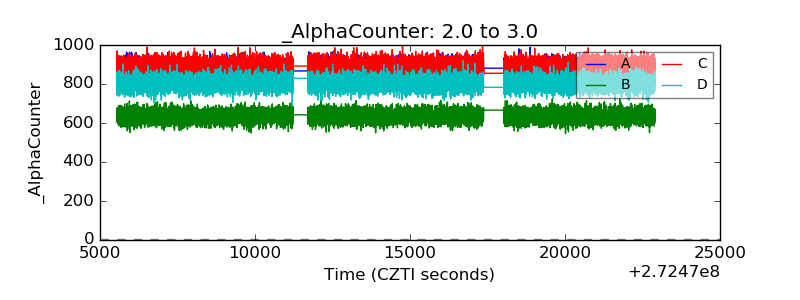

| Alpha Counter |  |

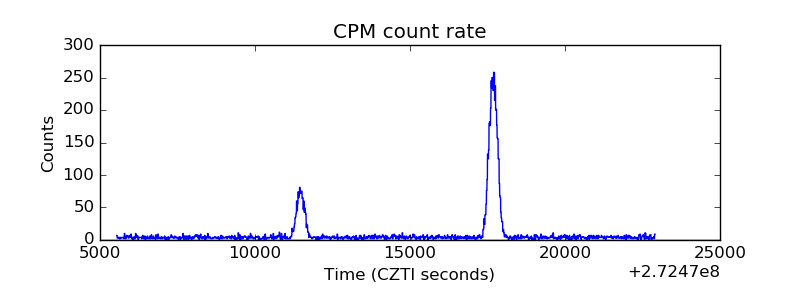

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

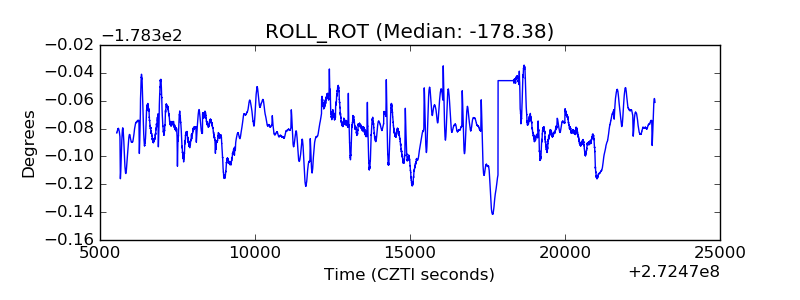

| _ROLL_ROT |  |

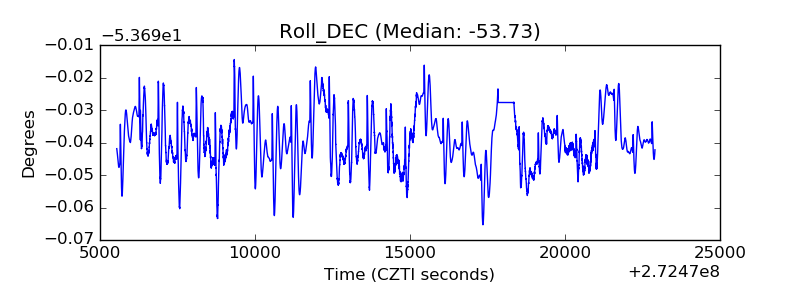

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
