| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_084T01_9000002318_15663cztM0_level2.evt | modeM0/AS1T02_084T01_9000002318_15663cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,452,480 | 92,148,480 |
| Size | 493.5 MB | 87.9 MB |
| Events in quadrant A | 3,454,693 | 591,923 |
| Events in quadrant B | 3,441,985 | 599,352 |
| Events in quadrant C | 3,327,421 | 588,849 |
| Events in quadrant D | 5,001,228 | 552,581 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14303 | 3 |
| B | 0 | 14059 | 2 |
| C | 0 | 13885 | 2 |
| D | 0 | 19061 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6561 | 158 | 2.408169% |
| B | 6561 | 174 | 2.652035% |
| C | 6561 | 213 | 3.246456% |
| D | 6561 | 678 | 10.333791% |

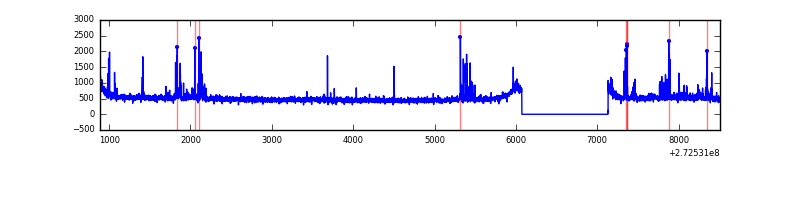

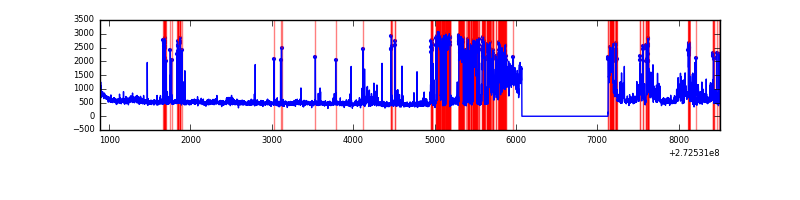

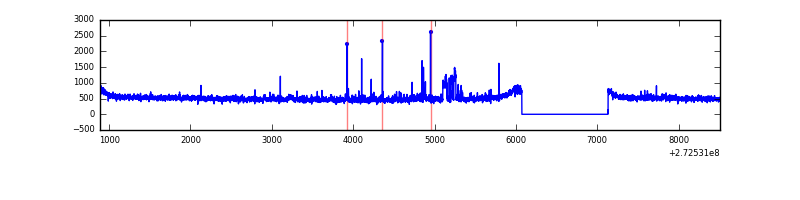

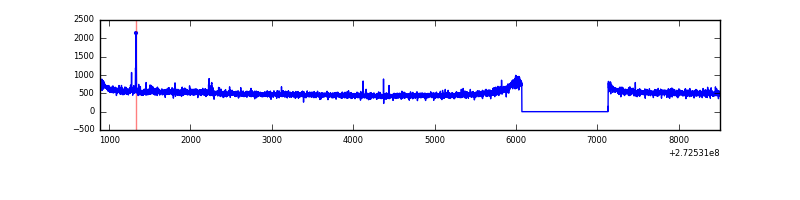

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7622 | 6563 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7622 | 6563 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7622 | 6563 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7622 | 6563 | 470 | 470 | 6.17% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 180785 | 1066.43 | 841 | 824 | 168.8 |
| A | 15 | 157 | 15602 | 87.57 | 841 | 824 | 168.8 |
| A | 3 | 80 | 12530 | 69.37 | 841 | 824 | 168.8 |
| B | 0 | 168 | 70338 | 437.87 | 838 | 818 | 158.8 |
| B | 4 | 173 | 30813 | 188.92 | 838 | 818 | 158.8 |
| B | 0 | 189 | 29559 | 181.02 | 838 | 818 | 158.8 |
| C | 14 | 238 | 131371 | 696.95 | 812 | 819 | 187.3 |
| C | 9 | 54 | 12957 | 64.8 | 812 | 819 | 187.3 |
| C | 3 | 233 | 7889 | 37.74 | 812 | 819 | 187.3 |
| D | 1 | 52 | 1889684 | 9125.86 | 790 | 772 | 207.0 |
| D | 10 | 70 | 72740 | 347.7 | 790 | 772 | 207.0 |
| D | 2 | 234 | 25402 | 118.99 | 790 | 772 | 207.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

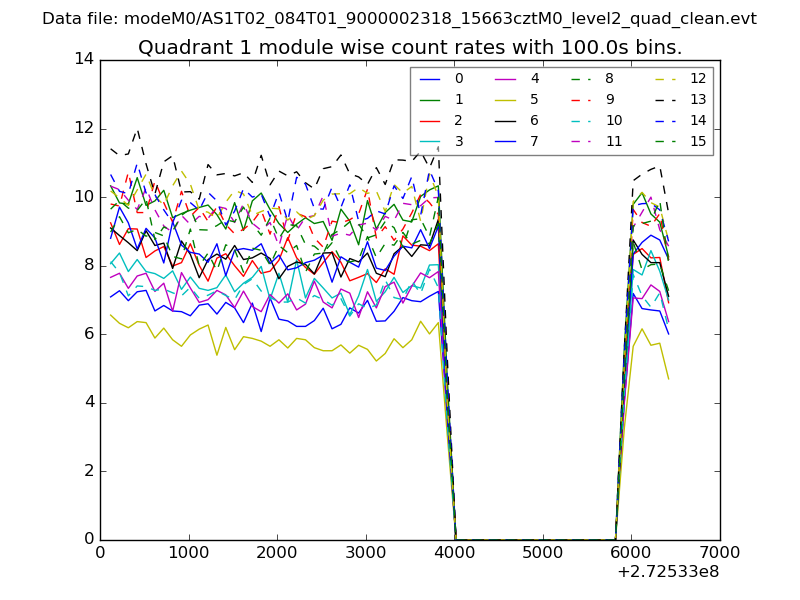

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

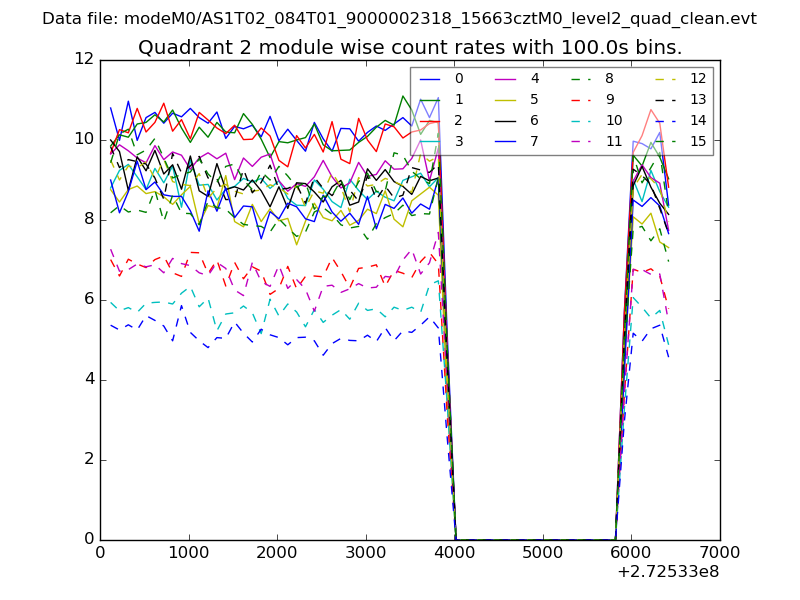

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

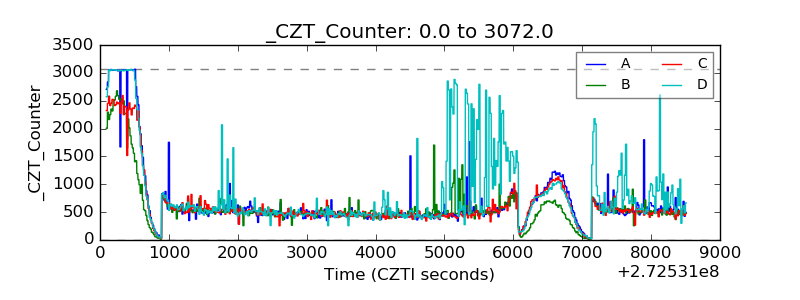

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
