| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_084T01_9000002318_15664cztM0_level2.evt | modeM0/AS1T02_084T01_9000002318_15664cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,092,160 | 97,585,920 |
| Size | 472.2 MB | 93.1 MB |
| Events in quadrant A | 3,603,303 | 621,851 |
| Events in quadrant B | 3,560,116 | 626,938 |
| Events in quadrant C | 3,514,822 | 615,322 |
| Events in quadrant D | 3,844,591 | 608,125 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14899 | 3 |
| B | 0 | 14831 | 2 |
| C | 0 | 14707 | 2 |
| D | 0 | 16043 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6930 | 135 | 1.948052% |
| B | 6930 | 181 | 2.611833% |
| C | 6930 | 189 | 2.727273% |
| D | 6930 | 185 | 2.669553% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6932 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7631 | 6932 | 58 | 58 | 0.76% | 0.84% |  |
| C | 7631 | 6932 | 26 | 26 | 0.34% | 0.38% |  |
| D | 7631 | 6932 | 79 | 79 | 1.04% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 237222 | 1363.87 | 851 | 832 | 173.3 |
| A | 4 | 2 | 71229 | 406.16 | 851 | 832 | 173.3 |
| A | 15 | 157 | 18263 | 100.57 | 851 | 832 | 173.3 |
| B | 3 | 64 | 162069 | 1008.45 | 846 | 824 | 159.9 |
| B | 0 | 189 | 26704 | 161.86 | 846 | 824 | 159.9 |
| B | 0 | 214 | 25191 | 152.39 | 846 | 824 | 159.9 |
| C | 14 | 238 | 127548 | 666.8 | 817 | 822 | 190.1 |
| C | 3 | 233 | 111157 | 580.55 | 817 | 822 | 190.1 |
| C | 9 | 54 | 81256 | 423.22 | 817 | 822 | 190.1 |
| D | 1 | 52 | 538148 | 2479.91 | 826 | 804 | 216.7 |
| D | 10 | 70 | 53550 | 243.43 | 826 | 804 | 216.7 |
| D | 2 | 234 | 26693 | 119.48 | 826 | 804 | 216.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

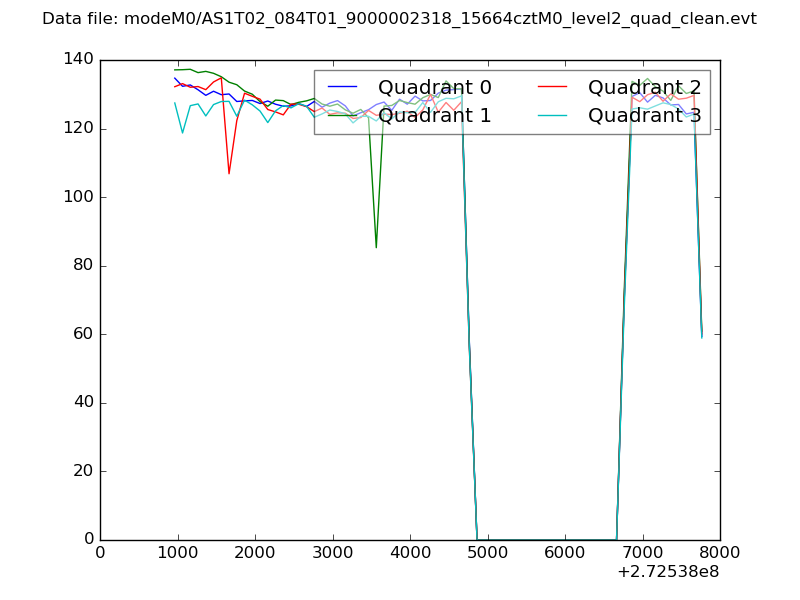

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

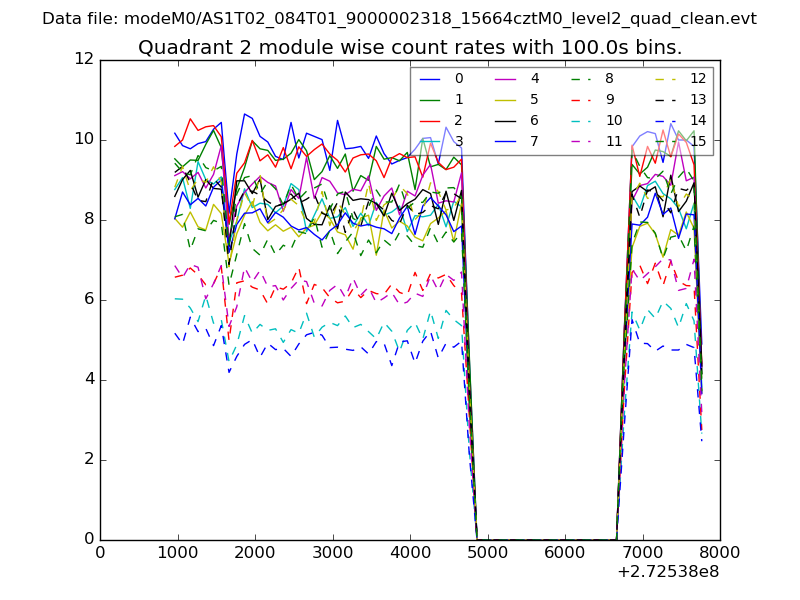

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

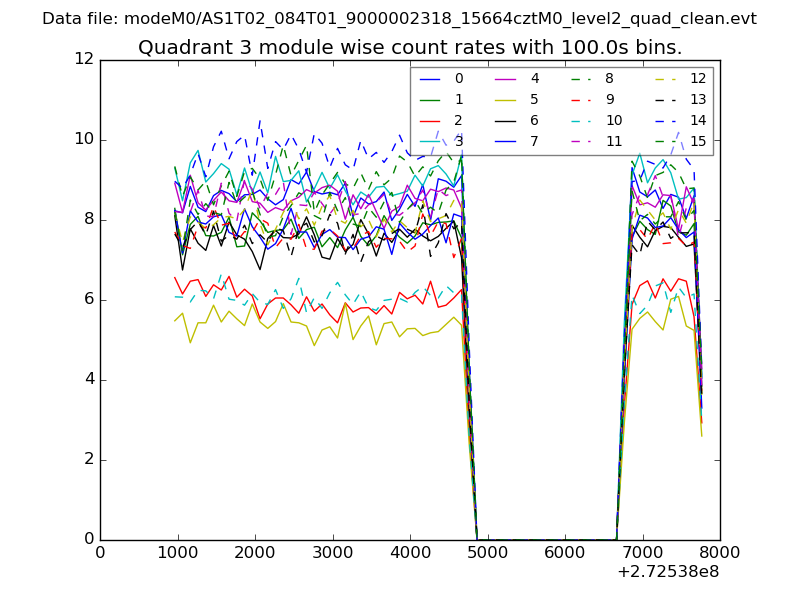

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

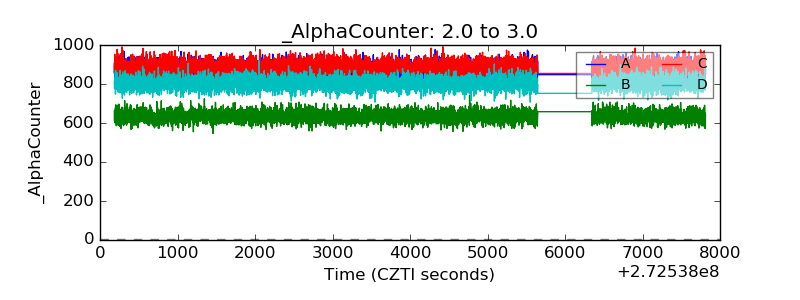

| Alpha Counter |  |
| _CPM_Rate |  |

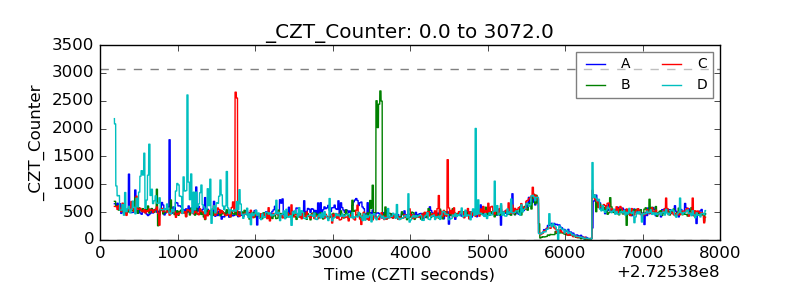

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

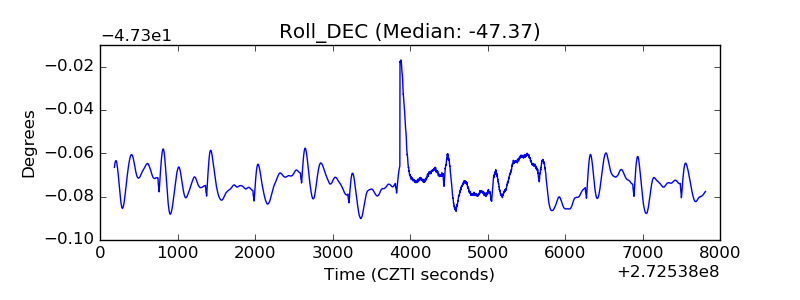

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
