| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_084T01_9000002318_15667cztM0_level2.evt | modeM0/AS1T02_084T01_9000002318_15667cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,412,800 | 94,170,240 |
| Size | 509.7 MB | 89.8 MB |
| Events in quadrant A | 3,178,985 | 606,440 |
| Events in quadrant B | 5,825,707 | 581,328 |
| Events in quadrant C | 3,277,852 | 593,531 |
| Events in quadrant D | 3,431,213 | 586,635 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14174 | 2 |
| B | 0 | 22103 | 1 |
| C | 0 | 14331 | 1 |
| D | 0 | 15015 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6939 | 44 | 0.634097% |
| B | 6939 | 576 | 8.300908% |
| C | 6939 | 96 | 1.383485% |
| D | 6939 | 87 | 1.253783% |

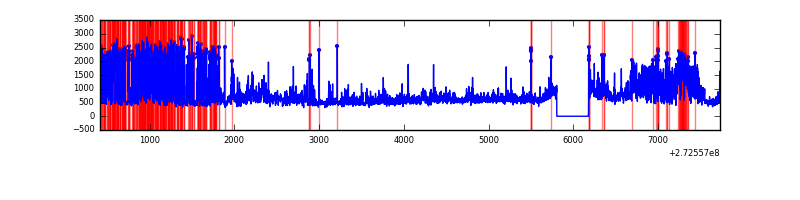

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6941 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7315 | 6941 | 420 | 420 | 5.74% | 6.05% |  |
| C | 7315 | 6941 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7315 | 6941 | 73 | 73 | 1.00% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7450 | 40.03 | 823 | 805 | 166.0 |
| A | 15 | 249 | 7236 | 38.74 | 823 | 805 | 166.0 |
| A | 12 | 194 | 6301 | 33.1 | 823 | 805 | 166.0 |
| B | 5 | 65 | 2577851 | 16618.32 | 802 | 782 | 155.1 |
| B | 0 | 189 | 35908 | 226.51 | 802 | 782 | 155.1 |
| B | 3 | 209 | 28061 | 175.91 | 802 | 782 | 155.1 |
| C | 14 | 238 | 124633 | 671.59 | 785 | 789 | 184.4 |
| C | 3 | 233 | 67567 | 362.13 | 785 | 789 | 184.4 |
| C | 10 | 22 | 12029 | 60.95 | 785 | 789 | 184.4 |
| D | 10 | 40 | 215191 | 1018.97 | 788 | 769 | 210.4 |
| D | 1 | 52 | 85372 | 402.05 | 788 | 769 | 210.4 |
| D | 10 | 70 | 52870 | 247.59 | 788 | 769 | 210.4 |

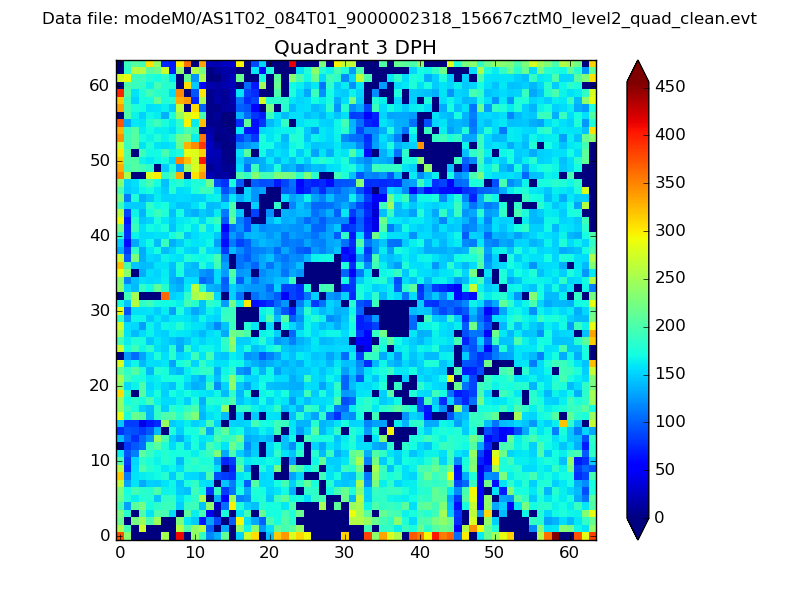

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

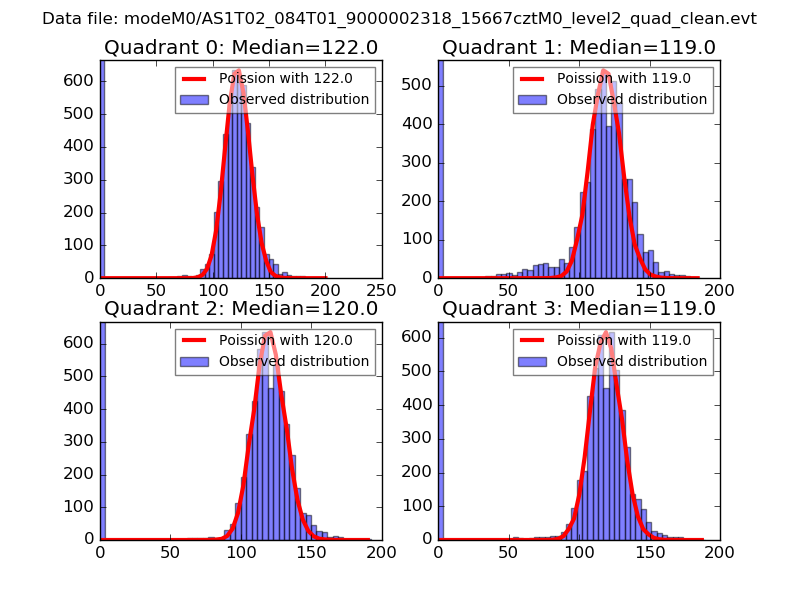

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

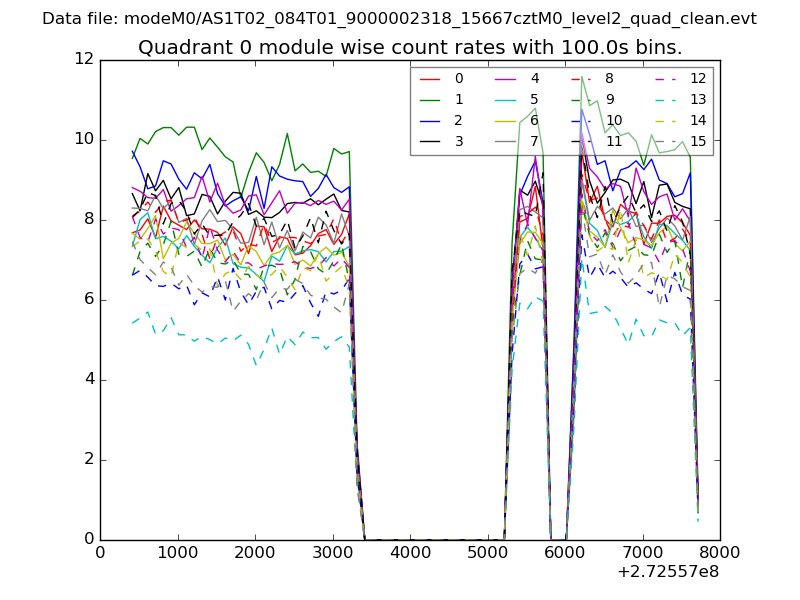

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

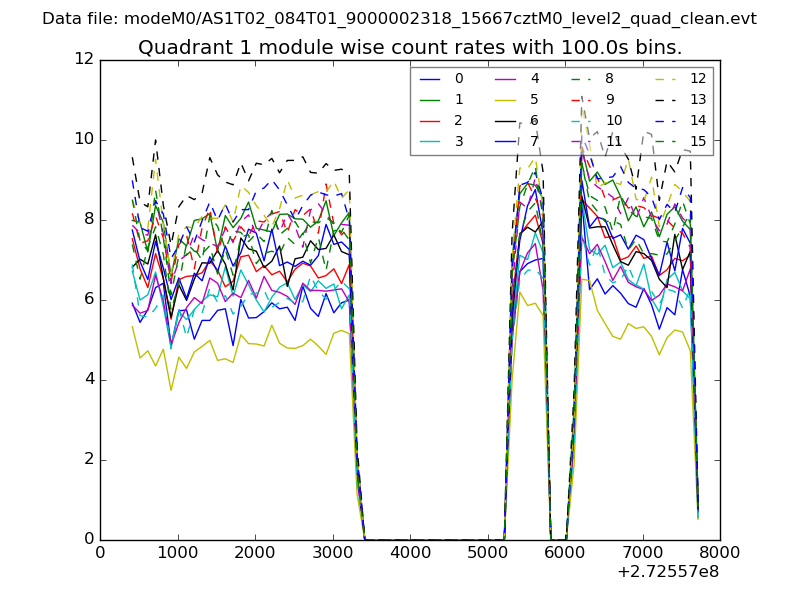

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

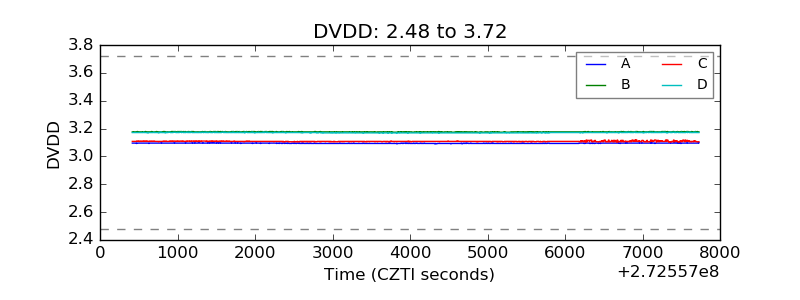

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

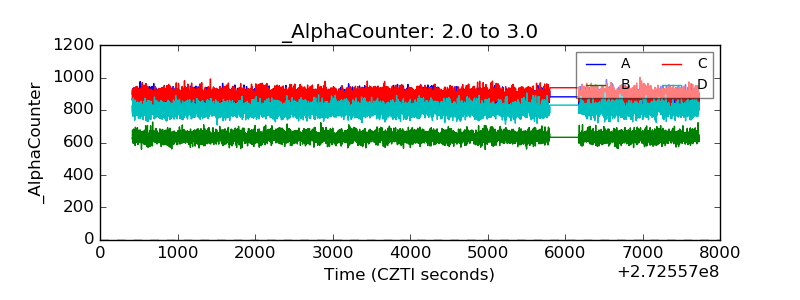

| Alpha Counter |  |

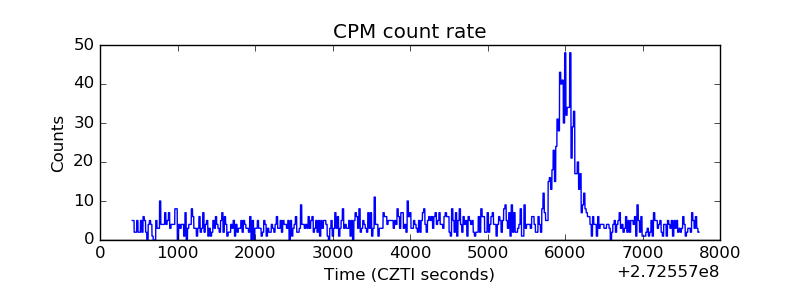

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
