| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_084T01_9000002318_15687cztM0_level2.evt | modeM0/AS1T02_084T01_9000002318_15687cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,106,560 | 88,784,640 |
| Size | 463.6 MB | 84.7 MB |
| Events in quadrant A | 3,082,397 | 566,991 |
| Events in quadrant B | 3,265,209 | 579,430 |
| Events in quadrant C | 3,456,276 | 560,535 |
| Events in quadrant D | 4,478,352 | 530,144 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13454 | 3 |
| B | 0 | 13787 | 2 |
| C | 0 | 14124 | 2 |
| D | 0 | 17528 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6471 | 32 | 0.494514% |
| B | 6471 | 50 | 0.772678% |
| C | 6471 | 73 | 1.128110% |
| D | 6471 | 350 | 5.408747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6473 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7572 | 6473 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7572 | 6473 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7572 | 6473 | 369 | 369 | 4.87% | 5.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 48256 | 298.43 | 779 | 761 | 159.1 |
| A | 13 | 248 | 32671 | 200.5 | 779 | 761 | 159.1 |
| A | 4 | 2 | 7930 | 45.04 | 779 | 761 | 159.1 |
| B | 4 | 173 | 64706 | 427.37 | 783 | 765 | 149.6 |
| B | 0 | 189 | 32668 | 213.23 | 783 | 765 | 149.6 |
| B | 10 | 245 | 23790 | 153.89 | 783 | 765 | 149.6 |
| C | 3 | 233 | 364431 | 2078.61 | 749 | 755 | 175.0 |
| C | 14 | 238 | 114968 | 652.79 | 749 | 755 | 175.0 |
| C | 9 | 54 | 34997 | 195.71 | 749 | 755 | 175.0 |
| D | 1 | 52 | 1568906 | 8657.29 | 741 | 721 | 181.1 |
| D | 10 | 70 | 74655 | 408.16 | 741 | 721 | 181.1 |
| D | 2 | 234 | 24972 | 133.88 | 741 | 721 | 181.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

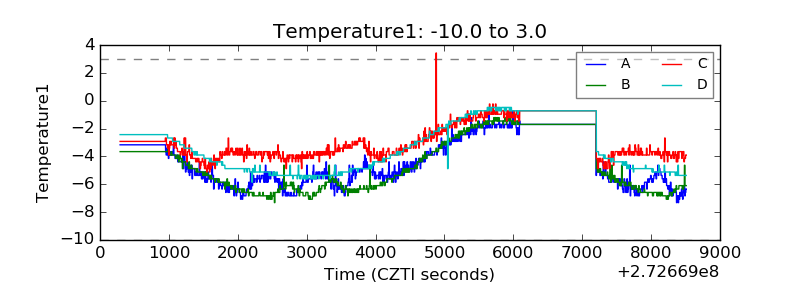

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

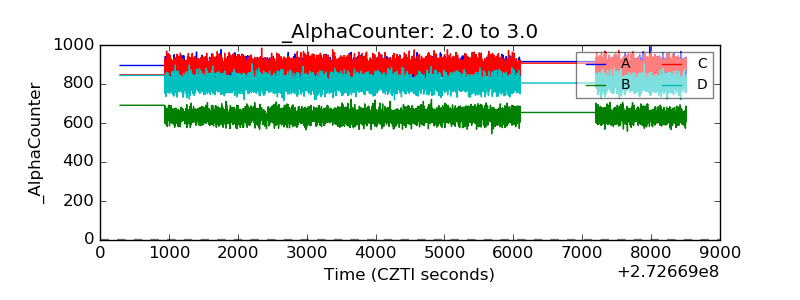

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

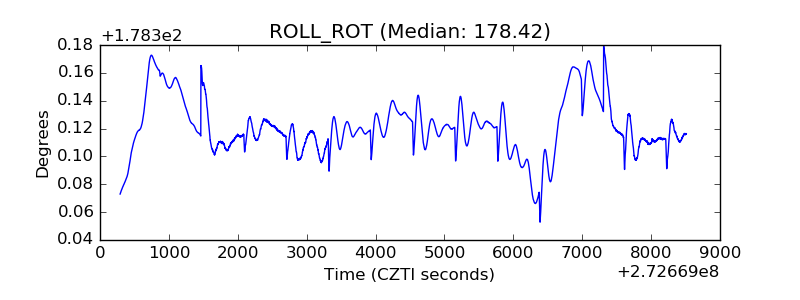

| _ROLL_ROT |  |
| _Roll_DEC |  |

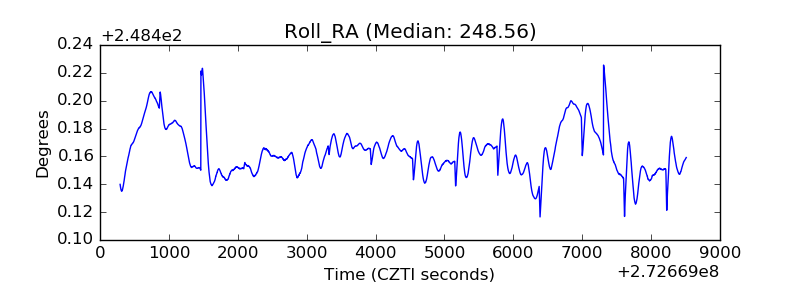

| _Roll_RA |  |

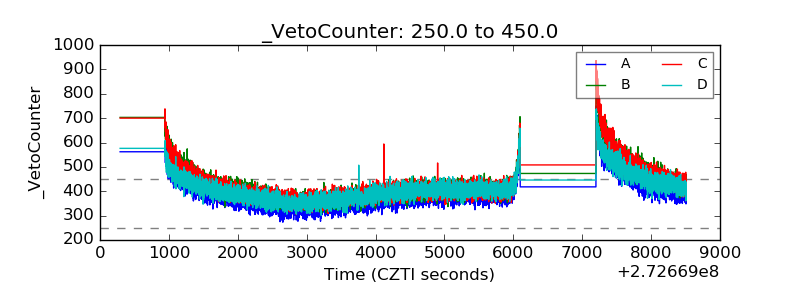

| Veto Counter |  |
