| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15691cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15691cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,011,520 | 64,722,240 |
| Size | 429.2 MB | 61.7 MB |
| Events in quadrant A | 3,228,050 | 383,650 |
| Events in quadrant B | 3,428,418 | 391,345 |
| Events in quadrant C | 3,315,818 | 376,351 |
| Events in quadrant D | 3,230,402 | 370,564 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13157 | 3 |
| B | 0 | 13781 | 2 |
| C | 0 | 13386 | 2 |
| D | 0 | 13451 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 66 | 1.053135% |
| B | 6267 | 88 | 1.404181% |
| C | 6267 | 114 | 1.819052% |
| D | 6267 | 57 | 0.909526% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6268 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7553 | 6268 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7553 | 6268 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7553 | 6268 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 19479 | 111.71 | 829 | 813 | 167.1 |
| A | 4 | 2 | 16933 | 96.48 | 829 | 813 | 167.1 |
| A | 0 | 226 | 7546 | 40.3 | 829 | 813 | 167.1 |
| B | 4 | 173 | 42122 | 262.12 | 833 | 813 | 157.6 |
| B | 5 | 236 | 34900 | 216.29 | 833 | 813 | 157.6 |
| B | 0 | 189 | 32811 | 203.04 | 833 | 813 | 157.6 |
| C | 14 | 238 | 124984 | 673.67 | 799 | 808 | 184.3 |
| C | 9 | 54 | 48603 | 259.29 | 799 | 808 | 184.3 |
| C | 3 | 233 | 13116 | 66.77 | 799 | 808 | 184.3 |
| D | 1 | 52 | 148087 | 680.39 | 800 | 786 | 216.5 |
| D | 2 | 234 | 23914 | 106.83 | 800 | 786 | 216.5 |
| D | 2 | 120 | 10982 | 47.1 | 800 | 786 | 216.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

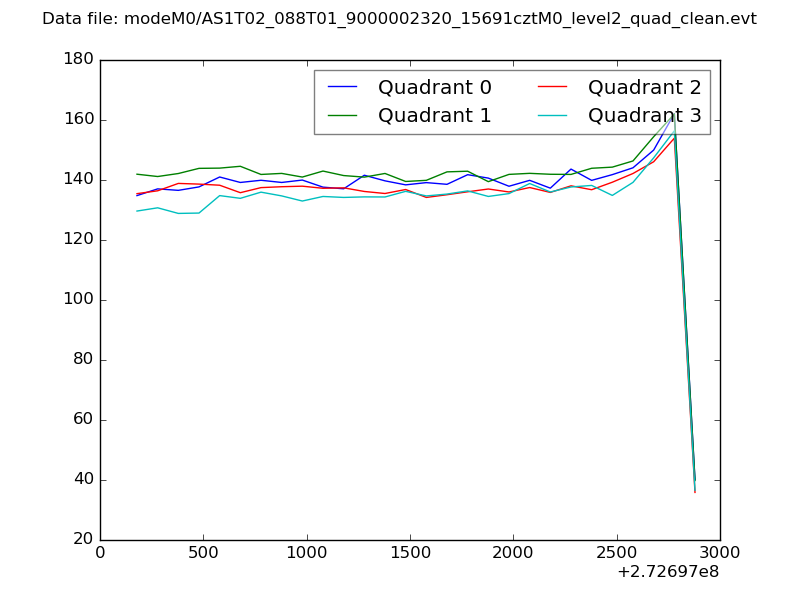

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

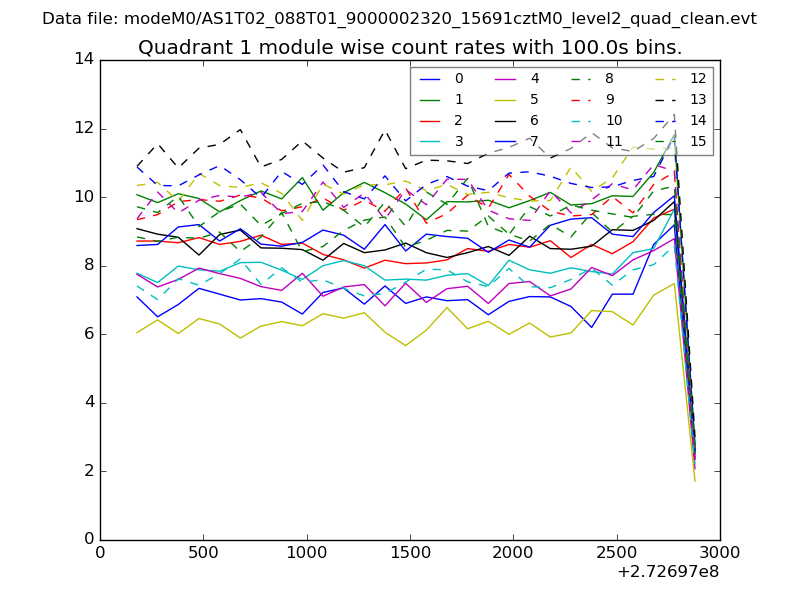

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

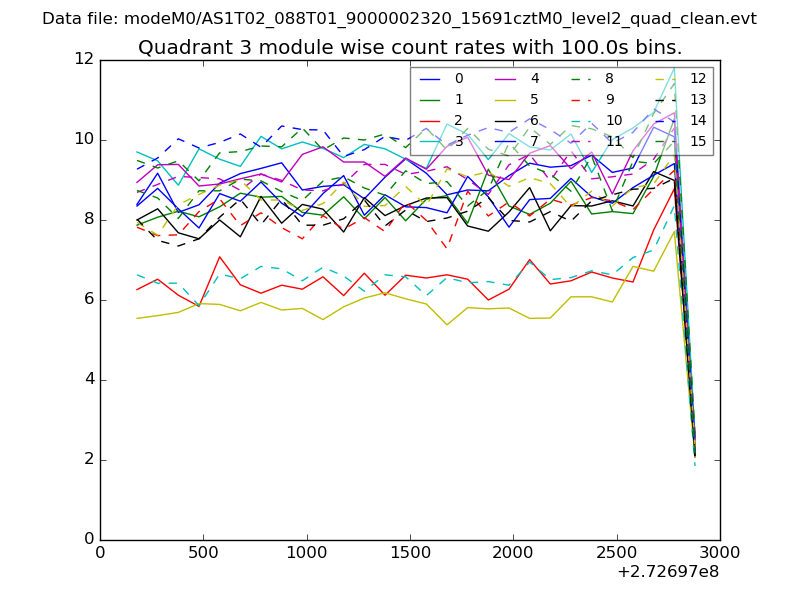

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

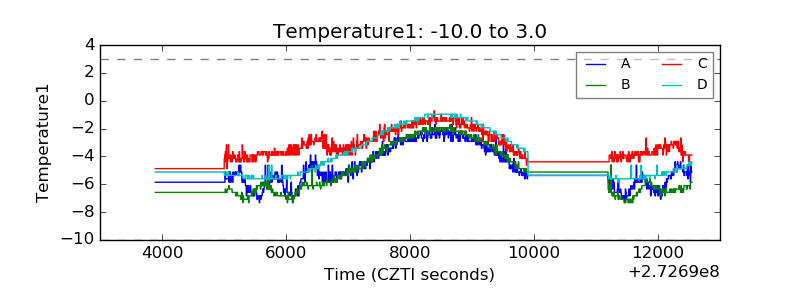

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

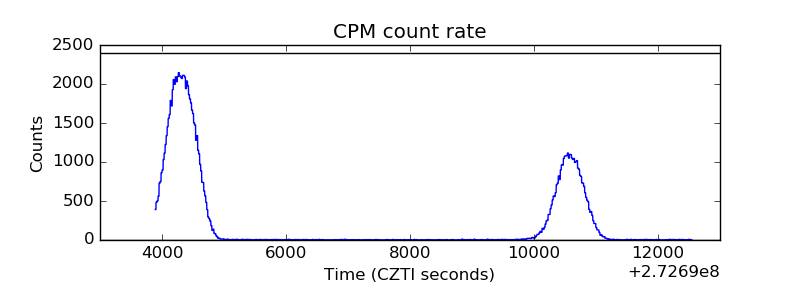

| _CPM_Rate |  |

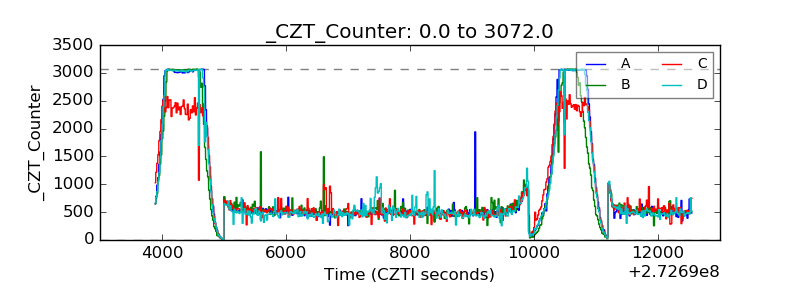

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
