| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15692cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15692cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,579,520 | 74,416,320 |
| Size | 463.1 MB | 71.0 MB |
| Events in quadrant A | 3,323,822 | 457,181 |
| Events in quadrant B | 3,433,058 | 466,284 |
| Events in quadrant C | 3,344,766 | 447,616 |
| Events in quadrant D | 4,162,674 | 429,004 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13731 | 3 |
| B | 0 | 14026 | 2 |
| C | 0 | 13743 | 2 |
| D | 0 | 16519 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6497 | 133 | 2.047099% |
| B | 6497 | 131 | 2.016315% |
| C | 6497 | 181 | 2.785901% |
| D | 6497 | 310 | 4.771433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

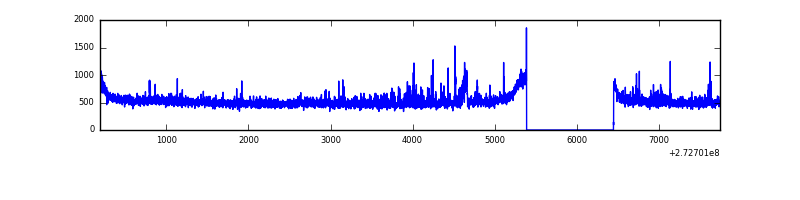

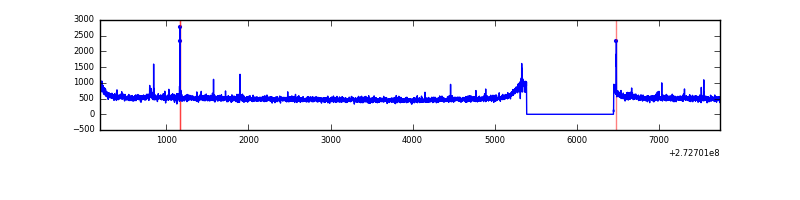

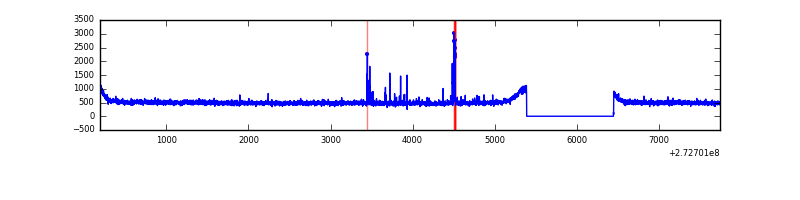

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6498 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7557 | 6498 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7557 | 6498 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7557 | 6498 | 220 | 220 | 2.91% | 3.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 64964 | 376.07 | 845 | 827 | 170.5 |
| A | 0 | 226 | 7408 | 38.59 | 845 | 827 | 170.5 |
| A | 12 | 194 | 6336 | 32.3 | 845 | 827 | 170.5 |
| B | 5 | 236 | 52058 | 315.13 | 844 | 824 | 162.6 |
| B | 4 | 216 | 42145 | 254.16 | 844 | 824 | 162.6 |
| B | 12 | 111 | 18847 | 110.86 | 844 | 824 | 162.6 |
| C | 14 | 238 | 126929 | 671.45 | 809 | 816 | 187.8 |
| C | 9 | 54 | 27561 | 142.4 | 809 | 816 | 187.8 |
| C | 3 | 233 | 26084 | 134.53 | 809 | 816 | 187.8 |
| D | 1 | 52 | 1021118 | 4951.85 | 816 | 797 | 206.0 |
| D | 2 | 234 | 23752 | 111.41 | 816 | 797 | 206.0 |
| D | 2 | 120 | 15315 | 70.46 | 816 | 797 | 206.0 |

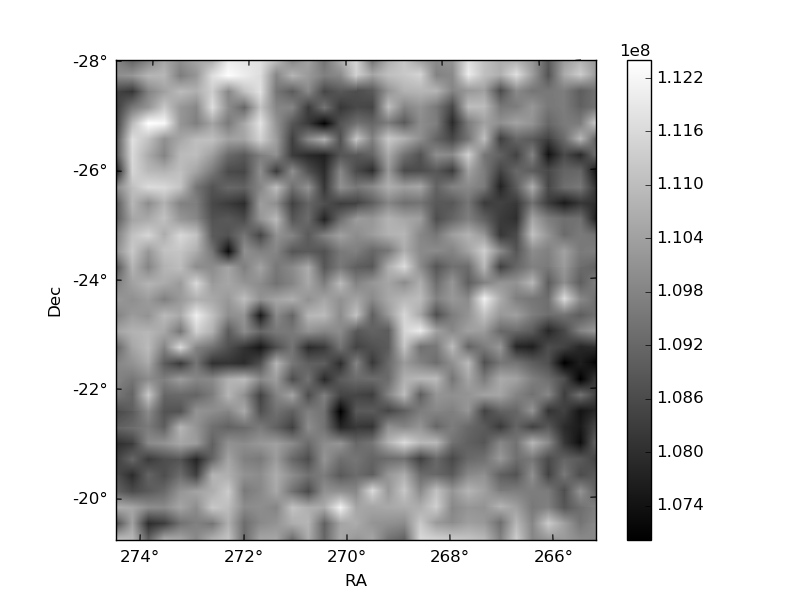

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

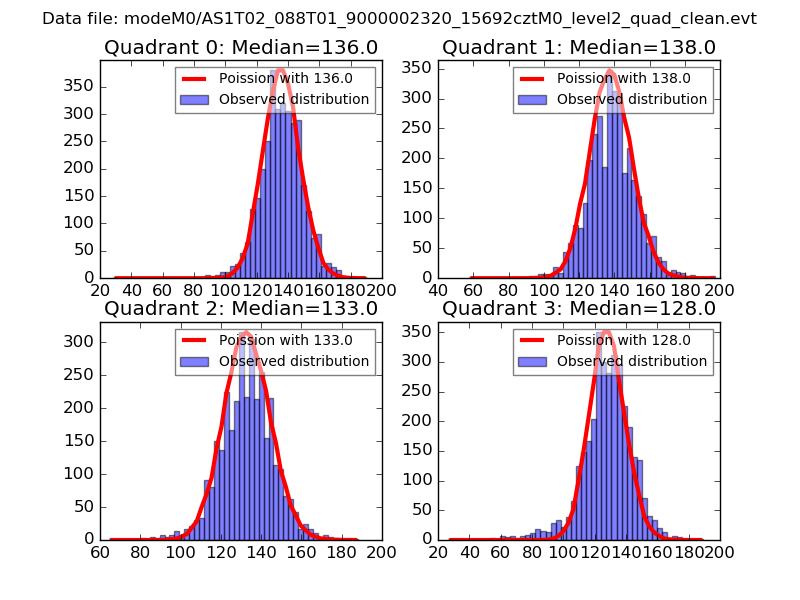

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

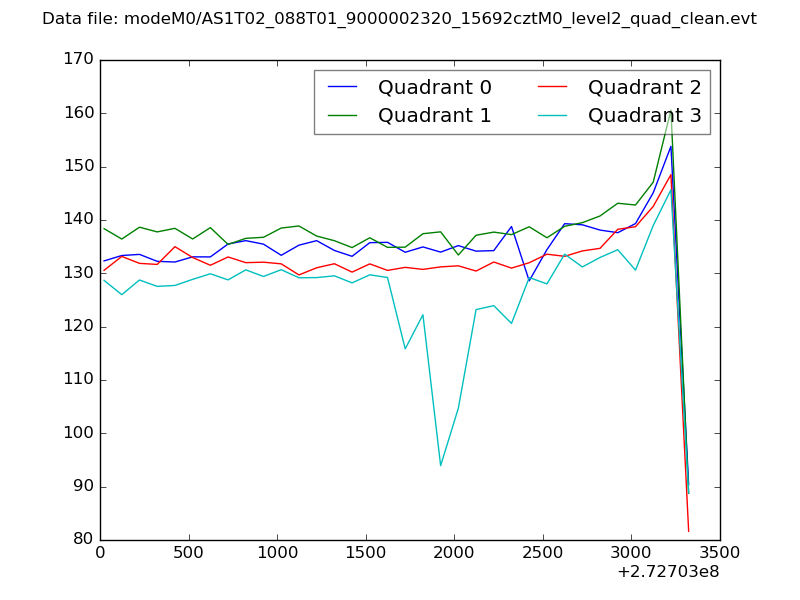

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

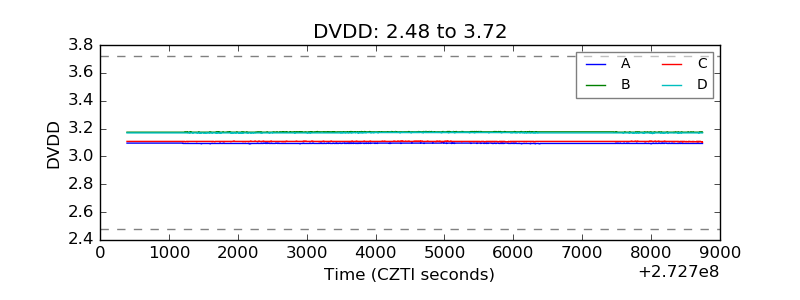

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

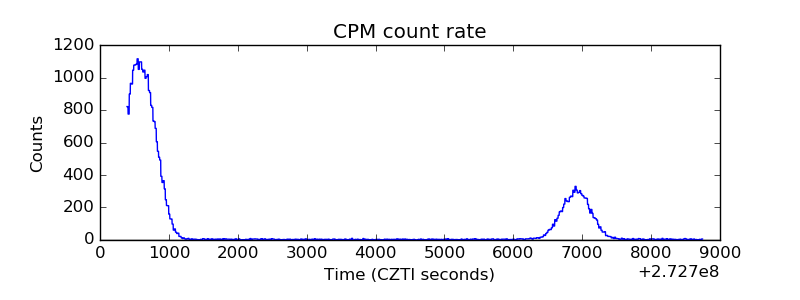

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
