| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15693cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15693cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,576,640 | 82,247,040 |
| Size | 523.2 MB | 78.4 MB |
| Events in quadrant A | 3,366,723 | 516,375 |
| Events in quadrant B | 3,582,689 | 522,098 |
| Events in quadrant C | 3,474,525 | 504,062 |
| Events in quadrant D | 5,716,660 | 462,382 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14378 | 3 |
| B | 0 | 14886 | 2 |
| C | 0 | 14577 | 2 |
| D | 0 | 21568 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6966 | 160 | 2.296871% |
| B | 6966 | 198 | 2.842377% |
| C | 6966 | 205 | 2.942865% |
| D | 6966 | 723 | 10.378984% |

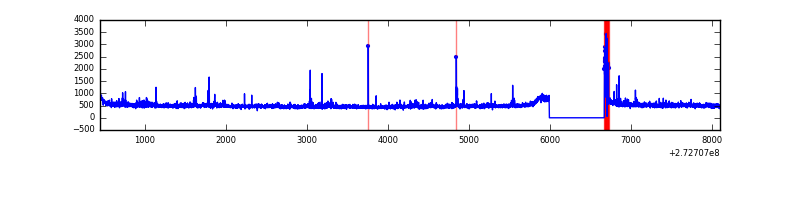

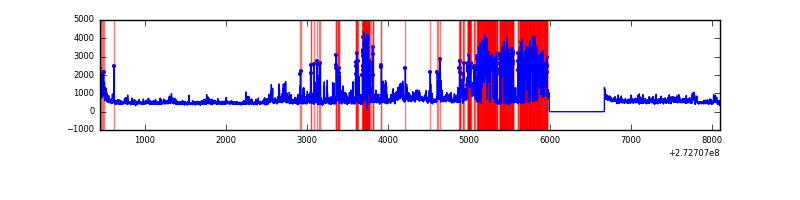

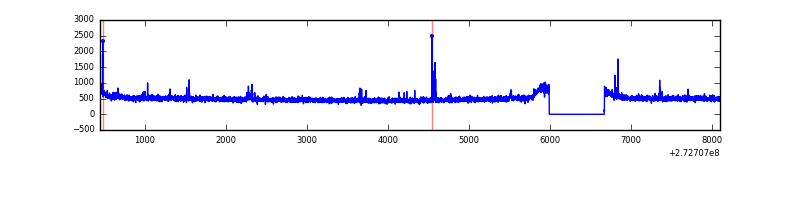

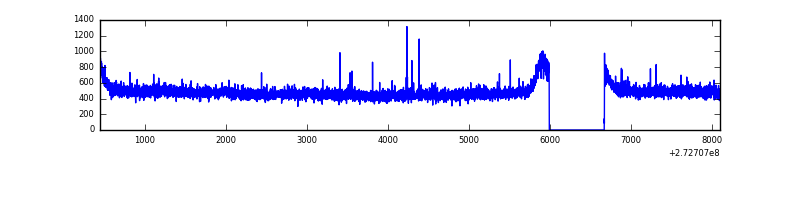

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7647 | 6968 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7647 | 6968 | 32 | 32 | 0.42% | 0.46% |  |
| C | 7647 | 6968 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7647 | 6968 | 574 | 574 | 7.51% | 8.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 10264 | 53.32 | 871 | 852 | 176.5 |
| A | 0 | 226 | 7727 | 38.95 | 871 | 852 | 176.5 |
| A | 12 | 194 | 6454 | 31.74 | 871 | 852 | 176.5 |
| B | 4 | 48 | 95606 | 564.74 | 865 | 843 | 167.8 |
| B | 5 | 236 | 33914 | 197.09 | 865 | 843 | 167.8 |
| B | 4 | 173 | 28064 | 162.22 | 865 | 843 | 167.8 |
| C | 14 | 238 | 135070 | 689.28 | 836 | 843 | 194.7 |
| C | 9 | 54 | 33243 | 166.38 | 836 | 843 | 194.7 |
| C | 3 | 233 | 21421 | 105.67 | 836 | 843 | 194.7 |
| D | 1 | 52 | 2664357 | 13708.79 | 794 | 770 | 194.3 |
| D | 2 | 234 | 23979 | 119.45 | 794 | 770 | 194.3 |
| D | 13 | 172 | 18971 | 93.68 | 794 | 770 | 194.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

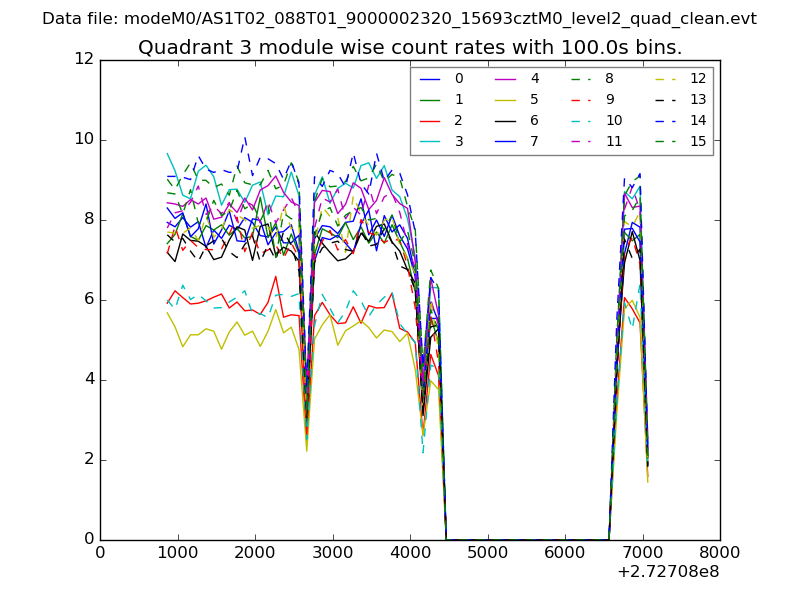

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

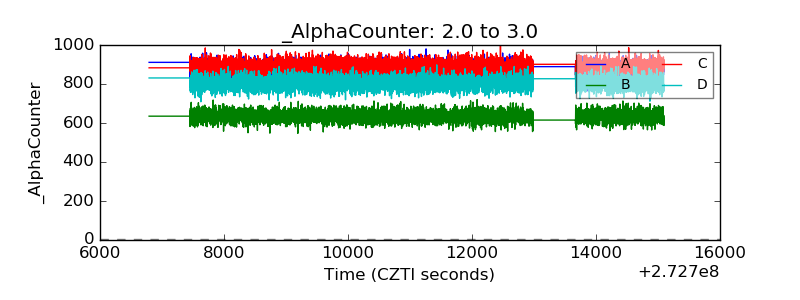

| Alpha Counter |  |

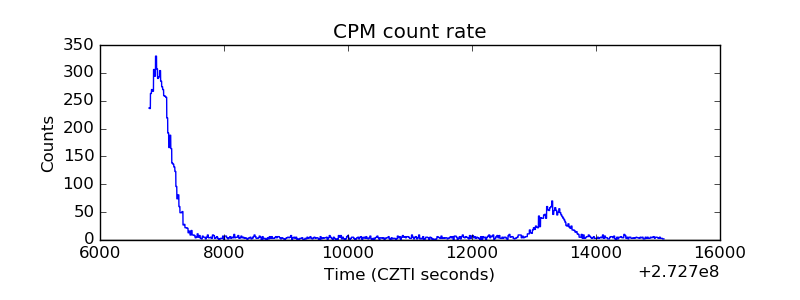

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

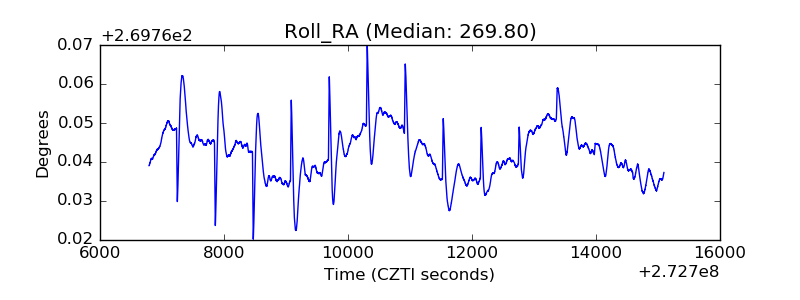

| _Roll_RA |  |
| Veto Counter |  |
