| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15695cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15695cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,061,440 | 97,104,960 |
| Size | 535.1 MB | 92.6 MB |
| Events in quadrant A | 3,944,937 | 601,462 |
| Events in quadrant B | 4,152,172 | 610,729 |
| Events in quadrant C | 4,024,864 | 590,123 |
| Events in quadrant D | 4,320,596 | 576,501 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16953 | 5 |
| B | 0 | 17367 | 4 |
| C | 0 | 17063 | 4 |
| D | 0 | 17866 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8077 | 292 | 3.615204% |
| B | 8077 | 319 | 3.949486% |
| C | 8077 | 318 | 3.937105% |
| D | 8077 | 246 | 3.045685% |

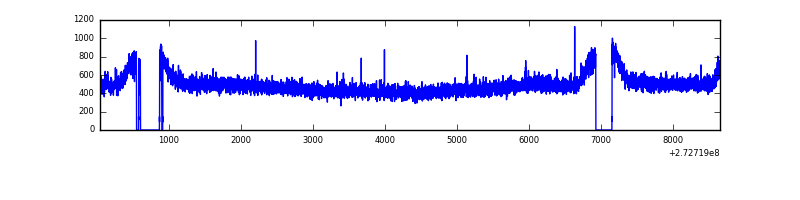

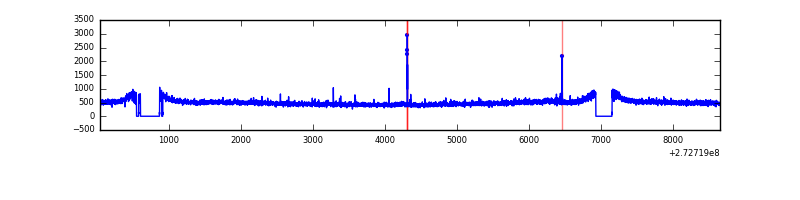

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8613 | 8082 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8613 | 8082 | 8 | 8 | 0.09% | 0.10% |  |
| C | 8613 | 8082 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8613 | 8082 | 22 | 22 | 0.26% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 18432 | 84.24 | 1015 | 993 | 207.0 |
| A | 13 | 248 | 10881 | 47.77 | 1015 | 993 | 207.0 |
| A | 0 | 226 | 9035 | 38.85 | 1015 | 993 | 207.0 |
| B | 4 | 173 | 50435 | 251.24 | 1013 | 985 | 196.8 |
| B | 5 | 236 | 23570 | 114.75 | 1013 | 985 | 196.8 |
| B | 12 | 111 | 23350 | 113.63 | 1013 | 985 | 196.8 |
| C | 14 | 238 | 146773 | 640.95 | 972 | 977 | 227.5 |
| C | 3 | 233 | 48255 | 207.85 | 972 | 977 | 227.5 |
| C | 10 | 22 | 13312 | 54.23 | 972 | 977 | 227.5 |
| D | 1 | 52 | 452911 | 1846.93 | 991 | 962 | 244.7 |
| D | 2 | 234 | 39947 | 159.32 | 991 | 962 | 244.7 |
| D | 10 | 70 | 29757 | 117.67 | 991 | 962 | 244.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

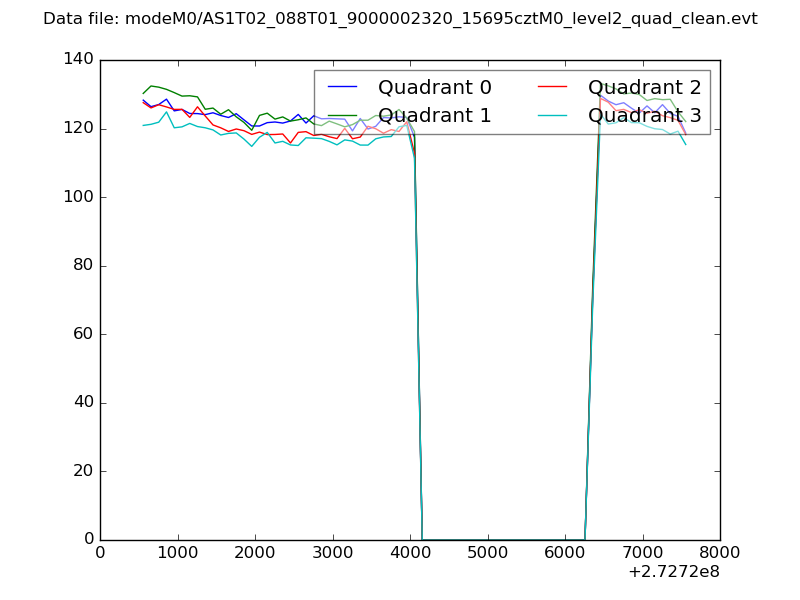

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

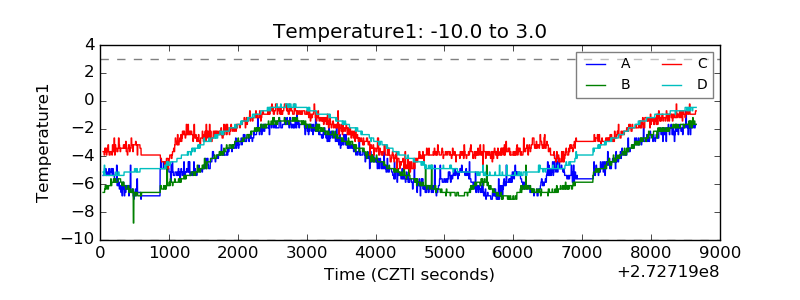

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

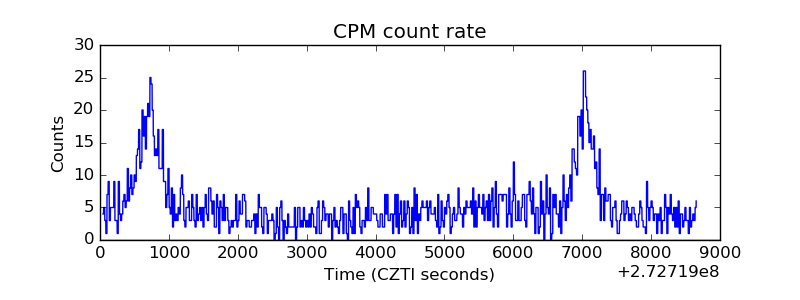

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

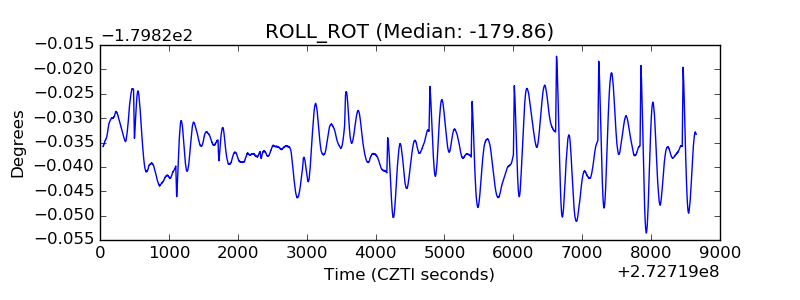

| _ROLL_ROT |  |
| _Roll_DEC |  |

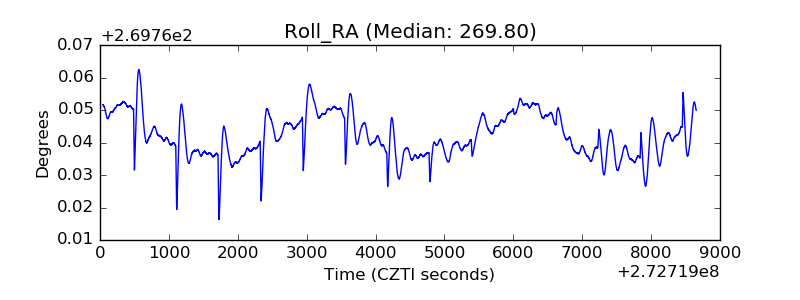

| _Roll_RA |  |
| Veto Counter |  |
