| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_088T01_9000002320_15698cztM0_level2.evt | modeM0/AS1T02_088T01_9000002320_15698cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,227,084,480 | 225,489,600 |
| Size | 1.1 GB | 215.0 MB |
| Events in quadrant A | 8,518,772 | 1,420,158 |
| Events in quadrant B | 9,035,348 | 1,428,787 |
| Events in quadrant C | 8,766,999 | 1,381,066 |
| Events in quadrant D | 9,618,405 | 1,353,178 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37221 | 5 |
| B | 0 | 38503 | 4 |
| C | 0 | 37920 | 4 |
| D | 0 | 40638 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18081 | 160 | 0.884907% |
| B | 18081 | 221 | 1.222278% |
| C | 18081 | 242 | 1.338422% |
| D | 18081 | 166 | 0.918091% |

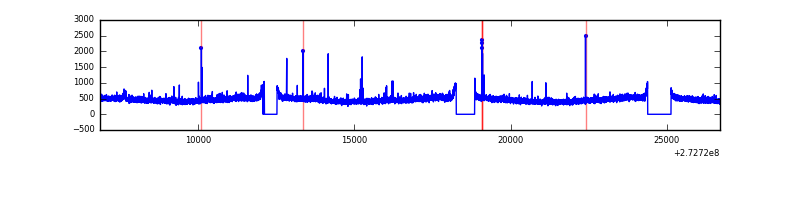

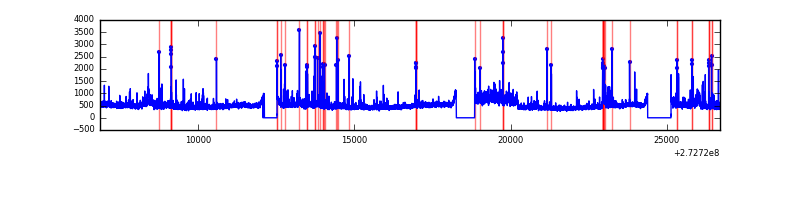

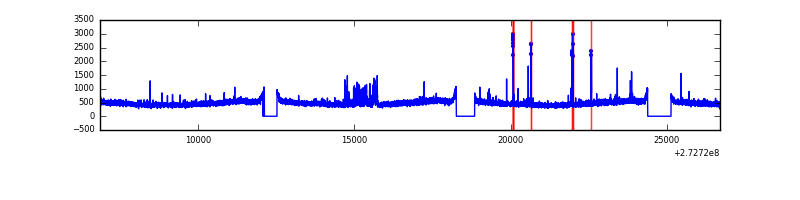

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19842 | 18086 | 6 | 6 | 0.03% | 0.03% |  |
| B | 19842 | 18086 | 44 | 44 | 0.22% | 0.24% |  |
| C | 19842 | 18086 | 19 | 19 | 0.10% | 0.11% |  |
| D | 19842 | 18086 | 55 | 55 | 0.28% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 122625 | 274.5 | 2159 | 2109 | 439.0 |
| A | 13 | 248 | 62437 | 137.41 | 2159 | 2109 | 439.0 |
| A | 0 | 226 | 19268 | 39.08 | 2159 | 2109 | 439.0 |
| B | 5 | 236 | 115187 | 273.84 | 2157 | 2103 | 413.0 |
| B | 4 | 216 | 109076 | 259.04 | 2157 | 2103 | 413.0 |
| B | 4 | 48 | 88883 | 210.14 | 2157 | 2103 | 413.0 |
| C | 14 | 238 | 317964 | 652.94 | 2063 | 2075 | 483.8 |
| C | 7 | 221 | 221942 | 454.46 | 2063 | 2075 | 483.8 |
| C | 9 | 54 | 83878 | 169.09 | 2063 | 2075 | 483.8 |
| D | 1 | 52 | 1145760 | 2244.72 | 2093 | 2038 | 509.5 |
| D | 12 | 110 | 189372 | 367.67 | 2093 | 2038 | 509.5 |
| D | 10 | 70 | 150962 | 292.29 | 2093 | 2038 | 509.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

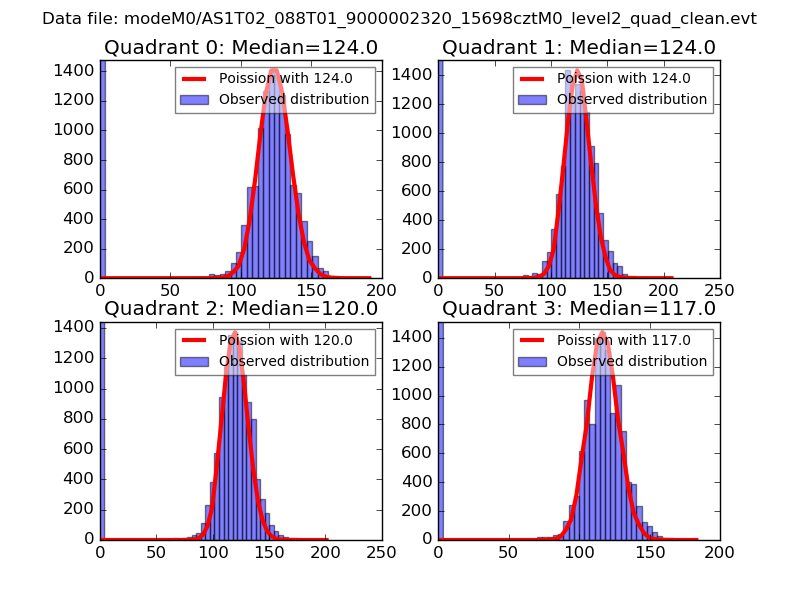

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

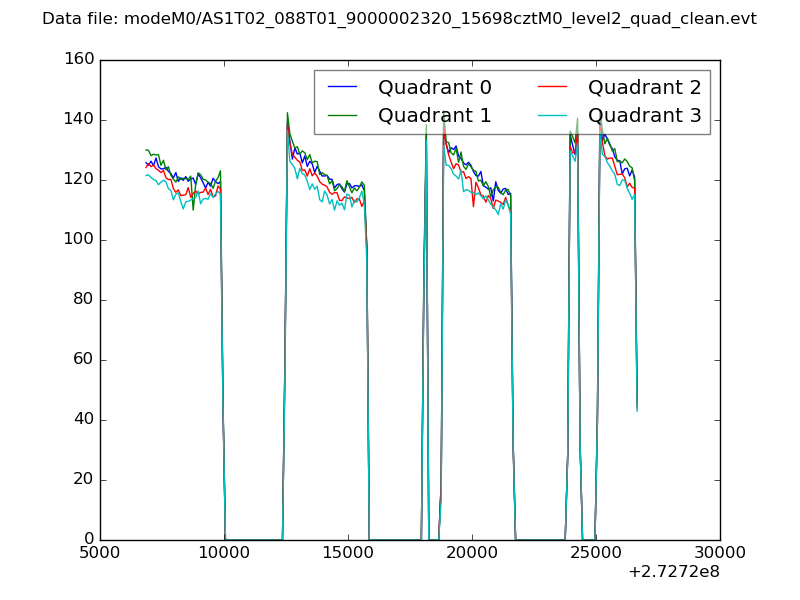

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

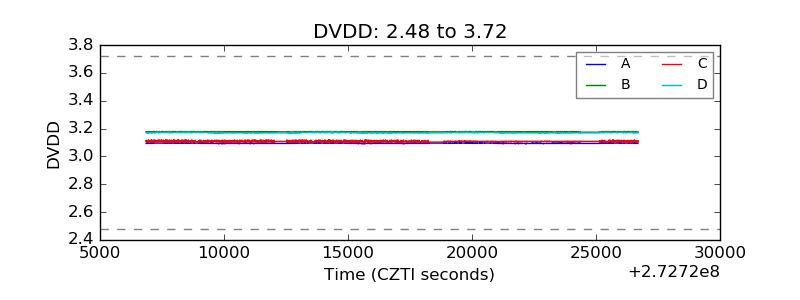

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

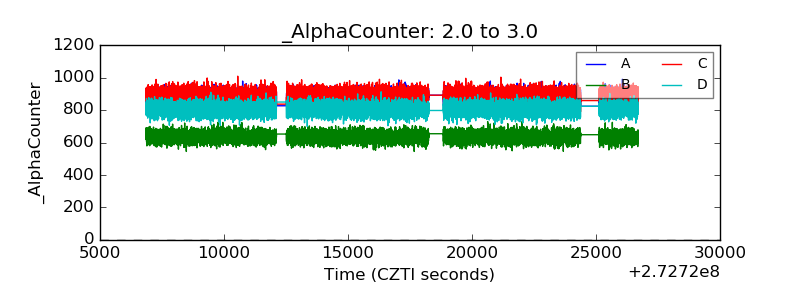

| Alpha Counter |  |

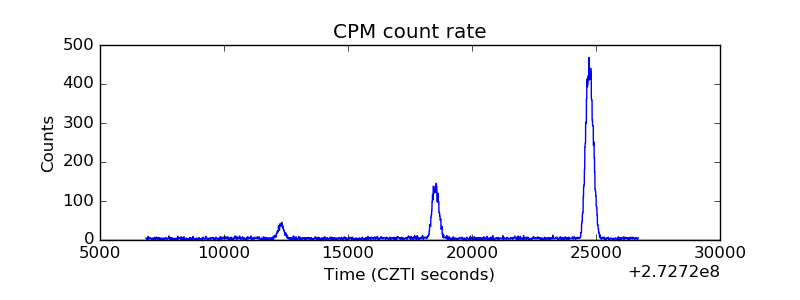

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
